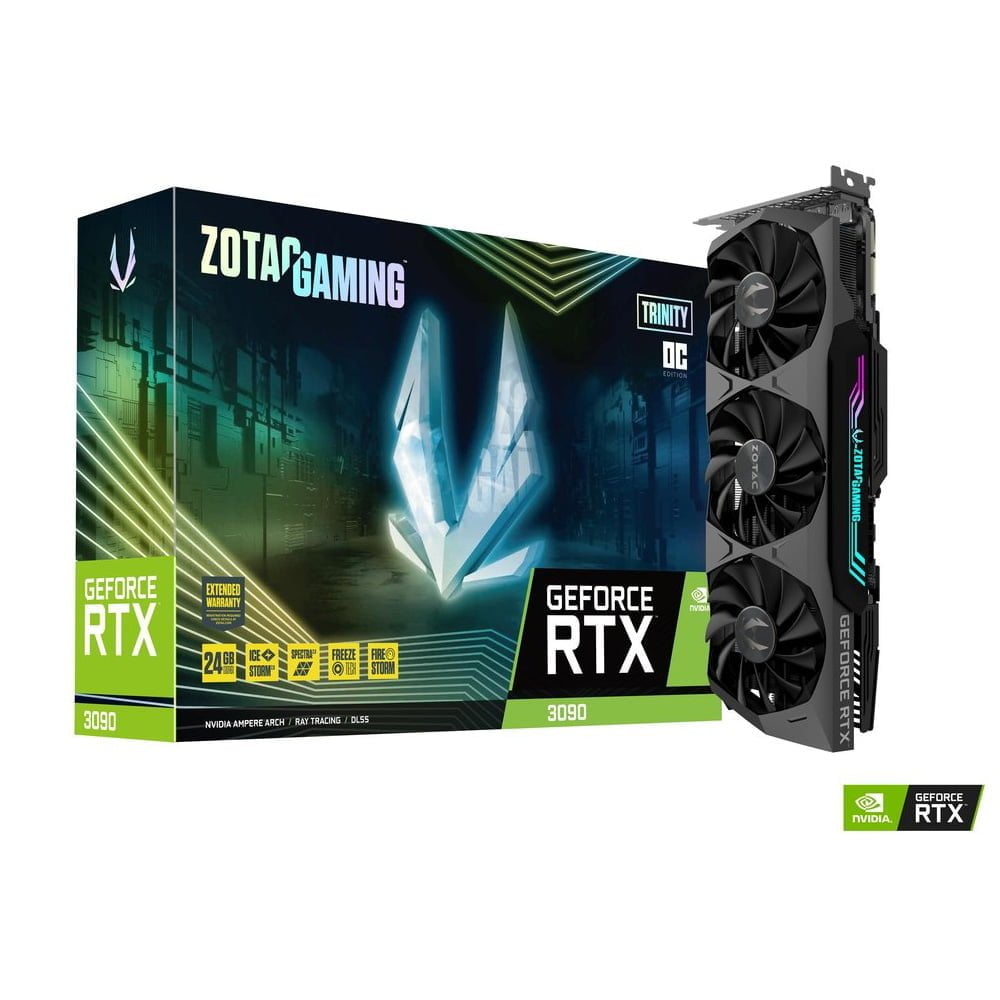

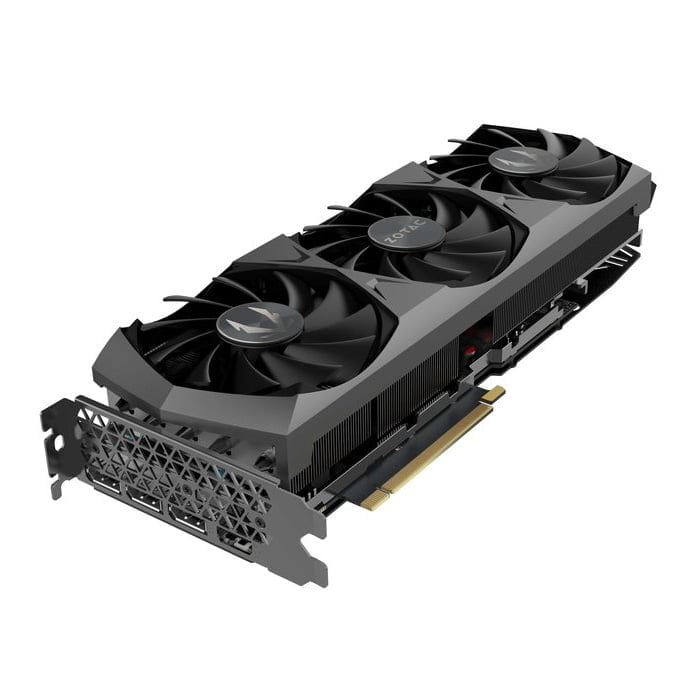

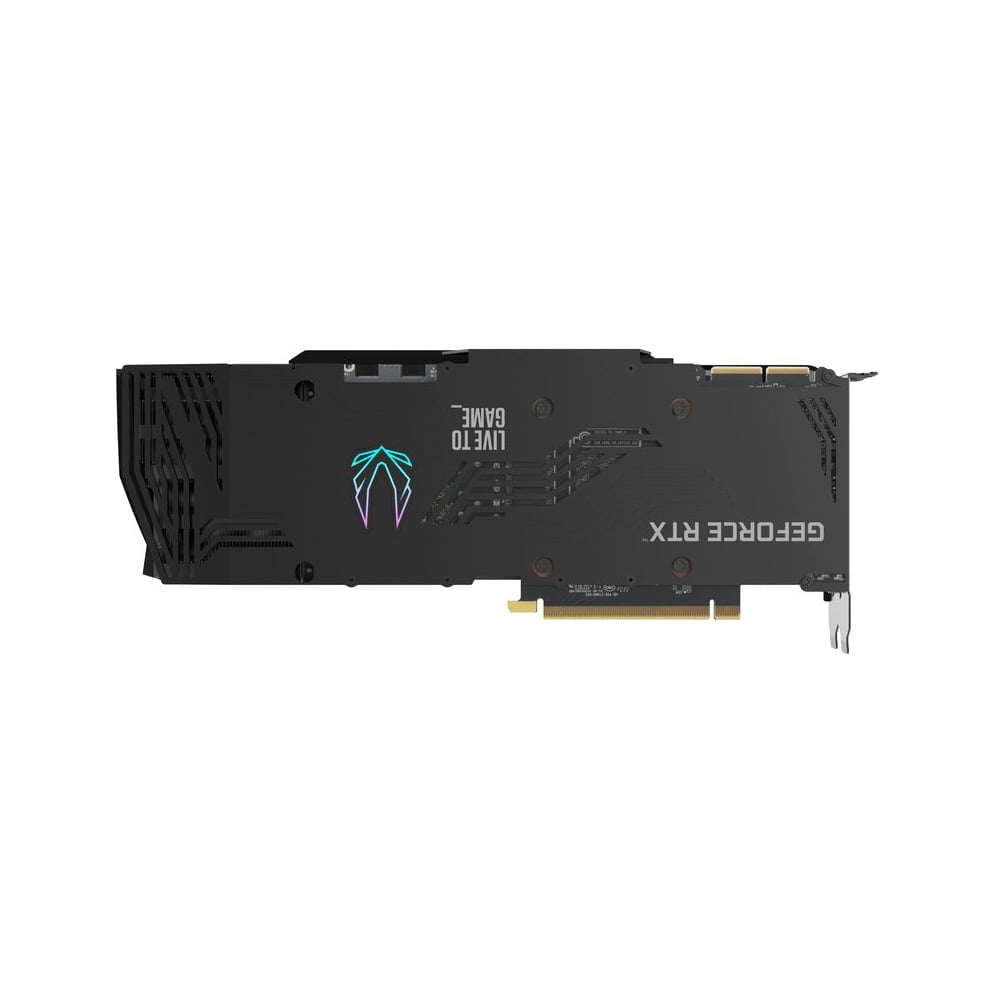

ZOTAC GAMING GeForce RTX 3090 Trinity OC
SKU: GFXRETAILNGRTX3090ZOTACTRINITYOC
ZOTAC GAMING GeForce RTX™ 3090 Trinity OC built upon the NVIDIA Ampere architecture and featuring 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, 10,494 CUDA Cores and high-speed GDDR6X memory. Accelerate your workflow or gaming experience to the highest levels with the revolutionary NVIDIA GeForce RTX™ 3090 graphics technology.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
| Manufacturer | |
|---|---|
| Manufacturer Part Number |
ZT-A30900D-10P |

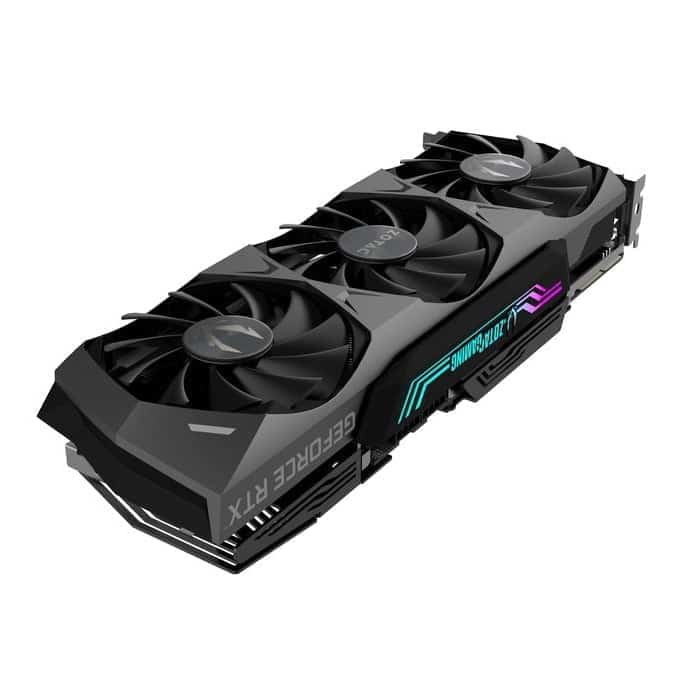

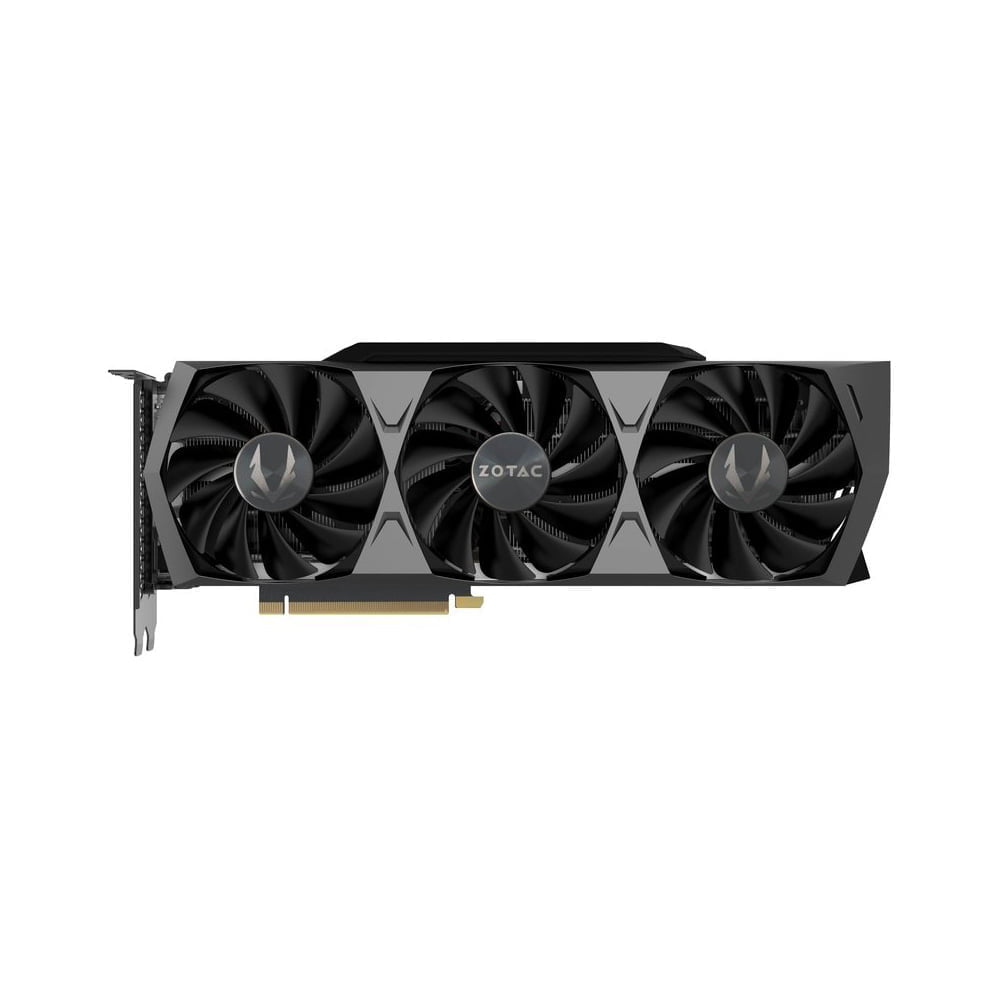

Cooling:
| # Included Fans |
3 |
|---|---|
| Cooling Notes |
IceStorm 2.0 |
Dimensions:
| GPU Slot Size | |
|---|---|
| Item Depth (CM) |
12.07 |
| Item Height (CM) |
5.8 |
| Item Width (CM) |
31.78 |

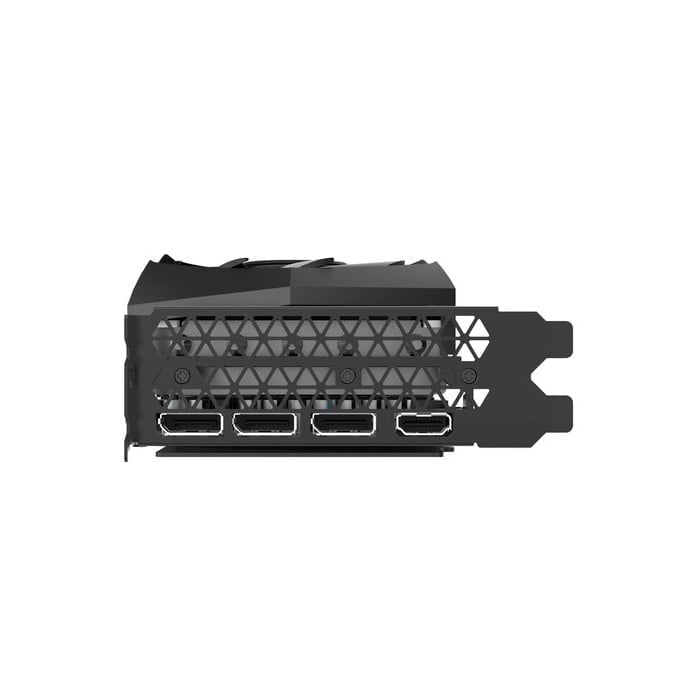

External IO:
| # DisplayPort |
3x 1.4a |
|---|---|
| # HDMI |
1x 2.1 |
| # Max Simultaneous Displays |
4 |
| Max Resolution |
7680×4320@60Hz |
GPU:
| # CUDA Cores |
10496 |
|---|---|
| GPU Architecture |
Memory:
| Memory Capacity (GB) |
24 |
|---|---|
| Memory Clock (Gbps) |
19.5 |
| Memory Frequency (MHz) |
1710 |
| Memory Interface (bit) |
384 |
| Memory Type |
GDDR6X |
PCIe:
| # PCIe Lanes |
16 |
|---|---|
| PCIe Version |
4.0 |
Power:

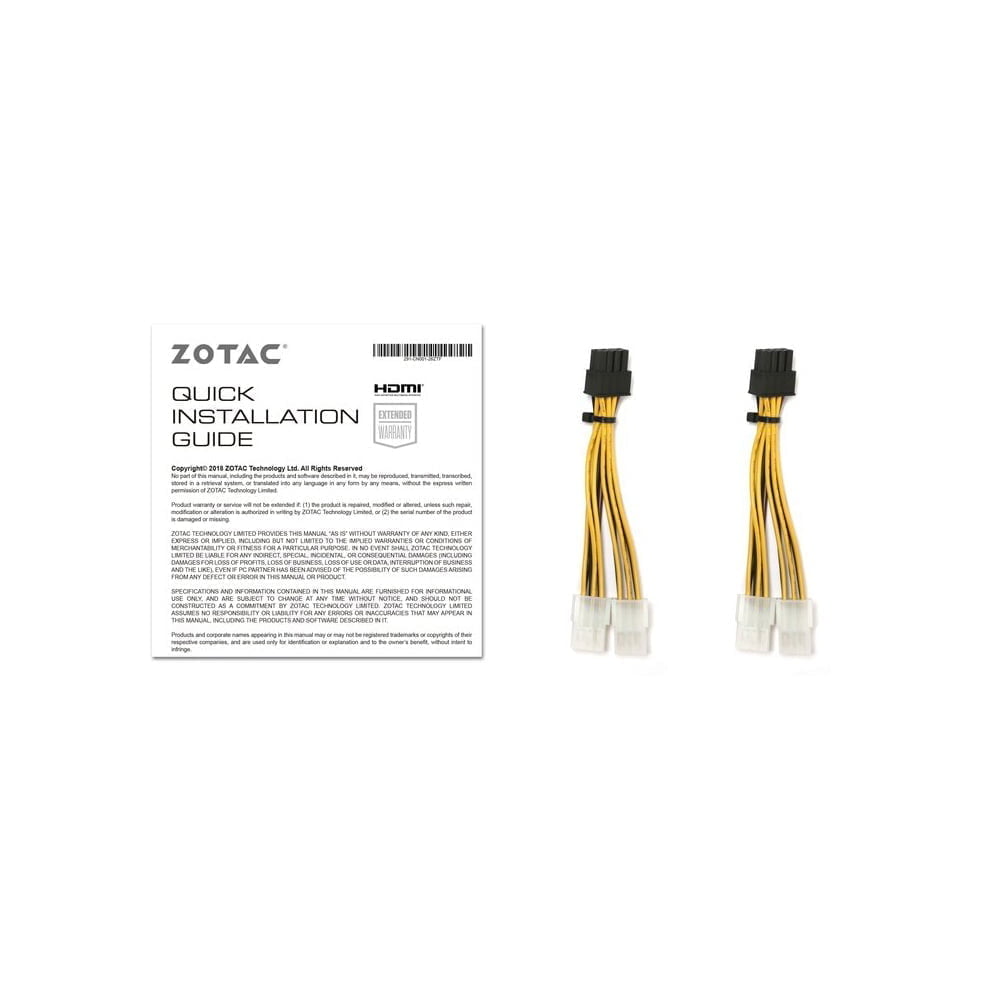

| # 8 Pin PCIe |
2 |
|---|---|
| Wattage |
350 |
Software:
| API Support |
Direct X 12 Ultimate, OpenGL 4.6 |
|---|---|
| Supported OS |
Linux, Windows 10 |
| Technology Support |
HDCP 2.3 Support |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
| Reg. Warranty Extension (M) |
24 |
| Warranty Notes |
Warranty extension to 5 years must be registered with the manufacturer within 30 days. |
* Specifications for older discontinued variants can be view by clicking here
