WS-X1180
SKU: WS-X1180
Our most versatile Professional Workstation to date. The WS-X1180 features Intel latest Core i7 and Core i9 CPU’s based on their Skylake-X architecture. On launch of this system the new Intel Core i9 7900X delivering 10 Cores and 20 Threads professionally Overclocked to deliver higher frequency performance. Later this year the WS-X1180 will be available with the Intel Core i9 7980XE featuring an impressive 18 Cores and 36 Threads. This CPU performance coupled with professional NVIDIA Quadro or AMD Radeon Pro graphics makes the WS-X1180 an ideal choice for both 3D Modelling or Rendering workflows.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
39.9 |
|---|---|
| Item Height (CM) |
44 |
| Item Weight (Kg) |
18-22 |
| Item Width (CM) |
21 |

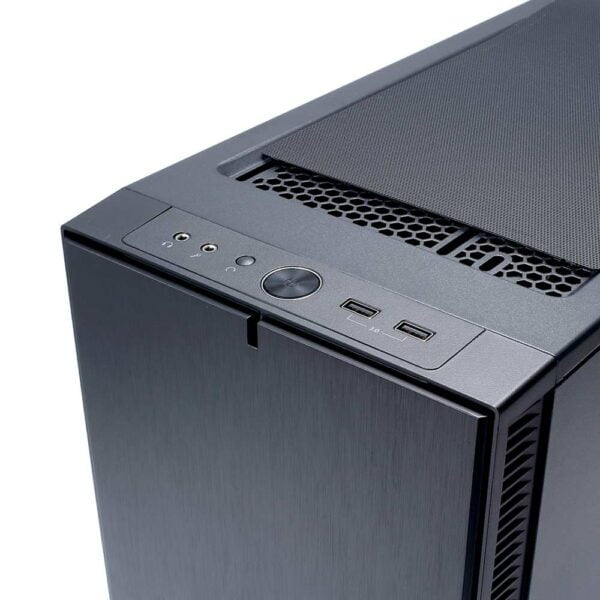

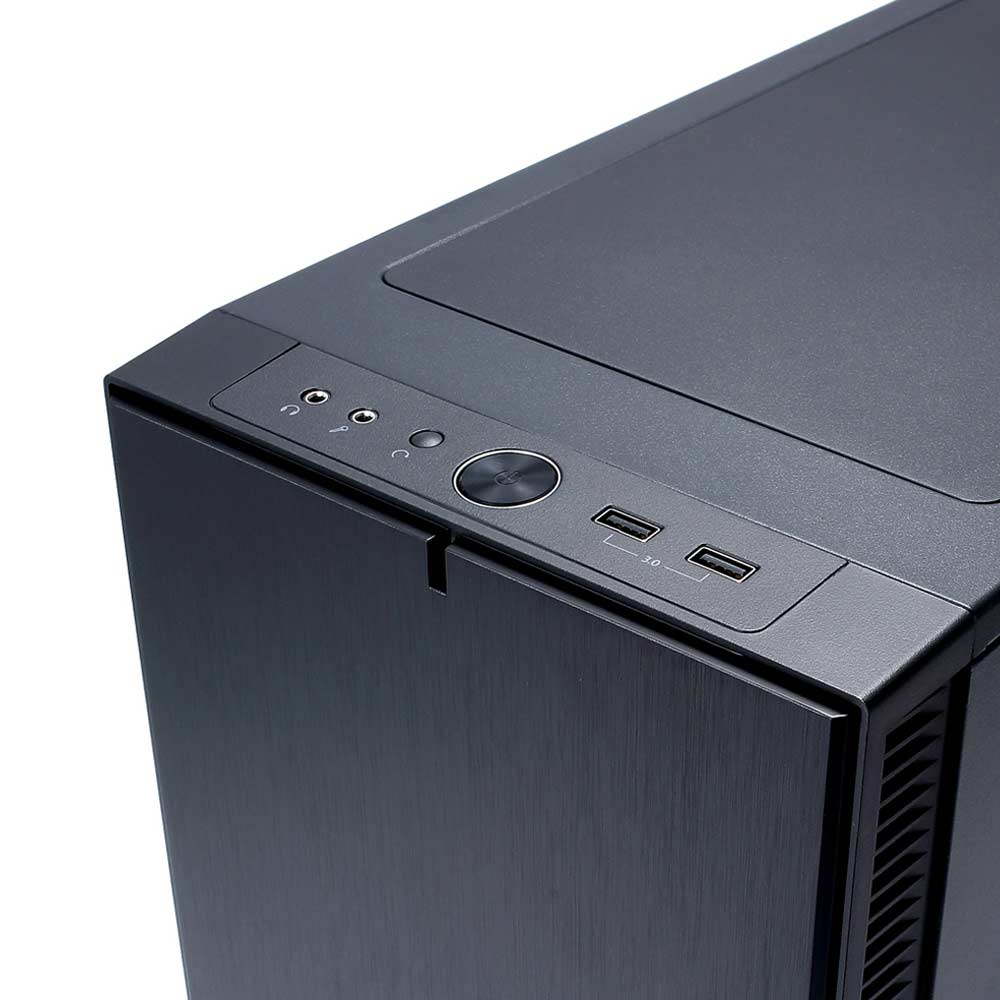

Front IO:
| # Front USB 3.2 Gen 1 Type-A |
2 |
|---|
Internal IO:
| # M.2 NVMe PCIe 3.0 x4 |
1 |
|---|---|
| # M.2 NVMe PCie 3.0 x4 / SATA |
1 |
| # SATA3 (6Gbps) Ports |
8 |
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
256 |
| Max. Memory Channels |
4 |
| Memory Type |
Non-ECC UDIMM |
PCIe:
| PCIe Configuration |
PCIe 3.0 x16: 2 (runs at x16, x16/x8) |
|---|
Processor:
| Processor Chipset |
Intel X299 |
|---|---|
| Processor Generation |
Intel Core-X 9th Gen. |
| Socket |
2066 |
Rear IO:
| # Rear 1Gbps RJ45 Ports |
1 |
|---|---|
| # Rear USB 2.0 Type-A |
2 |
| # Rear USB 3.2 Gen 1 Type-A |
4 |
| # Rear USB 3.2 Gen 2 Type-A |
1 |
| # Rear USB 3.2 Gen 2 Type-C |
1 |
Storage Bays:
| # Dedicated 2.5Inch Bays |
3 |
|---|---|
| # Universal 3.5/2.5Inch Bays |
2 |
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
