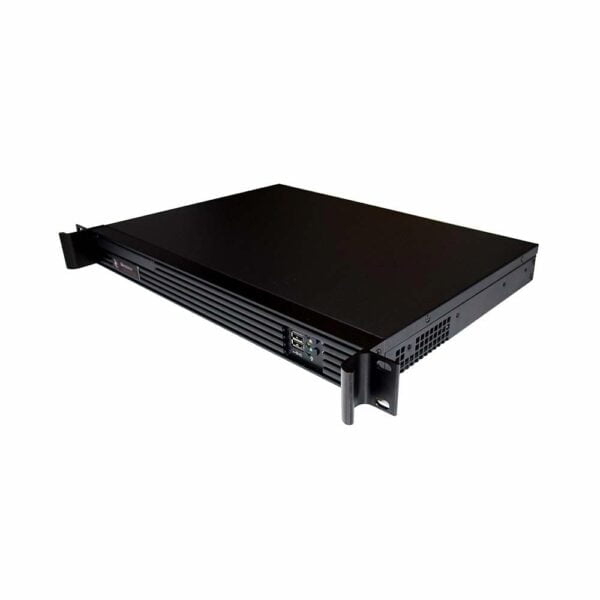

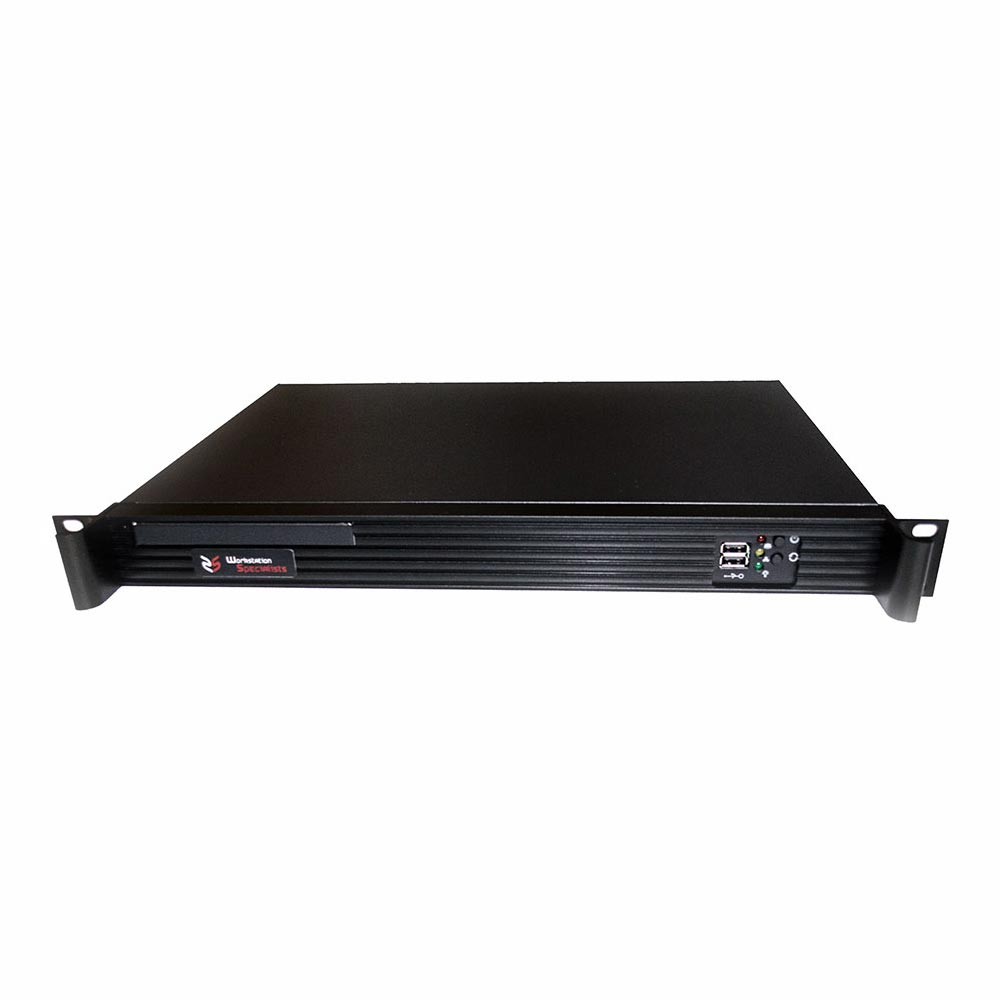

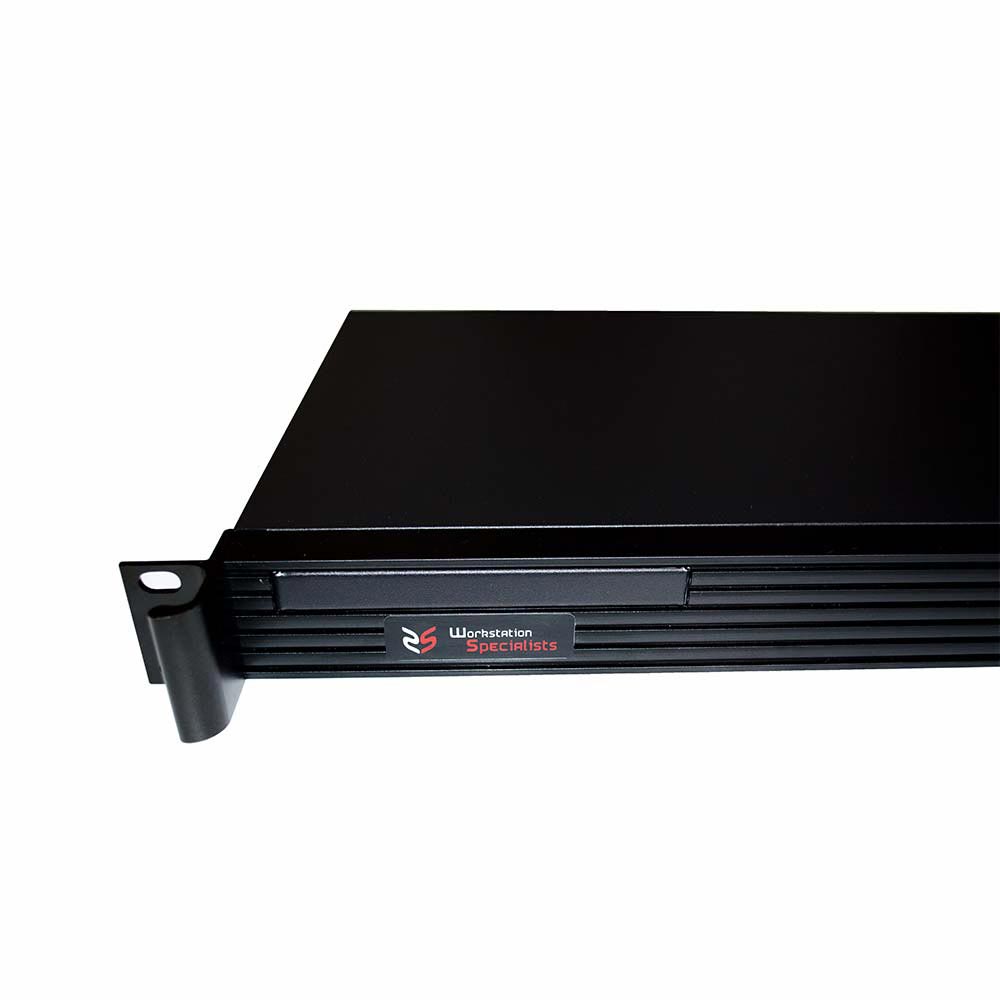

WS-R1180-U1-G1 1U Rackmount Graphics Workstation

Quick Links: ReviewsSpecifications

The WS-R1180-U1-G1 is a highly compact, cost-effective and powerful management server, made from enterprise-class components that deliver the most resilient and stable server platforms available today. The system is ideally suited for running headless mission-critical business services that require 24/7 usage and maximum uptimes. Alternatively, install a dual width graphics card, and you have a solution perfectly suited to driving display walls for marketing purposes, multi-display CCTV systems or point of sales Kiosks.

Details & Specifications

Dimensions:

Item Depth (CM)

30

Item Height (CM)

4.45

Item Width (CM)

48.2

Front IO:

# Front USB 2.0 Type-A

2

Internal IO:

# Int USB 3.2 Gen1 Header

1

# M.2 NVMe PCie 3.0 x4 / SATA

1

Memory:

DDR Rev.

DDR4

Max. Memory Capacity (GB)

128

Max. Memory Channels

4

Memory Type

ECC UDIMM

PCIe:

PCIe Configuration

PCIe 3.0 x16: 1 (runs at x16)

Processor:

Processor Chipset

Intel C422

Processor Generation

Intel Xeon W 2nd Gen.

Socket

2066

Rear IO:

# Rear 1Gbps RJ45 Ports

2

Rear Remote Management LAN

1

Software:

Supported OS

Citrix Xenserver, Hyper-V Server 2016, Red Hat, SUSE, Ubuntu, VMWare Workstation, Windows 10

Storage Bays:

# Universal 3.5/2.5Inch Bays

1

Slim Optical Drive

Tray

Warranty:

Warranty Duration

36 Months

Warranty Type

Return To Base
Next Business Day Engineer Response
