WS-M175G
SKU: WS-M175G

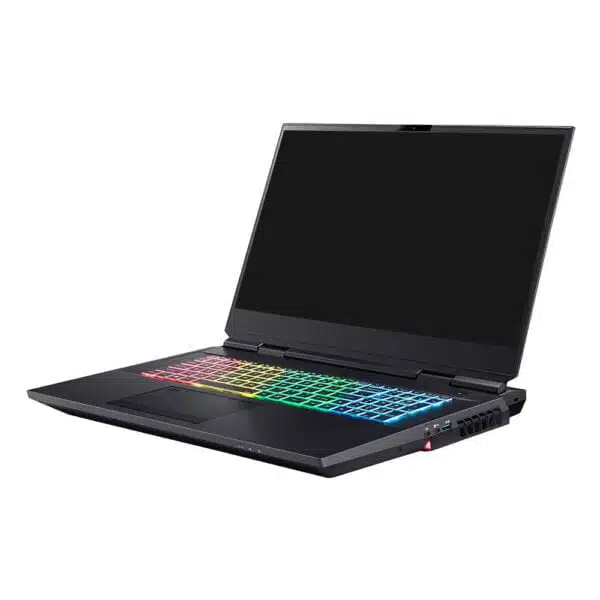

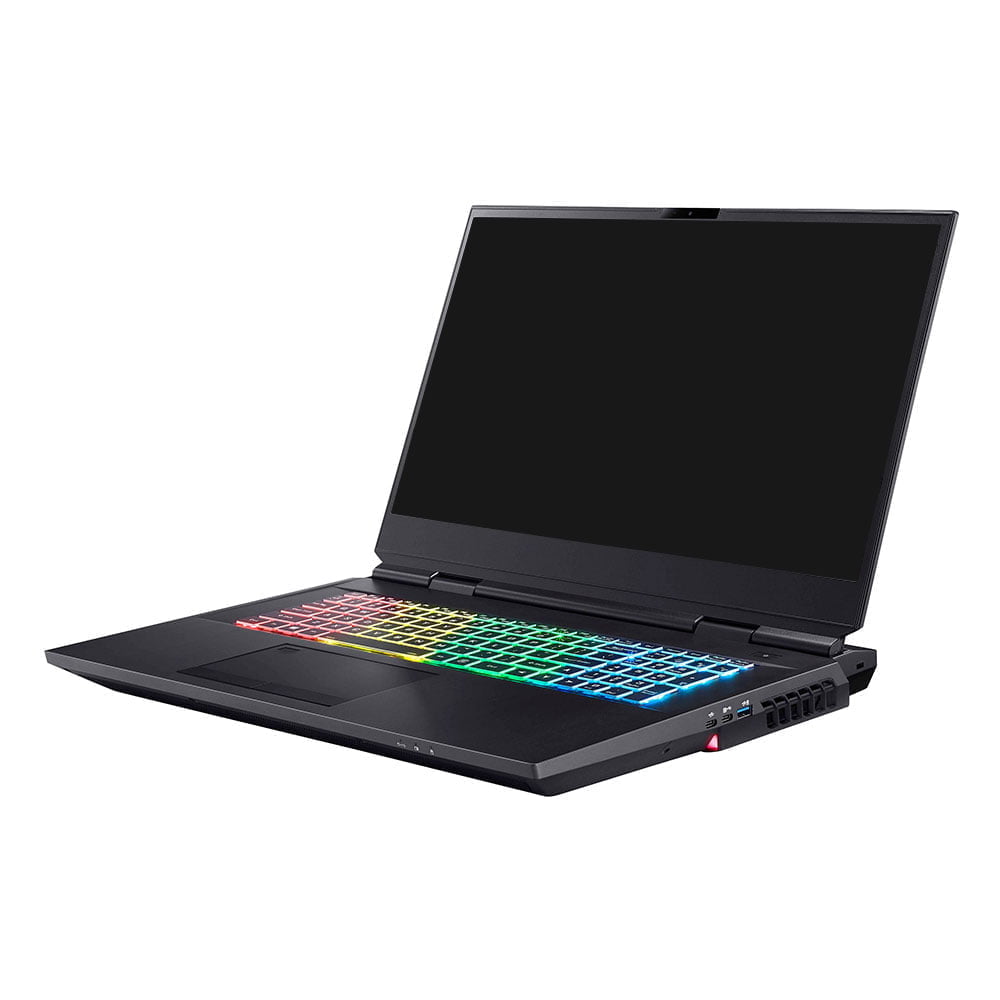

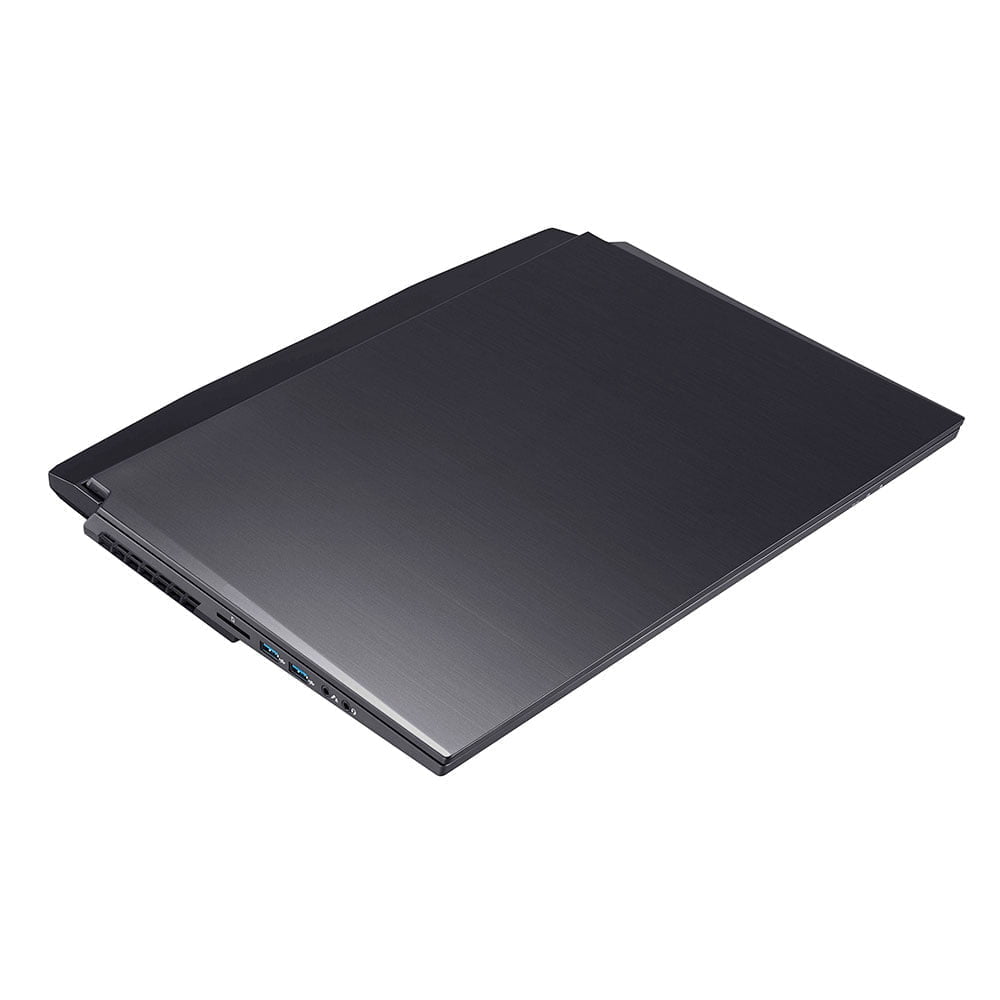

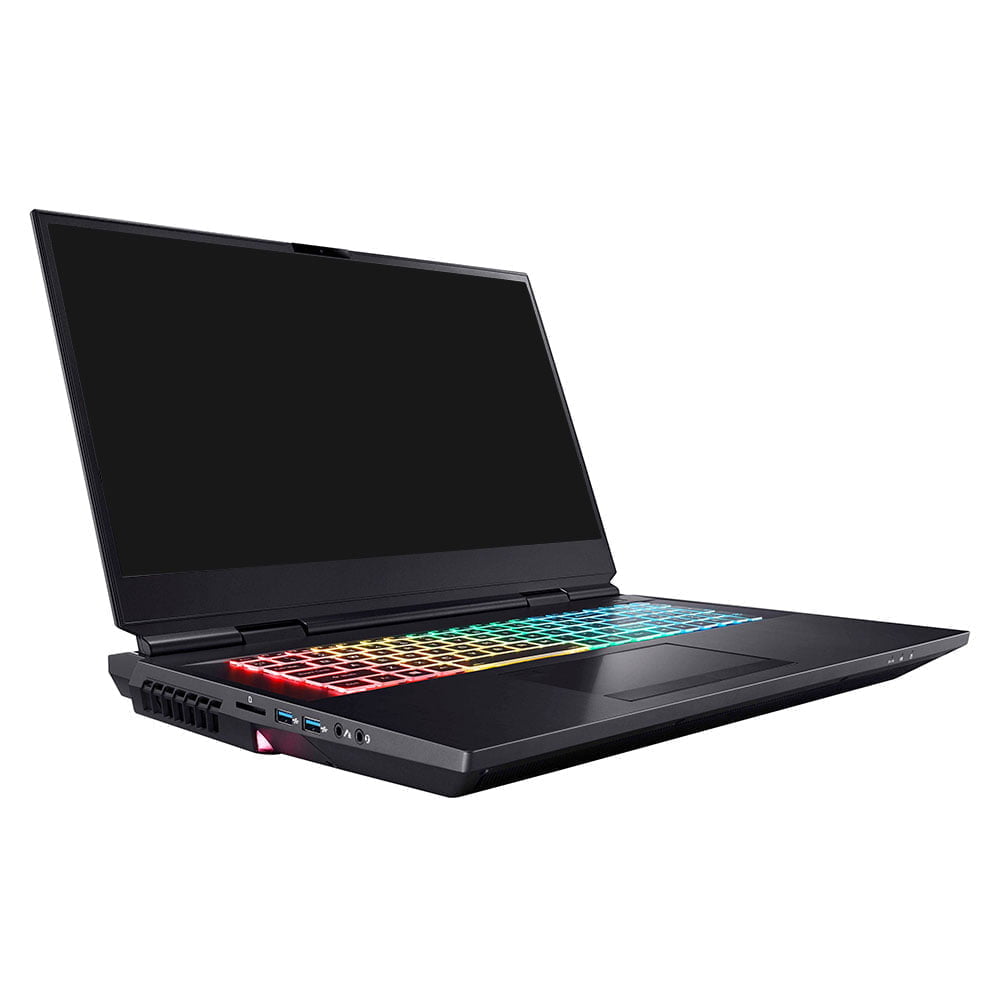

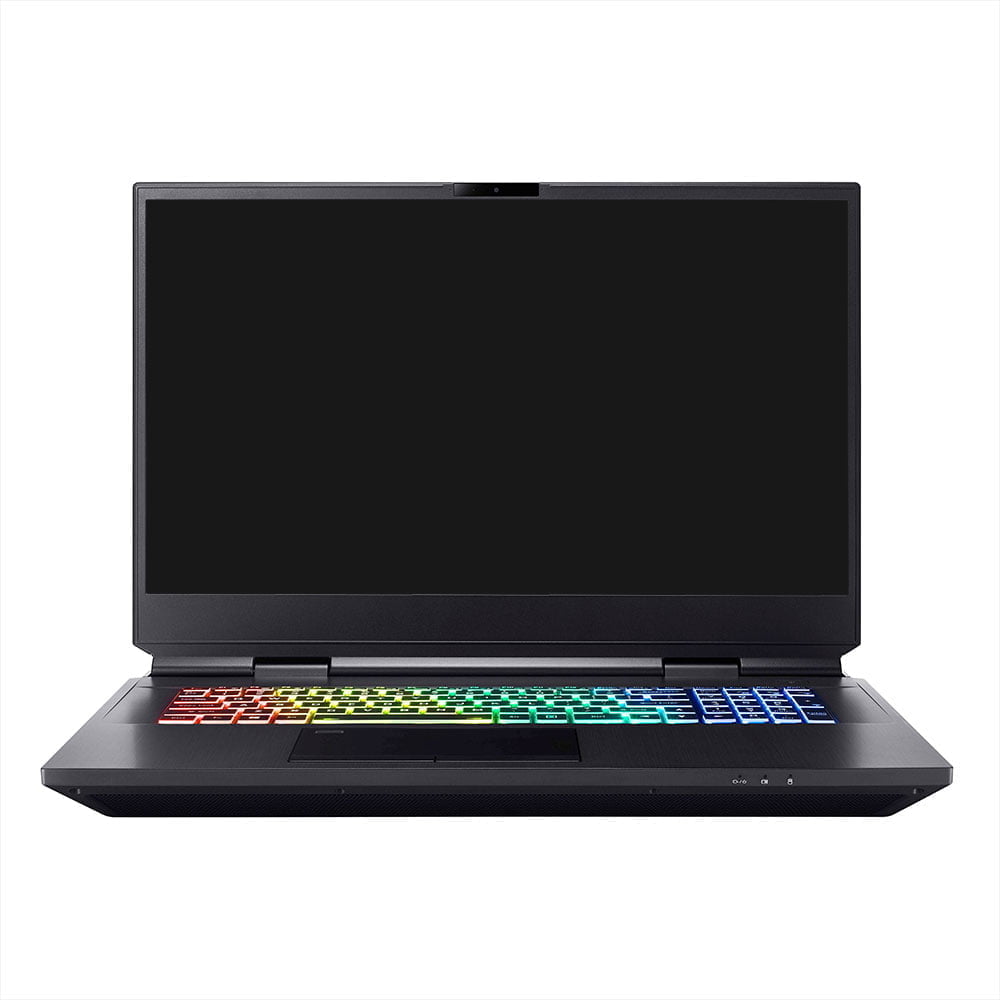

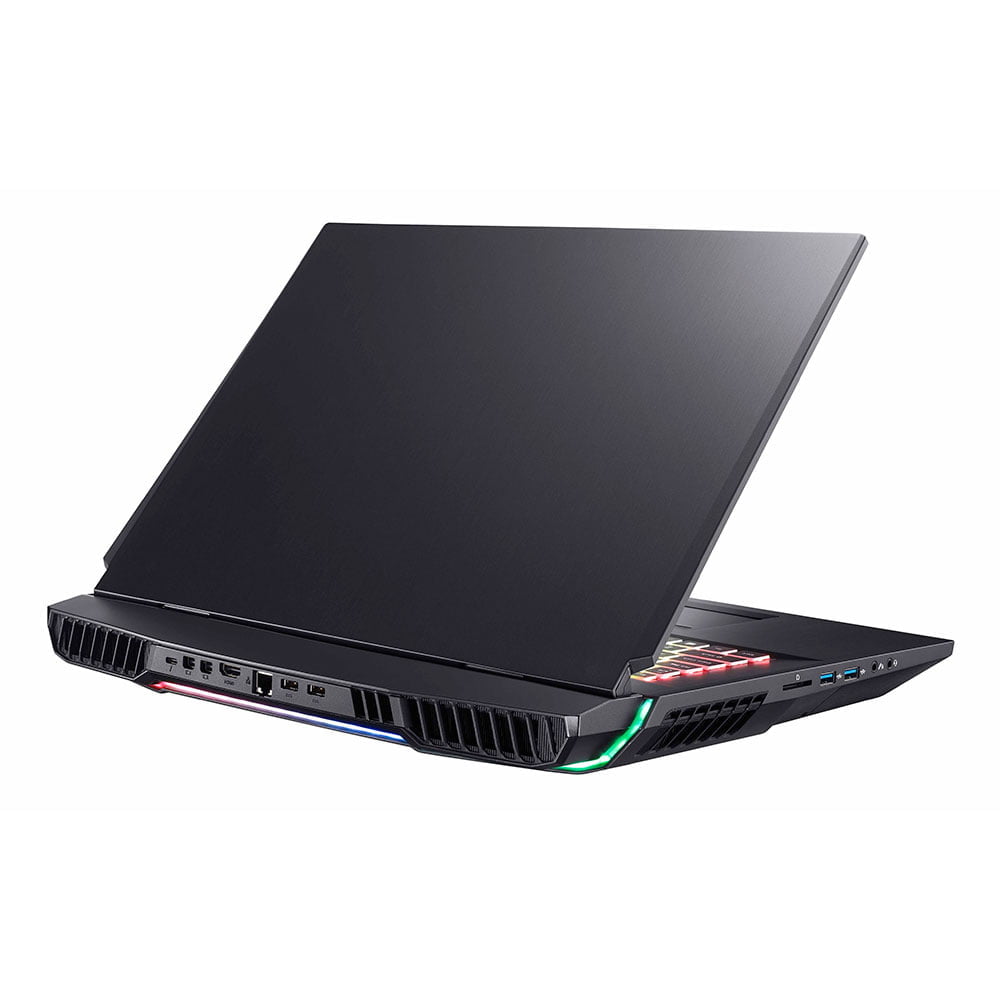

The WS-M175G brings the capabilities and performance of a desktop Workstation to a mobile platform. This Mobile Workstation solution has no performance compromises for mobility containing a full desktop 10th generation Intel Core CPU and the latest NVIDIA GeForce RTX graphics. By integrating a high-speed M.2 NVMe SSD and up to 128GB of system memory, the WS-M175G becomes one the most powerful Mobile Workstation solutions in the world.
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
31.9 |
|---|---|
| Item Height (CM) |
4.4 |
| Item Weight (Kg) |
3.8 |
| Item Width (CM) |
39.9 |
External IO:
| # Side USB 3.2 2x2 Type-C |
1 |
|---|---|
| # Side USB 3.2 Gen 2 Type-A |
3 |
| # Side USB 3.2 Gen 2 Type-C |
1 |
Internal IO:
| # M.2 NVMe PCIe 3.0 x4 |
3 |
|---|---|
| # M.2 SATA |
1 |
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
128 |
| Max. Memory Channels |
4 |
| Memory Type |
Non-ECC UDIMM |
Other:
| Additional Information |
Area Fingerprint Reader |
|---|

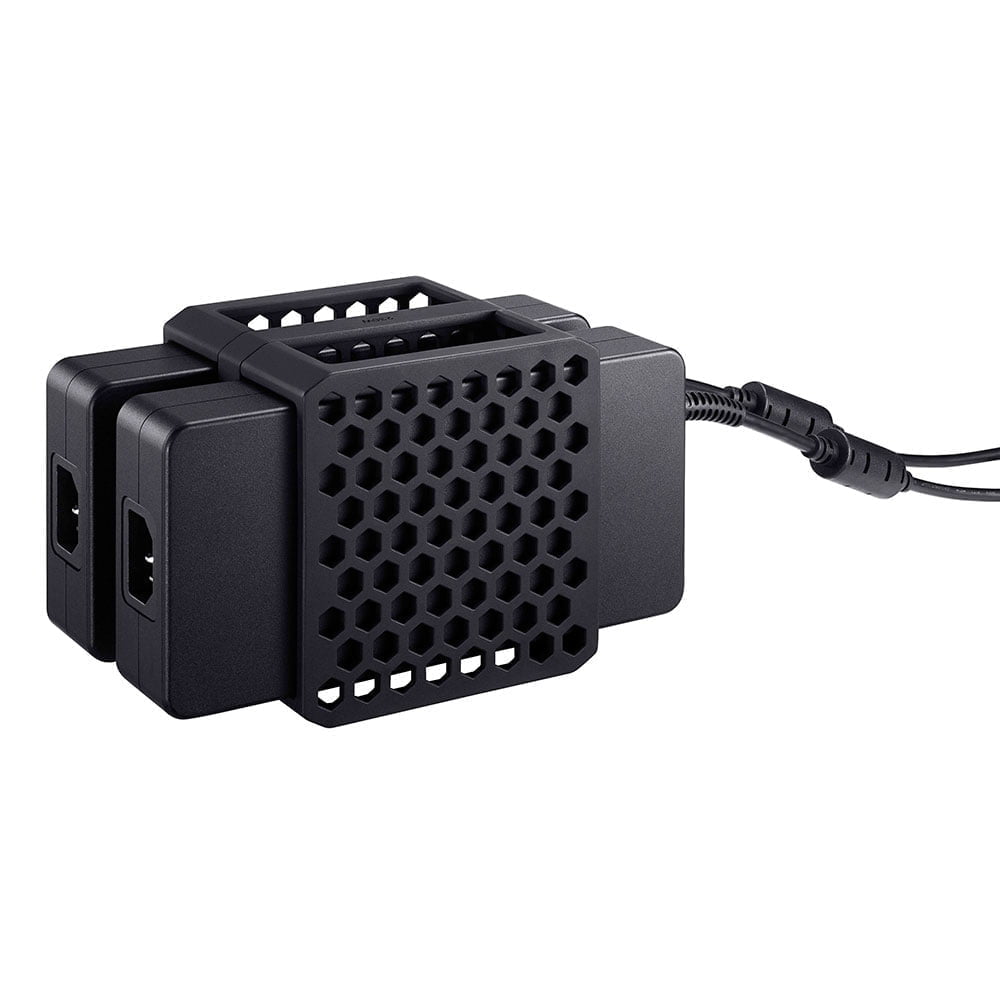

Power:
| # PSU |
2 |
|---|---|
| Battery |
8 Cell Lithium-Ion 97WH |
| Wattage |
280 |
Processor:
| Processor Chipset |
Intel Z490. |
|---|---|
| Processor Generation |
Intel Core 10th Gen. |
| Socket |
1200 |

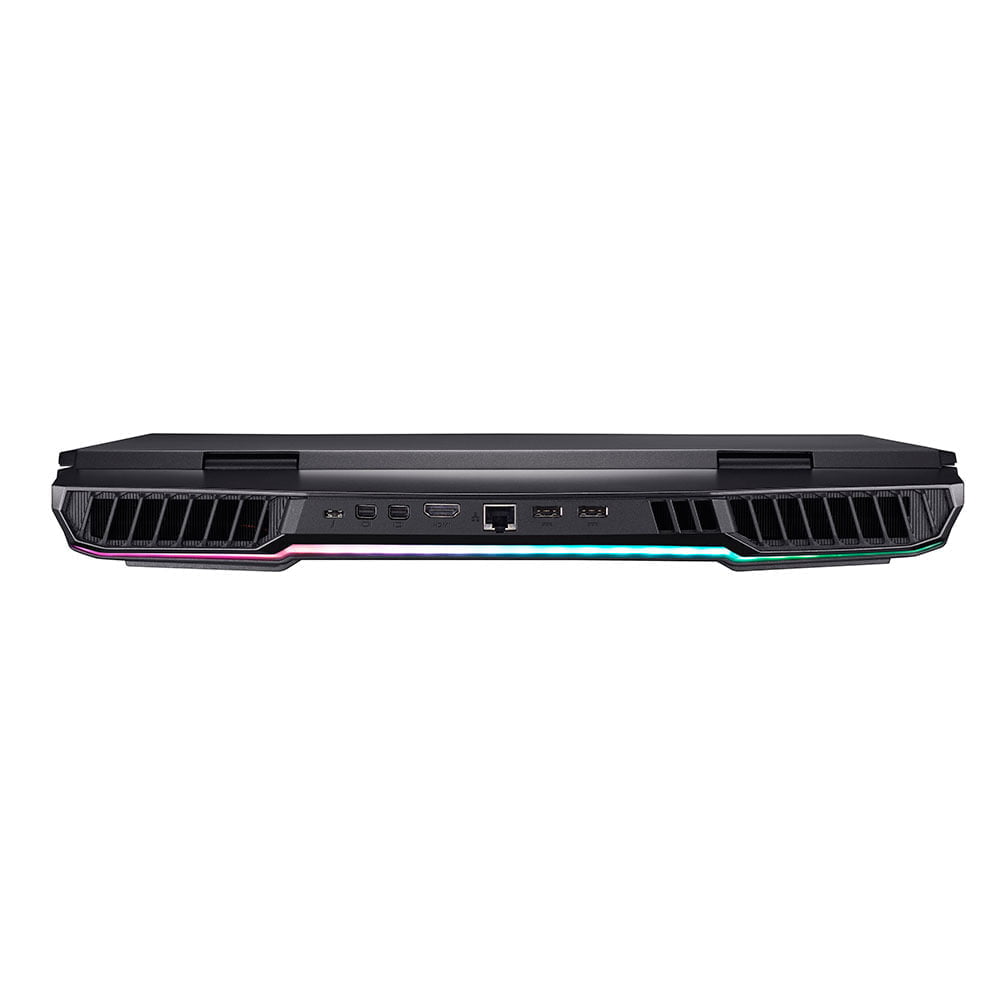

Rear IO:
| # Rear 2.5Gbps RJ45 Ports |
1 |
|---|
Screen:
| # HDMI |
1 |
|---|---|
| # Mini-DisplayPort |
2 |
| # Thunderbolt |
1 USB-C 3.2 Gen2 |
| Colour Gamut |
NTSC: 72% |
| Screen Native Resolution |
1920 x 1080 |
| Screen Refresh Rate (Hz) |
144 |
| Screen Size (inch) |
17.3 |
Software:
| Supported OS |
Linux, Windows 10 |
|---|
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
