WS-M Discovery
SKU: WS-MTGMxM-I10875H-N30

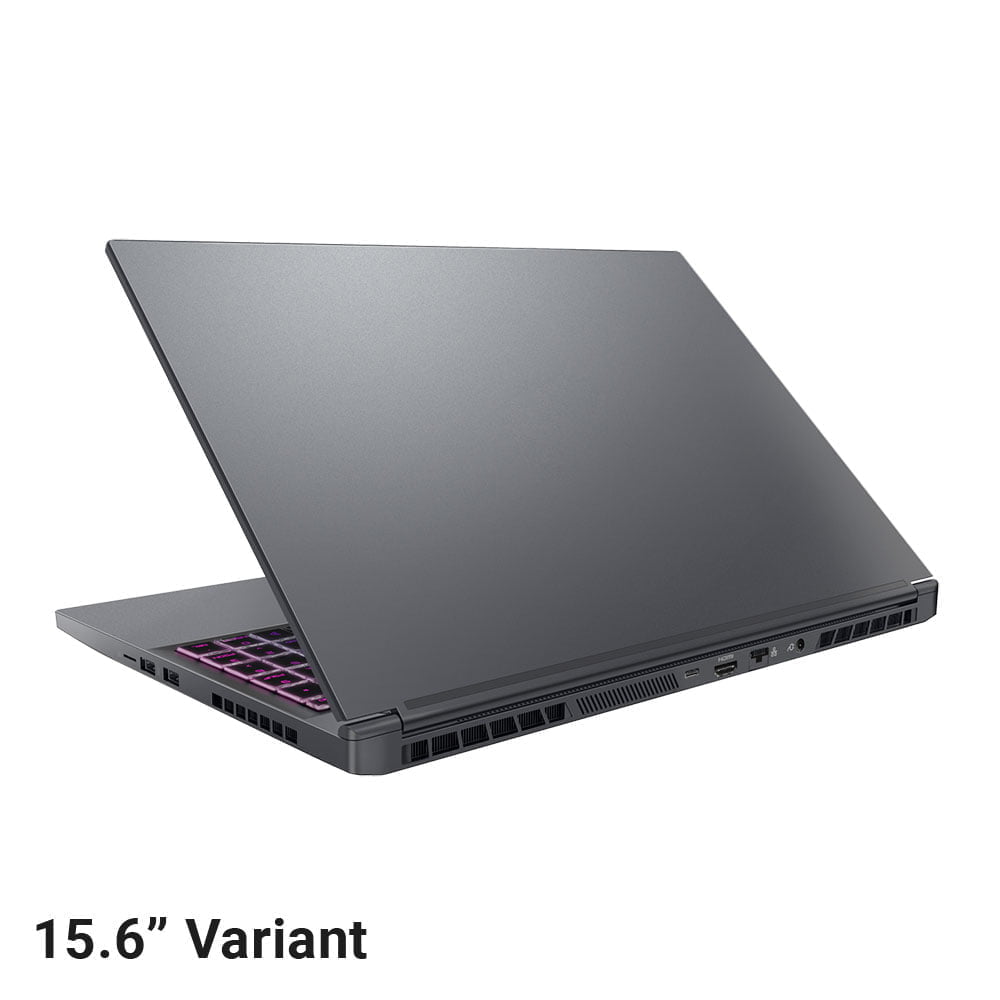

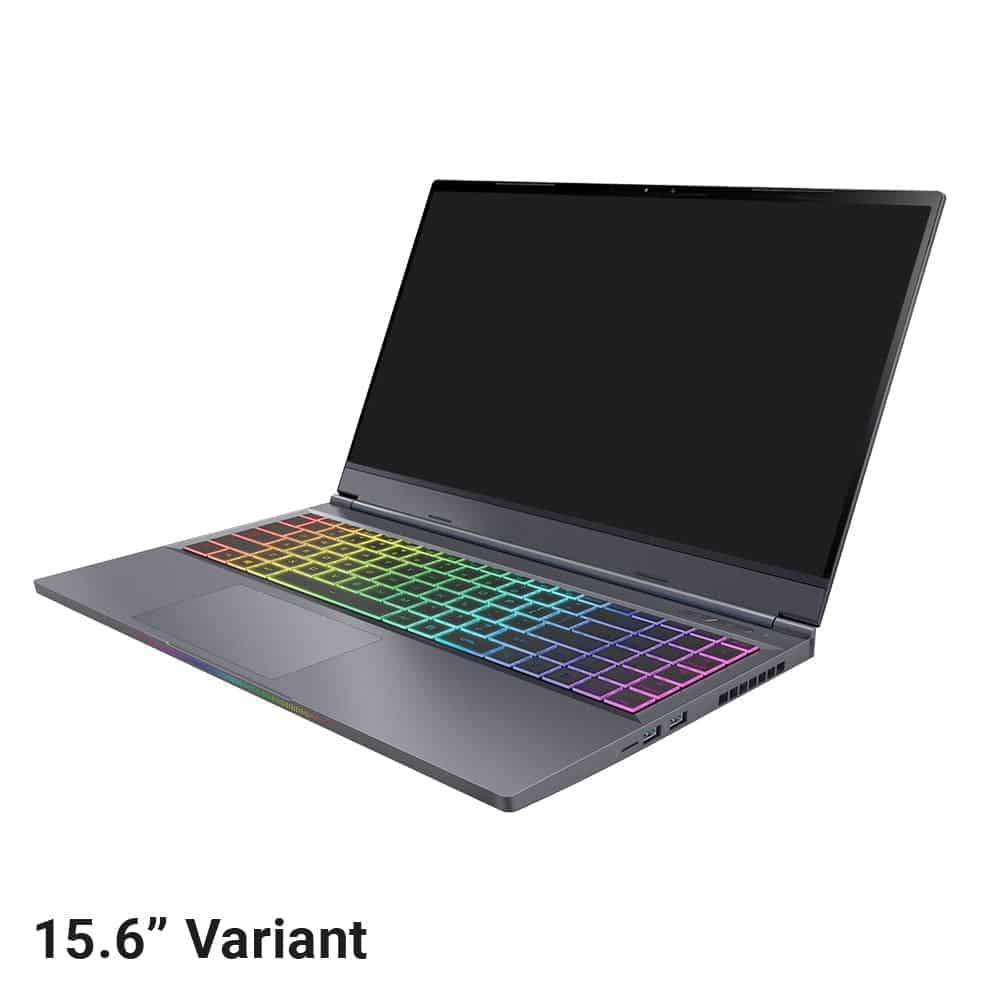

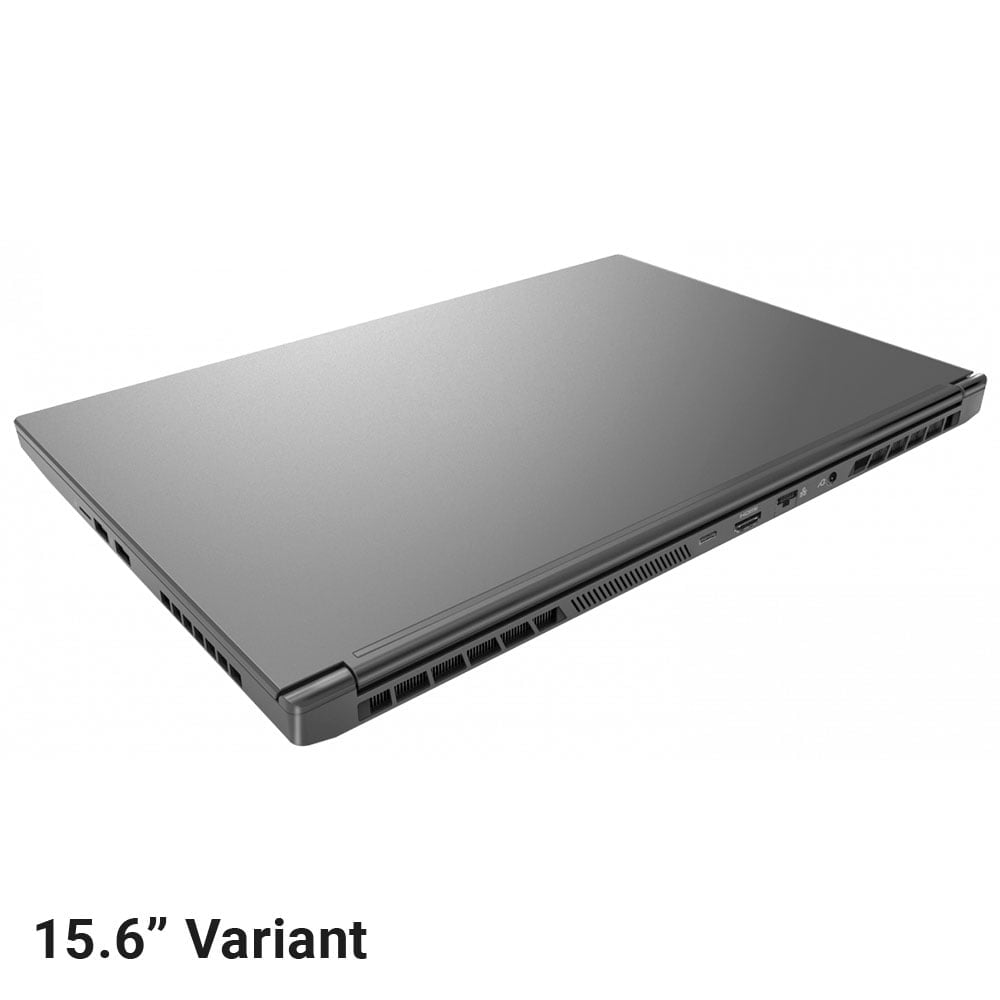

The WS-M Discovery is an extremely portable, powerful and lightweight Mobile Workstation, featuring an Intel Core i7-10875H 8 Core, 16 Thread CPU, the latest NVIDIA GeForce RTX 30 Series graphics, super-fast NVMe Storage and up to 64GB DDR4 memory. No matter how challenging your workflow, the WS-M Discovery has all the performance you need to keep working while on the move.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Weight (Kg) |
15.6": 1.7 |
|---|---|
| System Dimensions |
15.6": 35.55 x 23.67 x 1.97 cm (W x D x H) |

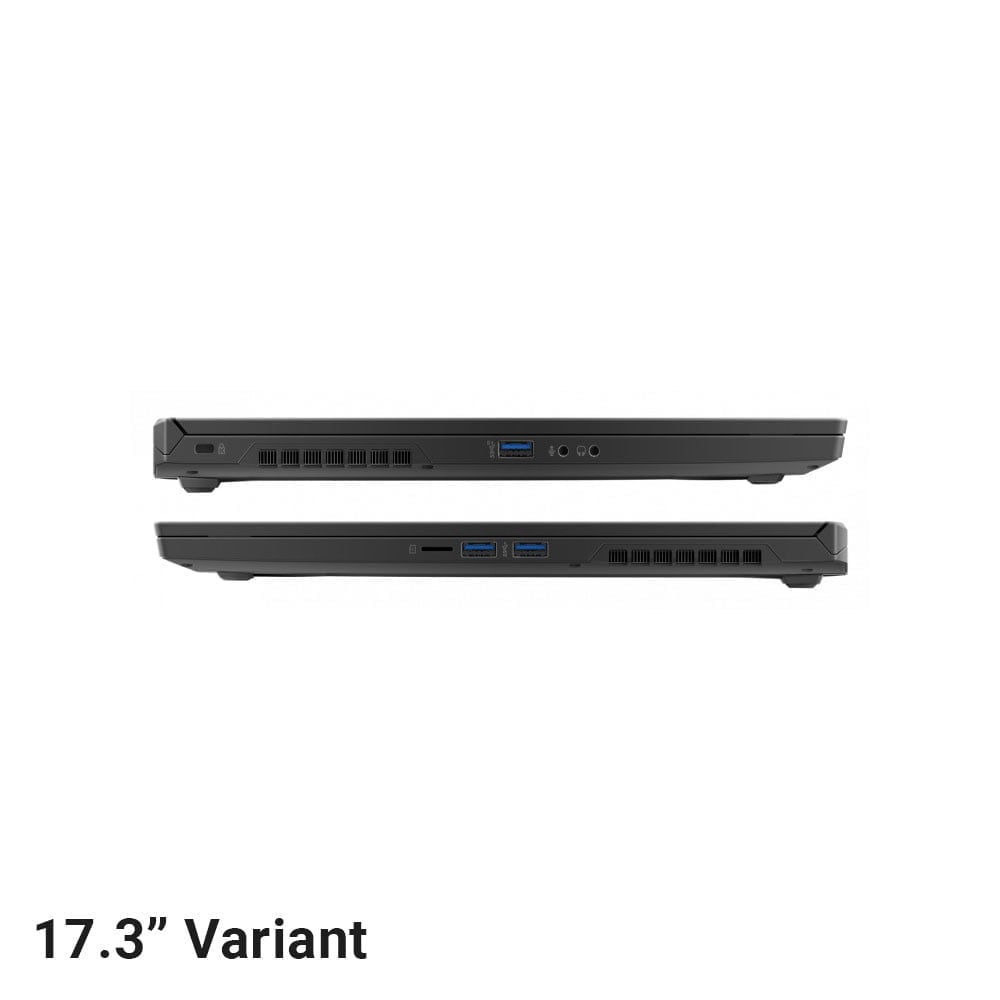

External IO:
| # Side USB 3.2 Gen 1 Type-A |
1 |
|---|---|
| # Side USB 3.2 Gen 2 Type-A |
1 |
| # Side USB 3.2 Gen 2 Type-C |
1 |
GPU:
| # CUDA Cores |
NVIDIA GeForce RTX 3060: 3840 |
|---|---|
| # RT Cores |
NVIDIA GeForce RTX 3060: 30 |
| # Tensor Cores |
NVIDIA GeForce RTX 3060: 120 |
| Integrated GPU Model |
NVIDIA GeForce RTX 3060 |
| Memory Interface (bit) |
NVIDIA GeForce RTX 3060: 120 |
Internal IO:
| # M.2 NVMe PCIe 3.0 x4 |
2 |
|---|
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
64 |
| Max. Memory Channels |
2 |
| Memory Type |
Non-ECC UDIMM |
Other:
| Additional Information |
1x 1.0 MP Webcam, 1x 3-in-1 Card Reader (SD/SDHC/SDXC), Keyboard: 4 zone RGB backlit keyboard, Trackpad: Touchpad Pointing Device with left/right click |
|---|---|
| Included Extras |
1 x Power Lead included with AC Adapter |
Power:
| Battery |
15.6": 4 cell Smart Lithium-Ion battery pack, 62WH |
|---|
Processor:
| # Cores |
8 |
|---|---|
| # Threads |
16 |
| Base Clock Speed (GHz) |
2.3 |
| Integrated CPU Model |
Intel Core i7 10875H Processor |
| Processor Generation |
Intel Core 10th Gen. |
| Turbo Clock Speed (GHz) |
5.1 |
Screen:
| # HDMI |
1 |
|---|---|
| # Max Simultaneous Displays |
3 |
| # USB-C (Display) |
1 DP 1.2 |
| Colour Gamut |
NTSC: SRGB 100% |
| Screen Native Resolution |
2560×1440 |
| Screen Refresh Rate (Hz) |
15.6": 166 |
| Screen Size (inch) |
15.6 |
Software:
| Supported OS |
Linux, Windows 10 |
|---|
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
