WS IC-Z6901 12th & 13th Gen Intel® Core™, DDR5 Memory, 1x GPU, 3x M.2, WiFi
SKU: WS IC-Z6901
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Dimensions:
| System Dimensions |
21 x 41.3 x 45.3 cm (W x D x H) |
|---|

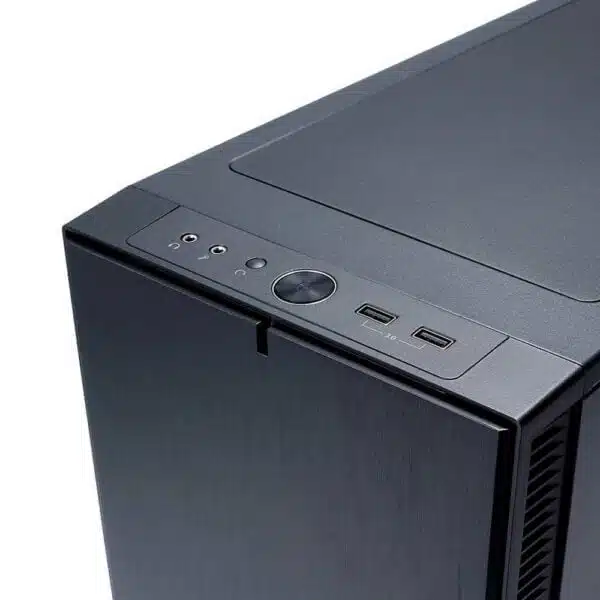

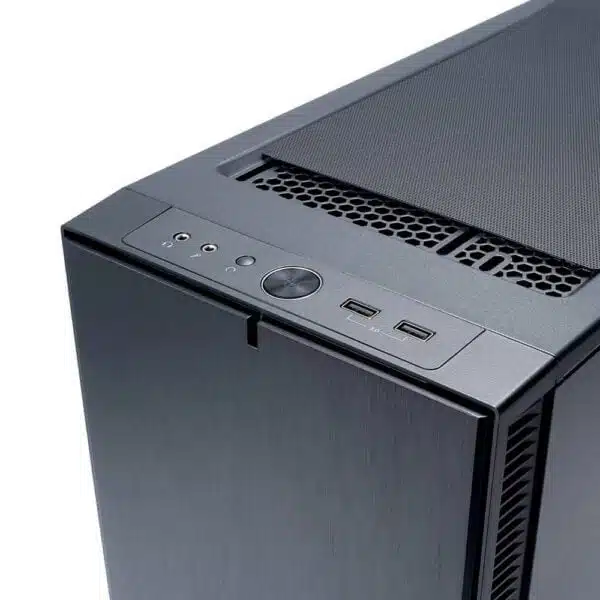

Front IO:
| # Front USB 3.2 Gen 1 Type-A |
2 |
|---|
Internal IO:
| # Int USB 2.0 Header |
2 |
|---|---|
| # M.2 NVMe PCIe 4.0 x4 |
2 |
| # M.2 NVMe PCIe 4.0 x4 / SATA |
1 |
| # SATA3 (6Gbps) Ports |
4 |
| # USB 3.2 Gen 1 connector |
1 |
| # USB 3.2 Gen 1 headers |
2 |
Memory:
| # Memory Slots |
4 |
|---|---|
| DDR Rev. |
DDR5 |
| Max. Memory Capacity (GB) |
128 |
| Max. Memory Channels |
2 |
| Memory Type |
Non-ECC UDIMM |
Network:
| Bluetooth Details |
Bluetooth v5.2 |
|---|---|
| WiFi Details |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
PCIe:
| PCIe Configuration |
1 x PCIe 5.0/4.0/3.0 x16 slot |
|---|
Processor:
| Max Turbo Frequency |
5.2 GHz |
|---|---|
| Max. # of Efficient-cores |
8 |
| Max. # of Performance-cores |
8 |
| Max. Total Cores |
16 |
| Max. Total Threads |
24 |
| Socket |
LGA1700 |
| Processor Chipset |
Z690 |
| Processor Generation |
12th & 13th Gen Intel® Core™ |
Rear IO:
| # Optical S/PDIF |
1 |
|---|---|
| # PS/2 port(s) |
1 |
| # Rear 2.5Gbps RJ45 Ports |
1 |
| # Rear 3.5mm Audio Jacks |
5 |
| # Rear USB 2.0 Type-A |
2 |
| # Rear USB 3.2 2x2 Type-C |
1 |
| # Rear USB 3.2 Gen 1 Type-A |
2 |
| # Rear USB 3.2 Gen 2 Type-A |
1 |
Software:
| Supported OS |
Linux, Windows® 11 |
|---|
Storage Bays:
| # Dedicated 2.5Inch Bays |
3 |
|---|---|
| # Universal 3.5/2.5Inch Bays |
2 |
Warranty:
| Warranty Duration |
36 |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
