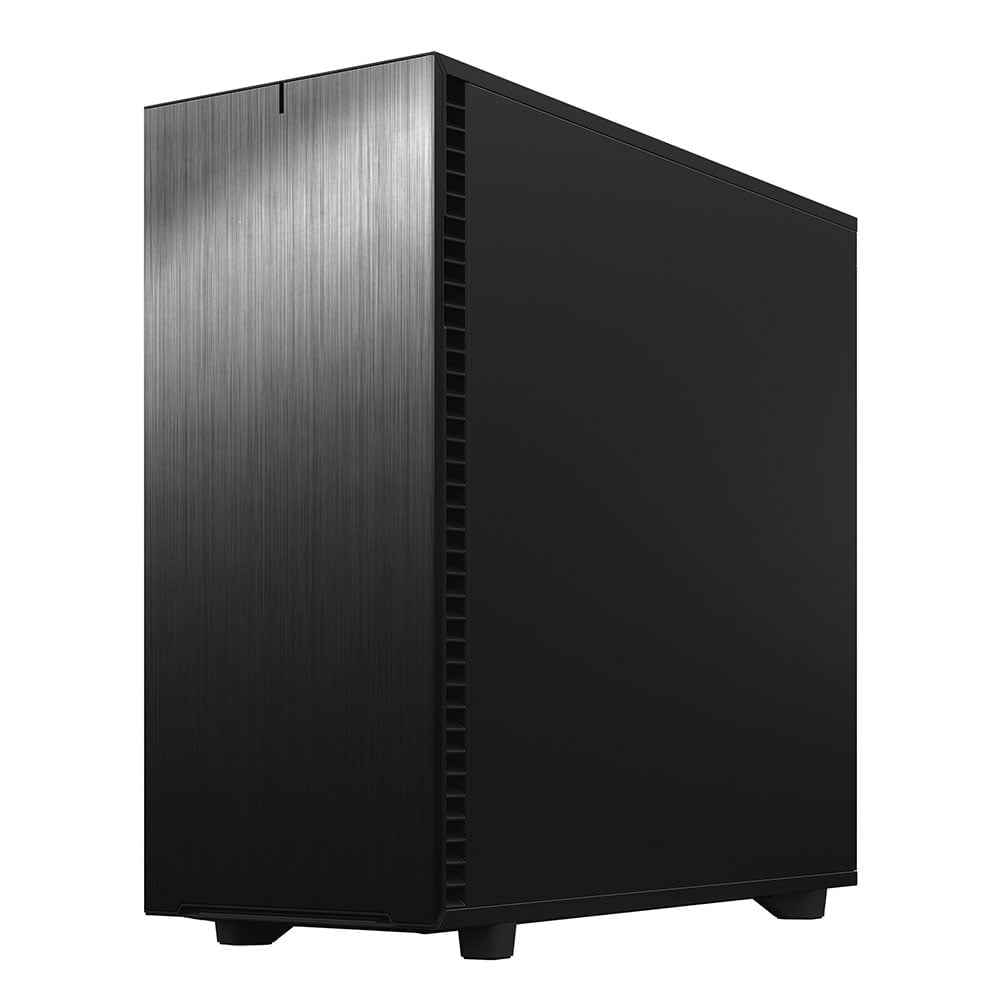

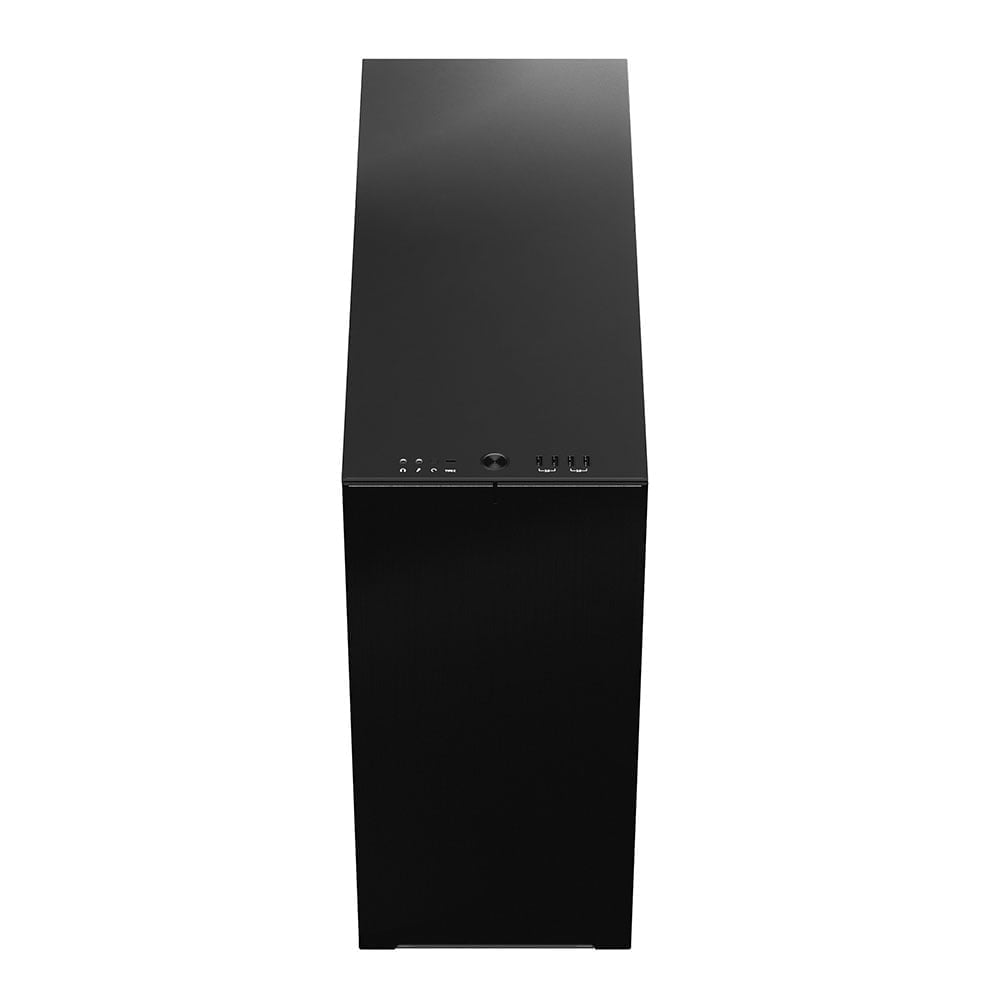

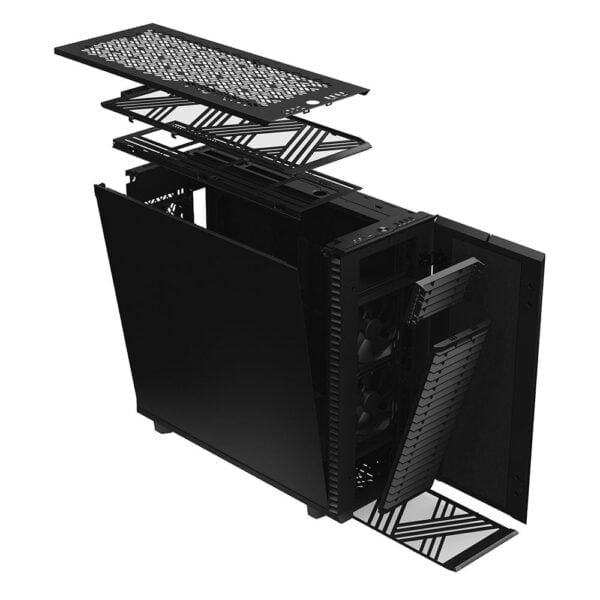

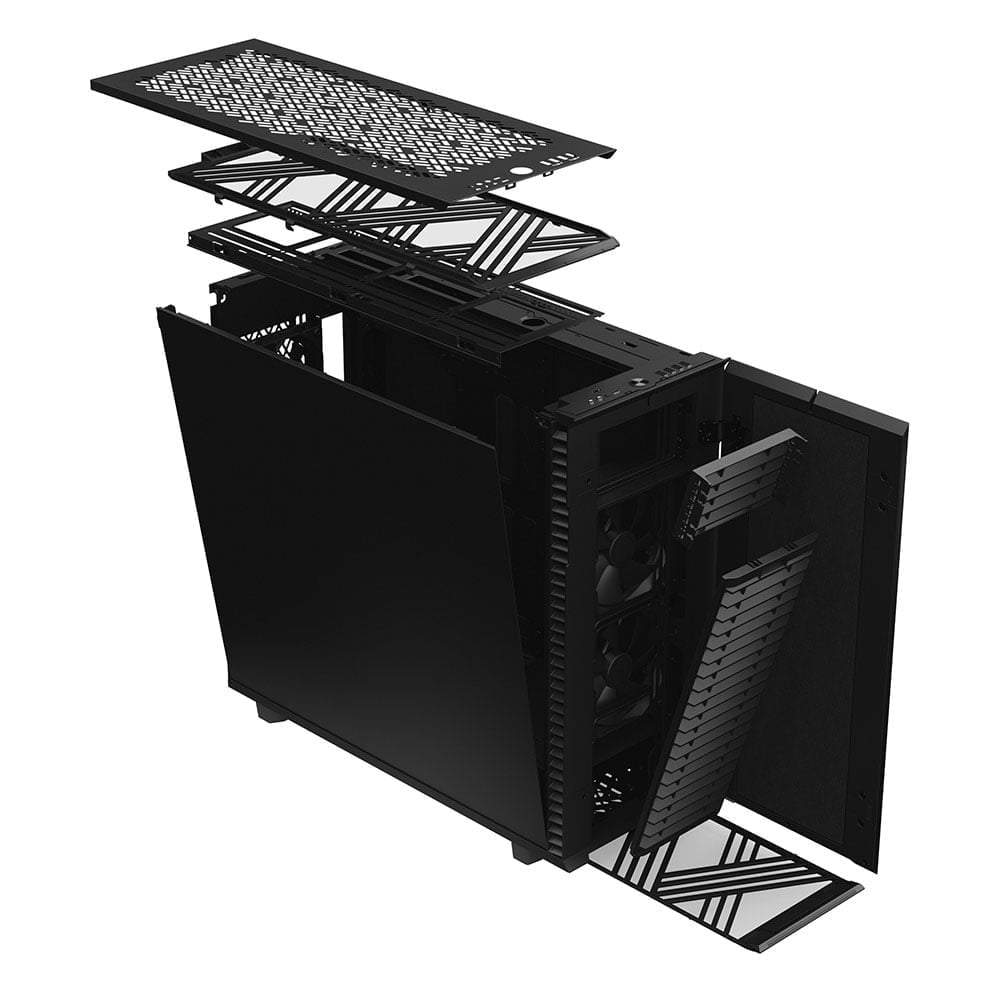

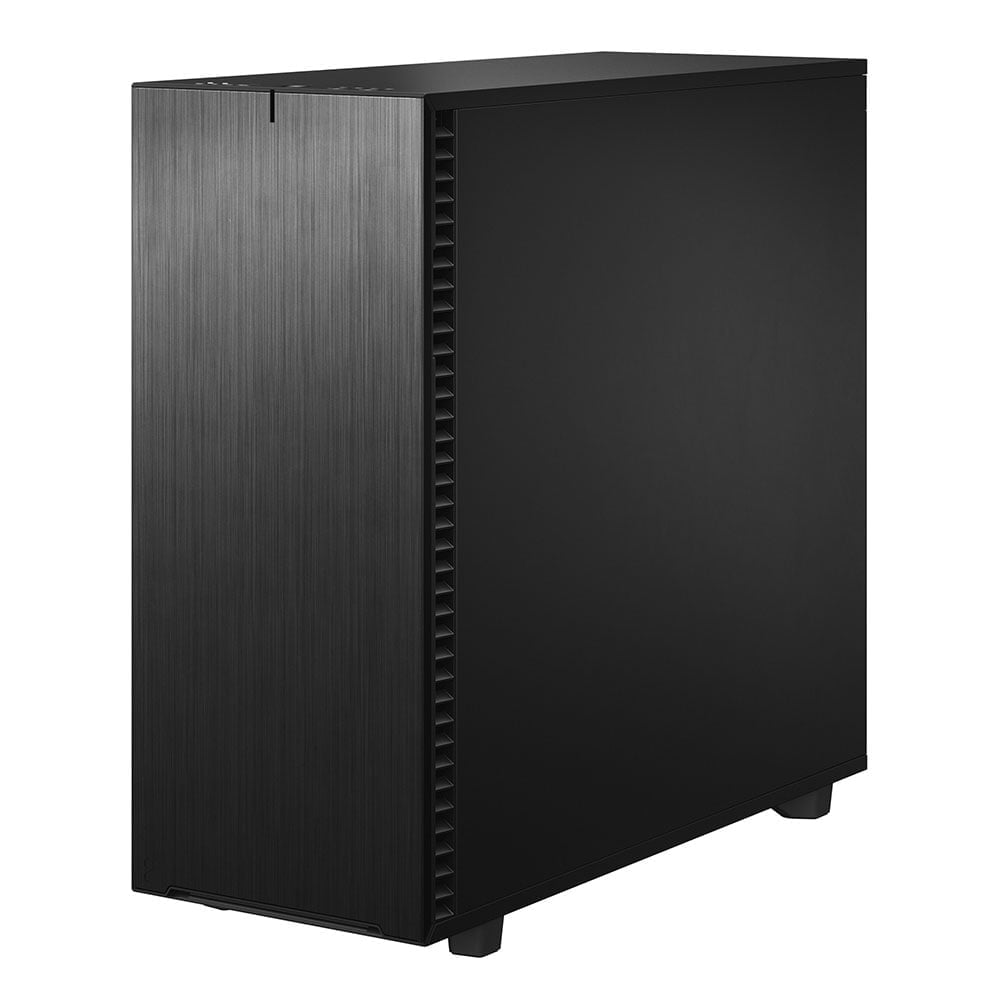

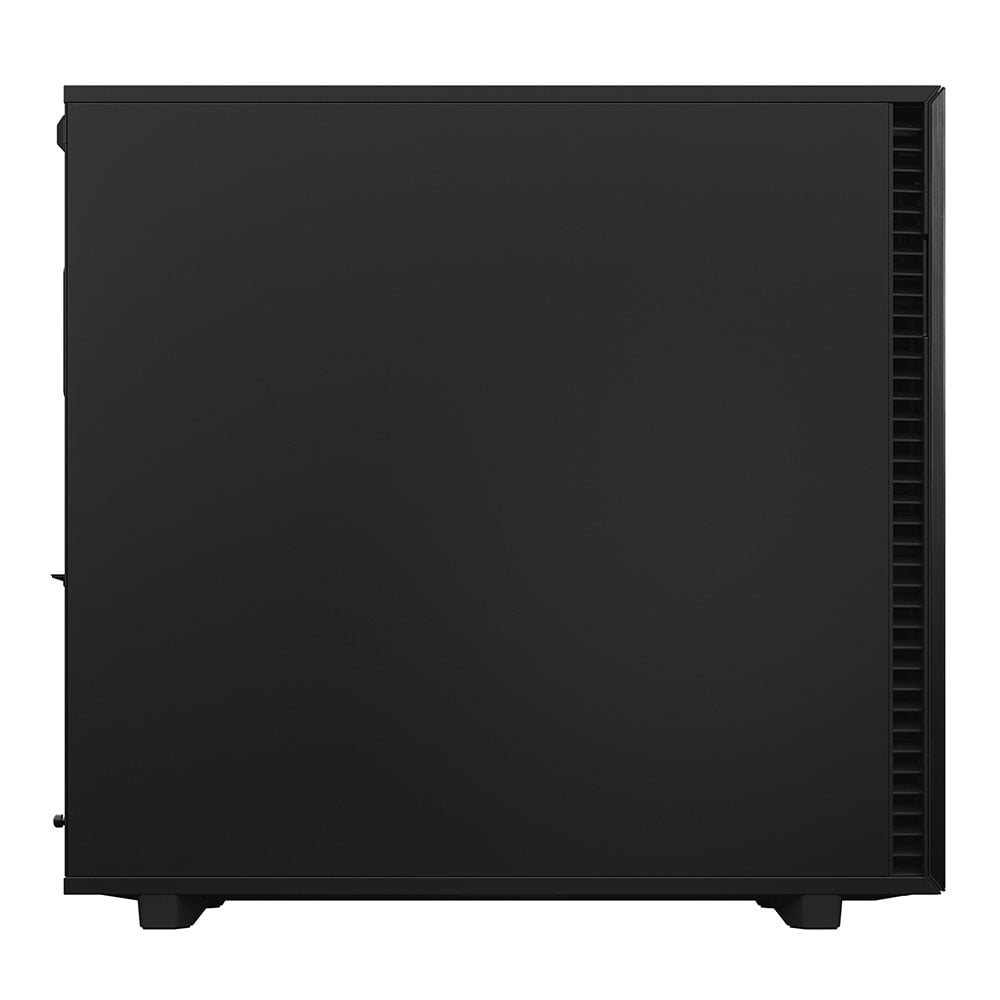

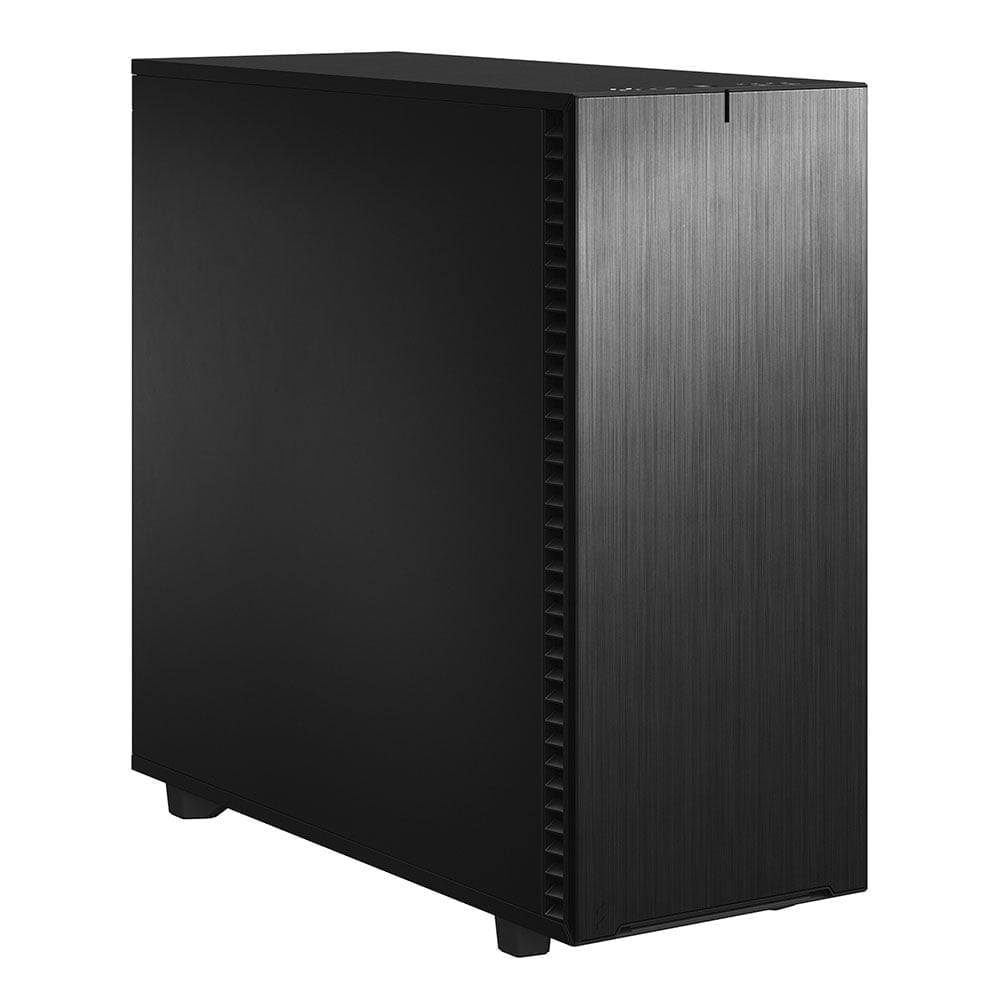

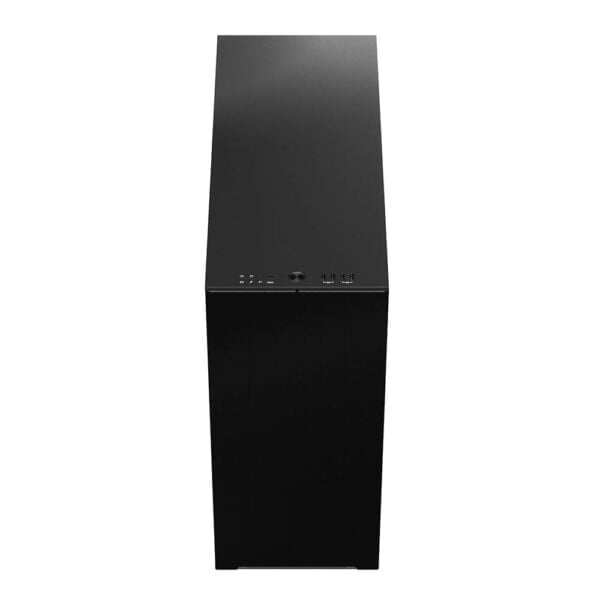

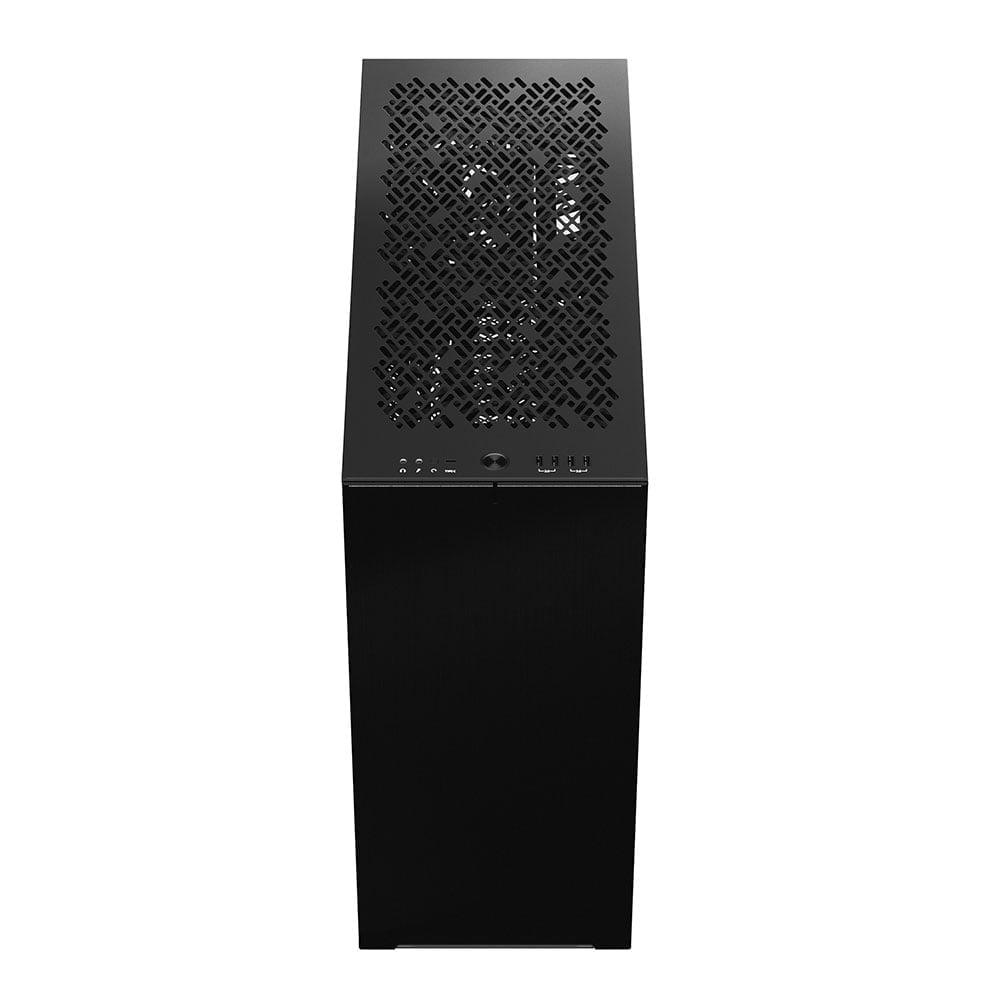

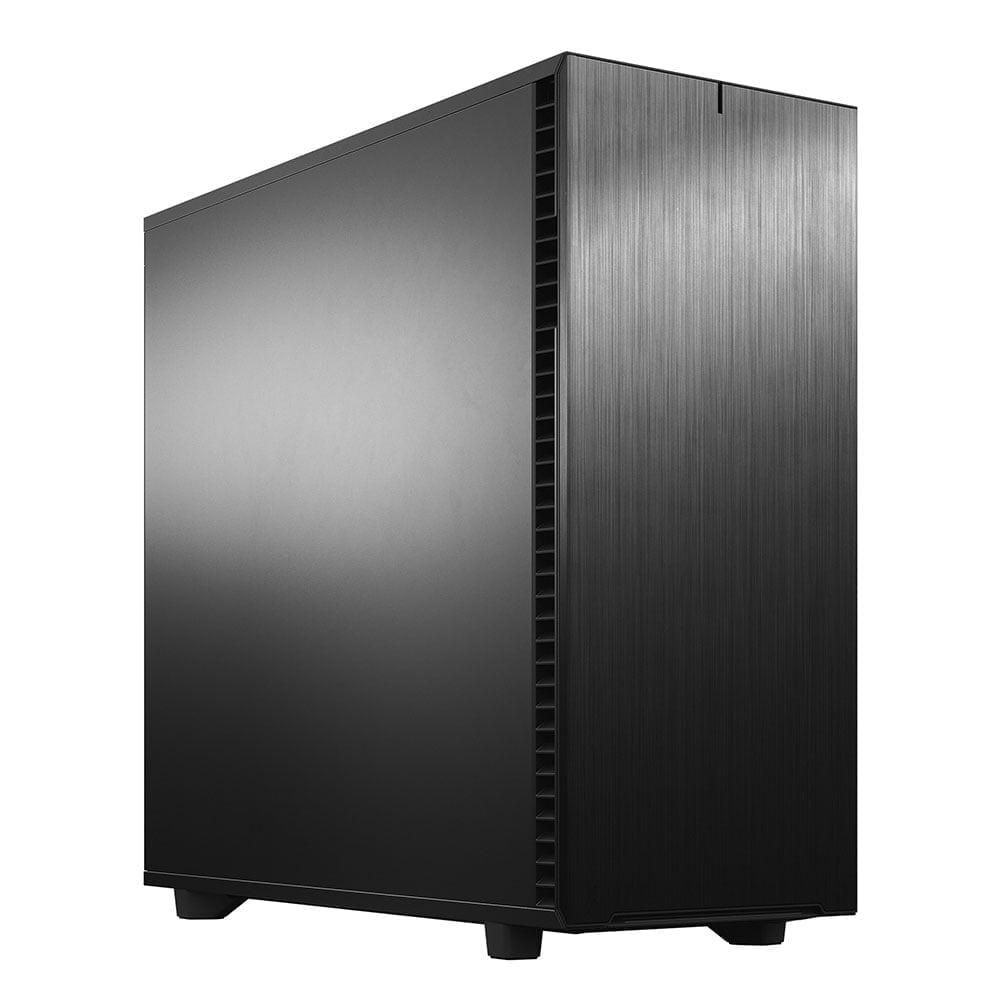

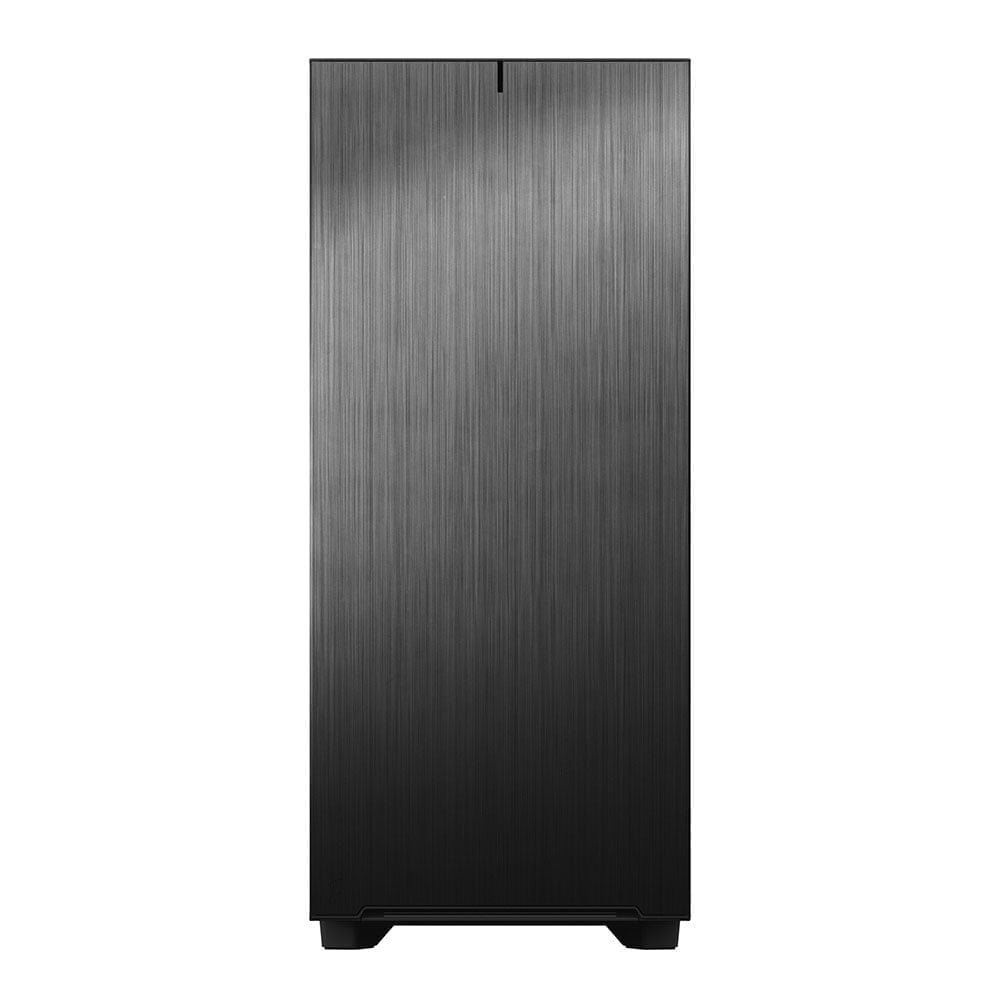

WS-E1640A-G4

The WS-E1640A-G4 is our highest core count Workstation ever. Containing a 2nd generation enterprise-class AMD EPYC processor, the WS-E1640A-G4 has the capacity for a staggering 64 Cores and 128 Threads. Combined with up to up to 4x NVIDIA GeForce, NVIDIA Quadro or AMD Radeon Pro GPU’s the WS-E1640A-G4 is the ideal solution for highly demanding CPU and GPU based simulation, analytics, data science workloads.

SKU: WS-E1640A-G4 Categories: ,

Processor Information:

Processor Chipset

System-on-Chip

Processor Generation

AMD EPYC 2nd Gen.

Socket

SP3

Memory Information:

Memory Type

ECC LRDIMM, ECC RDIMM

DDR Rev.

DDR4

Max. Memory Capacity (GB)

2048

Max. Memory Channels

8

PCIe Information:

PCIe Configuration

PCIe 3.0 x 16
PCIE1: Gen3 x16 link
PCIE3: Gen3 x16 link
PCIE5: Gen3 x16 link
PCIE7: Gen3 x16 link

PCIe 3.0 x 8
PCIE2: Gen3 x8 link
PCIE4: Gen3 x8 link
PCIE6: Gen3 x8 link

Internal IO Information:

# M.2 NVMe PCIe 3.0 x4

2

# SATA3 (6Gbps) Ports

1

# U.2 Ports

2

# SlimSAS (for 4x SATA)

2

# Int USB 3.2 Gen1 Header

1

# Int USB 2.0 Header

1

# Front 5.25Inch Bays

2

# Universal 3.5/2.5Inch Bays

2

# Dedicated 2.5Inch Bays

4

# Front USB 3.2 Gen 1 Type-A

2

Rear IO Information:

Rear Remote Management LAN

1

# Rear 10Gbps RJ45 Ports

2

# Rear USB 3.2 Gen 1 Type-A

2

Dimension Information:

Item Height (CM)

45.8

Item Width (CM)

33.2

Item Depth (CM)

41.5

Item Weight (Kg)

18-22

OS Information:

Supported OS

CentOS, Citrix Xenserver, Red Hat, SUSE, Ubuntu, VMware ESXi, vSphere, Windows Server 2012 R2, Windows Server 2016

Warranty Information:

Warranty Type

Return To Base
Next Business Day Engineer Response

Warranty Duration

36 Months
