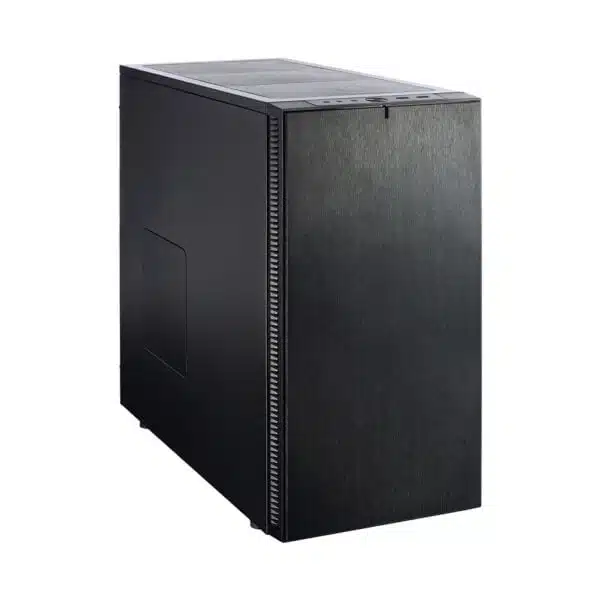

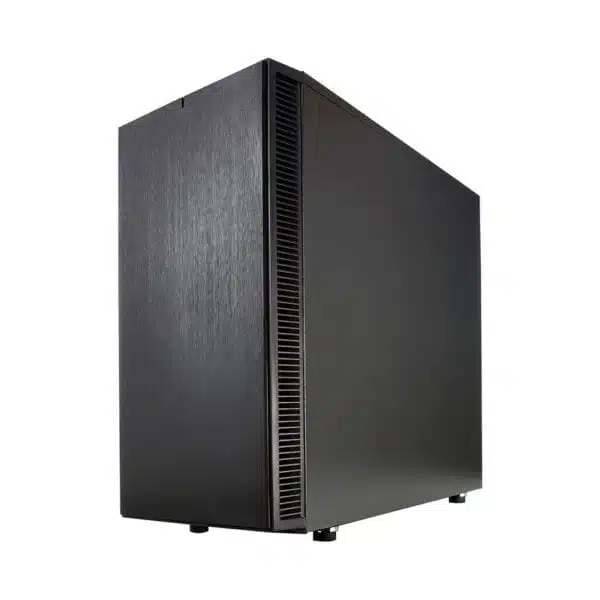

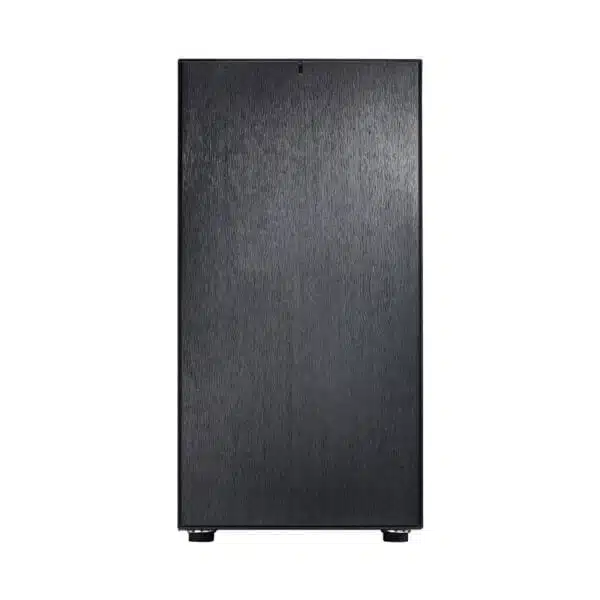

WS AE-SOC0 Enterprise AMD EPYC 3rd Generation Workstation

Details & Specifications

Dimensions:

Item Weight (Kg)	18-22
System Dimensions	23.3cm x 46.5cm x 53.3cm (W x H x D)

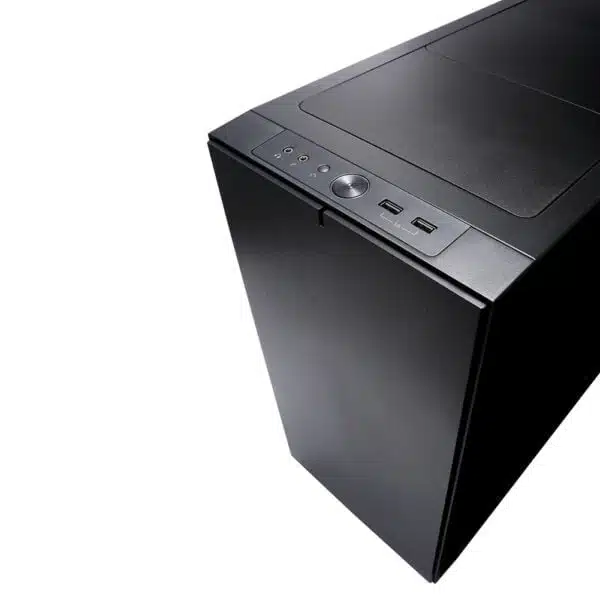

Front IO:

# 3.5mm Audio Jacks	2
Front IO - # USB 3.2 Gen 1 Type-A	2

Internal IO:

# COM headers	1
# HSBP	1
# IPMB Headers	1
# M.2 NVMe PCIe 4.0 x4 / SATA	1
# Mini-SAS HD	2
# NMI Headers	1
# PMBus headers	1
# SATA3 (6Gbps) Ports	2
# SGPIO Headers	1
# SlimSAS (PCIe4.0 x8)	2
# SMBus headers	1
# Speaker Headers	1
# TPM Headers	1 (13-pin, SPI), 1 (17-pin, LPC)
# USB 3.2 Gen 1 headers	1 (19-pin, 2 USB3.2 Gen1)
Clear CMOS	1 (contact pads)

Memory:

# Memory Slots	8
DDR Rev.	DDR4
Max. Memory Capacity (GB)	2048
Max. Memory Channels	8
Max. Memory Frequency	3200MHz
Memory Type	RDIMM/ LRDIMM/LRDIMM-3DS

PCIe:

PCIe Configuration	3x PCIe4.0 x16

Processor:

# CPUs	1
Processor Generation	AMD EPYC 7003
Socket	SP3
Processor Chipset	System on Chip

Rear IO:

# 10Gbps RJ45 Ports	2
# UID Button/LED	1
# VGA	1 DB15
Rear IO - # USB 3.2 Gen 1 Type-A	2
Rear Remote Management LAN	1 dedicated IPMI

Software:

Supported OS	Linux, Windows 10, Windows 11

Storage Bays:

# Int 2.5inch SATA	2
# Int 3.5inch SATA	3

Warranty:

Warranty Duration	36
Warranty Type	Return To Base
