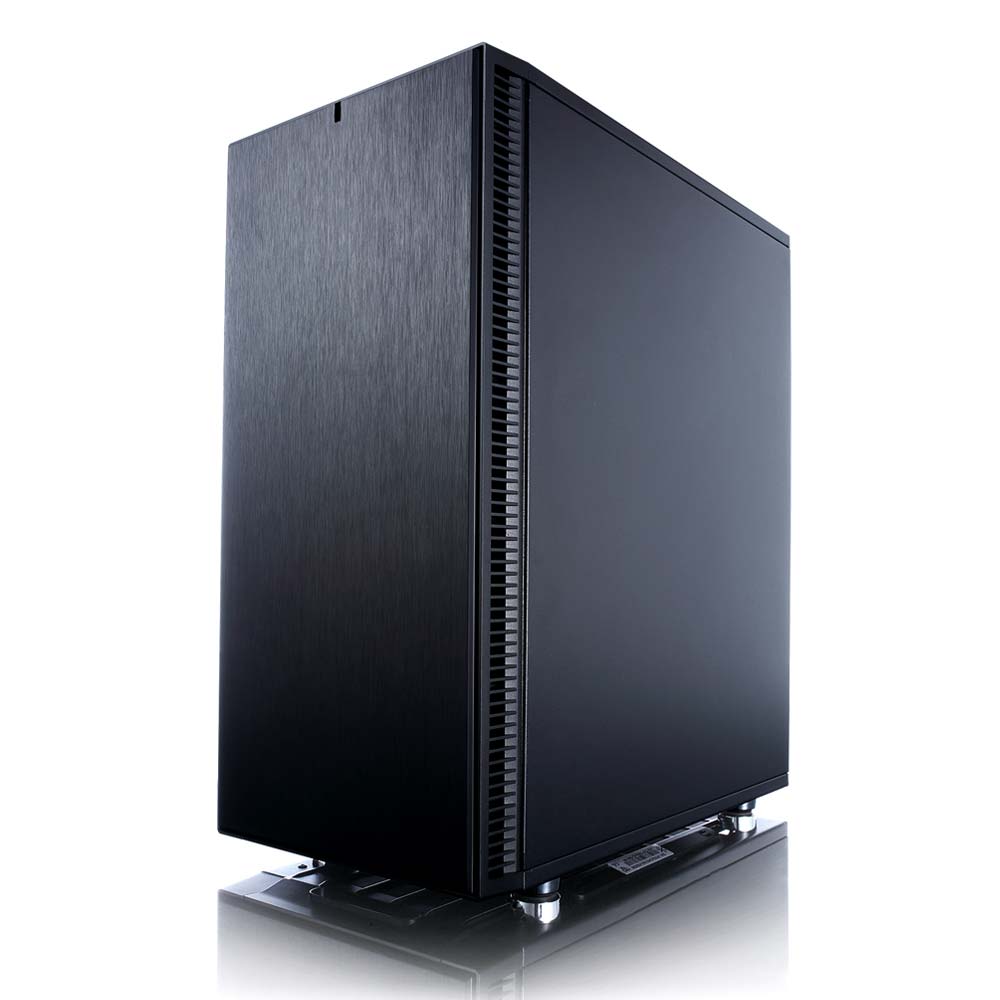

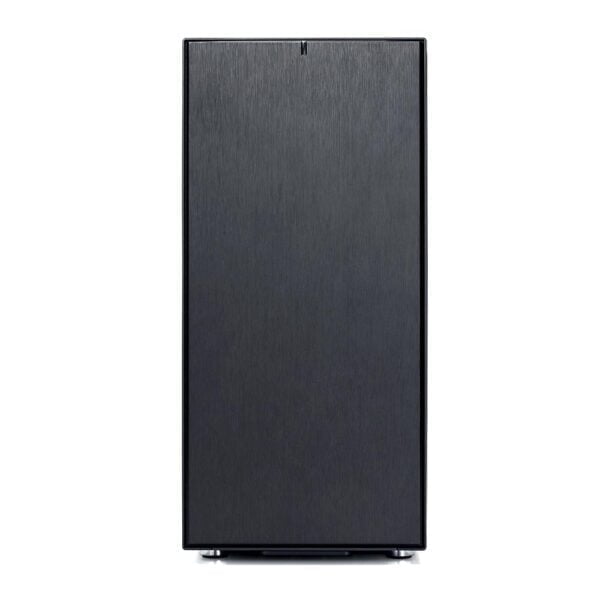

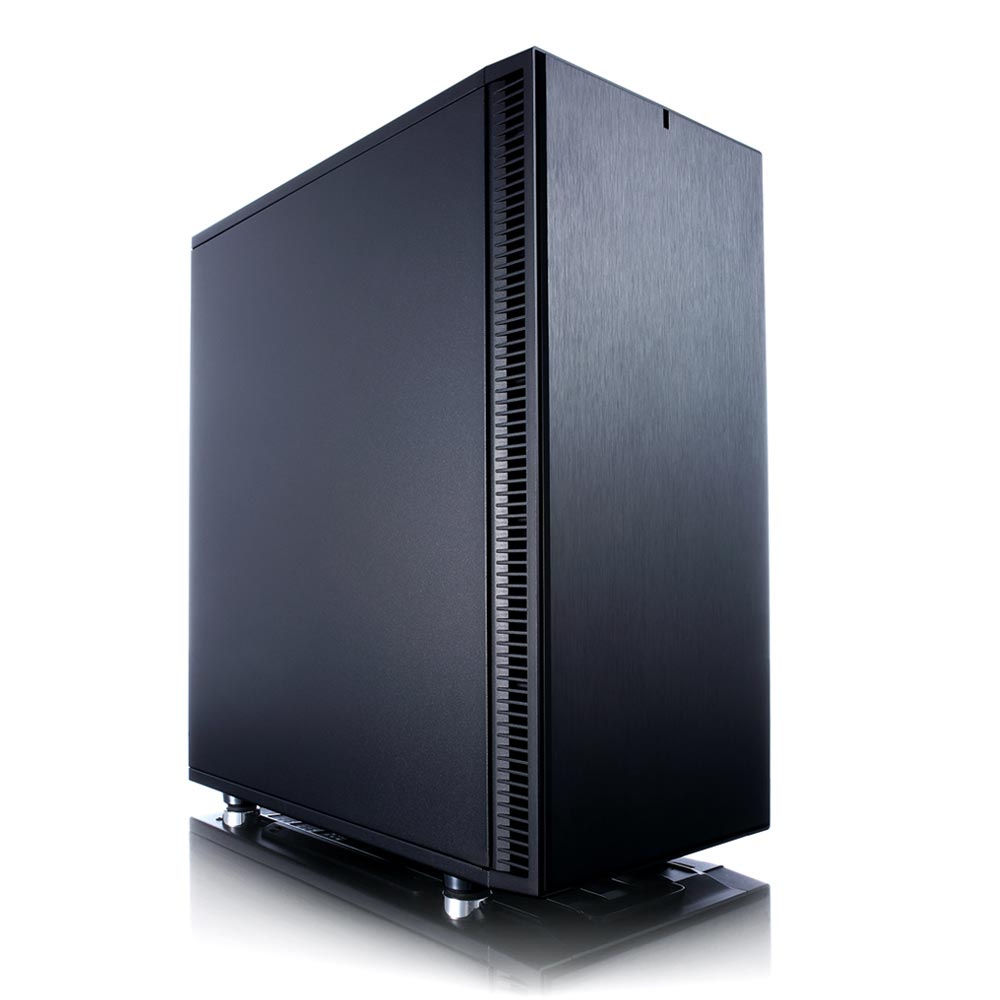

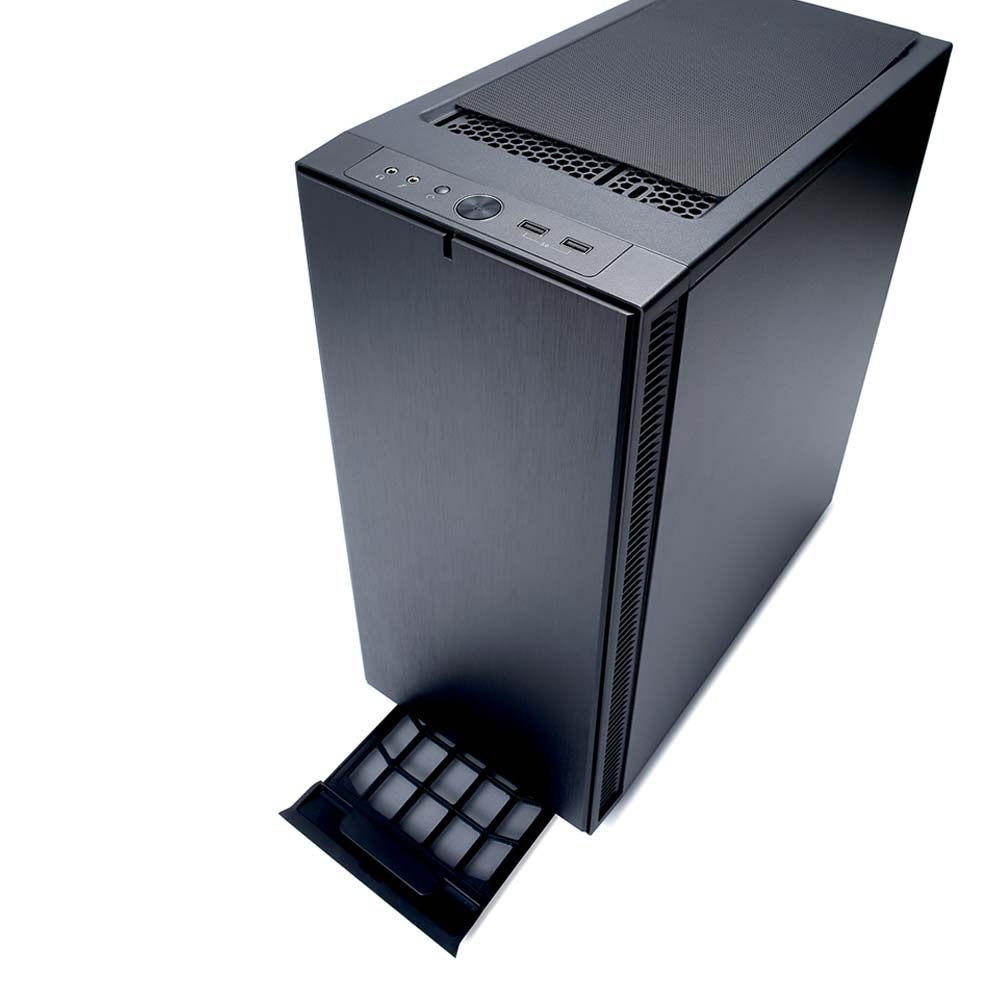

WS-184 11th Gen Intel Core Workstation
SKU: WS-184
Categories: Uncategorized
The WS-184 is a high-frequency Workstation ideal for single-threaded workflows such as CAD and 3D Modelling. Based upon the Intel 11th generation Core processors, the WS-184 features up to 8 cores / 16 threads running at up to 5.2GHz. Combine these fantastic processors with powerful NVIDIA or AMD graphics, up to 128GB of DDR4 memory and the latest PCIe 4.0 m.2 SSD storage technology, for a well rounded professional Workstation solution.
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) | 39.9 |
|---|---|
| Item Height (CM) | 44 |
| Item Weight (Kg) | 7.81 |
| Item Width (CM) | 21 |
| System Dimensions | 21 x 39.9 x 44 cm (W x D x H) |

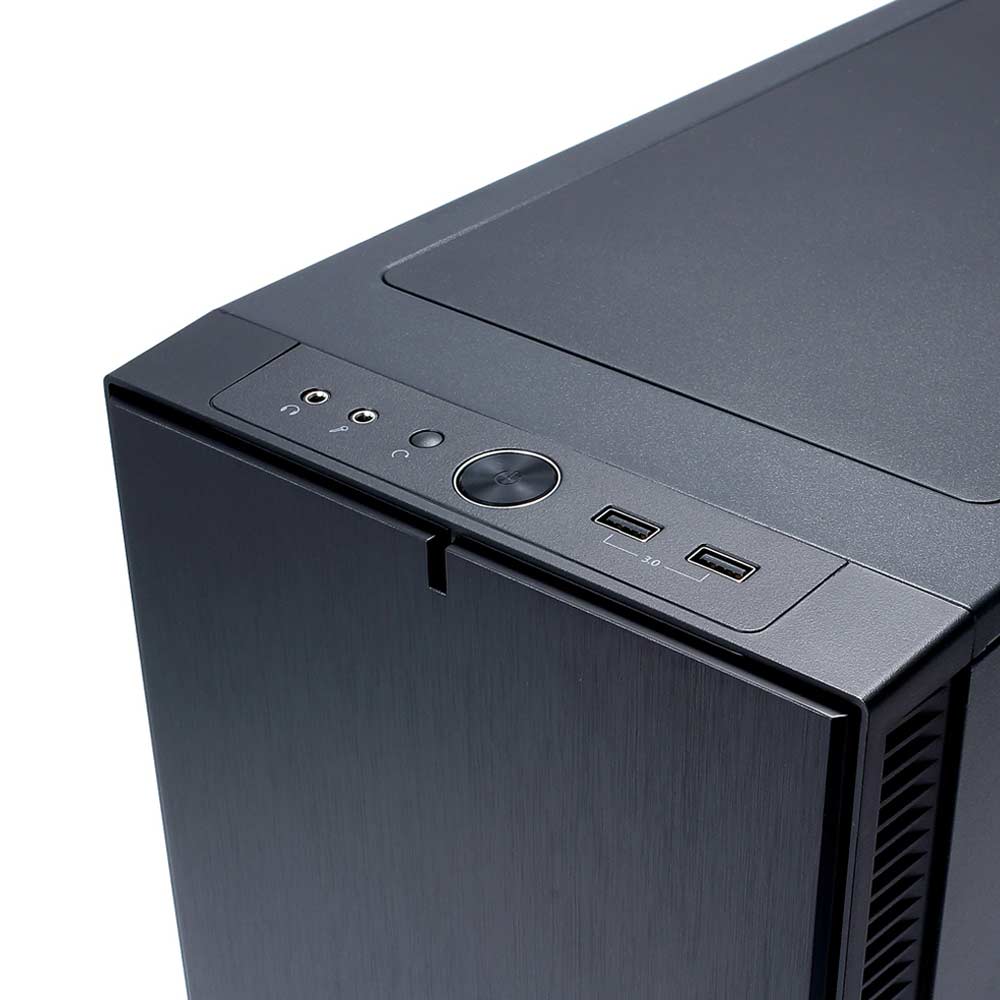

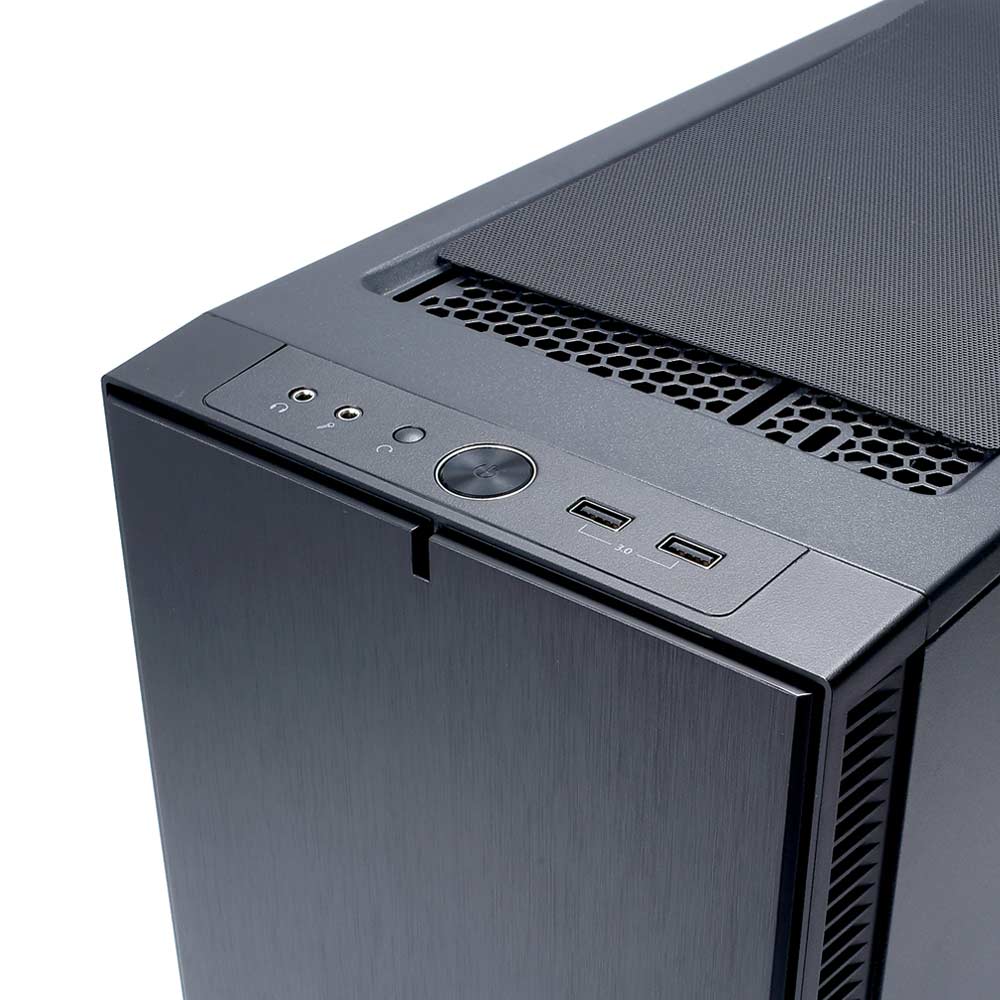

Front IO:
| # Front USB 3.2 Gen 1 Type-A | 2 |
|---|
Internal IO:
| # Int USB 2.0 Header | 2 |
|---|---|
| # Int USB 3.2 Gen1 Header | 2 |
| # M.2 NVMe PCie 3.0 x4 / SATA | 2 |
| # M.2 NVMe PCIe 4.0 x4 | 1 |
| # SATA3 (6Gbps) Ports | 4 |
Memory:
| # Memory Slots | 4 |
|---|---|
| DDR Rev. | DDR4 |
| Max. Memory Capacity (GB) | 128 |
| Max. Memory Channels | 4 |
| Memory Type | Non-ECC UDIMM |
PCIe:
| PCIe Configuration | PCIe 4.0/3.0 x16: 1 (runs at x16) |
|---|
Processor:
| Processor Chipset | Intel Z590 |
|---|---|
| Processor Generation | 11th Generation Intel Processor |
| Socket | LGA1200 |
Rear IO:
| # Rear 2.5Gbps RJ45 Ports | 1 |
|---|---|
| # Rear 3.5mm Audio Jacks | 5 |
| # Rear USB 2.0 Type-A | 2 |
| # Rear USB 3.2 2x2 Type-C | 1 |
| # Rear USB 3.2 Gen 1 Type-A | 2 |
| # Rear USB 3.2 Gen 2 Type-A | 1 |
Software:
| Supported OS | Linux, Windows® 10 64-bit |
|---|
Storage Bays:
| # Dedicated 2.5Inch Bays | 3 |
|---|---|
| # Universal 3.5/2.5Inch Bays | 2 |
Warranty:
| Warranty Duration | 36 Months |
|---|---|
| Warranty Type | Return To Base Next Business Day Engineer Response |
