WS-183
SKU: WS-183
High performing workstation for single-threaded tasks such as 3D modelling, animation or engineering design workflows. With up to 8 cores and 16 threads running at up to 5GHz the Intel core i9 range is a fantastic, reliable platform for your workstation. Combined with an NVIDIA Quadro, NVIDIA GeForce or AMD RadeonPro graphics card, up to 64GB DDR4 memory and the latest NVMe SSD storage the WS-183 has all the performance you need to succeed.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
39.9 |
|---|---|
| Item Height (CM) |
44 |
| Item Weight (Kg) |
17-21 |
| Item Width (CM) |
21 |

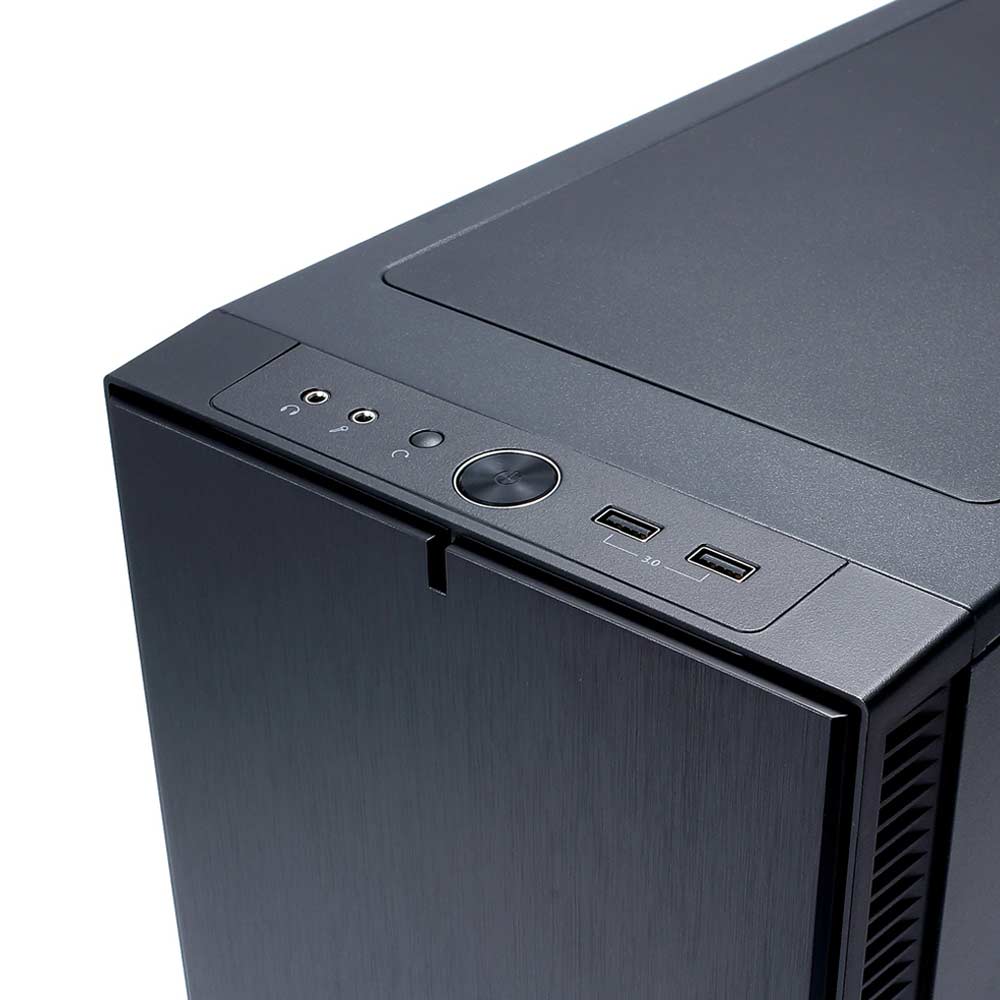

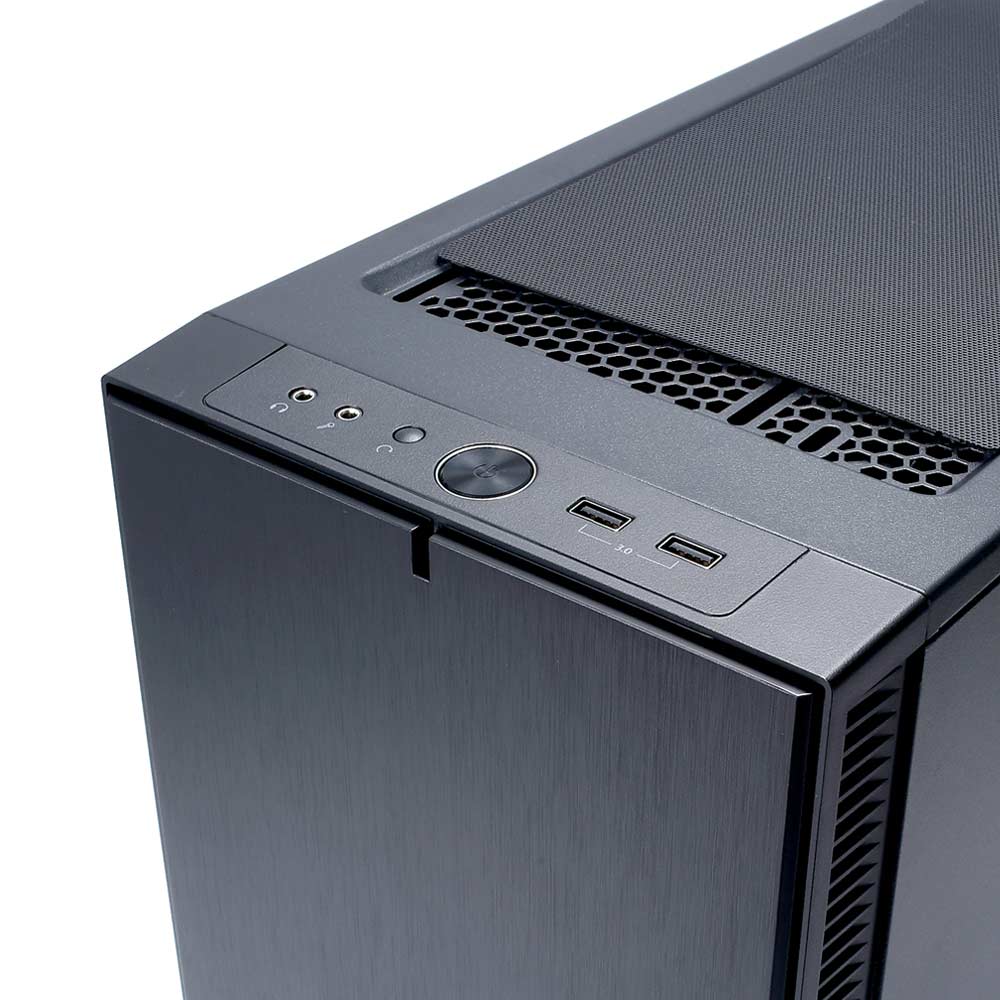

Front IO:
| # Front USB 3.2 Gen 1 Type-A |
2 |
|---|
Internal IO:
| # Int USB 2.0 Header |
4 |
|---|---|
| # Int USB 3.2 Gen1 Header |
2 |
| # M.2 NVMe PCIe 3.0 x4 |
1 |
| # M.2 NVMe PCie 3.0 x4 / SATA |
1 |
| # SATA3 (6Gbps) Ports |
6 |
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
128 |
| Max. Memory Channels |
2 |
| Memory Type |
Non-ECC UDIMM |
PCIe:
| PCIe Configuration |
PCIe 3.0 x16: 3 (runs at x16/x2, x8/x8/x2) |
|---|
Processor:
| Processor Chipset |
Intel Z390 |
|---|---|
| Processor Generation |
Intel Core 9th Gen. |
| Socket |
1151 |
Rear IO:
| # Rear 1Gbps RJ45 Ports |
1 |
|---|---|
| # Rear USB 2.0 Type-A |
2 |
| # Rear USB 3.2 Gen 1 Type-A |
2 |
| # Rear USB 3.2 Gen 2 Type-A |
3 |
| # Rear USB 3.2 Gen 2 Type-C |
1 |
Storage Bays:
| # Dedicated 2.5Inch Bays |
3 |
|---|---|
| # Universal 3.5/2.5Inch Bays |
2 |
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
