WS-1180
SKU: WS-1180
The WS-1180 is a highly configurable, reliable and flexible Workstation platform, now featuring Intel 10th generation Cascade Lake Core i9 X-Series processors. The latest generation of Intel X-Series processors means this powerful Workstation can outperform even the Enterprise-Class Intel Xeon based solutions in certain workflow. A high core and thread count combined with fast clock speeds make the WS-1180 one of our most versatile Workstation solutions to date. Configuring this system with ISV Certified NVIDIA Quadro or AMD Radeon Pro professional graphics and best in class Samsung NVMe SSD’s, makes this adaptable Workstation ideal for 3D Creative Design, Visual Effects, and CAD Professionals.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
39.9 |
|---|---|
| Item Height (CM) |
44 |
| Item Weight (Kg) |
17-20 |
| Item Width (CM) |
21 |

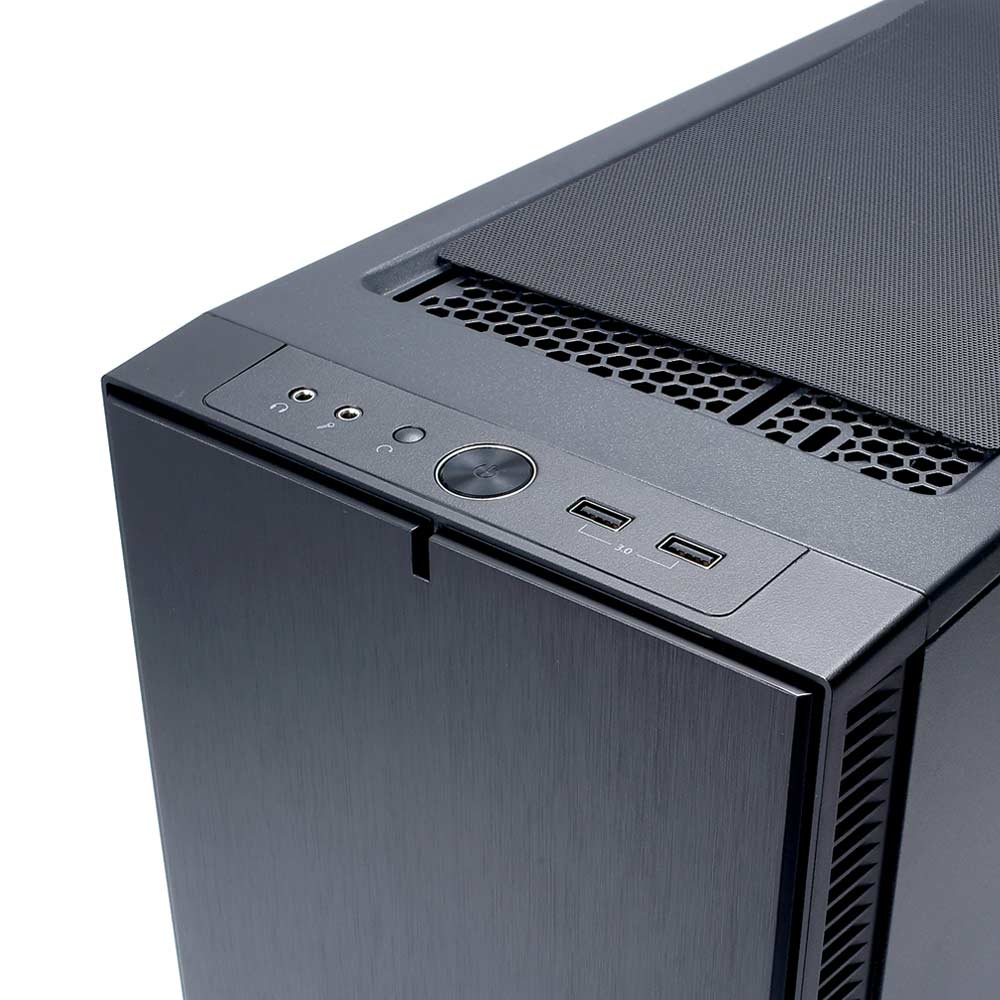

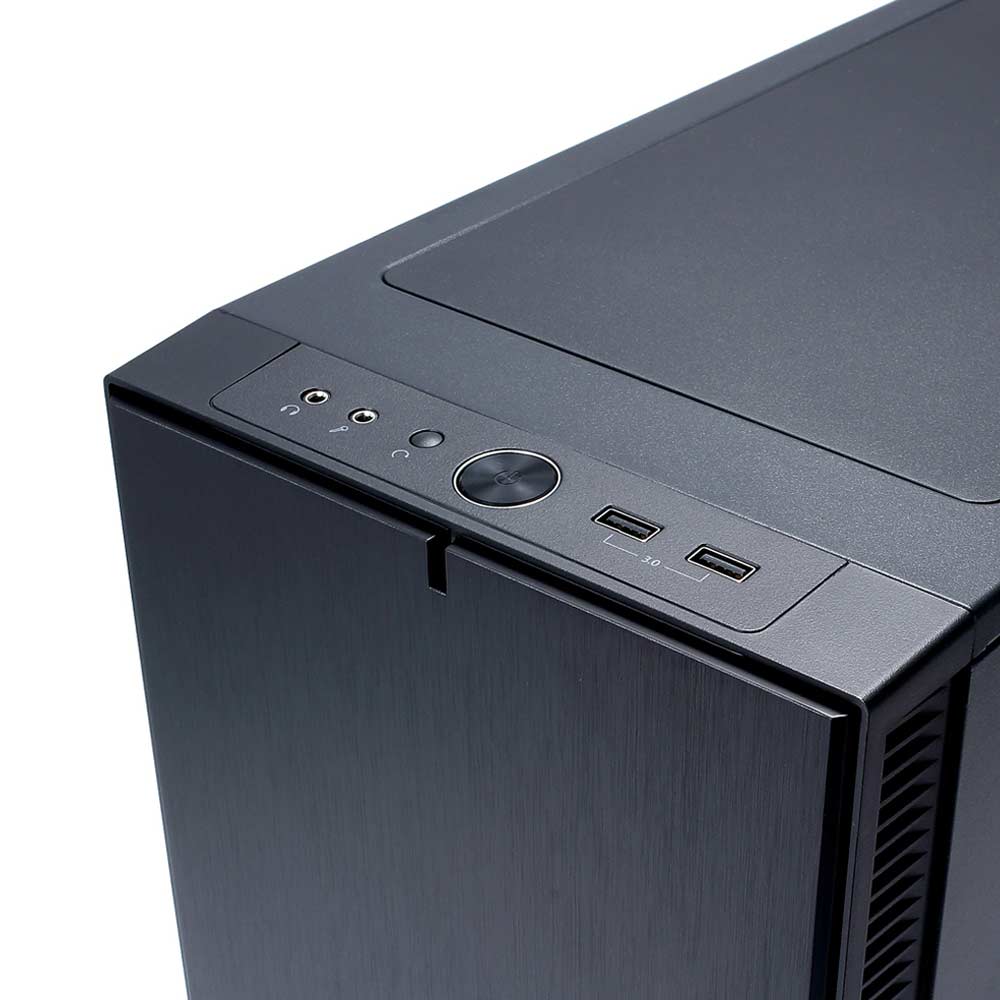

Front IO:
| # Front USB 3.2 Gen 1 Type-A |
2 |
|---|
Internal IO:
| # Int USB 2.0 Header |
1 |
|---|---|
| # Int USB 3.2 Gen1 Header |
2 |
| # M.2 NVMe PCIe 3.0 x4 |
1 |
| # M.2 NVMe PCie 3.0 x4 / SATA |
1 |
| # SATA3 (6Gbps) Ports |
6 |
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
256 |
| Memory Type |
Non-ECC UDIMM |
PCIe:
| PCIe Configuration |
PCIe 3.0 x16: 2 (runs at x16, x16/x8) |
|---|
Processor:
| Processor Chipset |
Intel X299 |
|---|---|
| Processor Generation |
Intel Core-X 9th Gen. |
| Socket |
2066 |
Rear IO:
| # Rear 1Gbps RJ45 Ports |
1 |
|---|---|
| # Rear USB 2.0 Type-A |
4 |
| # Rear USB 3.2 Gen 1 Type-A |
4 |
| # Rear USB 3.2 Gen 2 Type-A |
2 |
Storage Bays:
| # Dedicated 2.5Inch Bays |
3 |
|---|---|
| # Universal 3.5/2.5Inch Bays |
2 |
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
