WS-1103 3D Design Pro Graphics Workstation
SKU: WS-1103
Our fastest single-core workstation ever with up to 5.3GHz the WS-1103 is the perfect solution for single / lightly threaded workflows such as 3D modelling, CAD and Games Development. The 10th Gen Intel Core i9 now features up to 10 cores and 20 threads providing very respectable multi-core performance as well and combined with the latest professional graphics from NVIDIA or AMD the WS-1103 offers exceptional performance in a cost-effective package.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
39.9 |
|---|---|
| Item Height (CM) |
44 |
| Item Weight (Kg) |
17-21 |
| Item Width (CM) |
21 |

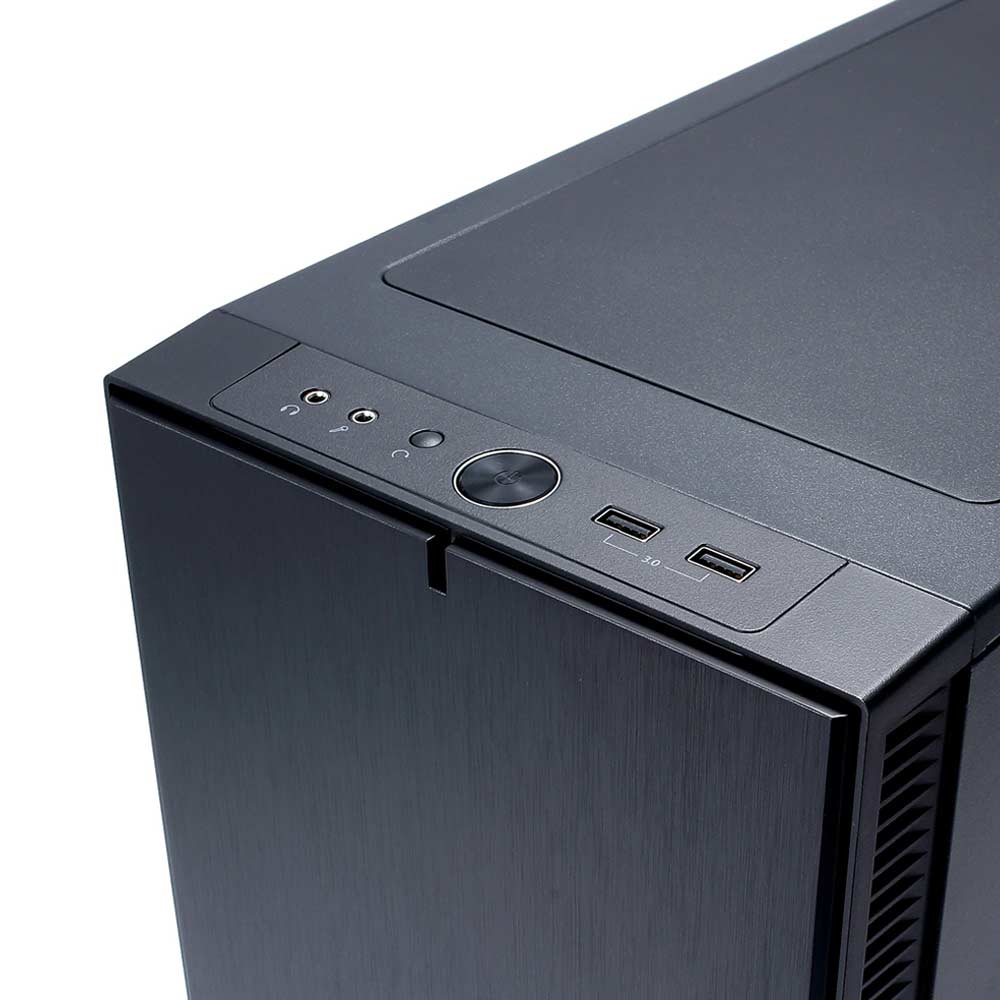

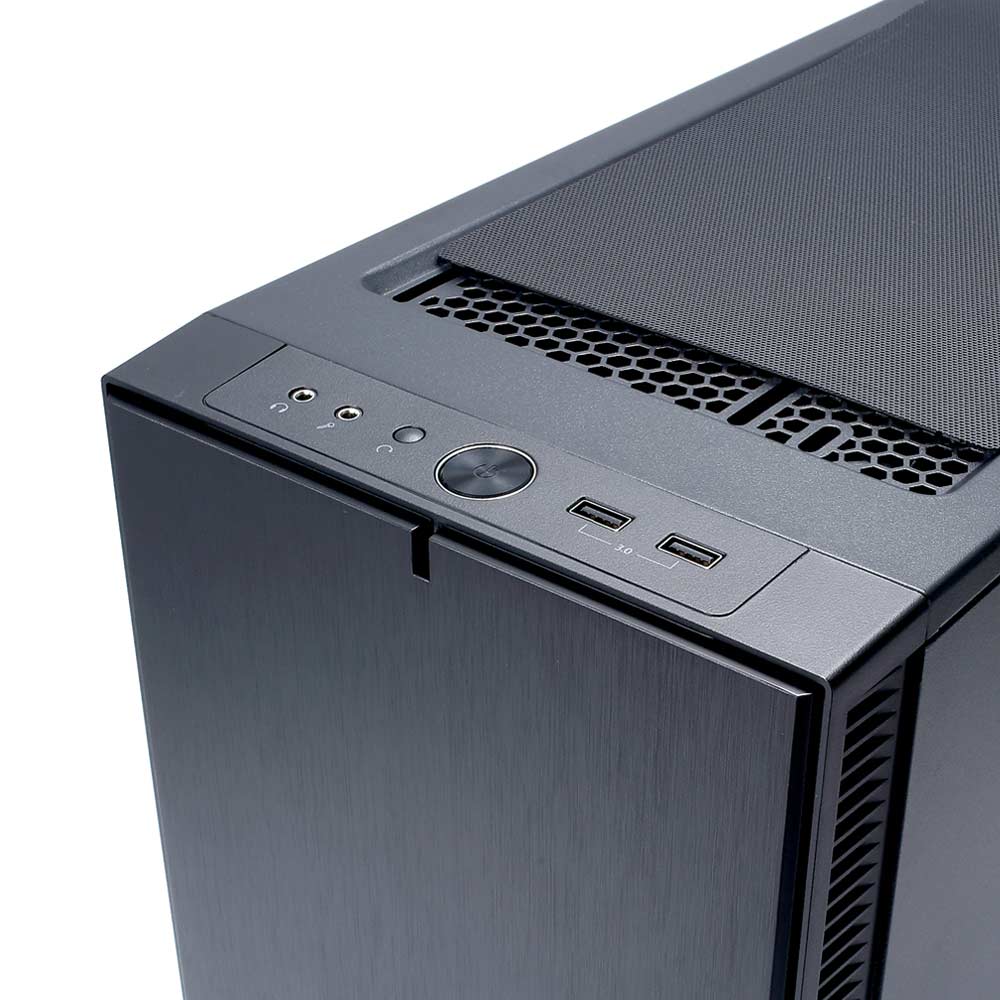

Front IO:
| # Front USB 3.2 Gen 1 Type-A |
2 |
|---|
Internal IO:
| # Int USB 2.0 Header |
2 |
|---|---|
| # Int USB 3.2 Gen1 Header |
2 |
| # M.2 NVMe PCie 3.0 x4 / SATA |
2 |
| # SATA3 (6Gbps) Ports |
6 |
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
128 |
| Max. Memory Channels |
2 |
| Memory Type |
Non-ECC UDIMM |
PCIe:
| PCIe Configuration |
PCIe 3.0 x16: 2 (runs at x16/x4) |
|---|
Processor:
| Processor Chipset |
Intel Z490 |
|---|---|
| Processor Generation |
Intel Core 10th Gen. |
| Socket |
1200 |
Rear IO:
| # Rear 1Gbps RJ45 Ports |
1 |
|---|---|
| # Rear USB 2.0 Type-A |
2 |
| # Rear USB 3.2 Gen 1 Type-A |
2 |
| # Rear USB 3.2 Gen 2 Type-A |
2 |
Software:
| Supported OS |
Linux, Windows 10 |
|---|
Storage Bays:
| # Dedicated 2.5Inch Bays |
3 |
|---|---|
| # Universal 3.5/2.5Inch Bays |
2 |
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
