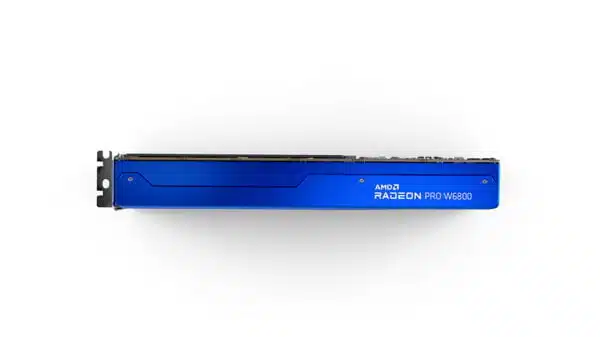

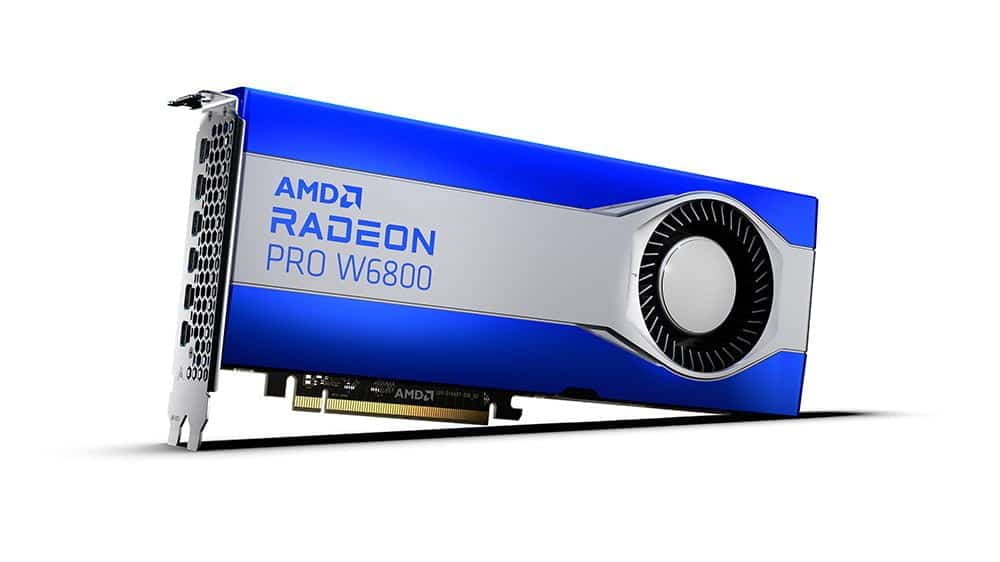

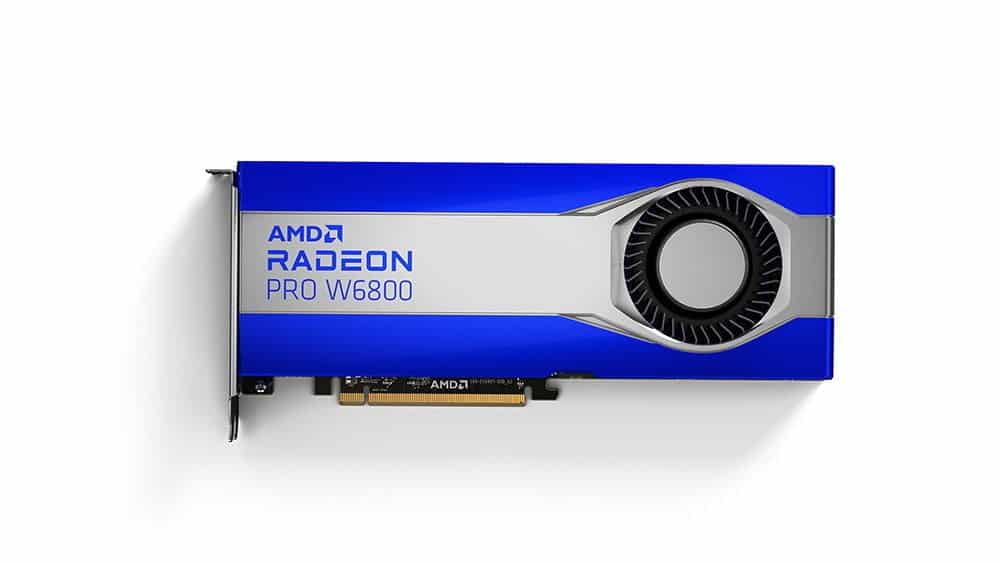

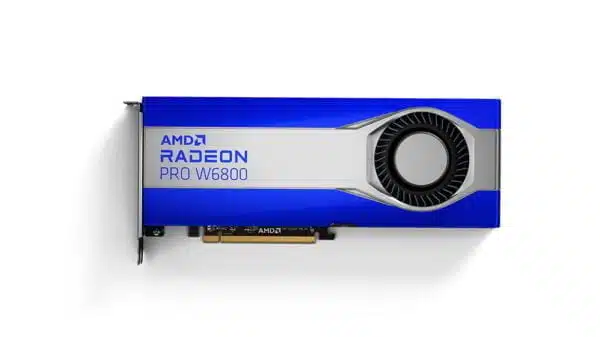

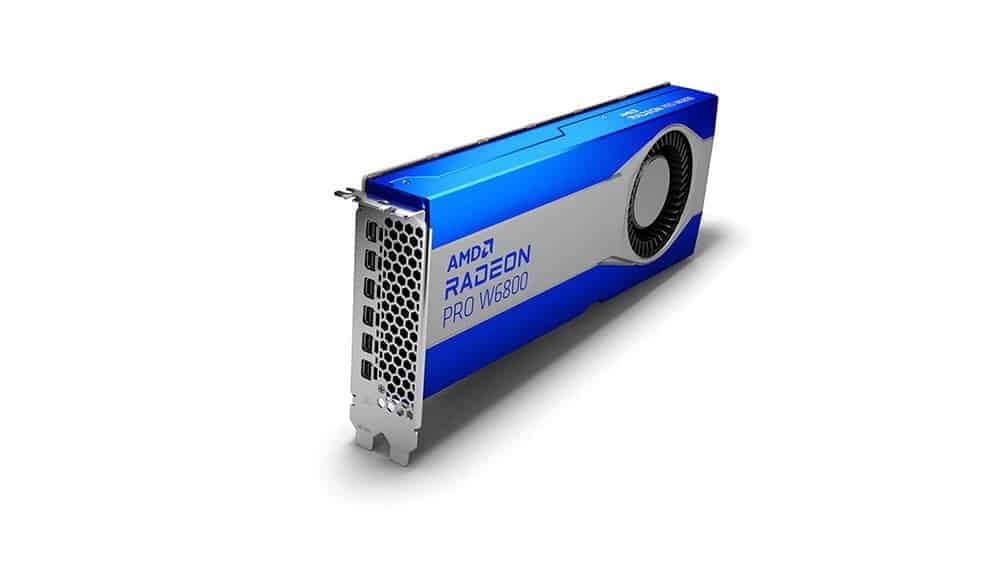

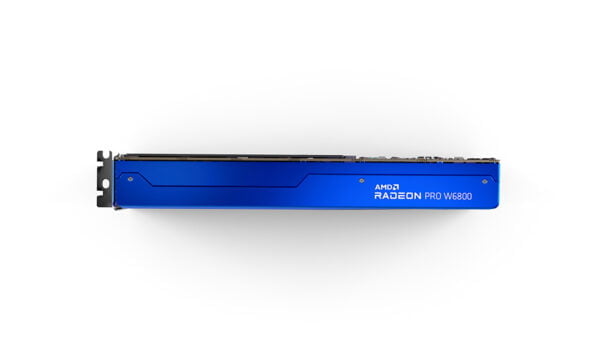

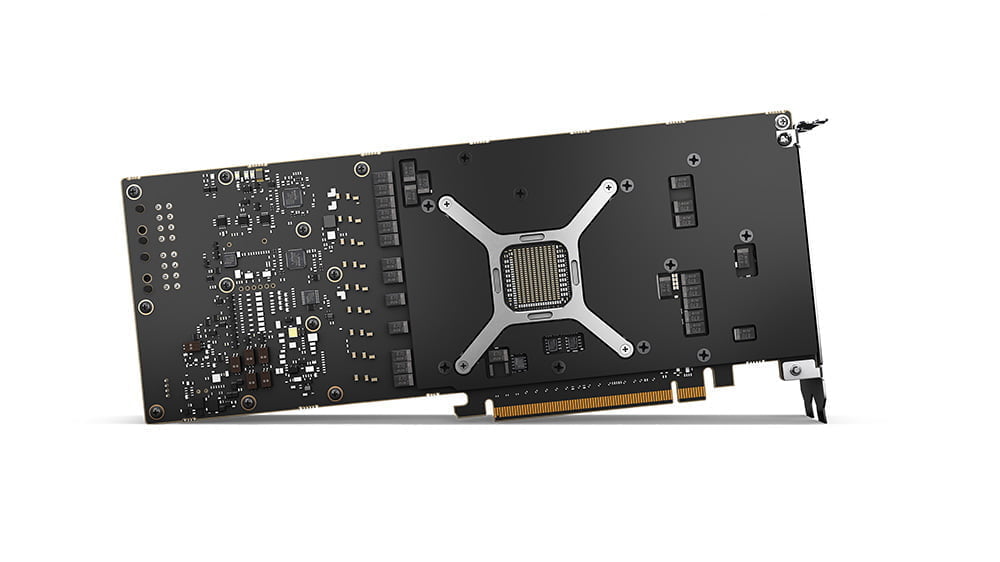

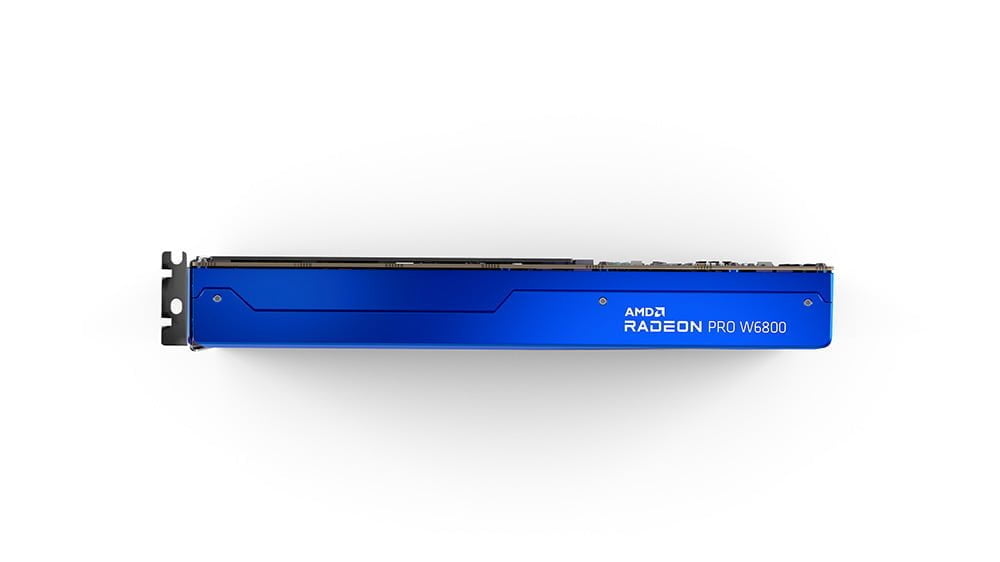

AMD Radeon™ PRO W6800 Professional Graphics Card
SKU: WEBGFXARPW680032GB
The AMD Radeon™ PRO W6800 graphics card, powered by an award winning AMD RDNA™ 2 architecture, features a gigantic 32GB of dedicated GDDR6 ECC memory, hardware raytracing, 128 MB of all new AMD Infinity Cache and is ready for 6x demanding UHD HDR displays supporting truer colours. The complete AMD Radeon PRO W6000 range of GPUs are meticulously engineered to deliver ultra-high viewport frame rates, dependability and serious performance for popular professional applications.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
| Manufacturer |
|---|
Cooling:
| # Included Fans |
1 |
|---|
External IO:
| # Max Simultaneous Displays |
6 |
|---|---|

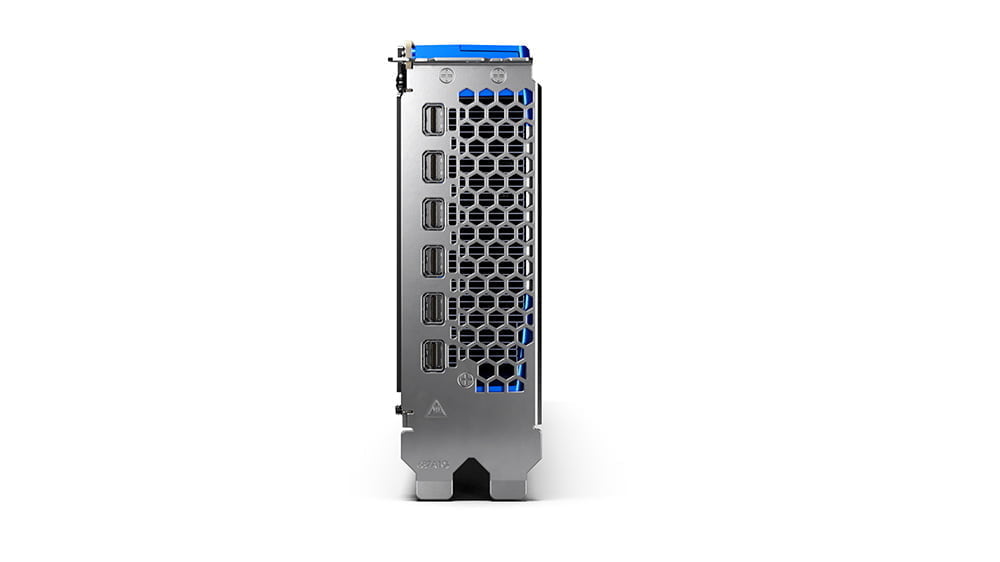

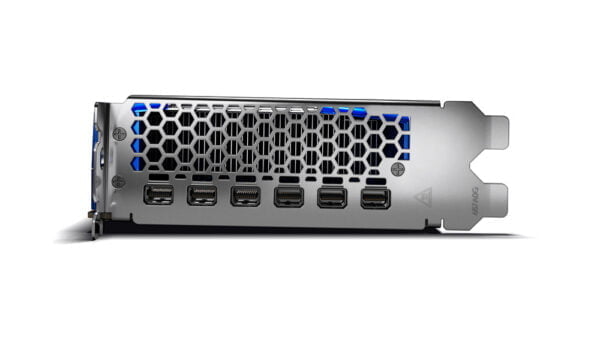

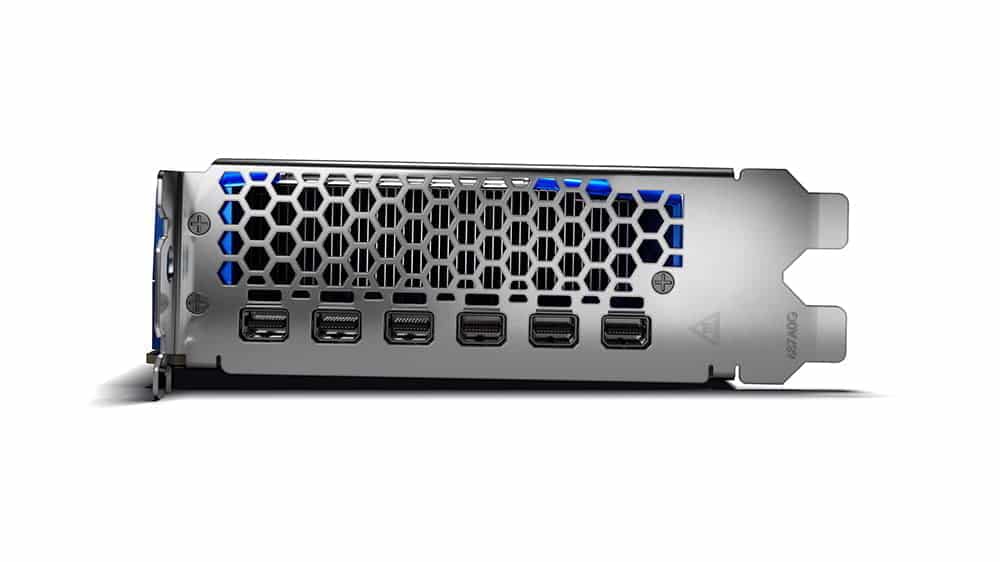

| # Mini-DisplayPort |
6x 1.4 with DSC |
| Max Resolution |
7680x4320px (8K) |
GPU:
| # Compute Units |
60 |
|---|---|
| # Ray Accelerators |
60 |
| # Stream Processors |
3840 |
| FP16 Performance (TFLOPS) |
35.66 |
| FP32 Performance (TFLOPS) |
17.83 |
| FP64 Performance (TFLOPS) |
1.11 |
| GPU Architecture | |
| Lithography |
TSMC 7nm FinFET |
Memory:
| Memory Capacity (GB) |
32 |
|---|---|
| Memory Interface (bit) |
256 |
| Memory Type |
GDDR6 |
PCIe:
| PCIe Version |
PCIe® 4.0 x16 |
|---|
Power:

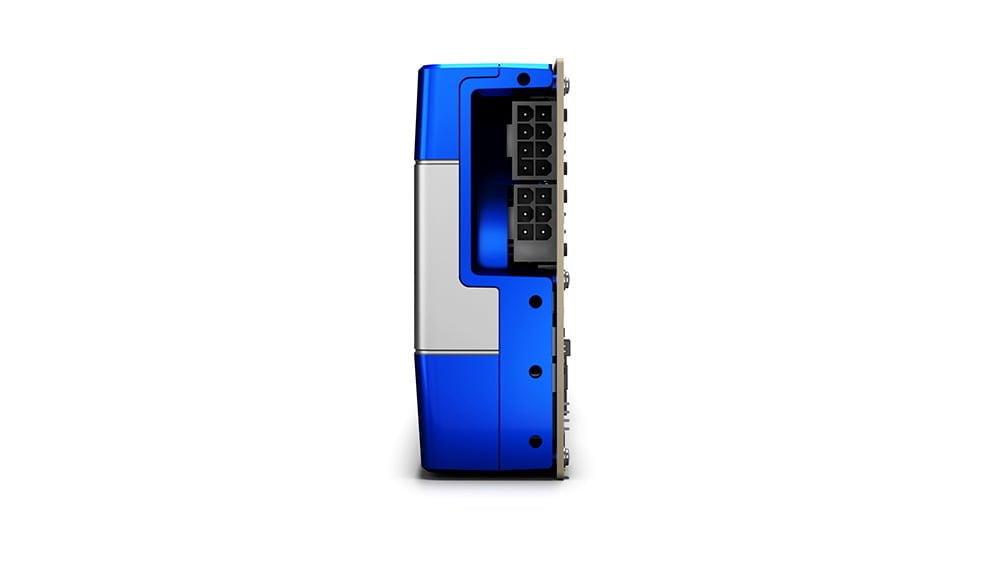

| # 6 Pin PCIe |
1 |
|---|---|
| # 8 Pin PCIe |
1 |
| Recommended PSU |
650W Minimum |
| Wattage |
250W Peak Total Board Power (TBP) |
Software:
| API Support |
DirectX® 12.0 (feature level 12_1) |
|---|---|
| Supported OS |
Linux, Windows |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Direct To Manufacturer |
* Specifications for older discontinued variants can be view by clicking here
