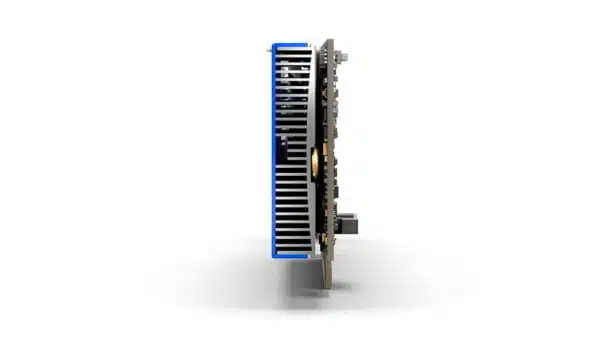

AMD Radeon™ PRO W6400 Professional Graphics Card
SKU: WEBGFXARPW64004GB
The AMD Radeon™ PRO W6400 graphics card, powered by the award winning AMD RDNA™ 2 architecture, features a powerful 4GB of dedicated GDDR6 memory, hardware raytracing, 16 MB of all new AMD Infinity Cache™ and is ready for 2x demanding UHD HDR displays supporting truer colors. The complete AMD Radeon PRO W6000 range of GPUs are meticulously engineered to deliver ultra-high viewport frame rates, dependability and serious performance for popular professional applications.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
| Manufacturer |
|---|
Cooling:
| # Included Fans |
1 |
|---|
Dimensions:
| Form Factor |
168mm Length (Half Height, Single Slot) |
|---|

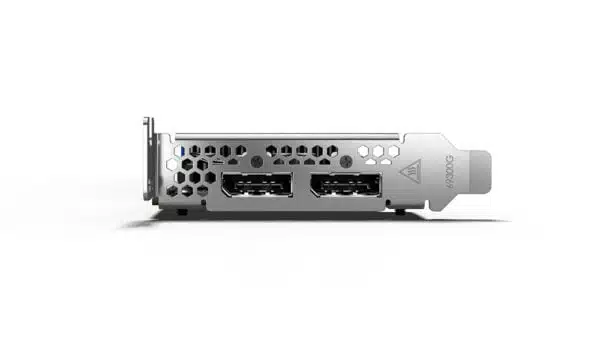

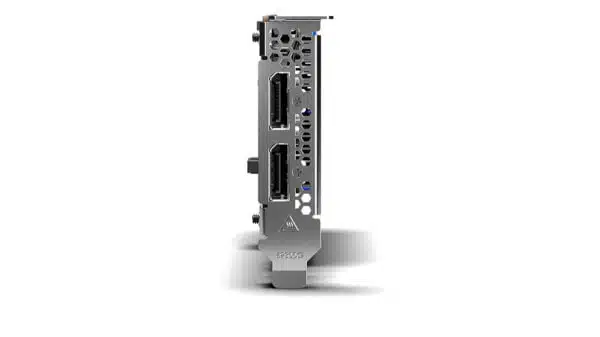

External IO:
| # DisplayPort |
2x 1.4 with DSC and Audio Support |
|---|
GPU:
| # Compute Units |
12 |
|---|---|
| # Stream Processors |
768 |
| FP16 Performance (TFLOPS) |
7.07 |
| FP32 Performance (TFLOPS) |
3.5 |
| GPU Architecture | |
| Lithography |
TSMC 6nm FinFET |
Memory:
| AMD Infinity Cache™ (MB) |
16 |
|---|---|
| Memory Bandwidth (GB/s) |
128 |
| Memory Capacity (GB) |
4 |
| Memory Interface (bit) |
64 |
| Memory Type |
GDDR6 |
PCIe:
| PCIe Version |
PCIe® 4.0 x4 (3.0 Backward Compatible) |
|---|
Power:
| Power Consumption (W) |
50 (TGP) |
|---|
Software:
| API Support |
DirectX® 12.0 Ultimate (feature level 12_1) |
|---|---|
| Supported OS |
Linux, Windows |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Direct To Manufacturer |
* Specifications for older discontinued variants can be view by clicking here
