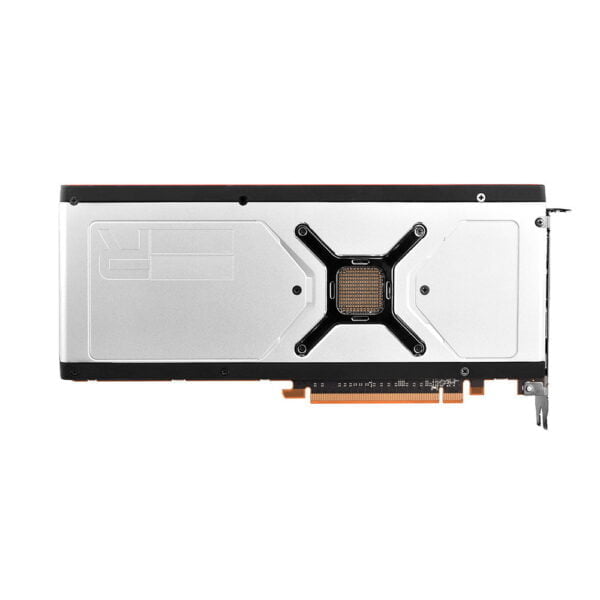

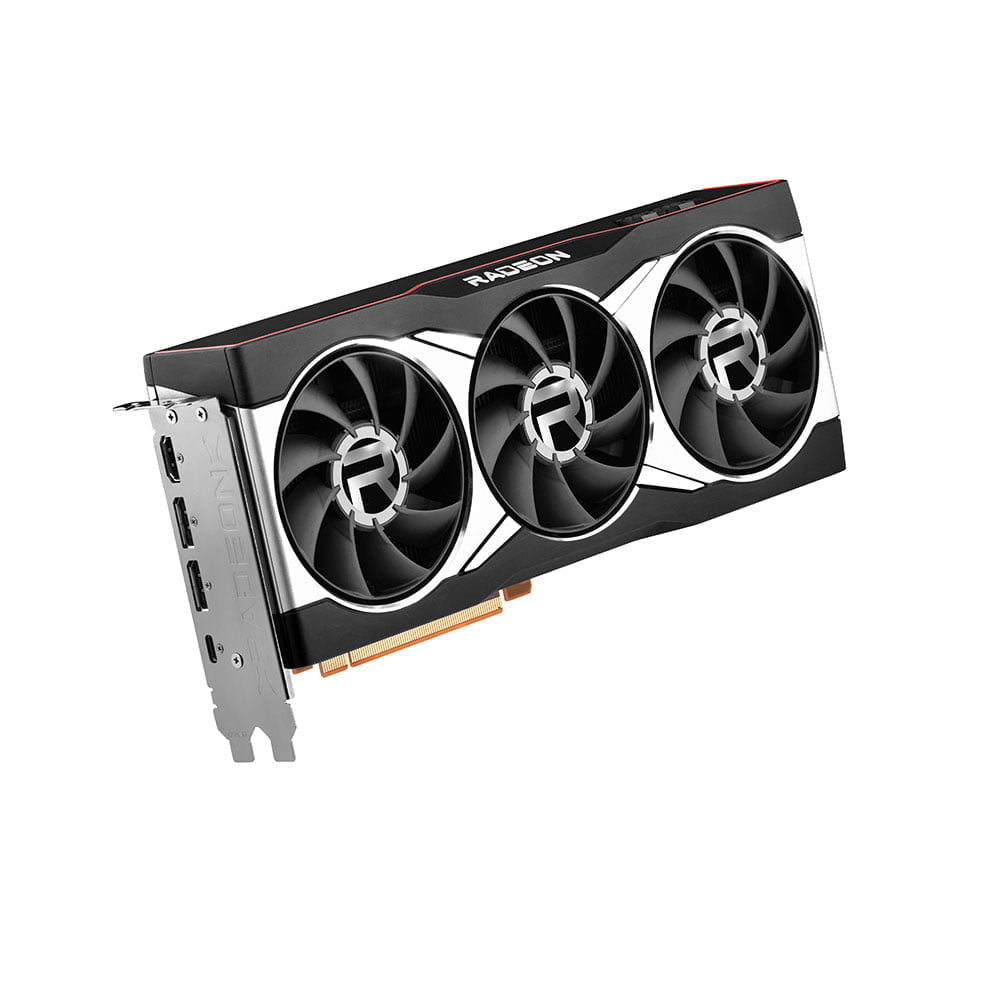

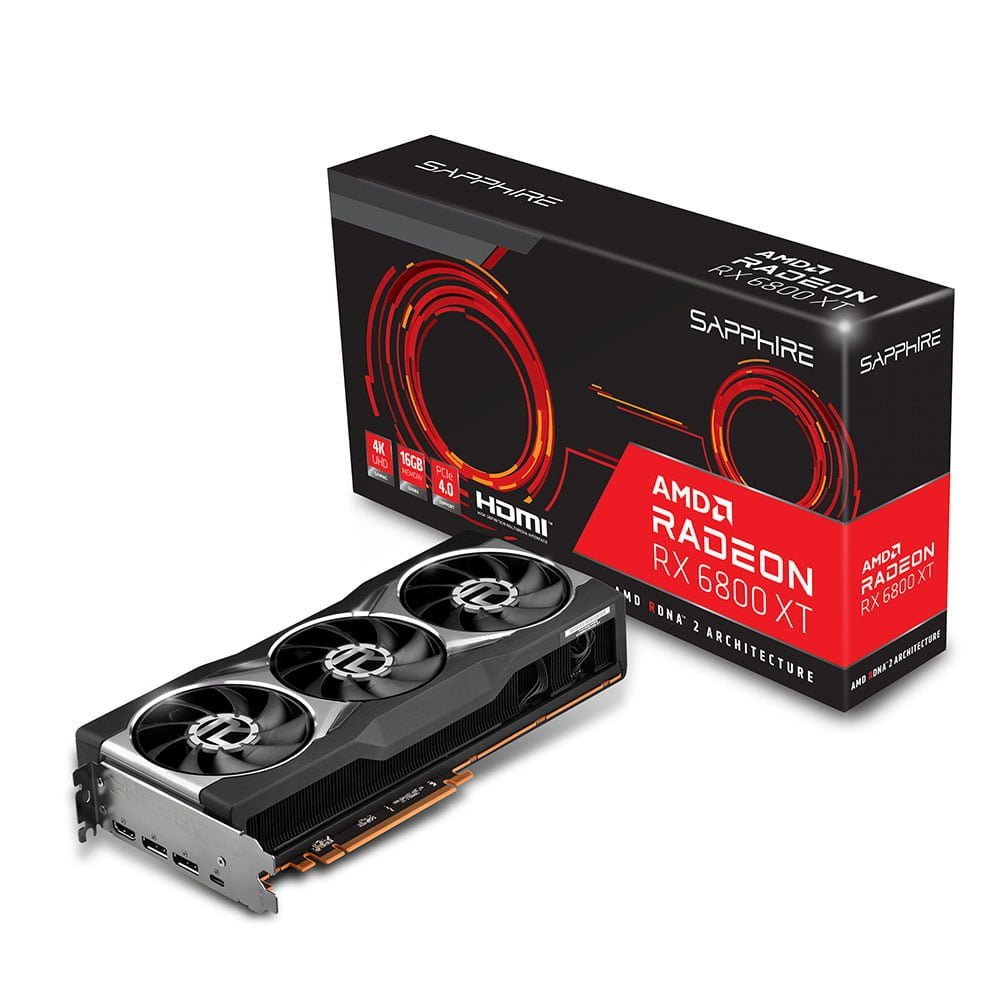

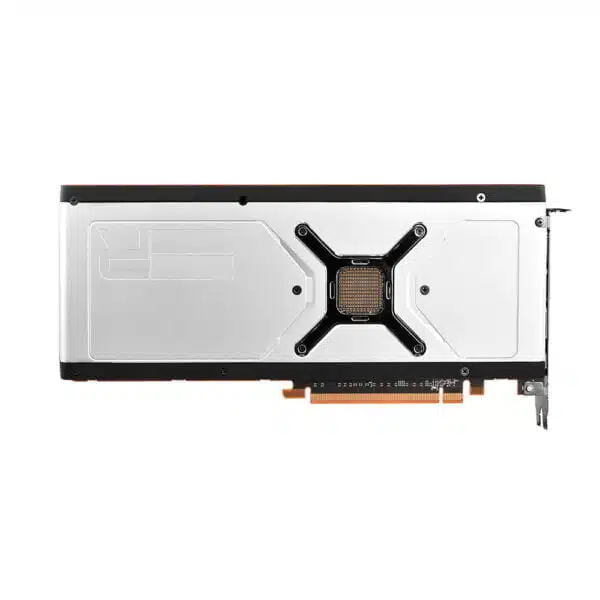

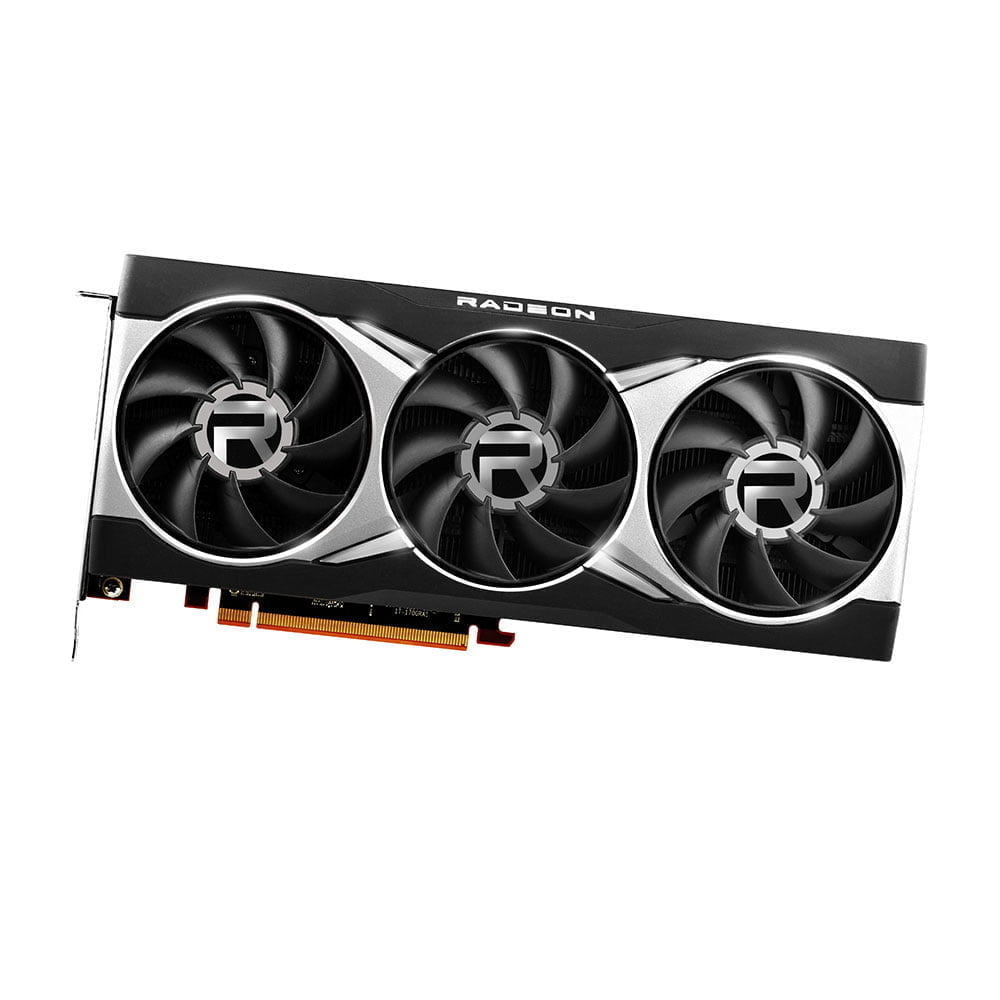

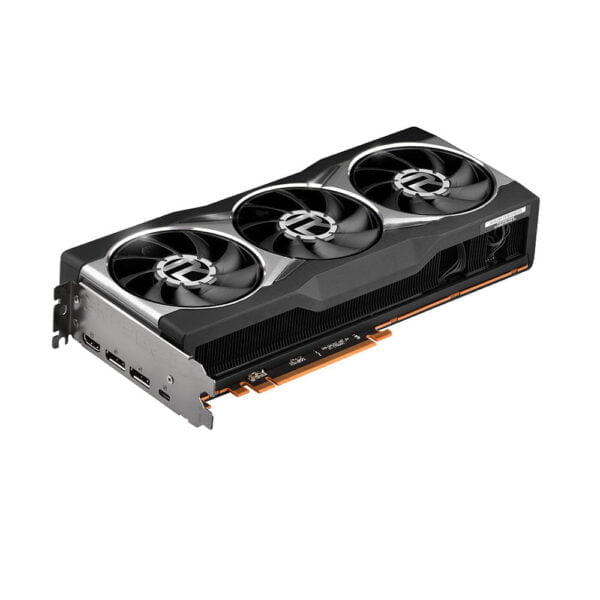

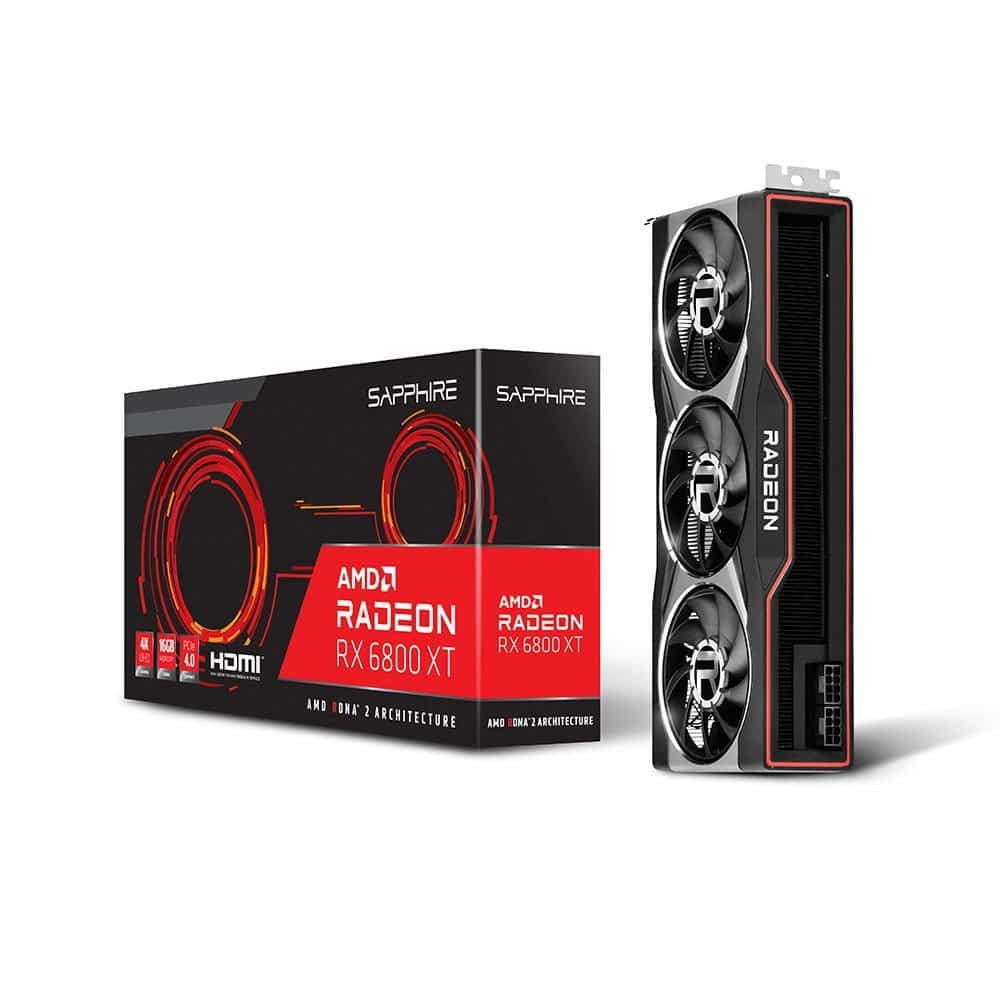

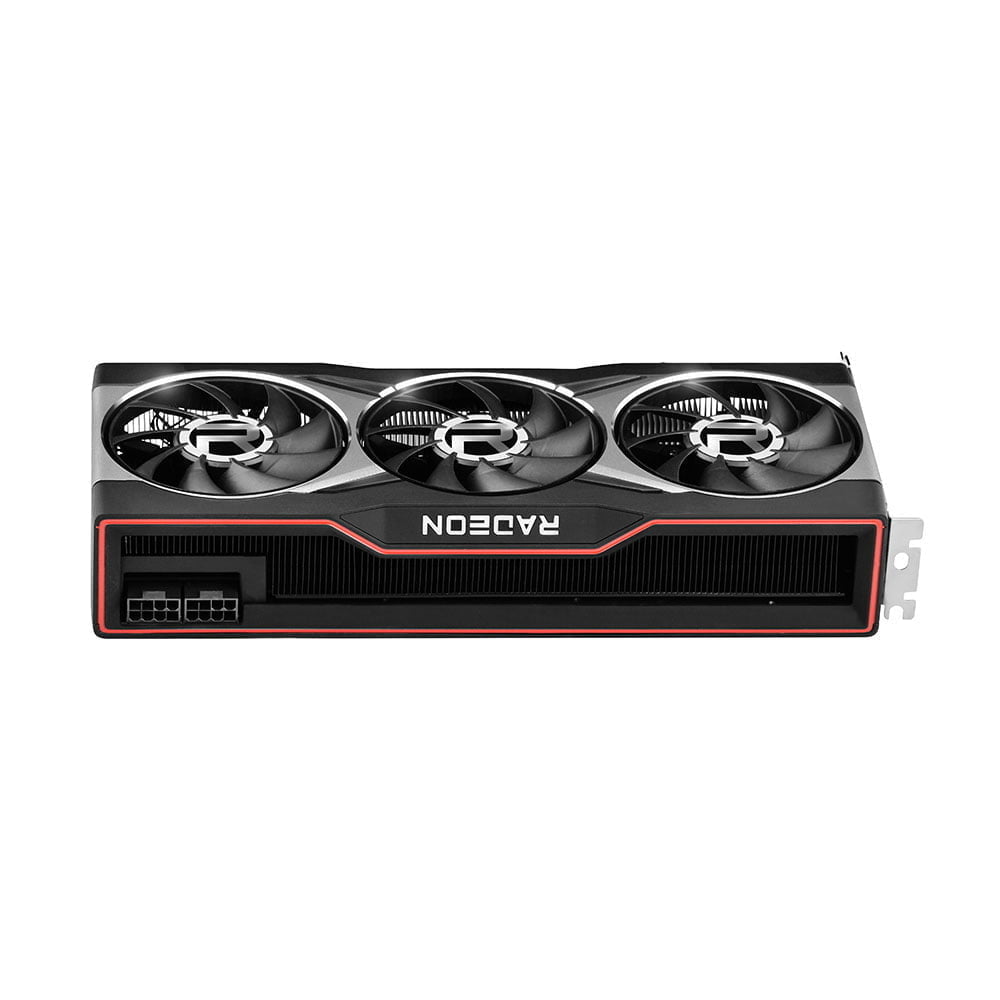

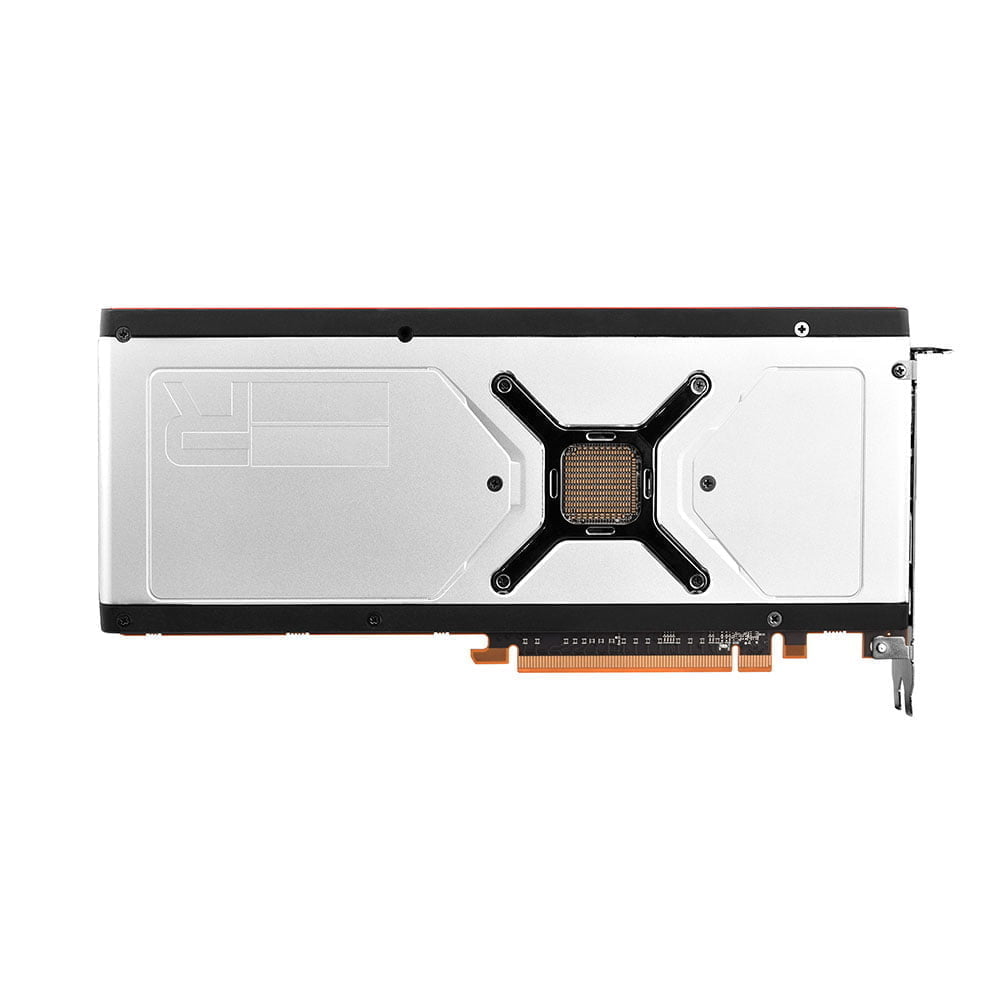

Sapphire Radeon RX 6800 XT Gaming Graphics Card
SKU: GFXSAPPARRX6800XT16GB
The AMD Radeon RX 6800 XT features next-generation compute units, AMD’s revolutionary infinity cache technology and 16GB of GDDR6 memory. Put this all together, and you have a GPU that delivers exceptional frames per second even at 4K resolution. The AMD Radeon RX 6800 XT from Sapphire also supports AMD Smart Access Memory to increase performance further. To take advantage of the groundbreaking technology pair this graphics card with an AMD Ryzen 5000 CPU.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
:
| Website Product Image URL | Click Here |
|---|
Cooling:
| # Included Fans |
3 |
|---|
Dimensions:
| Item Height (CM) |
4.975 |
|---|---|
| Item Width (CM) |
11.975 |
| Item Depth (CM) |
26.67 |
External IO:
| # Max Simultaneous Displays |
4 |
|---|---|
| # DisplayPort |
2 |
| # USB-C (Display) |
1 |
| # HDMI |
1 |
GPU:
| GPU Slot Size | |
|---|---|
| GPU Architecture | |
| Memory Interface (bit) |
256 |
| Lithography |
7nm |
| # Stream Processors |
4608 |
| # Ray Accelerators |
72 |
Memory:
| Memory Type |
GDDR6 |
|---|---|
| Memory Capacity (GB) |
16 |
| Memory Bandwidth (GB/s) |
512 |
PCIe:
| PCIe Version |
PCIe 4.0 |
|---|---|
| # PCIe Lanes |
16 |
Power:
| Wattage |
300 |
|---|---|
| # 6+2 Pin PCIe |
2 |
Software:
| Supported OS |
Linux, Windows 10 |
|---|---|
| API Support |
DirectX 12.0 |
* Specifications for older discontinued variants can be view by clicking here
