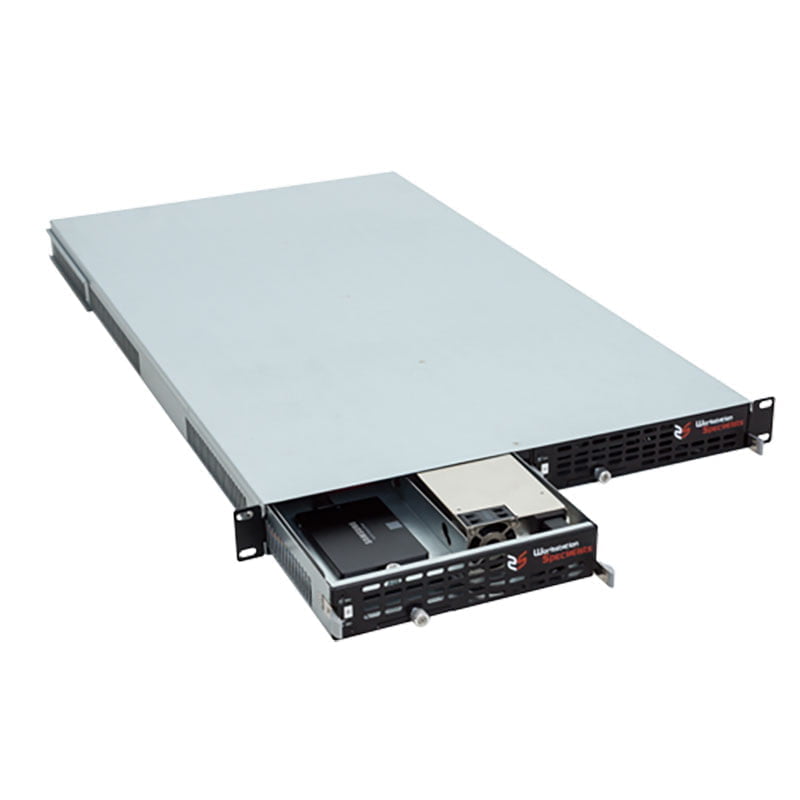

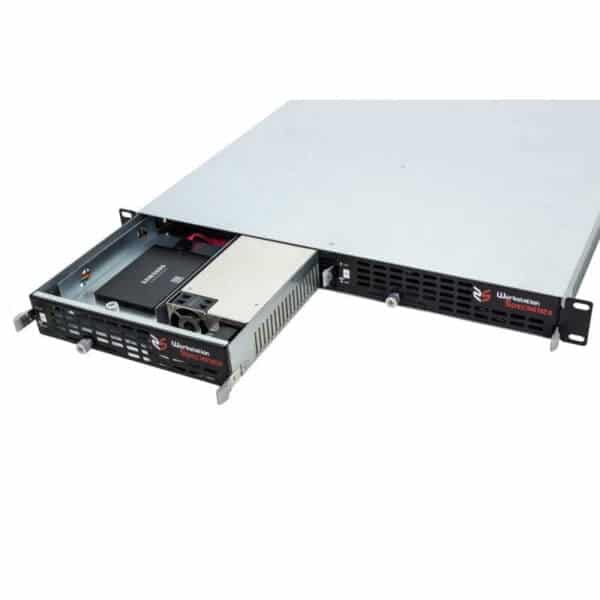

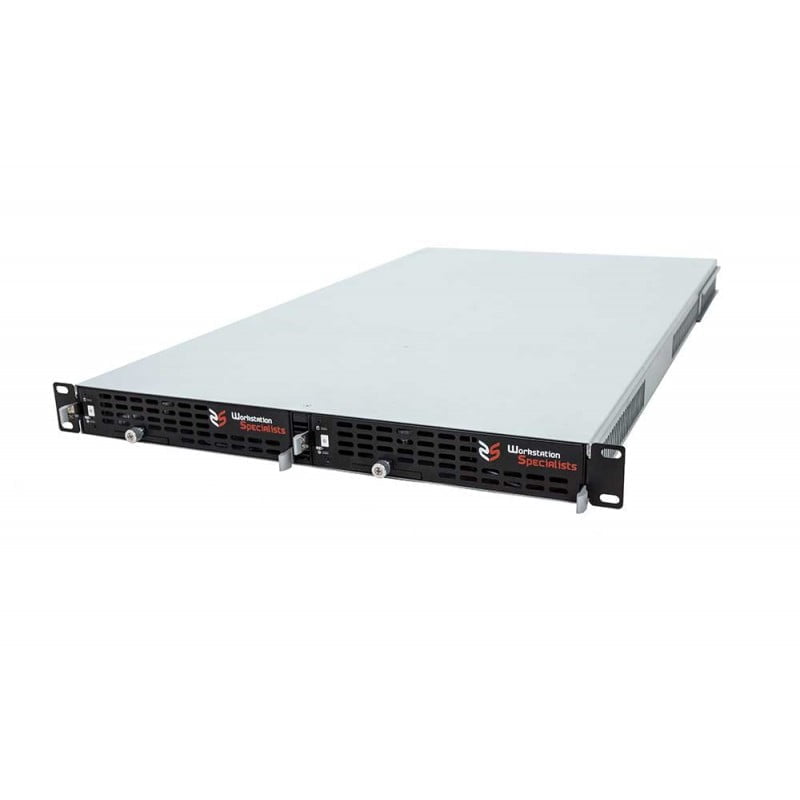

The RS-R4220-U1 is a highly compact unique 4x CPU rendering solution, boasting 2x independent render nodes in a single 1U rackmount form factor. This highly powerful system comprises of the highest quality enterprise grade components available today. This system features the latest Broadwell-EP Dual Intel Xeon E5 2600 v4 processors delivering up to 44 Cores and 88 Threads per node (88 Core and 176 Threads per 1U Chassis) of processing power.
End of Life
End of Life
| Item Depth (CM) |
77 |
|---|---|
| Item Height (CM) |
4.5 |
| Item Width (CM) |
43.35 |
| Rack Units |
1U |
| Max. Memory Capacity (GB) |
1024GB (per node) |
|---|---|
| Max. Memory Channels |
4 |
| # PSU |
2 (1 per node) |
|---|
| # CPUs |
4 (2 per node) |
|---|---|
| Socket |
2011 Narrow ILM |
| # Rear 1Gbps RJ45 Ports |
4 (2 per node) |
|---|---|
| # Rear USB 3.2 Gen 1 Type-A |
4 (2 per node) |
| Rear Remote Management LAN |
2 (1 per node) |
| # VGA |
2 (1 per node) |
|---|
| # Int 3.5inch SATA |
2 (1 per node) |
|---|
| Warranty Duration |
36 Months |
|---|
The RS-R4220-U1 is a highly compact unique 4x CPU rendering solution, boasting 2x independent render nodes in a single 1U rackmount form factor. This highly powerful system comprises of the highest quality enterprise grade components available today. This system features the latest Broadwell-EP Dual Intel Xeon E5 2600 v4 processors delivering up to 44 Cores and 88 Threads per node (88 Core and 176 Threads per 1U Chassis) of processing power.
The RS-R4220-U1 is designed and manufactured by Workstation Specialists to excel at dramatically reducing your rendering times and optimising your projects workflow. With enterprise class components crammed into an incredibly dense 1U rackmount form factor. The RS-R4220-U1 is everything you possibly need from a remote network attached rendering workhorse. Free up your workstation from rendering tasks and let this tailored solution take on the load.
All this solution requires is a rack to house the system, network access to remotely control the render node, power to keep things running and a bit of software configuration. Once they are configured you can start sending your renders over the LAN, and the RS-R4220-1U will start powering through the workload at incredible speeds. Meanwhile your Workstation will be unburdened and free for you to continue working at full capacity.
The RS-R4220-U1 is an extremely dense twin node system meaning you actually get 2 independent nodes in one chassis. This allows us to fit a total of 4 Intel Xeon E5 2600 v4 (Broadwell-EP) processors into 1U of space. Each node can be configured to include 44 cores and 88 threads meaning per 1U chassis, an RS-R4220-U1 can contain a massive 88 CPU cores and 176 threads.
This rack based solution can also home a massive 1024GB per node of system memory, making it ideal for simulation and financial computation workflows as well.
If you are a 3DS Max, Maya, Cinema4D, Softimage, Maxwell, MODO, Lightwave or Blender user and are struggling with slow and sluggish rendering times then look no further. The RS-R4220-U1 is designed to alleviate this issue and get you completing projects quicker than ever before. See for yourself, check out our ROI Calculator above to see how much time and money this system could save you.
