RS IXS-C621A0 G-U2N4-P2G0-E8I0 2U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Multi-Node Server

0/5

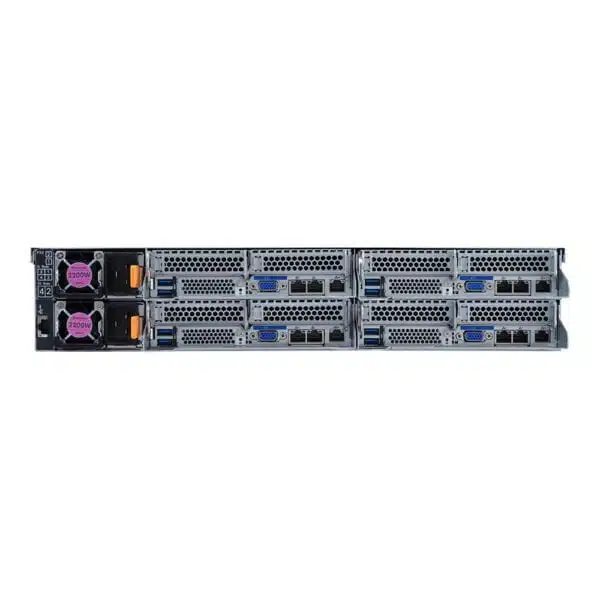

RS IXS-C621A0 G-U4N4-P2G0-E8I0 2U 4 Node Server Rear 4 Nodes With Intel Xeon Logo

Details & Specifications

Chassis:

Chassis Form Factor

2U 4 Nodes Rackmount

Cooling:

Active Cooling

Yes

System Fans

8 x 80x80x38mm (16,300rpm)

Dimensions:

Item Depth (CM)

84

Item Height (CM)

8.75

Item Width (CM)

44

Rack Units

2U

Front IO:

# Reset buttons

1 (per system)

LED

1 x Power button with LED (per node)
1 x ID button with LED (per node)
1 x Status LED (per system)

Internal IO:

# BMC SGPIO headers

1 (per node)

# Clear CMOS jumpers

1 (per node)

# COM headers

1 (per node)

# IPMB connectors

1 (per node)

# JTAG BMC header

1 (per node)

# PLD headers

1 (per node)

# SATA 7-pin connectors

1 (per node)

# VROC connectors

1 (per node)

TPM Support

Yes

Memory:

# Memory Slots

16 (per node)

DDR Rev.

DDR4

Max. Memory Capacity (GB)

4096 (per node)

Max. Memory Channels

8

Max. Supported Memory Frequency (MHz)

3200

Memory Form Factor

DIMM

Memory Type

RDIMM/LRDIMM

PCIe:

PCIe Configuration

Per node:
Riser Card CRSH01D:
– 1 x Half-length low-profile slot with PCIe x16 (Gen4 x16 bus)

Riser Card CRSH01E:
– 1 x Half-length low-profile slots with PCIe x16 (Gen4 x16 bus)

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bus*

Power:

# PSU

2

AC Input

100-127V~/ 14A, 47-63Hz
200-240V~/ 12.6A, 47-63Hz

DC Output

Max 1200W/ 100-127V~
12.12V/ 95.6A
12Vsb/ 3.5A

Max 2200W/ 200-240V
12.12V/ 178.1A
12Vsb/ 3.5A

Efficiency Rating

80 Plus Platinum

PSU Redundancy

Yes

Wattage

2200

Processor:

# CPUs

2 (per node)

Processor Generation

3rd Generation Intel® Xeon® Scalable Processors

Socket

2 x LGA 4189 (per node)

Processor Chipset

Intel® C621A Express Chipset

Rear IO:

# 10Gbps RJ45 Ports

2 (per node)

# CMC global management ports

1 (per system)

# ID LED

1 (per node)

# USB 3.2 Gen 1 Type-A

2 (per node)

# VGA

1 (per node)

Rear Remote Management LAN

Yes

Software:

Supported OS

Linux, Windows Server

Storage Bays:

# Front 2.5 SATA/SAS/Gen4 NVMe Hotswap

2 (per node)

Video:

Management Chip

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP

Onboard Graphics

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920×1200@60Hz 32bpp, DDR4 SDRAM

Warranty:

Mfr Warranty Length (M)

36

Mfr Warranty Type

ReturnTo Base
