Details & Specifications

Chassis:

Chassis Form Factor	2U Rackmount

Cooling:

Active Cooling	Yes

Dimensions:

Item Depth (CM)	80
Item Height (CM)	8.75
Item Width (CM)	44.8
Rack Units	2U

Front IO:

Front IO - # Reset buttons	1

Internal IO:

# HDD back plane board headers	1
# USB 3.2 Gen1 Header	1
# VROC connectors	1
TPM Support	Yes

Memory:

# Memory Slots	24
DDR Rev.	DDR4
Max. Memory Capacity (GB)	6144
Max. Memory Channels	8
Max. Supported Memory Frequency (MHz)	3200
Memory Form Factor	DIMM
Memory Type	RDIMM/LRDIMM

PCIe:

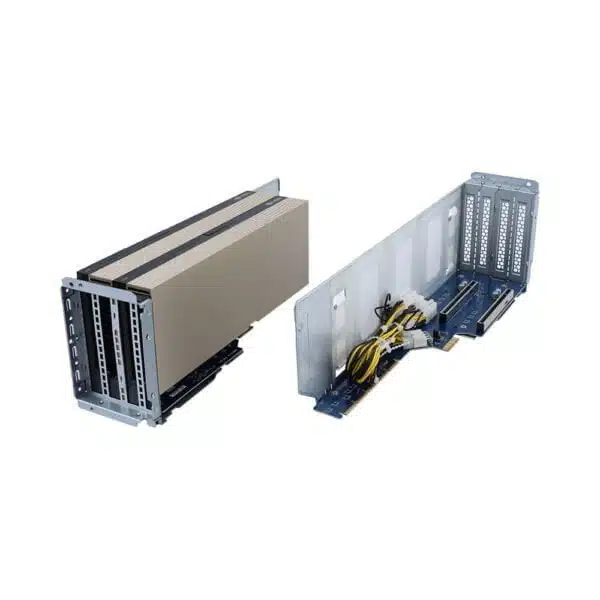

PCIe Configuration	8 x PCIe x16 slots (Gen4 x16 bus) for GPUs 2 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slots

Power:

AC Input	100-127V~/ 14A, 50-60Hz 200-208V~/ 16A, 50-60Hz 214-234V~/ 16A, 50-60Hz 240~/ 16A, 50-60Hz
DC Input	240Vdc/ 16A
DC Output	1100W/ 100-127V~ 2434W/ 200-208V~ 2828W/ 214-234V~ 3200W/ 240V~
Efficiency Rating	80 PLUS Platinum power supply
PSU	2 x 3200W

Processor:

# CPUs	2
Processor Chipset	Intel® C621A Express Chipset
Processor Generation	3rd Generation Intel® Xeon® Scalable Processors
Socket	2 x LGA 4189 Socket P+

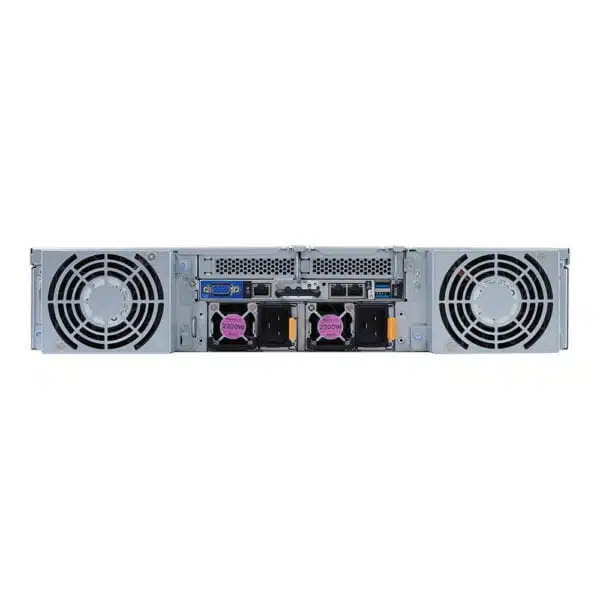

Rear IO:

# 10Gbps RJ45 Ports	2
# NMI buttons	1
# USB 3.2 Gen 1 Type-A	2
# VGA	1
LED	1 x Power button with LED 1 x ID button with LED 1 x System status LED
Rear IO - # Reset buttons	1
Rear Remote Management LAN	Yes

Software:

Supported OS	Linux, Windows Server

Storage Bays:

# Front 2.5 SATA/SAS Hotswap	4 *SAS card is required for SAS devices support
# Front 2.5 SATA/SAS/Gen4 NVMe Hotswap	4 *SAS card is required for SAS devices support

Video:

Onboard Graphics	Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920×1200@60Hz 32bpp, DDR4 SDRAM
