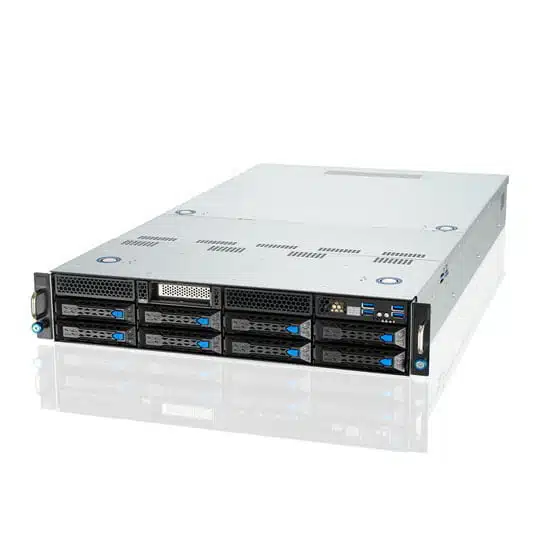

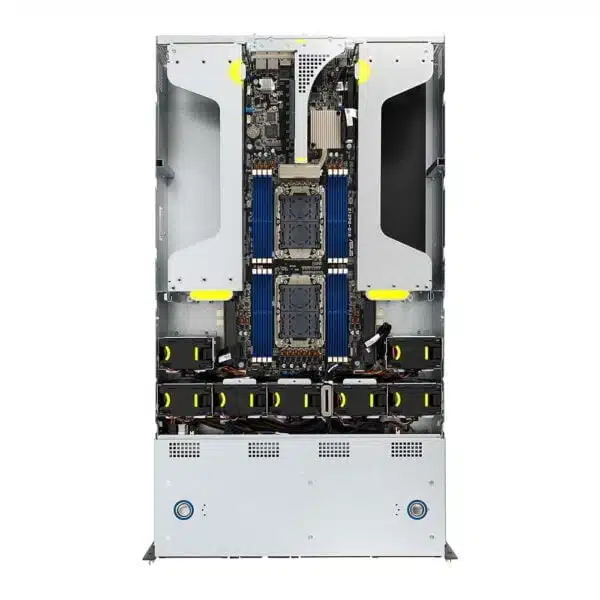

RS IXS-C621A0 A-U2N1-P2G4-E8I0 2U Rackmount Enterprise CPU/GPU Computing System
SKU: RS IXS-C621A0 A-U2N1-P2G4-E8I0
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Chassis:
| Chassis Form Factor |
2U Rackmount |
|---|
Dimensions:
| Item Depth (CM) |
80 |
|---|---|
| Item Height (CM) |
8.89 |
| Item Weight (Kg) |
40-44 |
| Item Width (CM) |
44 |
| Rack Units |
2U |
Front IO:
| # LED |
1 x Power Button/LED |
|---|---|
| Front IO - # USB 3.2 Gen 1 Type-A |
4 |
| LED |
1 x Power Button/LED |
Internal IO:
| # M.2 NVMe PCie 3.0 x4 / SATA |
1 |
|---|---|
| # M.2 NVMe PCIe 4.0 x4 |
4 |
Memory:
| # Memory Slots |
16 |
|---|---|
| DDR Rev. |
DDR4 |
| Max. Memory Capacity (GB) |
2048 |
| Max. Memory Channels |
8 |
| Max. Supported Memory Frequency (MHz) |
3200 |
| Memory Form Factor |
DIMM |
| Memory Type |
RDIMM / LRDIMM / LR-DIMM 3DS |
Network:
| Network Controllers |
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
|---|
PCIe:
| PCIe Configuration |
Rear: |
|---|
Power:
| # PSU |
2 |
|---|---|
| Efficiency Rating |
80 Plus Platinum |
| PSU Redundancy |
1+1 |
| Rating |
100-127Vac/200-240Vac,14A/12.6A,47-63Hz |
| Wattage |
2200 |
Processor:
| # CPUs |
2 |
|---|---|
| Processor Chipset |
Intel® C621A |
| Processor Generation |
3rd Gen Intel® Xeon® Scalable Processors Family(205W) |
| Socket |
2 x Socket P+ (LGA 4189) |

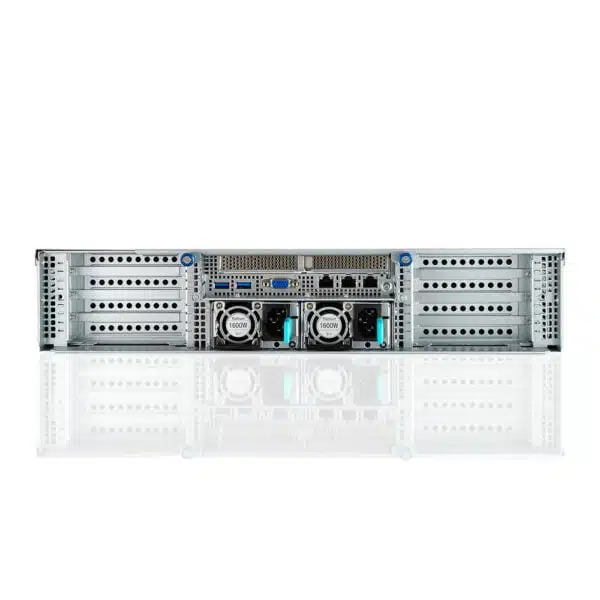

Rear IO:
| # 1Gbps RJ45 Ports |
2 |
|---|---|
| # USB 3.2 Gen 1 Type-A |
2 |
| # VGA |
1 |
Software:
| Supported OS |
Linux, Windows Server |
|---|
Storage Bays:
| # Front 3.5 SATA/SAS Hotswap |
6 |
|---|---|
| # Front 3.5 SATA/SAS/U.2 NVMe Hotswap |
2 |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
