RS AE-SOC0 G-U4N1-P1G0-E42I0 4U Rackmount Single AMD EPYC™ 7003 Storage Server

0/5

Details & Specifications

Chassis:

Chassis Form Factor

4U Rackmount

Cooling:

Active Cooling

Yes

System Fans

8 x 80x80x38mm (16,300rpm)

Dimensions:

Item Depth (CM)

62.5

Item Height (CM)

17.7

Item Width (CM)

48.26

Rack Units

4U

Front IO:

# NMI buttons

1

Front IO - # USB 3.2 Gen 1 Type-A

2

Internal IO:

# BIOS recovery jumpers

1

# Buzzers

1

# Clear CMOS jumpers

1

# Front panel headers

1

# HDD back plane board headers

1

# IPMB connectors

1

# M.2 NVMe PCIe 4.0 x4

2

# PMBus connectors

1

# SlimSAS connectors

10

# USB 2.0 headers

1

# USB 3.2 Gen1 headers

1

COM_2 headers

1

TPM Support

Yes

Memory:

# Memory Slots

16

DDR Rev.

DDR4

Max. Memory Capacity (GB)

4096

Max. Memory Channels

8

Max. Supported Memory Frequency (MHz)

3200

Memory Form Factor

DIMM

Memory Type

RDIMM/LRDIMM

PCIe:

PCIe Configuration

Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)*

*NOTE: If OCP 2.0 mezzanine slot is required, rear side 4-Bay cage need to be removed.

Power:

# PSU

2

AC Input

100-240V~/ 12-7A, 50-60Hz

DC Input

240Vdc/ 6A

DC Output

Max 1000W/ 100-240V~
12V/ 80.5A
12Vsb/ 3A

Max 1200W/ 200-240V~ or 240Vdc input
12V/ 97A
12Vsb/ 3A

Efficiency Rating

80 Plus Platinum

PSU Redundancy

Yes

Wattage

1200

Processor:

# CPUs

2

Processor Generation

AMD EPYC™ 7003 series processor family

Socket

Socket SP3

Processor Chipset

System on Chip

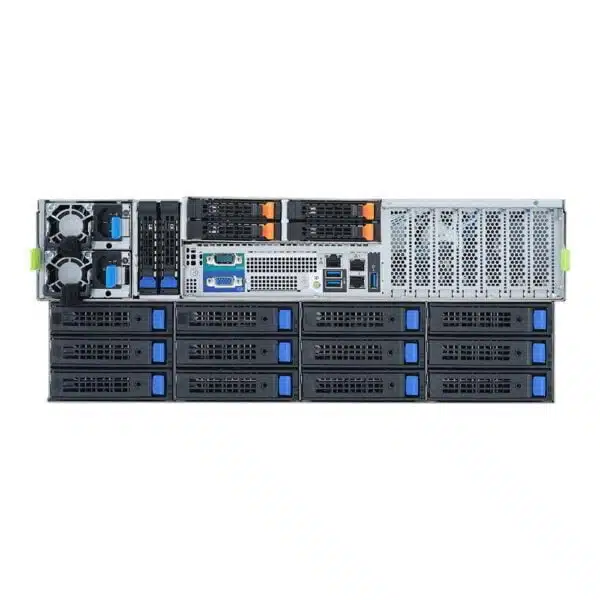

Rear IO:

# COM_1

1

# LED

1 x ID button with LED

# RJ45 1Gb/s

2

# VGA

1

Rear IO - # USB 3.2 Gen 1 Type-A

2

Rear Remote Management LAN

Yes

Software:

Supported OS

Linux, Windows Server

Storage Bays:

# Front 3.5 SATA/SAS Hotswap

24
*SAS card is required to enable the drive bays

# Rear 2.5 SATA Hotswap

2
*Rear side 2.5" bays support Solid State Drives only due to thermal consideration

# Rear 2.5 SATA/SAS/NVMe Hotswap

4
*SAS card is required to enable the drive bays

*Rear side 2.5" bays support Solid State Drives only due to thermal consideration

# Rear 3.5 SATA/SAS Hotswap

12
*SAS card is required to enable the drive bays

Video:

Onboard Graphics

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920×1200@60Hz 32bpp, DDR4 SDRAM
