RS AE-SOC0 G-U2N4-P2G0-E8I0 2U Rackmount Dual AMD EPYC™ 7003 Multi-Node Server

0/5
RS AE-SOC0 G-U4N4-P2G0-E8I0 2U 4 Node Server Front Right 4 Nodes With AMD EPYC Logo

Details & Specifications

Chassis:

Chassis Form Factor

2U 4 Nodes Rackmount

Cooling:

Active Cooling

Yes

System Fans

8 x 80x80x38mm (16,300rpm)

Dimensions:

Item Depth (CM)

90.2

Item Height (CM)

8.75

Item Width (CM)

44.7

Rack Units

2U Rackmount

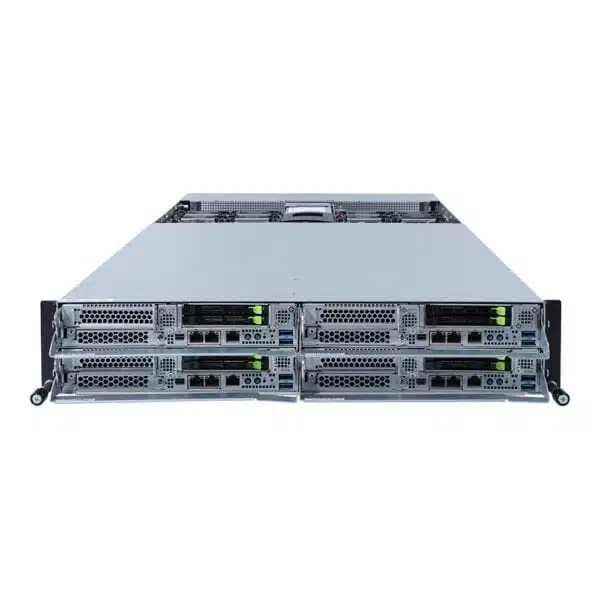

Front IO:

# 1Gbps RJ45 Ports

2 (per node)

# Mini-DP

1 (per node)

# System reset buttons

1 (per node)

# USB 3.2 Gen 1 Type-A

1 (per node)

LED

1 x Power button with LED (per node)
1 x ID button with LED (per node)
1 x Status LED (per node)

Remote Management LAN

Yes

Internal IO:

# BMC SGPIO headers

1 (per node)

# Clear CMOS jumpers

1 (per node)

# COM headers

1 (per node)

# IPMB connectors

1 (per node)

# JTAG BMC headers

1 (per node)

# M.2 NVMe PCIe 4.0 x4

2 (per node)
*CPU TDP is limited to 240W if using M.2 device

# PLD headers

1 (per node)

TPM Support

Yes

Memory:

# Memory Slots

32 (per node)

DDR Rev.

DDR4

Max. Memory Capacity (GB)

8192 (per node)

Max. Memory Channels

8 (per node)

Max. Supported Memory Frequency (MHz)

3200

Memory Form Factor

DIMM

Memory Type

RDIMM/LRDIMM

PCIe:

PCIe Configuration

Per node:
1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus) in front side (CPU_0)
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0

Power:

# PSU

2

AC Input

100-127V~/ 14A
220-240V~/ 16A

DC Output

1106W@100-127V
2434.5W@200-208V
2828.1W@214-234V
3234W@240V

Efficiency Rating

80 Plus Platinum

Wattage

3200

Processor:

# CPUs

2 (per node)

Processor Chipset

System on Chip

Processor Generation

AMD EPYC™ 7003 series processor family

Socket

Socket SP3

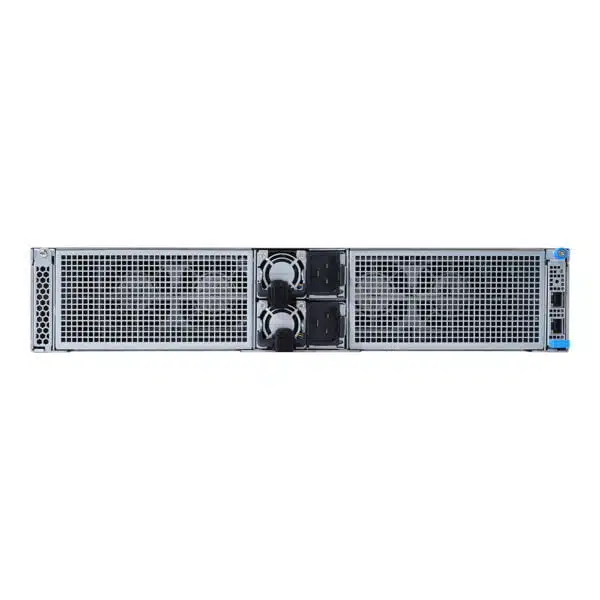

Rear IO:

# CMC global management ports

2 (per system)

Software:

Supported OS

Windows Server|##|Linux

Storage Bays:

# Front 2.5 SATA/SAS Hotswap

{{VALU}} (per node)
*7mm slim type

Video:

Management Chip

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP

Onboard Graphics

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920×1200@60Hz 32bpp, DDR4 SDRAM

Warranty:

Mfr Warranty Length (M)

36

Mfr Warranty Type

Return to Base
