RS AE-SOC0 G-U2N1-P2G3-E12I0 2U Rackmount Dual AMD EPYC™ 7003 Storage Server
SKU: RS AE-SOC0 G-U2N1-P2G3-E12I0
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Chassis:
| Chassis Form Factor |
2U Rackmount |
|---|
Cooling:
| System Fans |
4 x 80x80x38mm (16,300rpm) |
|---|
Dimensions:
| Item Depth (CM) |
73 |
|---|---|
| Item Height (CM) |
8.7 |
| Item Width (CM) |
43.8 |
| Rack Units |
2U |
Front IO:
| # NMI buttons |
1 |
|---|---|
| # Reset buttons |
1 |
| Front IO - # USB 3.2 Gen 1 Type-A |
2 |
| Front IO - LED |
1 x Power button with LED |
Internal IO:
| # BIOS recovery jumpers |
1 |
|---|---|
| # Clear CMOS jumpers |
1 |
| # COM headers |
1 |
| # Front panel headers |
1 |
| # HDD back plane board headers |
1 |
| # IPMB connectors |
1 |
| # M.2 NVMe PCIe 4.0 x4 |
1 |
| # USB 3.0 headers |
1 |
Memory:
| # Memory Slots |
32 |
|---|---|
| DDR Rev. |
DDR4 |
| Max. Memory Capacity (GB) |
8192 |
| Max. Memory Channels |
8 |
| Memory Form Factor |
DIMM |
| Memory Type |
RDIMM/LRDIMM |
PCIe:
| PCIe Configuration |
Riser Card CRS2014: |
|---|
Power:
| # PSU |
2 |
|---|---|
| AC Input |
100-120V~/ 12A, 50-60Hz |
| DC Input |
240Vdc/ 10A |
| DC Output |
1000W@100-120V, +12.2V/ 81.5A, +12Vsb/ 2.5A |
| Efficiency Rating |
80 Plus Platinum |
| Wattage |
2000 |
Processor:
| # CPUs |
2 |
|---|---|
| Processor Generation |
AMD EPYC™ 7003 series processor family |
| Socket |
Socket SP3 |
| Processor Chipset |
System on Chip |

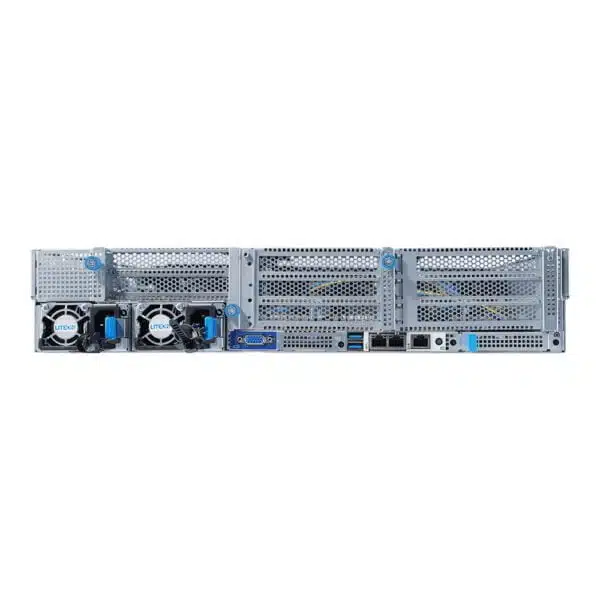

Rear IO:
| # RJ45 1Gb/s |
2 |
|---|---|
| # VGA |
1 |
| Rear IO - # USB 3.2 Gen 1 Type-A |
2 |
| Rear IO - LED |
ID button with LED |
Software:
| Supported OS |
Linux, Windows Server |
|---|
Storage Bays:
| # Front 3.5 SATA/Gen4 NVMe Hotswap |
4 |
|---|---|
| # Front 3.5 SATA/SAS Hotswap |
8 |
Video:
| Onboard Graphics |
Integrated in Aspeed® AST2500 |
|---|
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
