Details & Specifications

Chassis:

Chassis Form Factor	2U Rackmount

Cooling:

Active Cooling	Yes
System Fans	8 x 80x80x38mm (16,300rpm)

Dimensions:

Item Depth (CM)	80
Item Height (CM)	8.75
Item Width (CM)	44.8
Rack Units	2U

Front IO:

# Reset buttons	1
Front IO - LED	1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED

Internal IO:

# Buzzers	1
# M.2 NVMe PCIe 3.0 x4	2
# SlimSAS connectors	4
TPM Support	Yes

Memory:

# Memory Slots	8
DDR Rev.	DDR4
Max. Memory Capacity (GB)	2048
Max. Memory Channels	8
Max. Supported Memory Frequency (MHz)	3200
Memory Form Factor	DIMM
Memory Type	RDIMM/LRDIMM

PCIe:

PCIe Configuration	8 x PCIe x16 slots (Gen4 x16 bus) for GPUs ( Broadcom solution) 2 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slots

Power:

AC Input	100-127V~/ 14A, 47-63Hz 200-240V~/ 12.6A, 47-63Hz
Efficiency Rating	80 PLUS Platinum power supply
PSU	2+0 2200W
Wattage	2200
DC Output	Max 1200W/ 100-127V~ 12.12V/ 95.6A 12Vsb/ 3.5A Max 2200W/ 200-240V 12.12V/ 178.1A 12Vsb/ 3.5A

Processor:

# CPUs	1
Processor Generation	AMD EPYC™ 7003 series processor family
Socket	Socket SP3
Processor Chipset	System on Chip

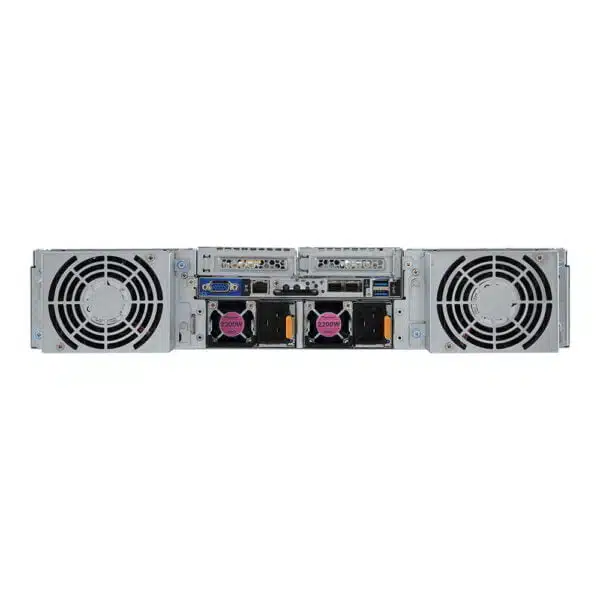

Rear IO:

# 10Gbps SFP+ Ports	2
# NMI button	1
# Reset Button	1
# USB 3.2 Gen 1 Type-A	2
# VGA	1
Rear IO - LED	1 x Power button with LED 1 x ID button with LED 1 x System status LED
Rear Remote Management LAN	Yes

Software:

Supported OS	Linux, Windows Server

Storage Bays:

# Front 2.5 Gen3 U.2 NVMe Hotswap	2
# Front 2.5 SATA/SAS Hotswap	6 *SAS card is required for SAS devices support

Video:

Onboard Graphics	Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920×1200@60Hz 32bpp, DDR4 SDRAM

Warranty:

Mfr Warranty Length (M)	36
Mfr Warranty Type	Return to Base
