NVIDIA RTX™ A5500
SKU: WEBGFXNQRTXA5500
Categories: NVIDIA Quadro RTX
NVIDIA RTX A5500 provides exceptional performance for artists, designers, engineers & data scientists. It copes easily even under demanding workloads. Multiple applications running simultaneously operate smoothly, often with little to no impact on performance.
Like all professional NVIDIA RTX graphics cards, the A5500 is stable and reliable. With 24GB GDDR6 ECC memory (48GB with NVLink), 10240 CUDA Cores, 80 RT Cores & 320 Tensor Cores, the RTX A5500 has everything you need to accelerate your workflow.
Details & Specifications
Details & Specifications
| Manufacturer | |
|---|---|
| Manufacturer Part Number | VCNRTXA5500-SB |
Cooling:
| # Included Fans | 1 |
|---|---|
| Active Cooling | Yes |
Dimensions:
| GPU Slot Size | |
|---|---|
| Item Depth (CM) | 11.176 |
| Item Width (CM) | 26.67 |
External IO:

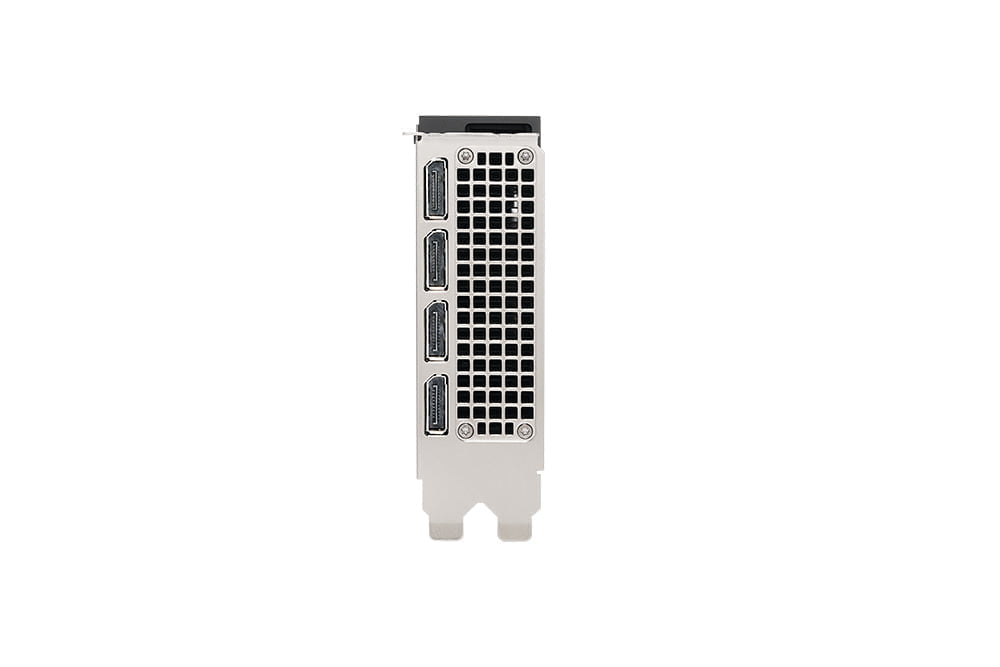

| # DisplayPort | 4x 1.4a |
|---|---|
| # Max Simultaneous Displays | 4 |
| Max Resolution | 7680 x 4320 x36 bpp at 60 Hz |
GPU:
| # CUDA Cores | 10240 |
|---|---|
| # RT Cores | 80 |
| # Tensor Cores | 320 |
| 10-Bit Colour Support | Yes |
| GPU Architecture | |
| Lithography | 8 nm |
| RT Core Performance | 66.6 TFLOPS |
| Single Precision Performance | 34.1 TFLOPS |
| Tensor Performance | 272.8 TFLOPS |
Memory:
| ECC Support | Yes |
|---|---|
| Memory Bandwidth (GB/s) | 768 |
| Memory Interface (bit) | 384 |
| Memory Type | GDDR6 |
PCIe:
| PCIe Version | PCIe 4.0 |
|---|
Power:
| # 8 Pin PCIe | 1 |
|---|---|
| Maximum Power Consumption | 230W |
Software:
| API Support | CUDA 11.6, DirectCompute, DirectX 12 Ultimate, OpenCL 3.0, OpenGL 4.6, Shader Model 6.6, Vulkan 1.3 |
|---|---|
| Supported OS | Linux, Windows |
Warranty:
| Mfr Warranty Length (M) | 36 |
|---|---|
| Mfr Warranty Type | Direct To Manufacturer |
