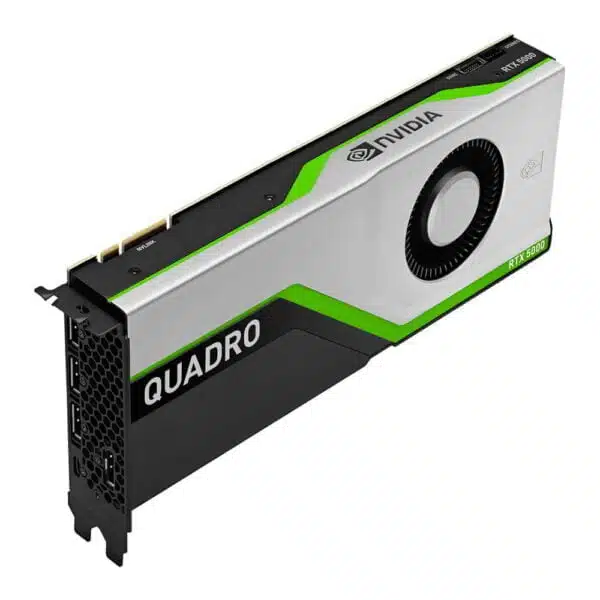

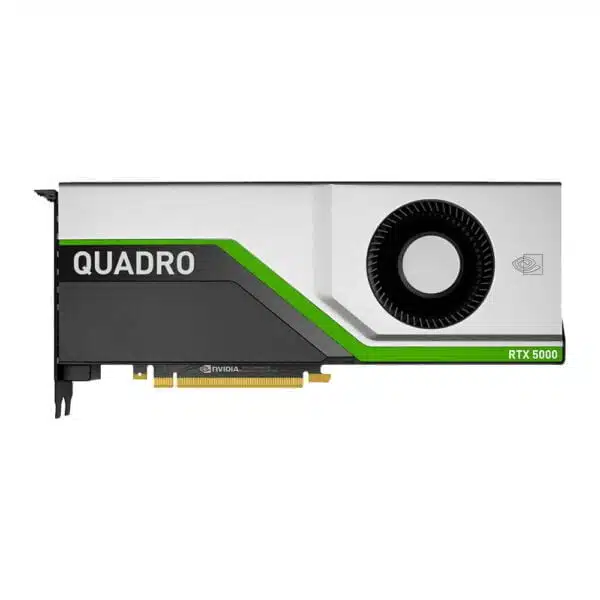

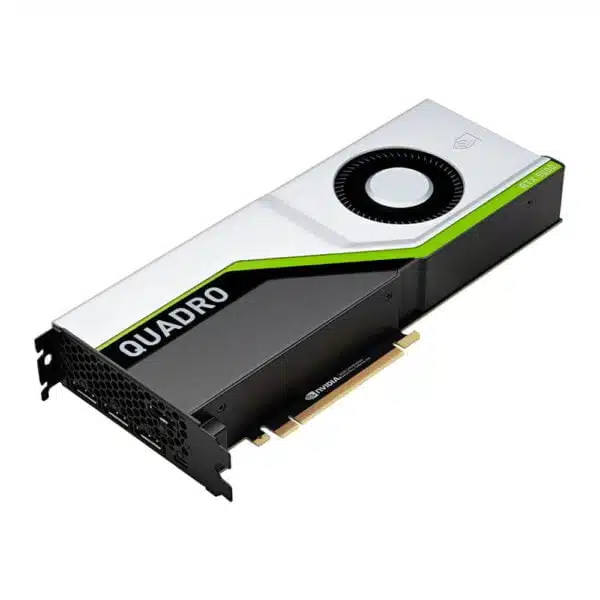

NVIDIA Quadro RTX 5000 16GB Workstation Graphics Card
SKU: GFXRETAILNQRTX5000
Built upon the NVIDIA Turing™ architecture and the NVIDIA RTX platform the NVIDIA™ Quadro RTX 5000 infuses dedicated ray tracing, deep learning and advanced shading hardware to turbo charge your workflows. This new revolutionary graphics card design enables both creative and technical professionals to increase their productivity and enables them to tackle larger projects than ever before, with ease.
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Dimensions:
| Item Width (CM) |
11.176 |
|---|---|
| Item Depth (CM) |
26.67 |

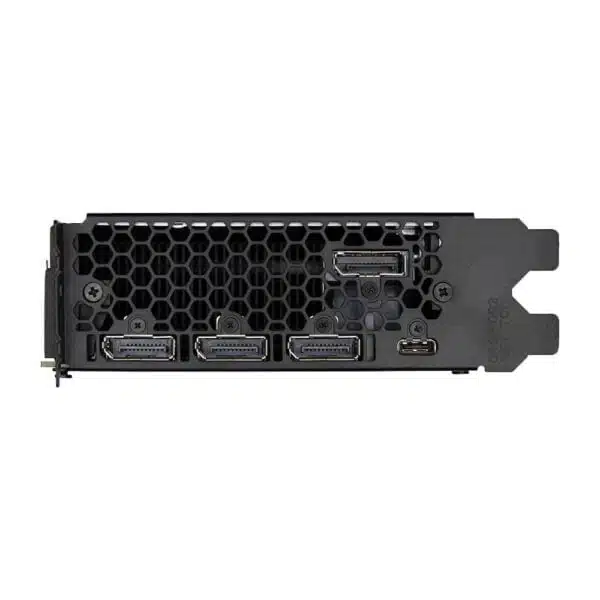

External IO:
| # DisplayPort |
4 x DisplayPort 1.4 |
|---|---|
| # USB-C (Display) |
1 (VirtualLink) |
| # Max Simultaneous Displays |
4 |
| Max Resolution |
7680×4320 @ 60Hz (8K UHD) |
GPU:
| GPU Slot Size | |
|---|---|
| GPU Architecture | |
| # CUDA Cores |
3072 |
| # Tensor Cores |
384 |
| # RT Cores |
48 |
| Memory Interface (bit) |
256 |
| Ray Cast |
8 GIGA RAYS/S |
| RTX-OPS |
62T |
| FP16 Performance (TFLOPS) |
19 |
| FP32 Performance (TFLOPS) |
9 |
| Deep Learning (TFLOPS) |
89 |
| NVLINK Support |
1 |
| NVLINK Bandwidth |
50 GB/s |
Memory:
| Memory Capacity (GB) |
16 |
|---|---|
| Memory Bandwidth (GB/s) |
448 |
| Memory Type |
GDDR6 |
PCIe:
| PCIe Version |
PCIe 3.0 |
|---|
Power:
| # 6+2 Pin PCIe |
1 |
|---|
Software:
| API Support |
DirectX 12.0, OpenCL 1.2, OpenGL 4.6, Shader Model 5.1, Vulkan 1.1 |
|---|
Warranty:
| Mfr Warranty Type |
Return to Base |
|---|---|
| Mfr Warranty Length (M) |
36 |
* Specifications for older discontinued variants can be view by clicking here
