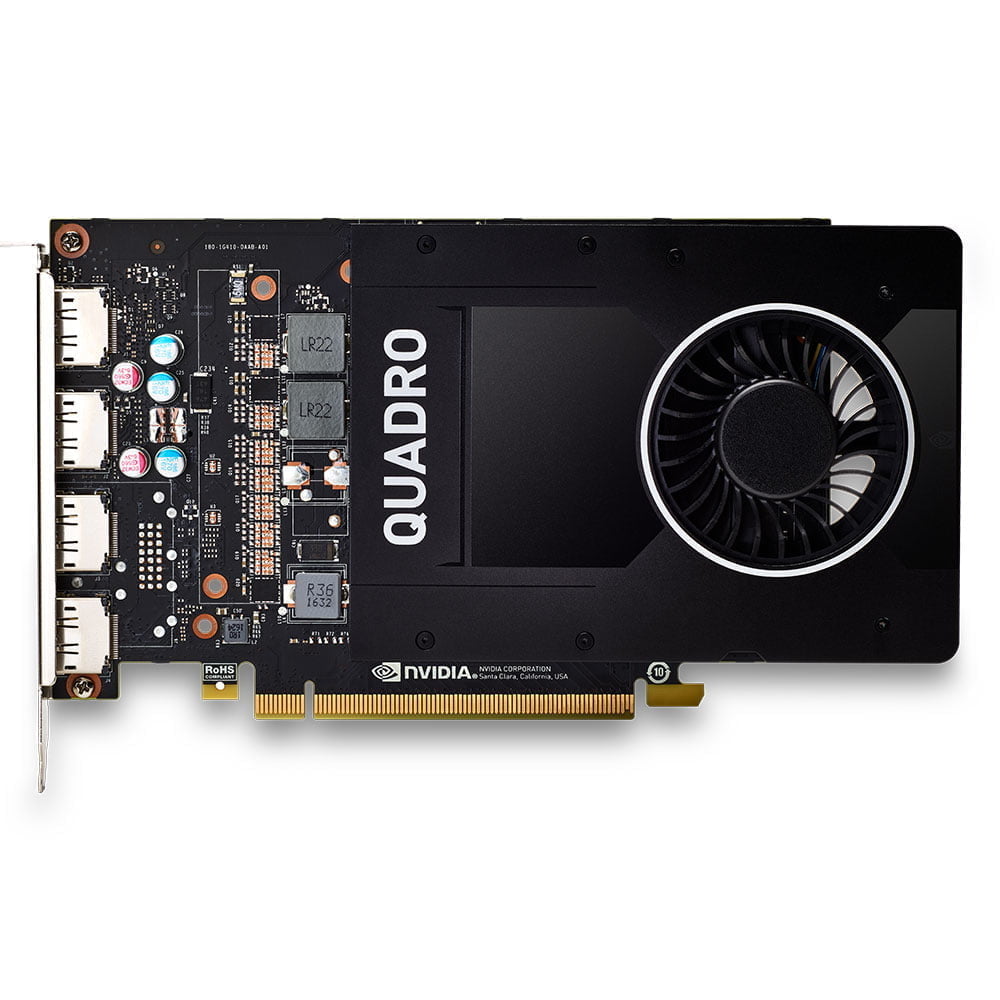

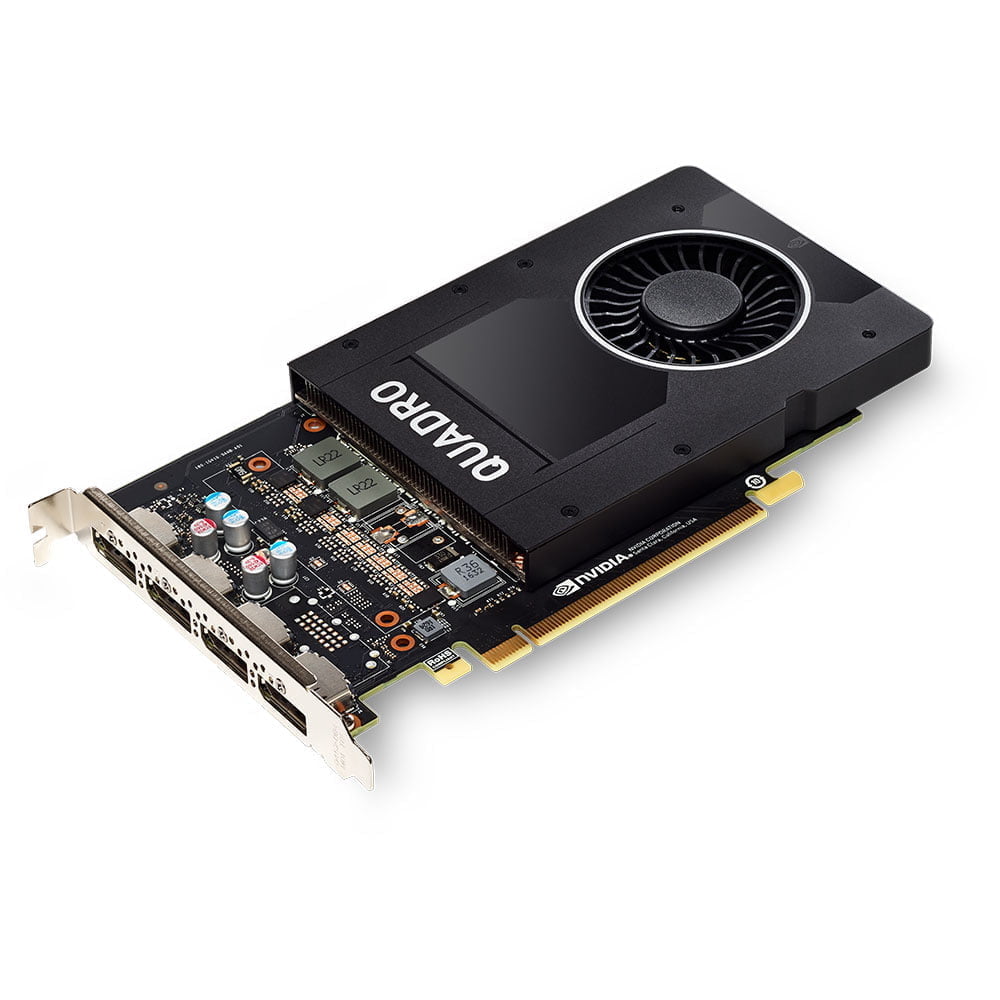

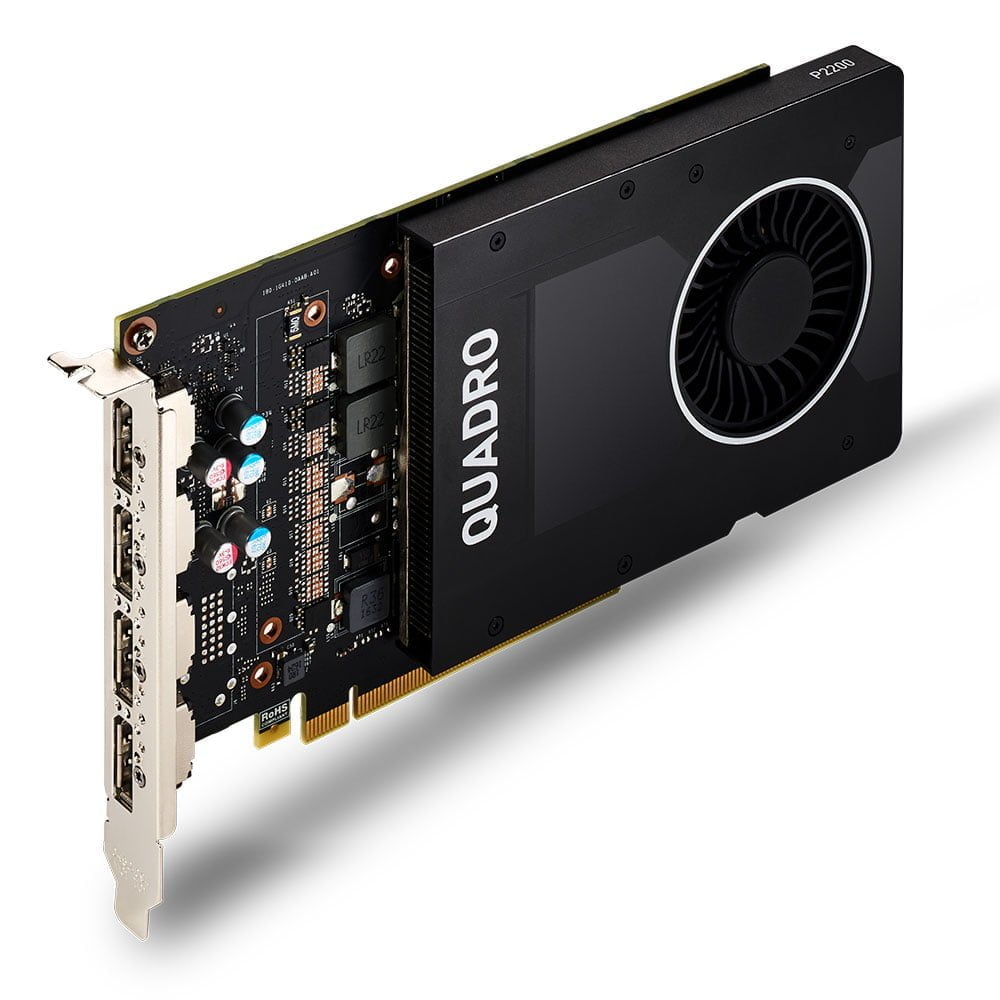

NVIDIA Quadro P2200 5GB Workstation Graphics Card
SKU: GFXRETAILNQP2200
The NVIDIA Quadro P2200 combines excellent performance, rock-solid ISV certified reliability, a fantastic feature set and a compact design to deliver an exceptional tool for creators and designers alike. This graphics card has enough performance (1280 CUDA cores) and memory (5GB GDDR5x) to power multiple high resolutions displays at once and drive complexed 3D model viewports simultaneously. The NVIDIA Quadro P2200 has all you need to enhance your workflow and deliver fluid interactivity even as your projects and scenes grow in size and complexity.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
:
| Website Product Image URL | Click Here |
|---|
Dimensions:
| Item Width (CM) |
11.176 |
|---|---|
| Item Depth (CM) |
19.812 |
External IO:
| # Max Simultaneous Displays |
4 |
|---|---|
| # DisplayPort |

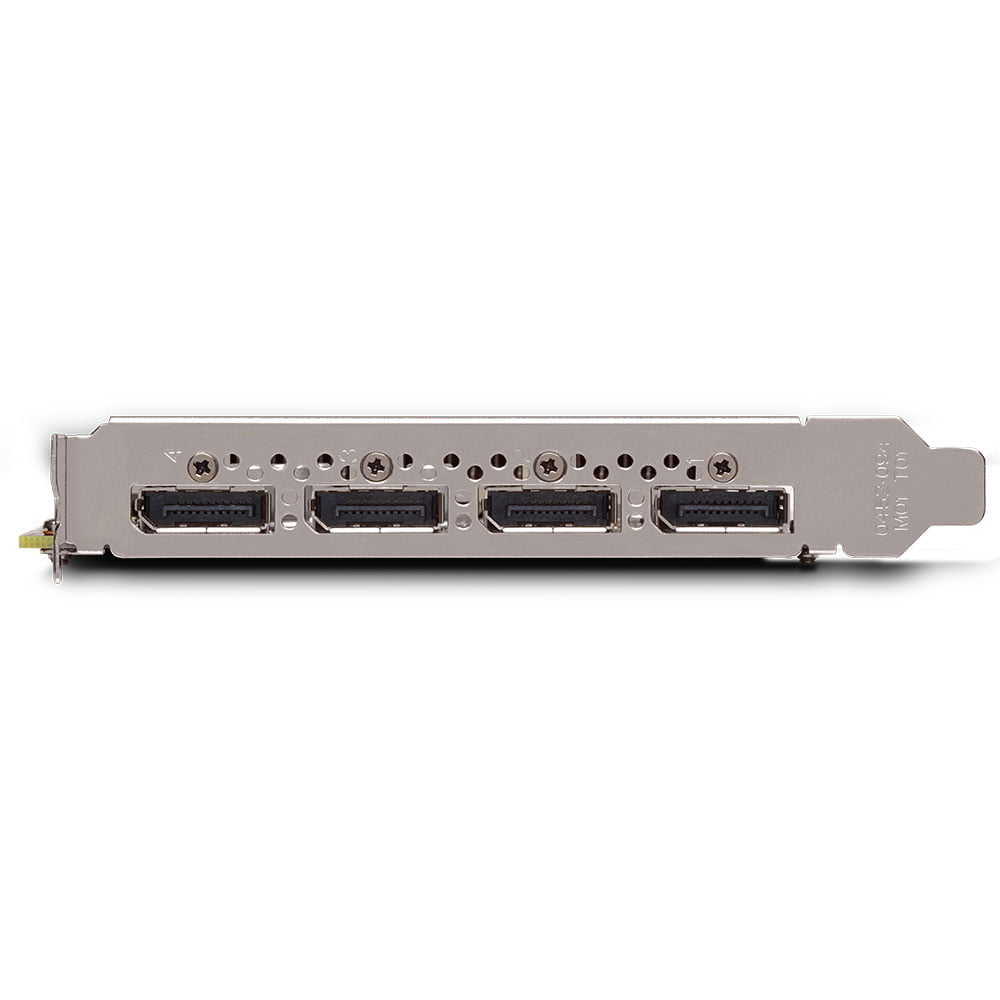

4 x DisplayPort 1.4 |
| Max Resolution |
Max DP 1.4 Resolution HDR 5120 x 2880 at 60Hz (30-bit color) |
GPU:
| GPU Slot Size | |
|---|---|
| GPU Architecture | |
| # CUDA Cores |
1280 |
| FP16 Performance (TFLOPS) |
60 |
| FP32 Performance (TFLOPS) |
4 |
| Memory Interface (bit) |
160 |
Memory:
| Memory Type |
GDDR5X |
|---|---|
| Memory Capacity (GB) |
5 |
| Memory Bandwidth (GB/s) |
200 |
PCIe:
| PCIe Version |
PCIe 3.0 |
|---|
Power:
| Wattage |
75 |
|---|
Software:
| API Support |
DirectX 12.0, OpenGL 4.5, Shader Model 5.1, Vulkan 1.0 |
|---|---|
| Technology Support |
CUDA, DirectCompute, OpenCL |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
* Specifications for older discontinued variants can be view by clicking here
