HPC-R2280I-N4-U2
SKU: HPC-R2280I-N4-U2

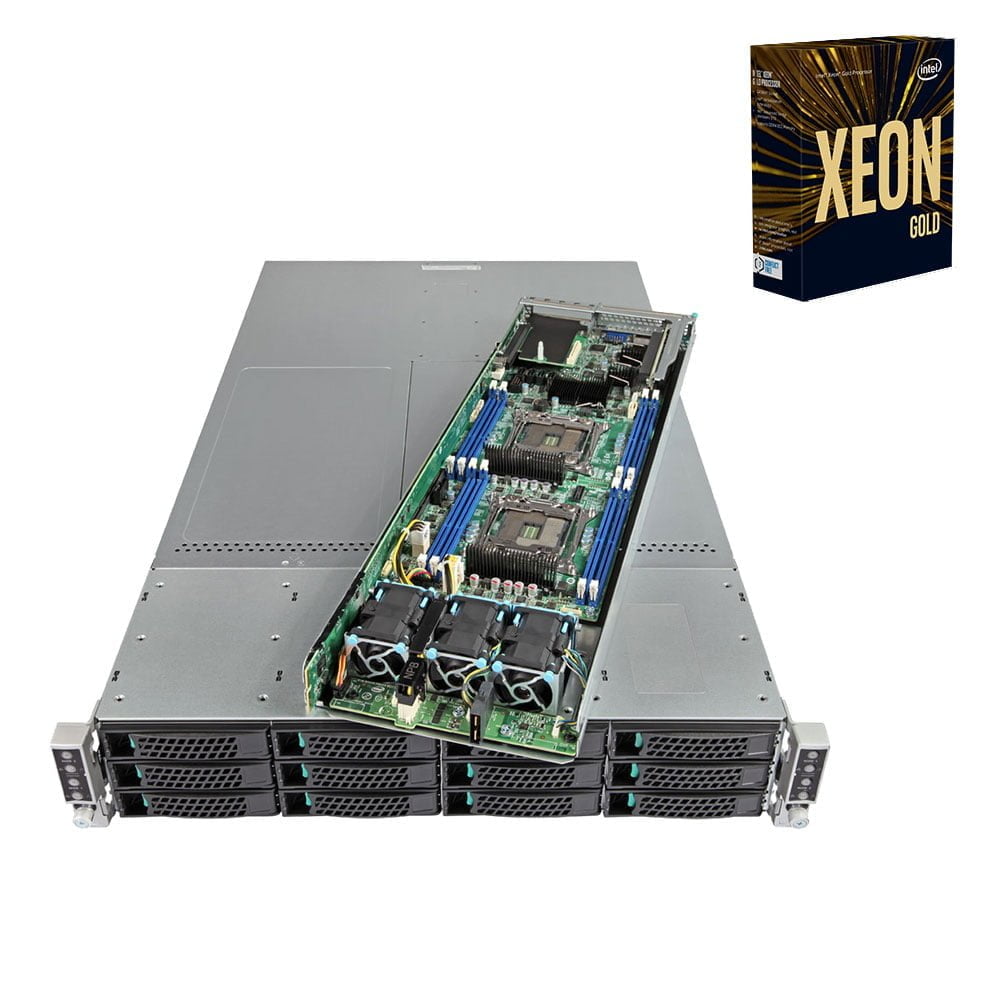

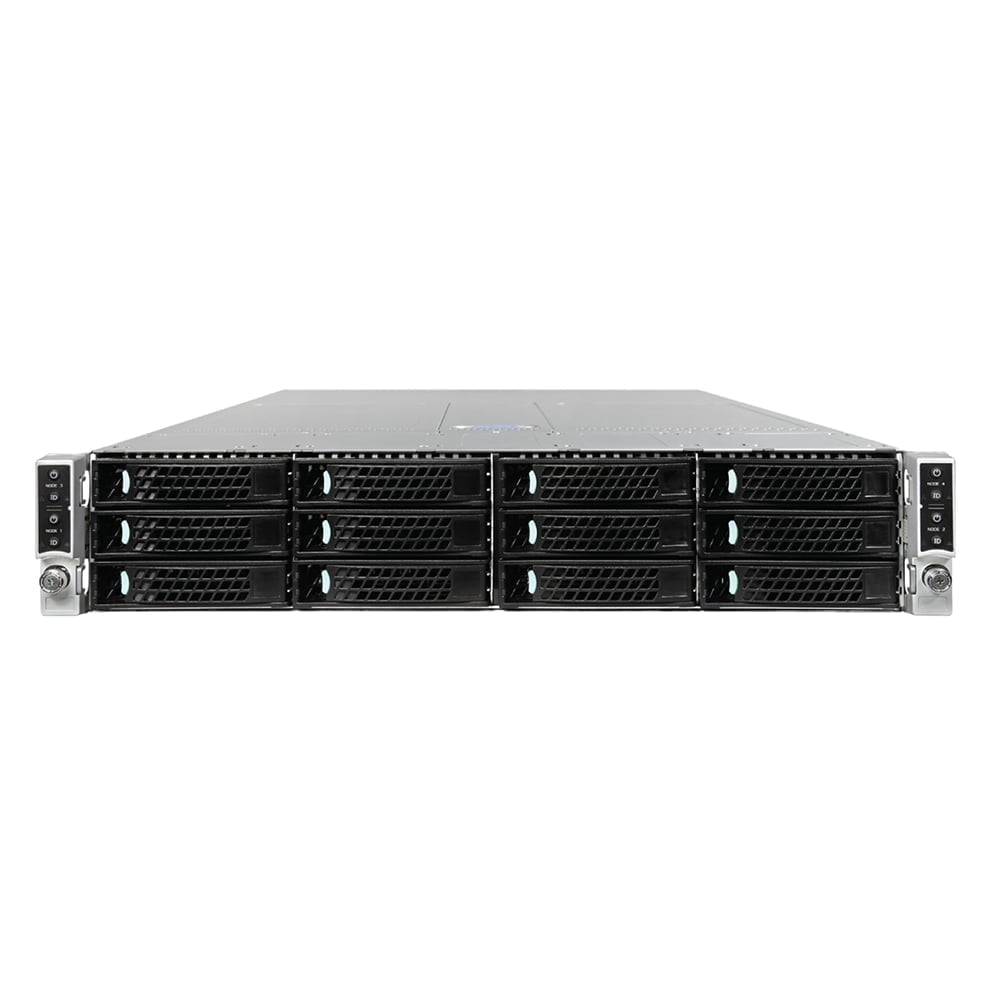

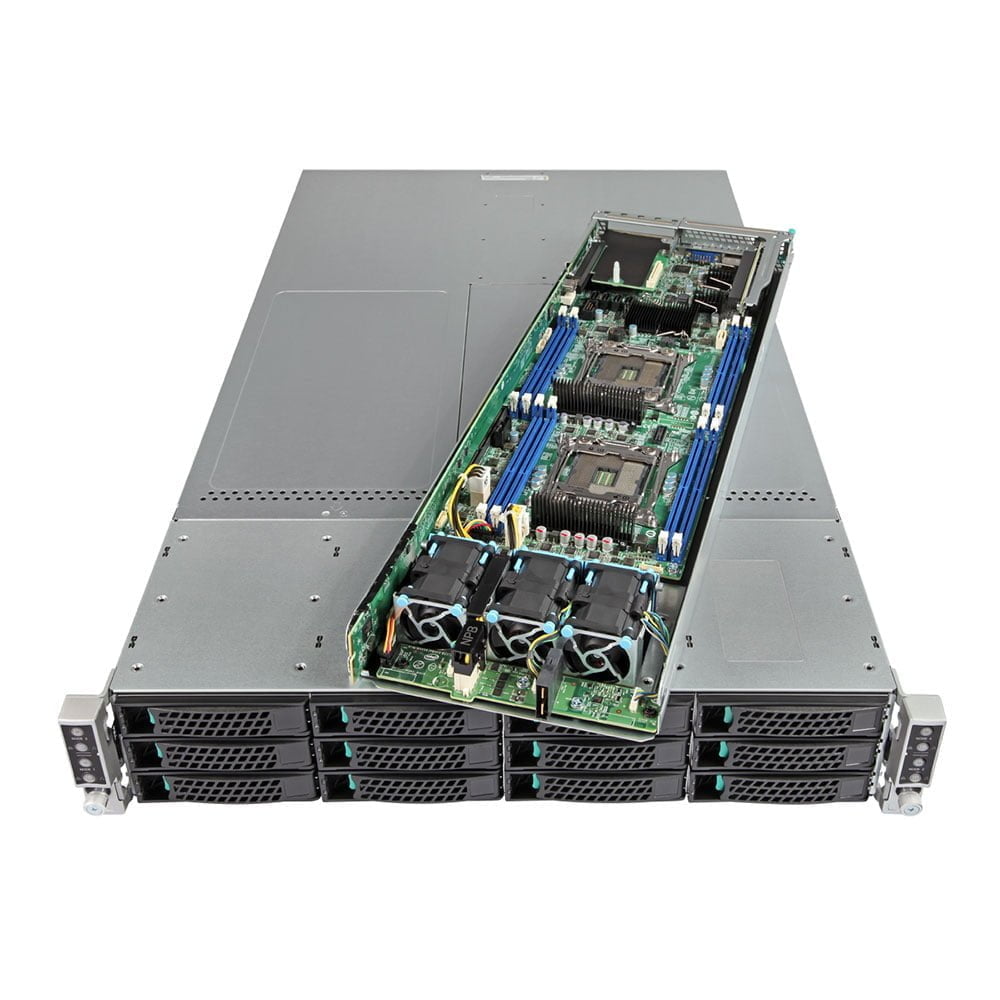

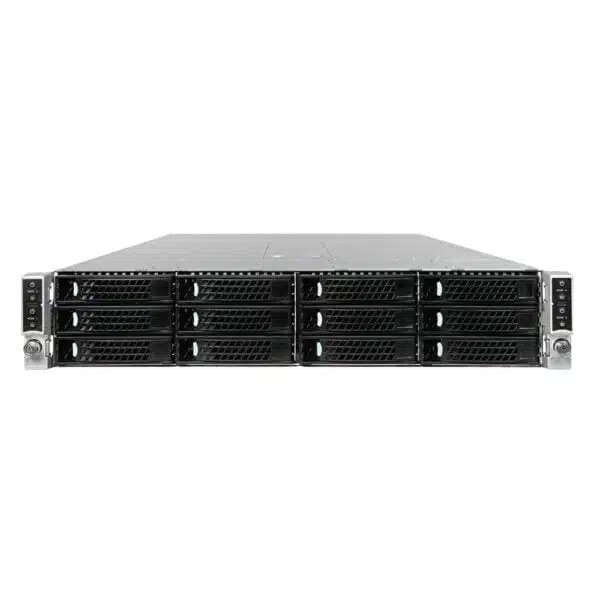

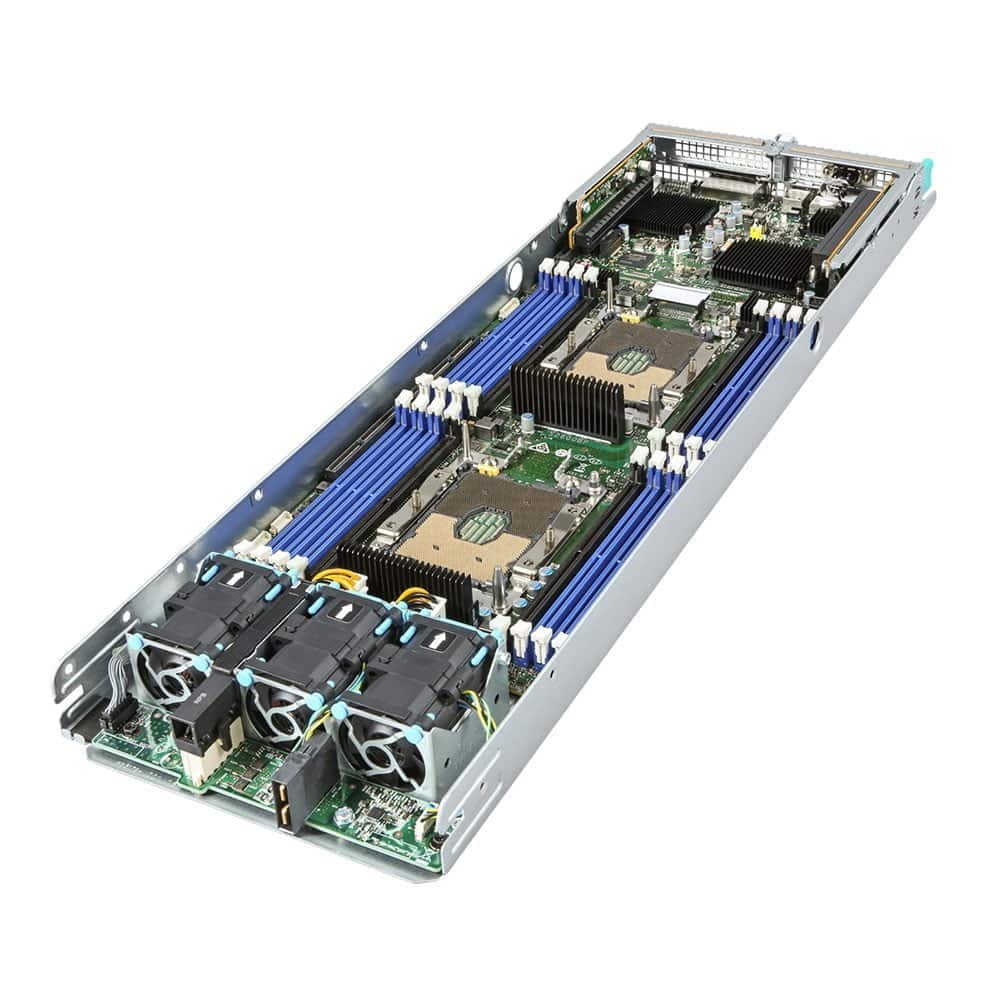

The HPC-R2280I-N4-U2 is a quad node CPU compute and rendering server with each node featuring dual Intel Xeon Scalable processors giving up to 56 Cores and 112 Threads. This high-density solution can therefore be configured to contain a massive 224 Cores and 448 threads in 2U of rack space. Each node also has remote management capabilities and onboard storage. This system is highly flexible a can be purchased with up to 4 nodes or as little as 1 node, leaving room for future expansion.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
77.09 |
|---|---|
| Item Height (CM) |
8.79 |
| Item Width (CM) |
43.79 |
| Rack Units |
2U |
Internal IO:
| # M.2 NVMe PCIe 3.0 x4 |
1 |
|---|
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
2048GB (per node) |
| Max. Memory Channels |
6 |
| Memory Type |
ECC LRDIMM, ECC RDIMM |
Other:
| Included Extras |
Basic rack rail mount kit (AXXELVRAIL)NOTE: The rail kit only supports specific rack type with 3/8” square and 7.1mm round holes. |
|---|
Power:
| # PSU |
2 |
|---|---|
| Efficiency Rating |
80 Plus Platinum |
| Wattage |
2130 (Shared between 4 nodes) |
Processor:
| # CPUs |
8 (2 per node) |
|---|---|
| Processor Chipset |
Intel C622 |
| Processor Generation |
Intel Xeon Scalable 2nd Gen. |
| Socket |
3647 / Socket P |
Rear IO:
| # Rear 10Gbps SFP+ Ports |
8 (2 per node) |
|---|---|
| # Rear USB 3.2 Gen 1 Type-A |
8 (2 per node) |
| Rear Remote Management LAN |
4 (1 per node) |
Screen:
| # VGA |
4 (1 per node) |
|---|
Software:
| Supported OS |
Red Hat, SUSE, Ubuntu, Windows Server 2016, Windows Server 2019 |
|---|
Storage Bays:
| # Front 3.5 SATA Hotswap |
12 (3 per node) |
|---|
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
