HPC-R2280-U2-G4 2U Rackmount Enterprise CPU/GPU Computing System
SKU: HPC-R2280-U2-G4

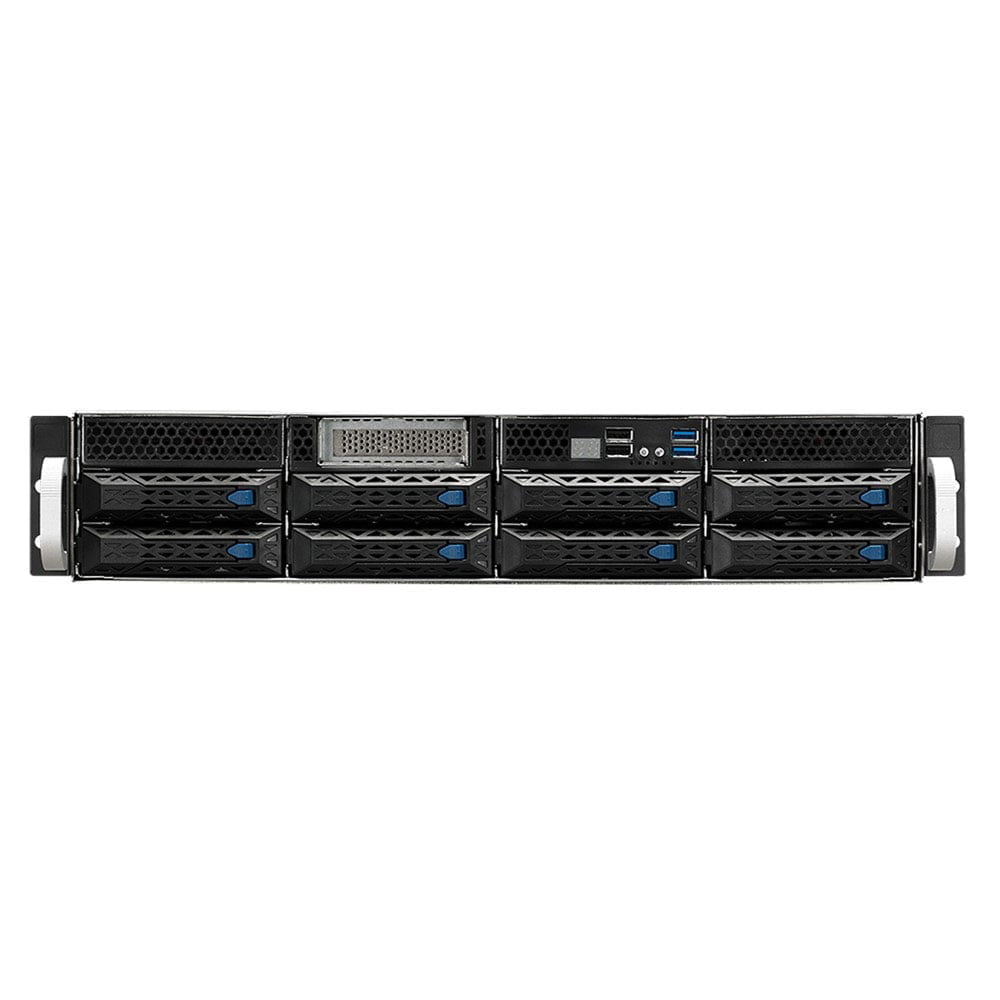

The HPC-R2280-U2-G4 is a high-density GPU compute Rackmount server. With dual Intel Xeon processors and 4x NVIDIA GeForce RTX 2080 Ti graphics cards, this solution is ideal for networked GPU rendering and GPU compute tasks. Expansion and administration are also a breeze thanks to its 8x front-facing 3.5″ hot-swap bays and a dedicated LAN management port enabling remote access.
*READY TO SHIP
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Dimensions:
Item Depth (CM) |
80 |
---|---|
Item Height (CM) |
8.8 |
Item Width (CM) |
44 |
Rack Units |
2U |
Front IO:
# Front USB 2.0 Type-A |
2 |
---|---|
# Front USB 3.2 Gen 1 Type-A |
2 |
Internal IO:
# M.2 NVMe PCie 3.0 x4 / SATA |
1 |
---|
Memory:
DDR Rev. |
DDR4 |
---|---|
Max. Memory Capacity (GB) |
2048 |
Max. Memory Channels |
6 |
Memory Type |
ECC LRDIMM, ECC RDIMM |
PCIe:
PCIe Configuration |
8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) |
---|
Power:
# PSU |
2 |
---|---|
Efficiency Rating |
Platinum |
Wattage |
1600 |
Processor:
# CPUs |
2 |
---|---|
Processor Chipset |
Intel C621 |
Processor Generation |
Intel Xeon Scalable 1st Gen., Intel Xeon Scalable 2nd Gen. |
Socket |
3647 / Socket P |
Rear IO:
# Rear 1Gbps RJ45 Ports |
2 |
---|---|
# Rear USB 3.2 Gen 1 Type-A |
2 |
Rear Remote Management LAN |
1 |
Software:
Supported OS |
Linux, Windows 10 |
---|
Storage Bays:
# Front 3.5 SATA Hotswap |
8 |
---|
Warranty:
Warranty Duration |
36 Months |
---|---|
Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
