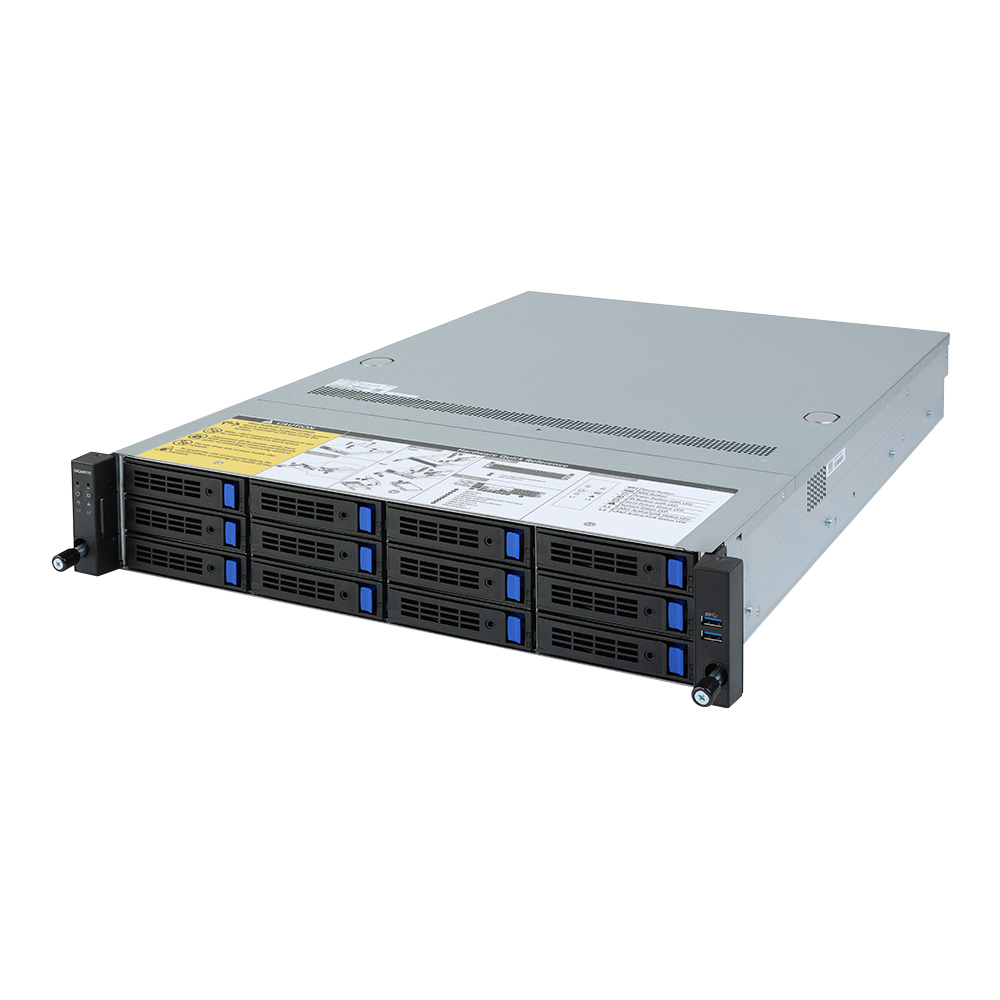

HPC-R1640A-U2 Single 3rd Gen AMD EPYC 2U Server
SKU: HPC-R1640A-U2
Categories: Promotions / Clearance, System
Tags: Configurable Product
Details & Specifications
Details & Specifications
Chassis:
| # System Fans | 4x 80x80x38mm (16,300rpm) |
|---|---|
| Chassis Form Factor | 2U Rackmount |
Cooling:
| Active Cooling | Yes |
|---|
Dimensions:
| Item Depth (CM) | 66 |
|---|---|
| Item Height (CM) | 8.75 |
| Item Width (CM) | 43.8 |
| Rack Units | 2U |

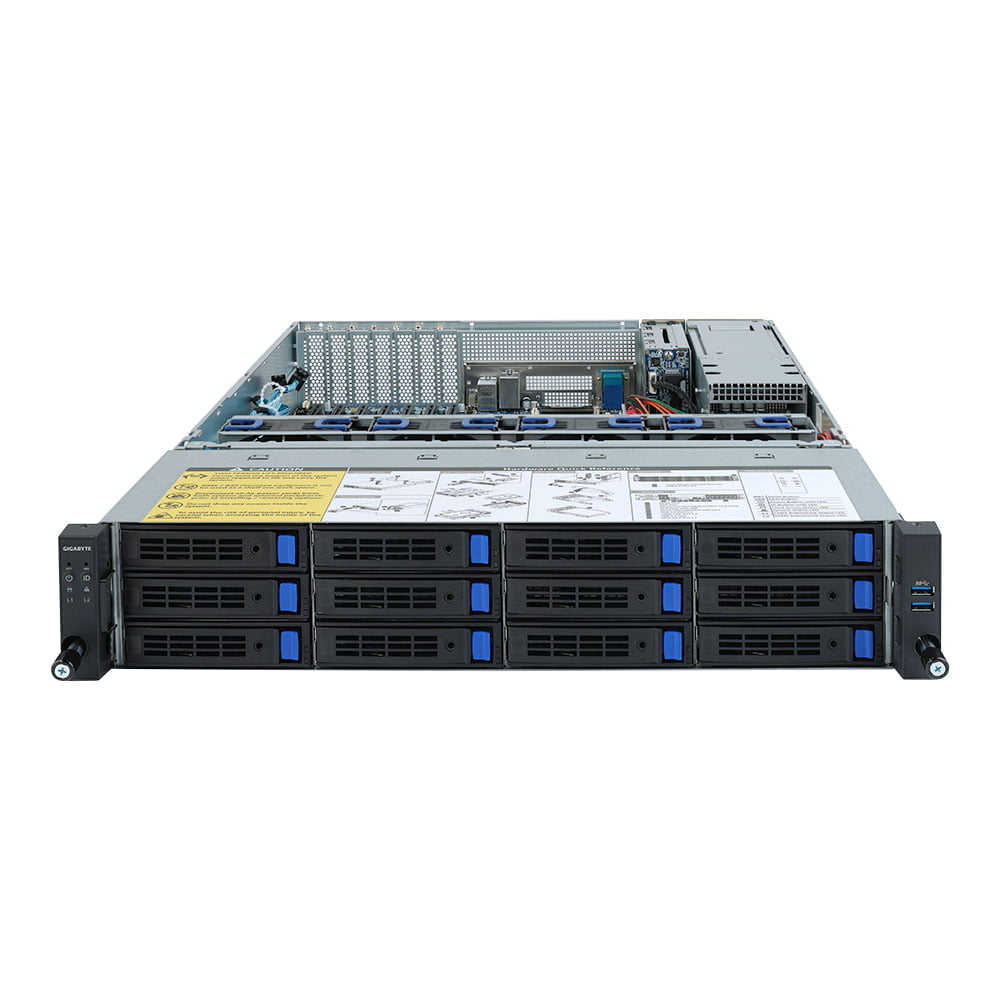

Front IO:
| # NMI buttons | 1 |
|---|---|
| # Reset buttons | 1 |
| # USB 3.2 Gen 1 Type-A | 2 |
| LED | 1 x Power button with LED |
Internal IO:
| # BIOS recovery jumpers | 1 |
|---|---|
| # Buzzers | 1 |
| # Clear CMOS jumpers | 1 |
| # HDD back plane board headers | 1 |
| # IPMB connectors | 1 |
| # M.2 NVMe PCIe 3.0 x4 | 2 (Supports NGFF-2242/2260/2280 cards) |
| # PMBus connectors | 1 |
| # USB 2.0 Header | 1 |
| # USB 3.2 Gen1 Header | 1 |
| TPM Support | Yes |
Memory:
| # Memory Slots | 16 |
|---|---|
| DDR Rev. | DDR4 |
| Max. Memory Capacity (GB) | 4096 |
| Max. Memory Channels | 8 |
| Max. Supported Memory Frequency (MHz) | 3200 |
| Memory Form Factor | DIMM |
| Memory Type | RDIMM / LRDIMM |
PCIe:
| PCIe Configuration | Total 6 x low profile PCIe Gen4/Gen3 expansion slots |
|---|
Power:
| # PSU | 2 (800W Redundant PSUs |
|---|---|
| AC Input | 100-240V~/ 10-4A, 50-60Hz |
| DC Input | 240Vdc/ 4.5A |
| DC Output | – Max 800W |
Processor:
| # Cores | 8 |
|---|---|
| # CPUs | 1 |
| # Threads | 16 |
| Base Clock Speed (GHz) | 3 |
| L3 Cache (MB) | 128 |
| Socket | SP3 |
| Turbo Clock Speed (GHz) | 3.7 |

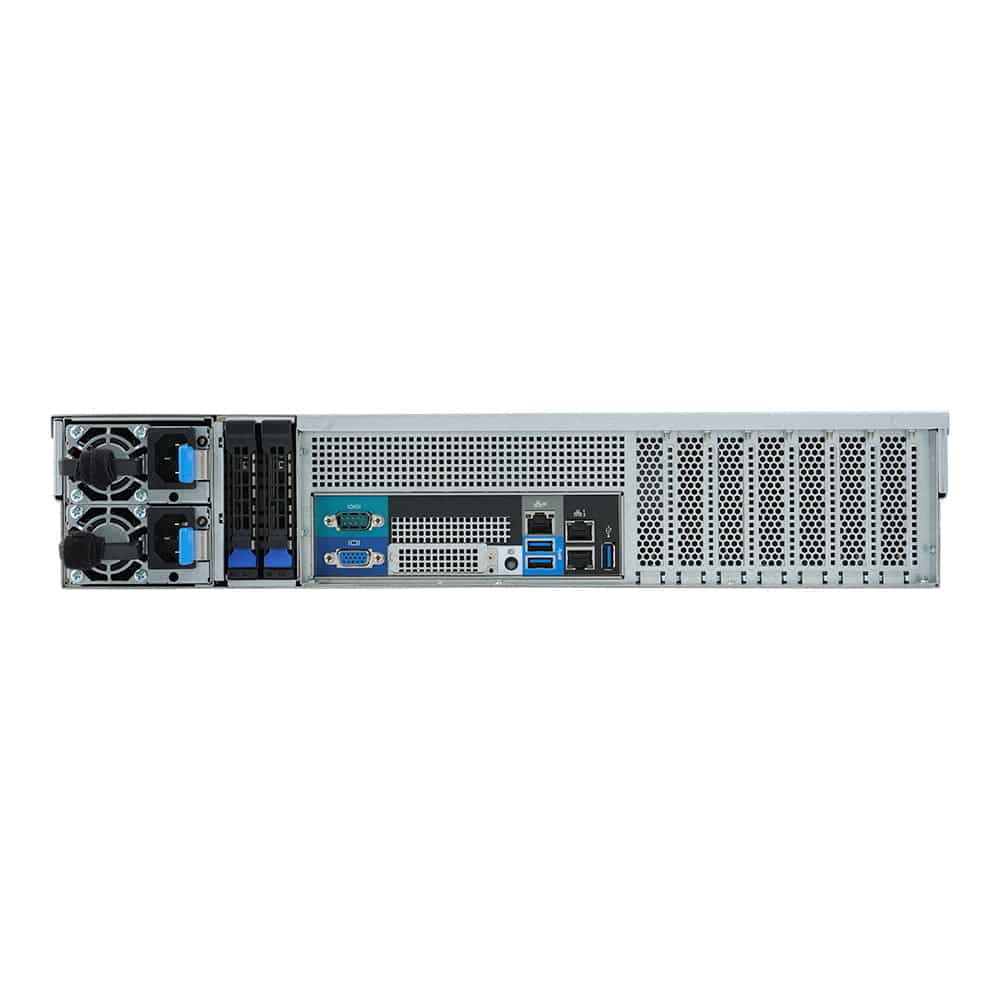

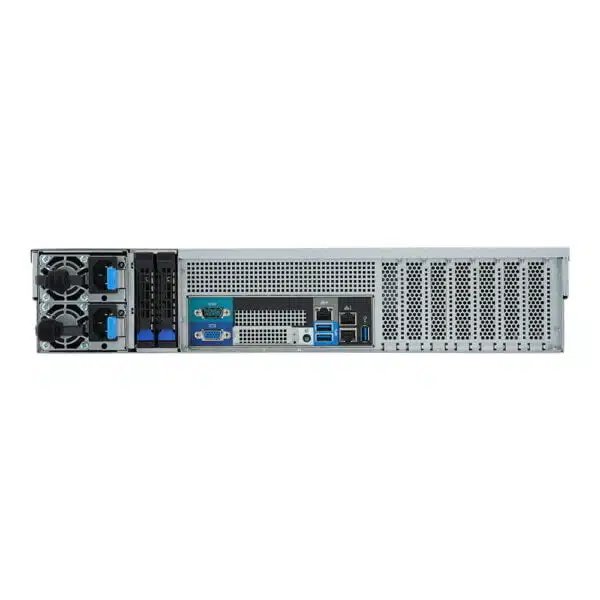

Rear IO:
| # COM | 1 |
|---|---|
| # ID button with LED | 1 |
| # MLAN | 1 |
| # RJ45 | 2 |
| # USB 3.2 Gen 1 Type-A | 3 |
| # VGA | 1 |
Software:
| Supported OS | Linux, Windows |
|---|
Storage Bays:
| # Int 3.5Inch SATA/SAS | 12 |
|---|
