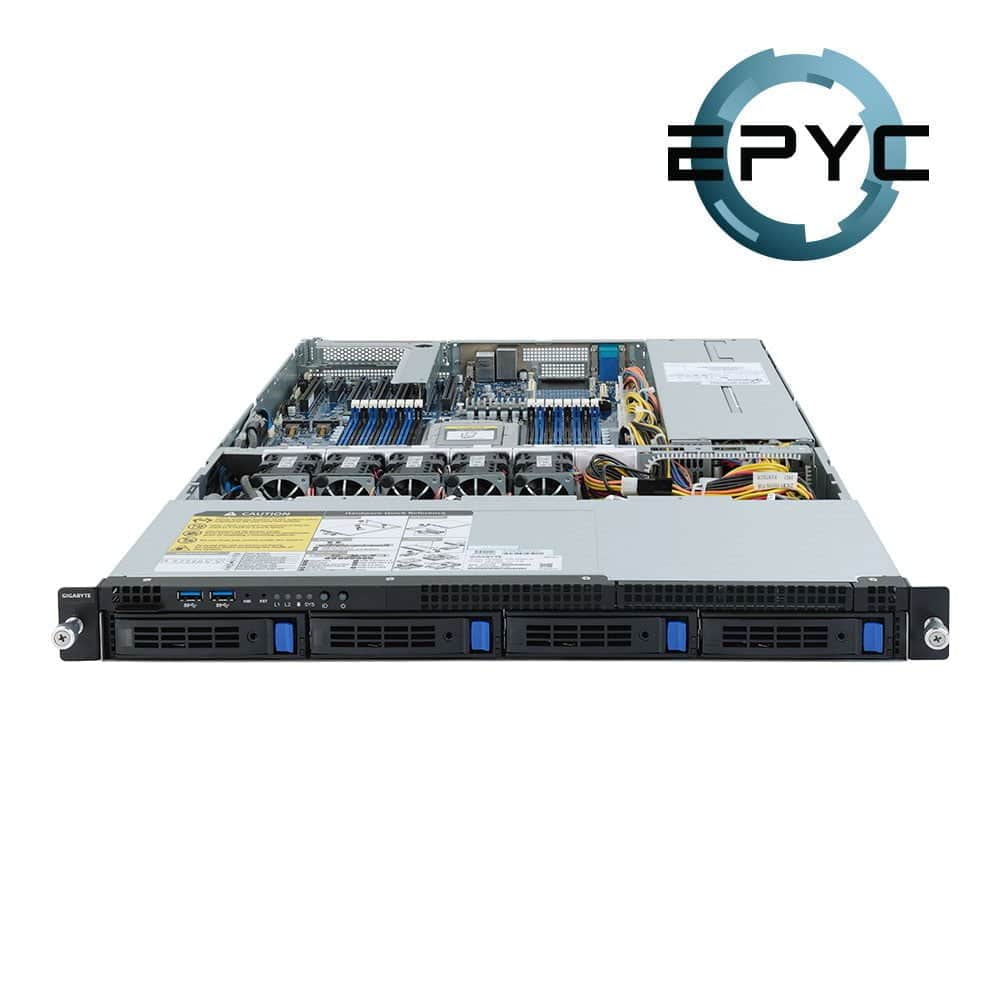

HPC-R1640A-U1 2nd Gen AMD EPYC 1U Enterprise Server System
SKU: HPC-R1640A-U1
The HPC-R1640A-U1 is a 1U rackmount server featuring a single 2nd Generation AMD EPYC processor. The latest generation of AMD EPYC CPUs has up to 64 cores and 128 threads making them the most powerful datacentre x86 compatible processors available today. With the flexible high-speed storage options, high-speed networking capabilities, built-in remote management and full VMWare support, these are a highly flexible rackmount server solution.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
71 |
|---|---|
| Item Height (CM) |
4.35 |
| Item Weight (Kg) |
14-18 |
| Item Width (CM) |
43.8 |
| Rack Units |
1U |
Front IO:
| # Front USB 3.2 Gen 1 Type-C |
2 |
|---|
Internal IO:
| # Int USB 2.0 Header |
1 |
|---|---|
| # Int USB 3.2 Gen1 Header |
1 |
| # M.2 NVMe PCIe 3.0 x4 |
2 |
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
2048 |
| Max. Memory Channels |
8 |
| Memory Type |
ECC LRDIMM, ECC RDIMM |
PCIe:
| PCIe Configuration |
PCIe 3.0 x16: 1 Full-height half-length slot |
|---|
Power:
| # PSU |
2 |
|---|---|
| Efficiency Rating |
Platinum |
| Wattage |
650 |
Processor:
| # CPUs |
1 |
|---|---|
| Processor Chipset |
System-on-Chip |
| Processor Generation |
AMD EPYC 2nd Gen. |
| Socket |
4094 / SP3 |

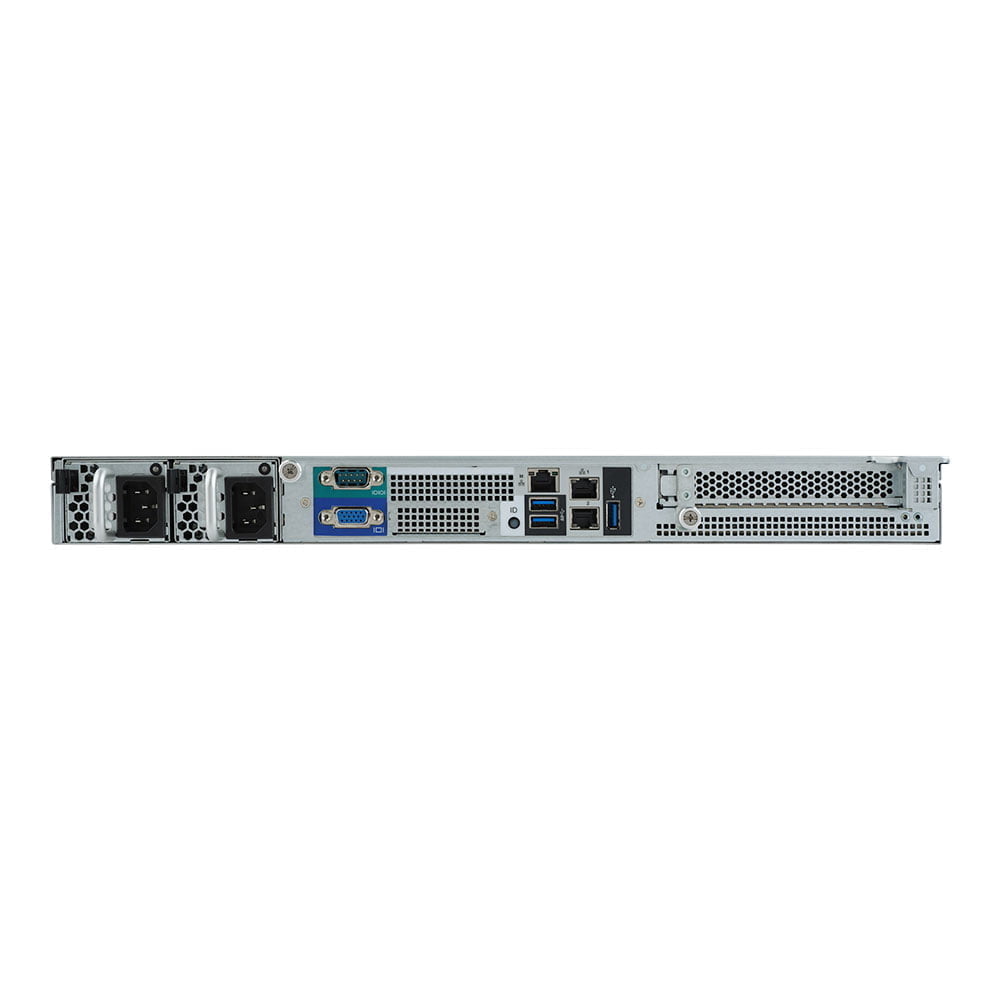

Rear IO:
| # Rear 1Gbps RJ45 Ports |
2 |
|---|---|
| # Rear USB 3.2 Gen 1 Type-A |
3 |
| Rear Remote Management LAN |
1 |
Software:
| Supported OS |
Citrix Hypervisor, Red Hat, SUSE, Ubuntu, VMware ESXi, Windows 10 |
|---|
Storage Bays:
| # Front 3.5 SATA Hotswap |
4 |
|---|
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
