HPC-R1640A-G8-U2

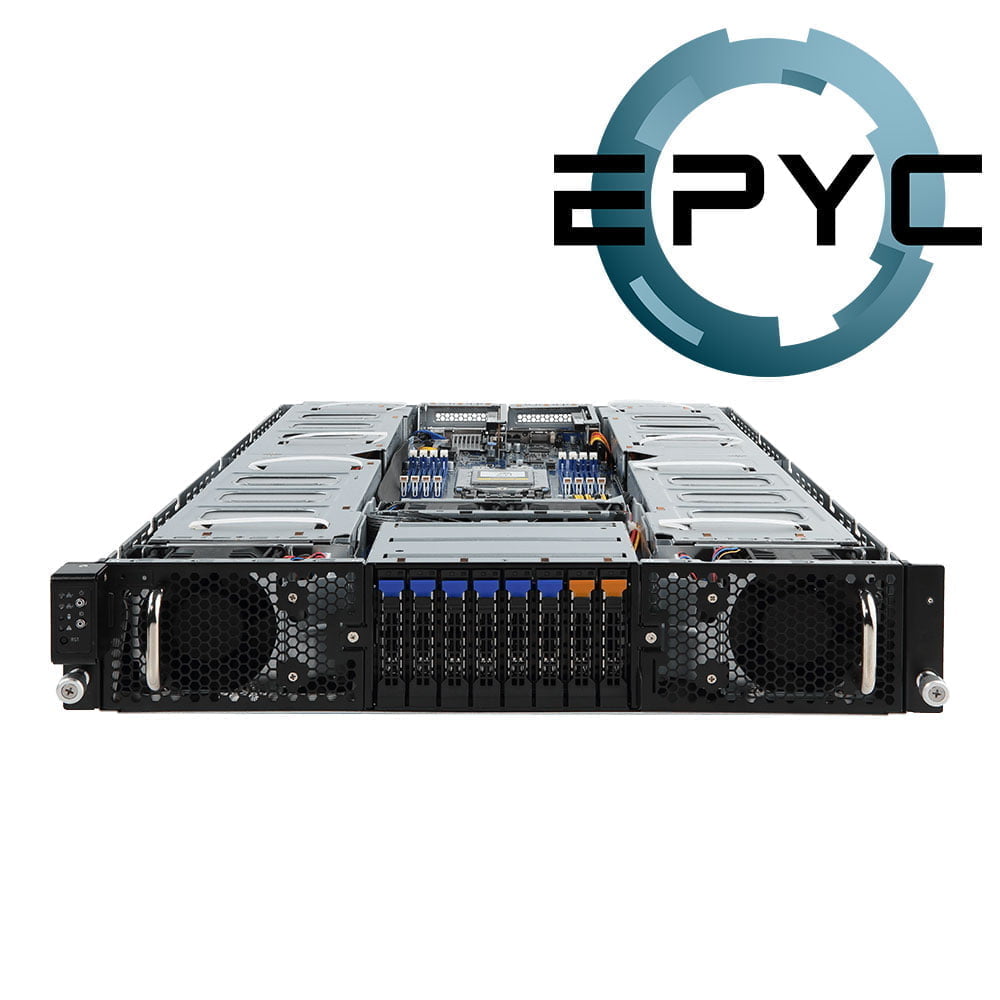

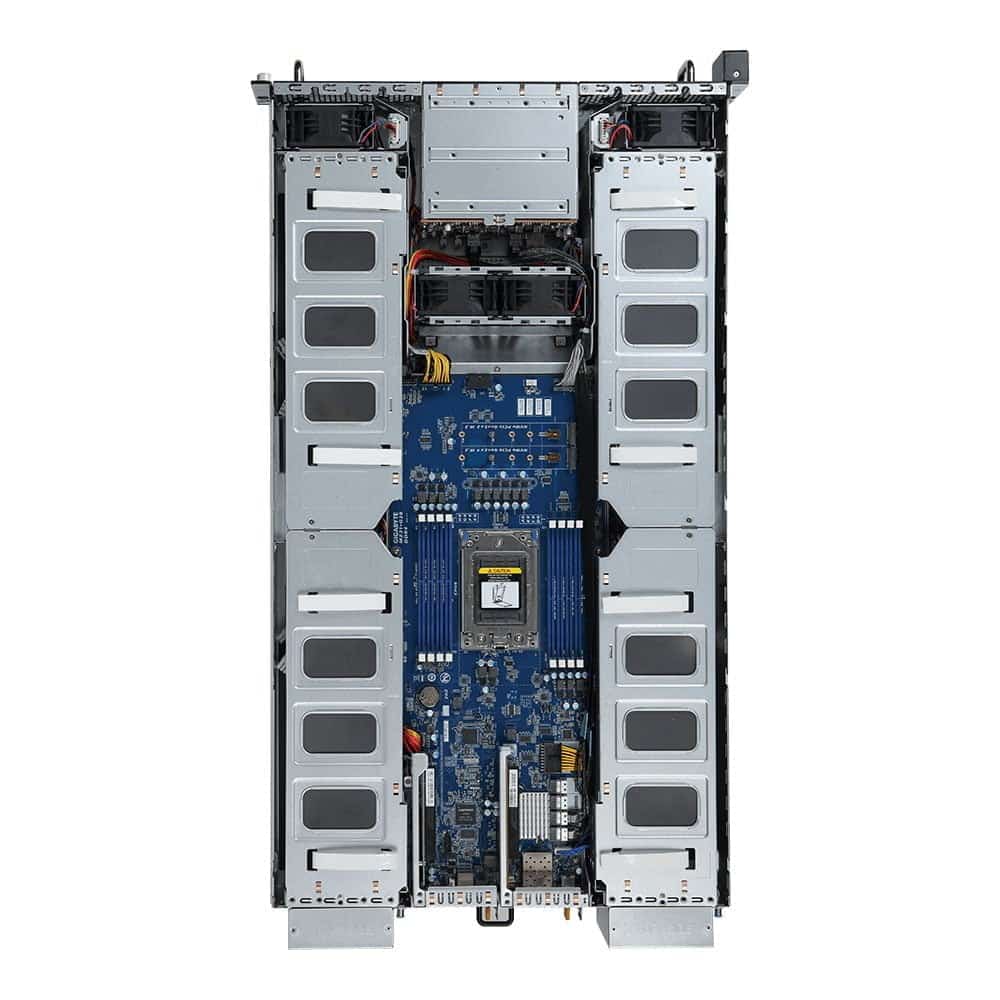

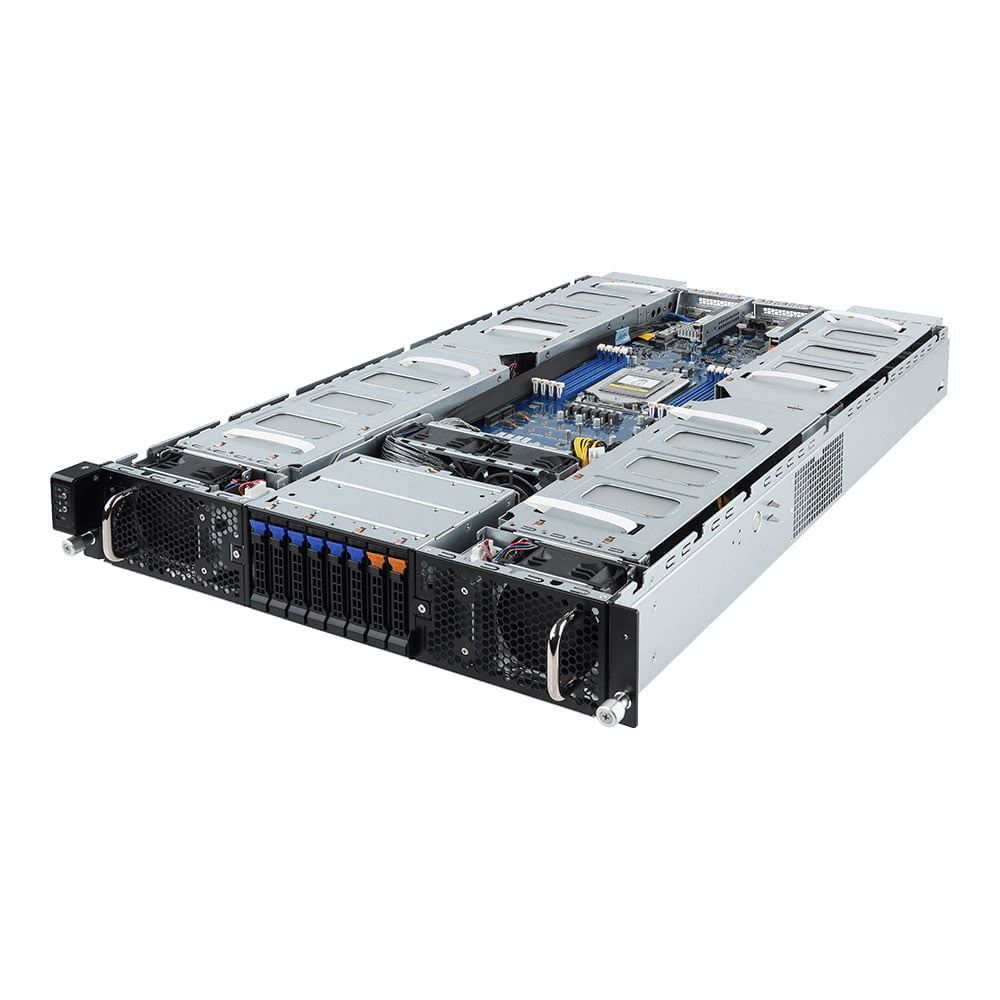

If you need high GPU performance in a high-density rackmount solution then he HPC-R1640A-G8-U2 is the ideal solution for you. This single AMD EPYC server boasts support for up 8x dual width professional graphics cards from AMD and NVIDIA as well as up to 64 cores, 128 threads, up to 1TB of system memory and fantastic remote management capabilities.



  • Now Available With GeForce RTX 3090







SKU: HPC-R1640A-G8-U2 Category:

Mfr Retail Part No

G292-Z22 (6NG292Z22MR-00)

Manufacturer

Gigabyte

Processor Information:

Processor Chipset

System-on-Chip

Processor Generation

AMD EPYC 2nd Gen.

Socket

4094 / SP3

# CPUs

1

Memory Information:

Memory Type

ECC LRDIMM, ECC RDIMM

DDR Rev.

DDR4

Max. Memory Capacity (GB)

2048

Max. Memory Channels

8

PCIe Information:

PCIe Configuration

PCIe 3.0 x16: 8 Full-length Full-Height Slots & 2 Half-length Low Profile

Internal IO Information:

# M.2 NVMe PCIe 3.0 x4

1

# M.2 NVMe PCIe 3.0 x2

1

# Front 2.5 SATA/SAS Hotswap

6

# Front 2.5 U.2 NVMe Hotswap

2

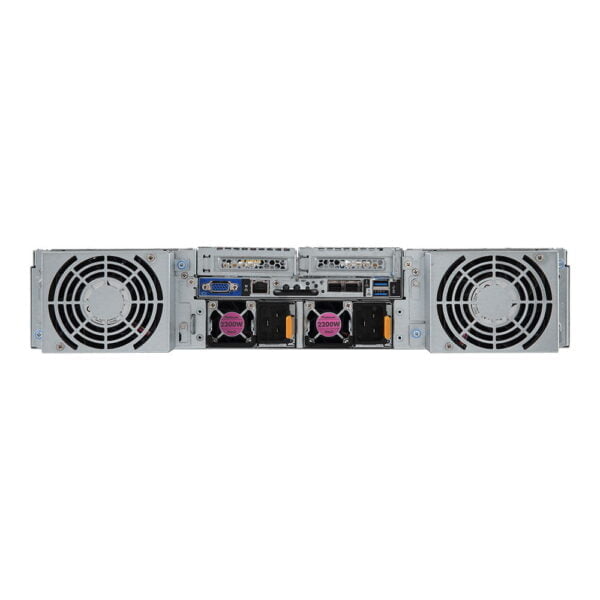

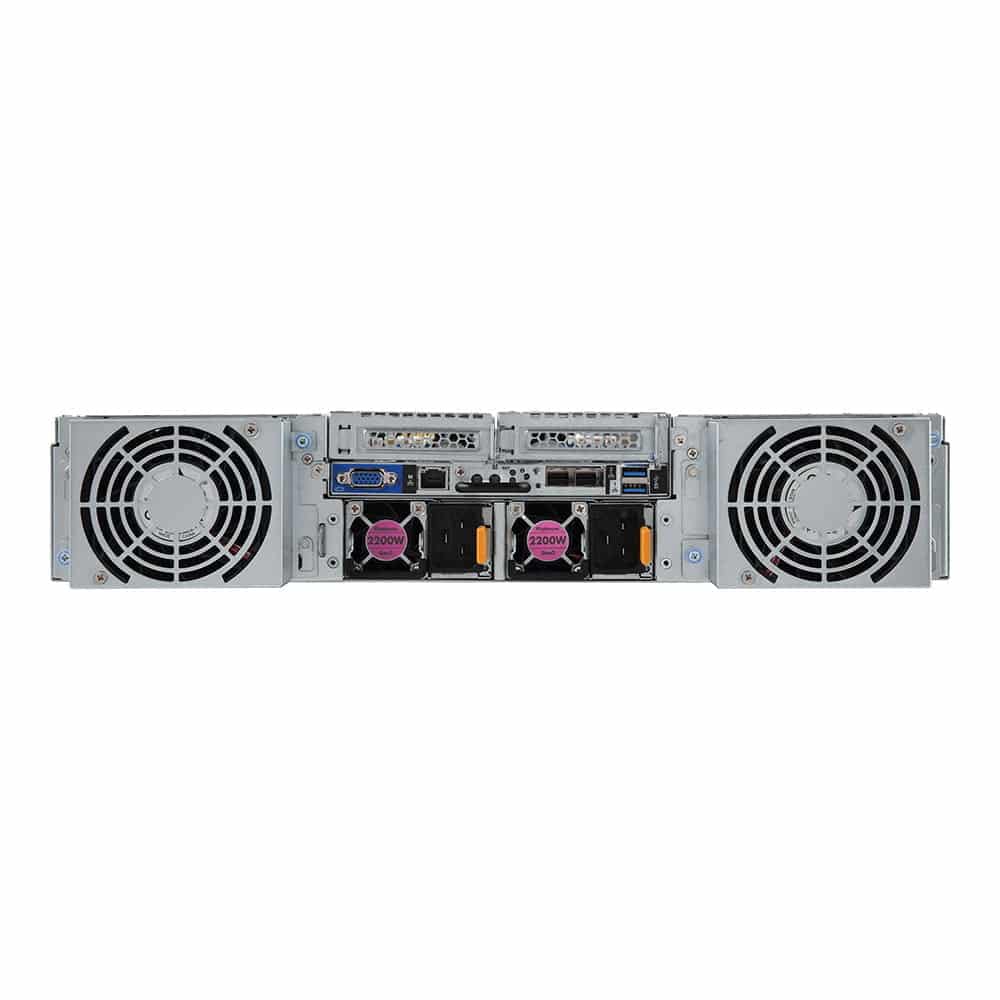

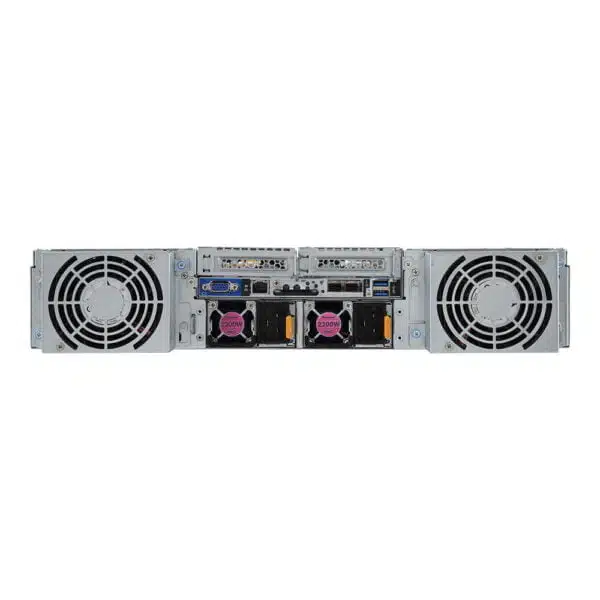

Rear IO Information:

Rear Remote Management LAN

1

# Rear 10Gbps SFP+ Ports

2

# Rear USB 3.2 Gen 1 Type-A

2

Power Information:

Wattage

2200

Efficiency Rating

Platinum

# PSU

2

Dimension Information:

Item Height (CM)

8.75

Item Width (CM)

44.8

Item Depth (CM)

80

Item Weight (Kg)

29.5

Rack Units

2U

OS Information:

Supported OS

Citrix Hypervisor, Red Hat, SUSE, Ubuntu, VMware ESXi, Windows 10, Windows Server 2016, Windows Server 2019

Warranty Information:

Warranty Type

Return To Base
Next Business Day Engineer Response

Warranty Duration

36 Months

NVIDIA GeForce RTX Support

Key Features

• NVIDIA Ampere Streaming Multiprocessors
• Ideally Suited to Multi GPU Configurations
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Up To 24GB GDDR6X Integrated Per Card
• Up To 384-bit memory interface Per Card
• Double ball bearing fan

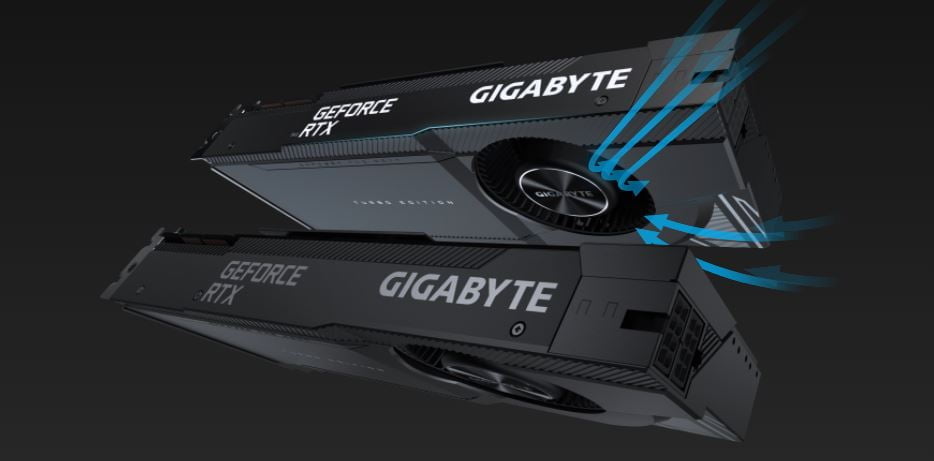

OPTIMISED AIRFLOW

The inward-indented design on the cover makes room for the intake fan to breathe even when closely stacked to the adjacent card, allowing greater airflow and efficient heat dissipation within the limited space.

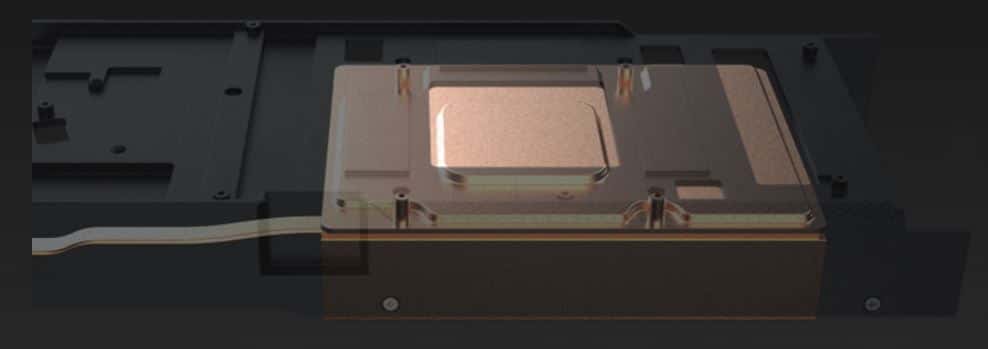

All COPPER COOLING & METAL FRAME

The vapor chamber, heat pipe, and heat sink, all made of copper, have superior thermal efficiency for rapidly dissipating heat from the GPU. The extended heat pipe can also help to take heat away from the cores. The black metal frame further dissipates heat from other critical components, enhancing overall cooling efficiency.
