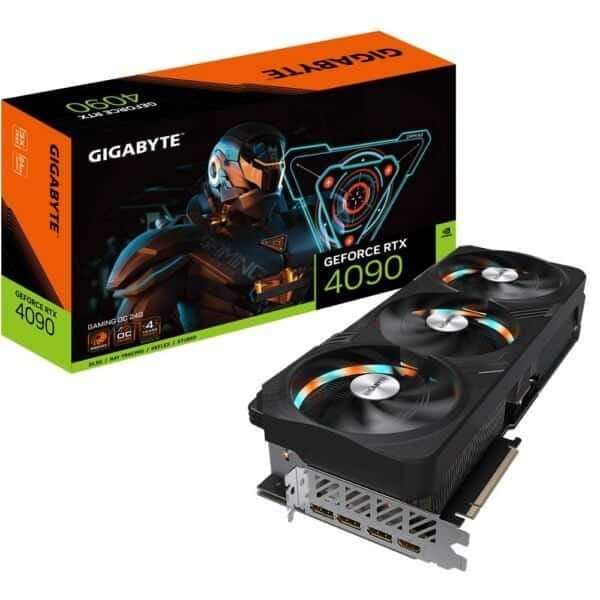

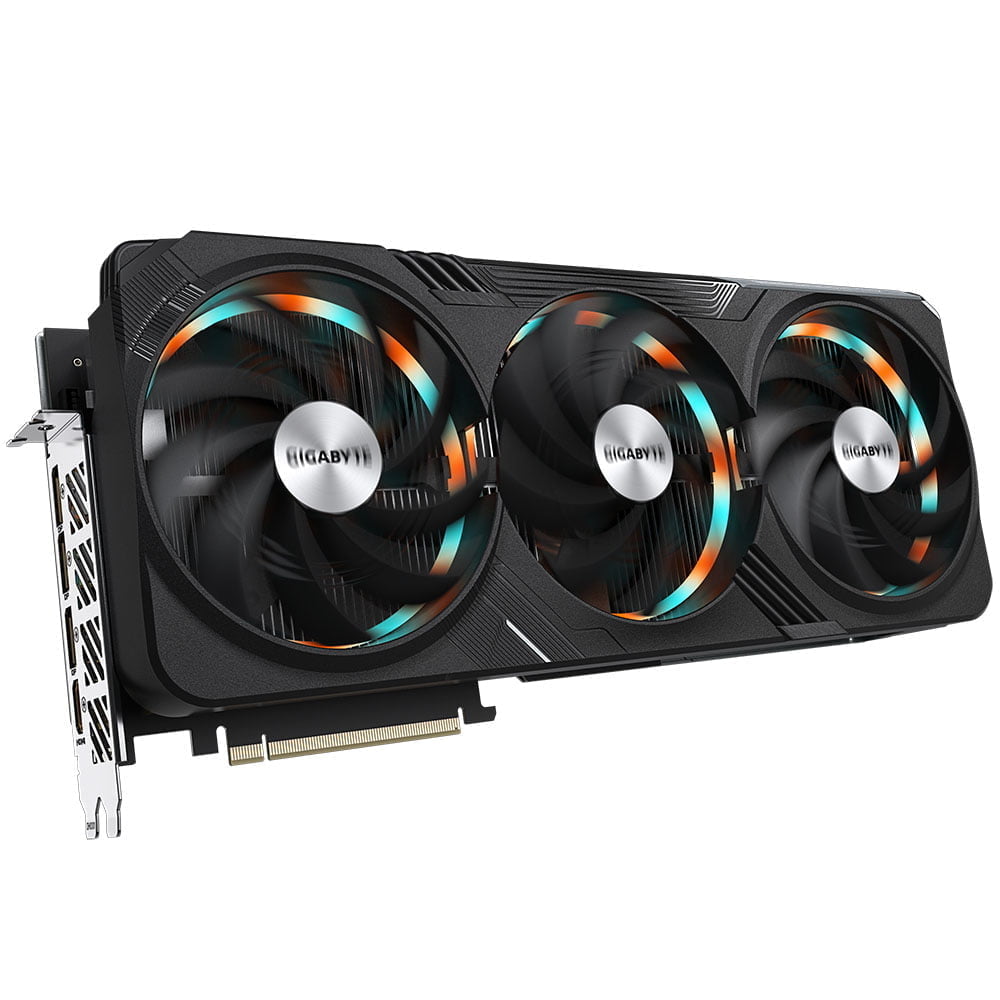

Gigabyte GeForce RTX™ 4090 GAMING OC 24GB
SKU: NVBGFXNGRTX4090_GIG_GV-N4090GAMING OC-24GD
Key Features
- NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX® 4090
- Integrated with 24GB GDDR6X 384-bit memory interface

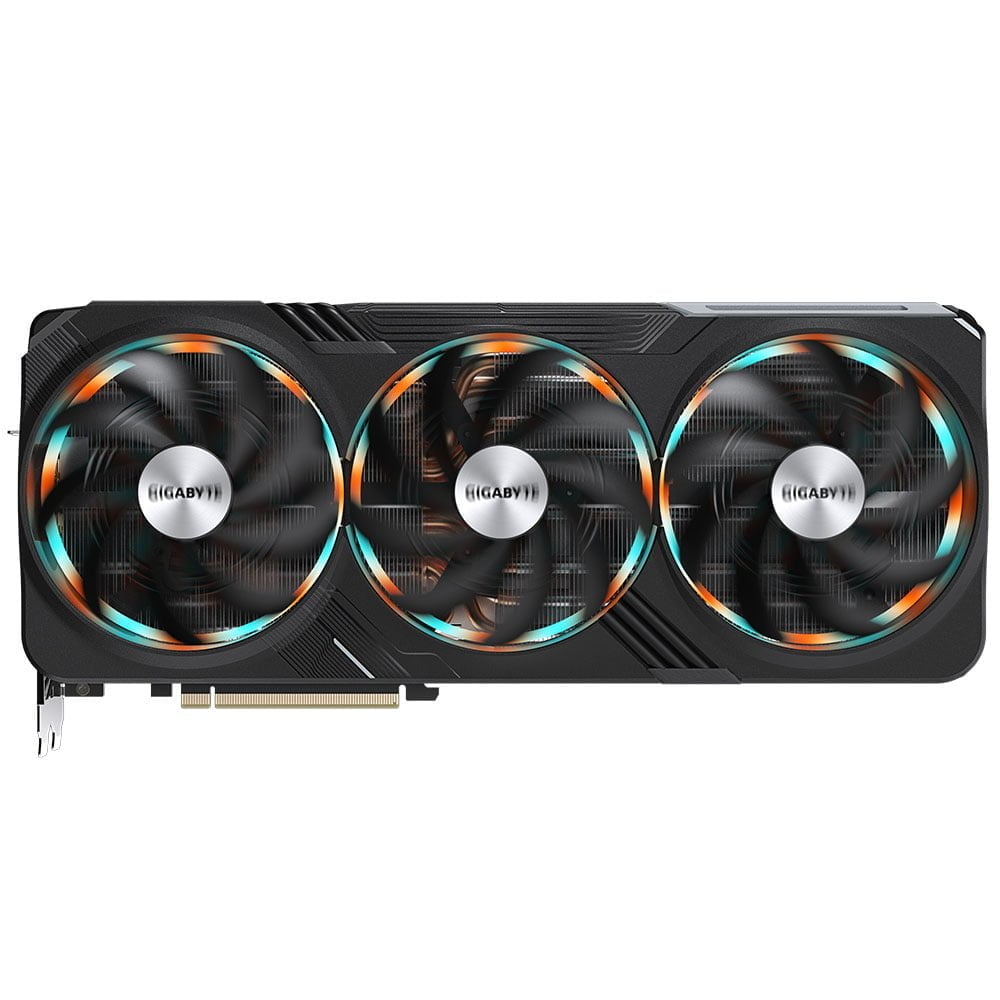

- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS

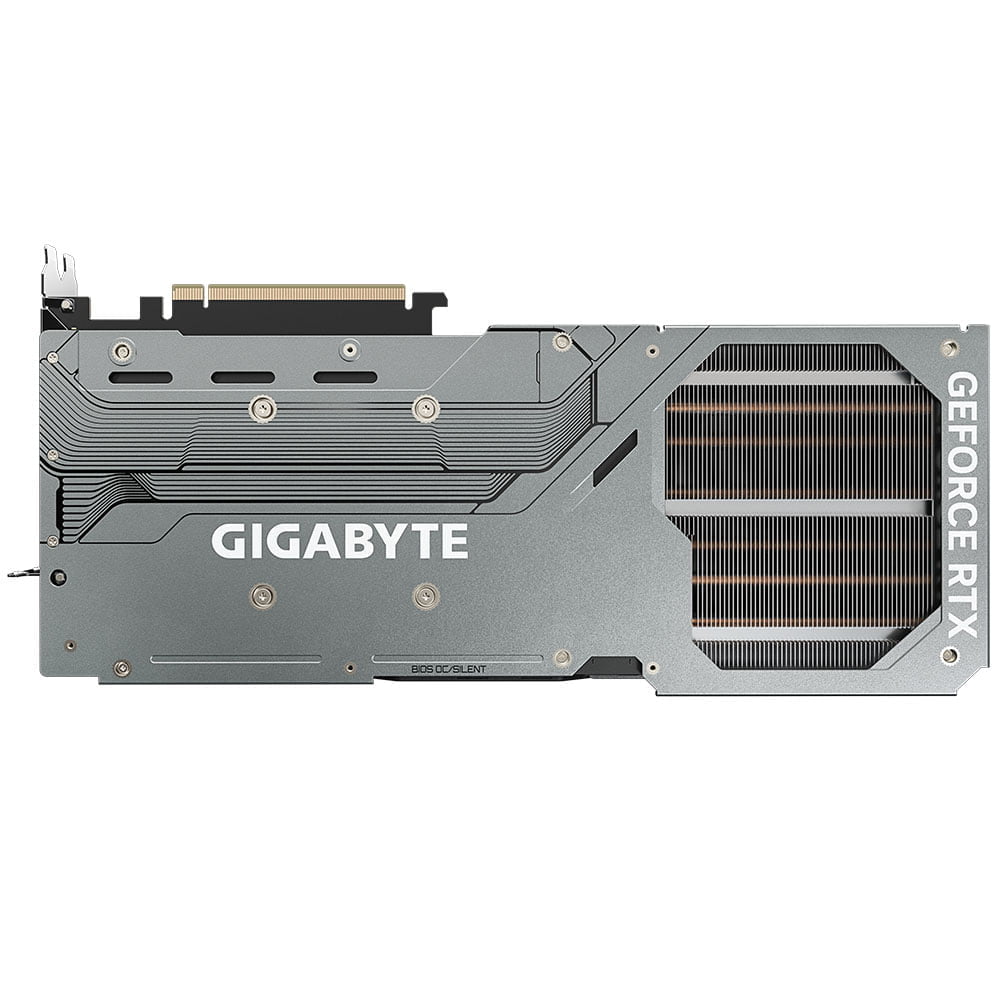

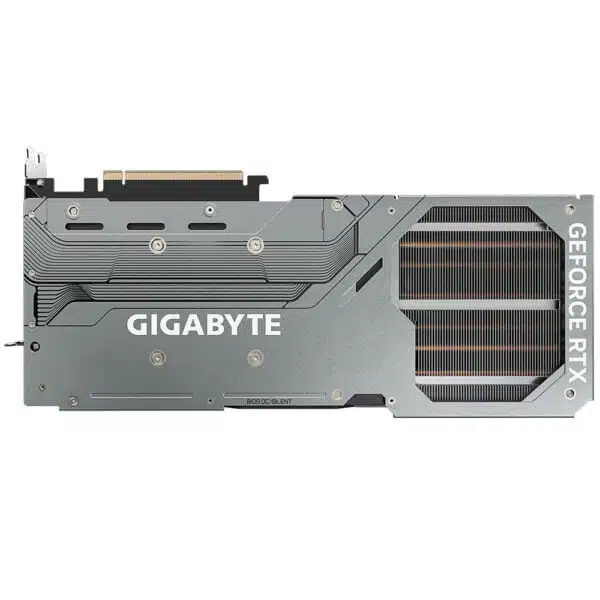

- Protection metal back plate
- Anti-sag bracket
Available on Backorder
(Usually 1-3 weeks lead time)
System Configuration
Available on Backorder
(Usually 1-3 weeks lead time)
Details & Specifications
Details & Specifications
Manufacturer | |
---|---|
Manufacturer Part Number |
GV-N4090GAMING OC-24GD |
Additional Items:
Accessories |
1. Quick guide |
---|
Cooling:
# Included Fans |
3 |
---|
Dimensions:
Item Depth (CM) |
34 |
---|---|
Item Height (CM) |
7.52 |
Item Width (CM) |
15.02 |

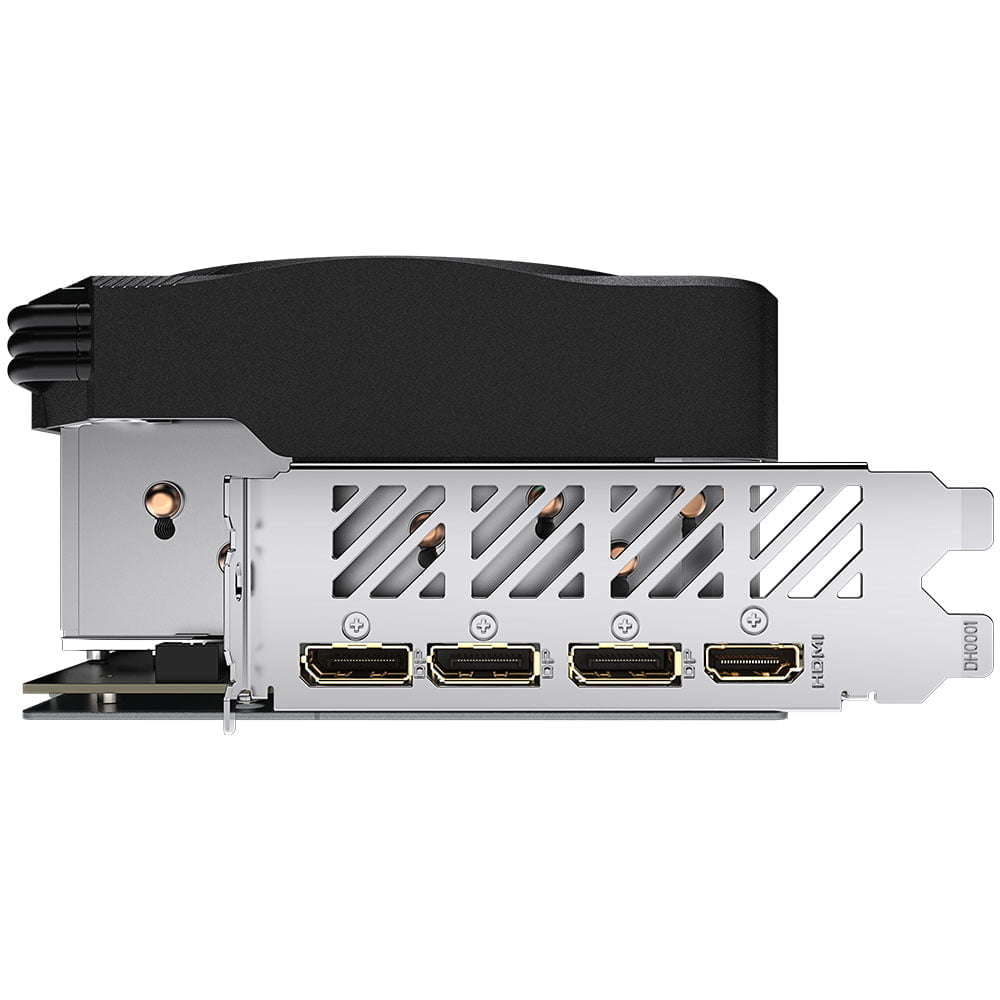

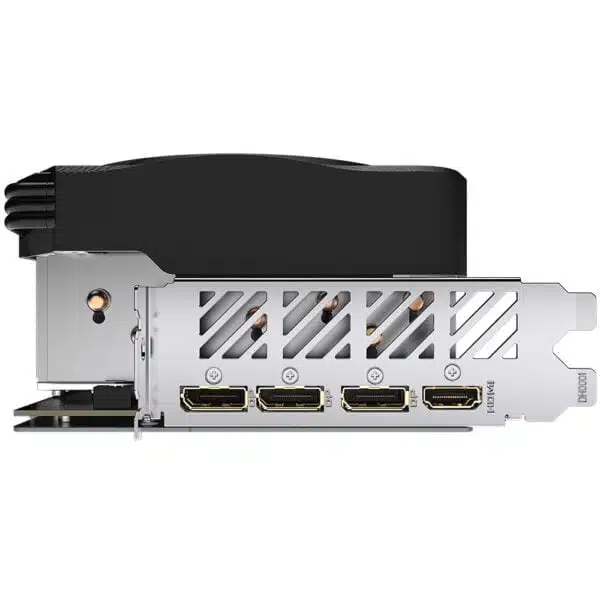

External IO:
# DisplayPort 1.4 |
3 |
---|---|
# HDMI 2.1 |
1 |
# Max Simultaneous Displays |
4 |
Max Resolution |
7680×4320 |
GPU:
# CUDA Cores |
16384 |
---|---|
# RT Cores |
128 |
# Tensor Cores |
512 |
Core Clock |
2535 MHz (Reference Card: 2520 MHz) |
FP16 Performance (TFLOPS 1:1)
FP32 Performance (TFLOPS) |
83.07 |
---|
FP64 Performance (GFLOPS 1:64)
GPU Architecture | |
---|---|
Lithography |
4nm |
Pixel Rate (GPixel/s) |
446.2 |
Texture Rate (GTexel/s) |
1298 |
Memory:
Memory Bandwidth (GB/s) |
21 |
---|---|
Memory Capacity (GB) |
24 |
Memory Interface (bit) |
384 |
Memory Type |
GDDR6X |
PCIe:
PCIe Version |
PCIe 4.0 |
---|
Power:
# 16 Pin PCIe |
1 |
---|---|
Recommended PSU |
1000W |
Software:
API Support |
Direct X 12 Ultimate, OpenGL |
---|---|
Supported OS |
Linux, Windows |
Warranty:
Mfr Warranty Length (M) |
36 |
---|---|
Mfr Warranty Type |
Year 1: Return To Base |
* Specifications for older discontinued variants can be view by clicking here
