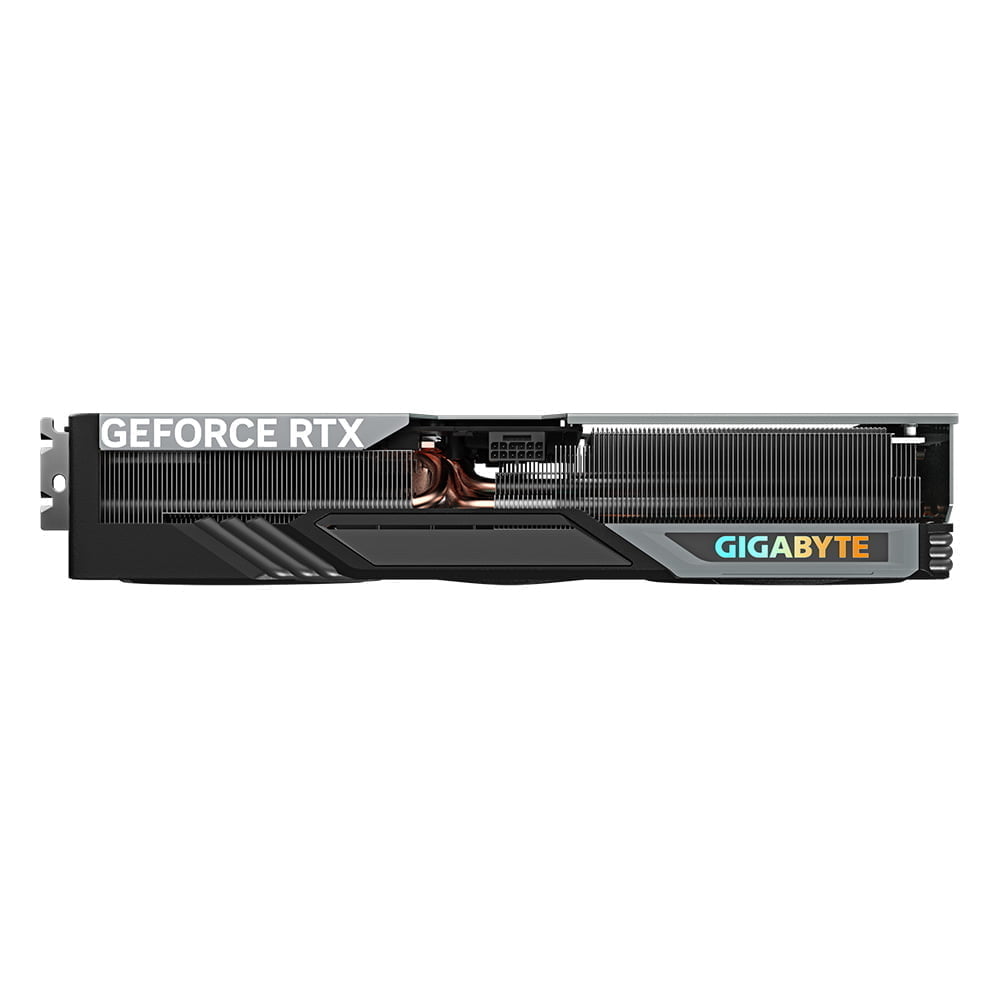

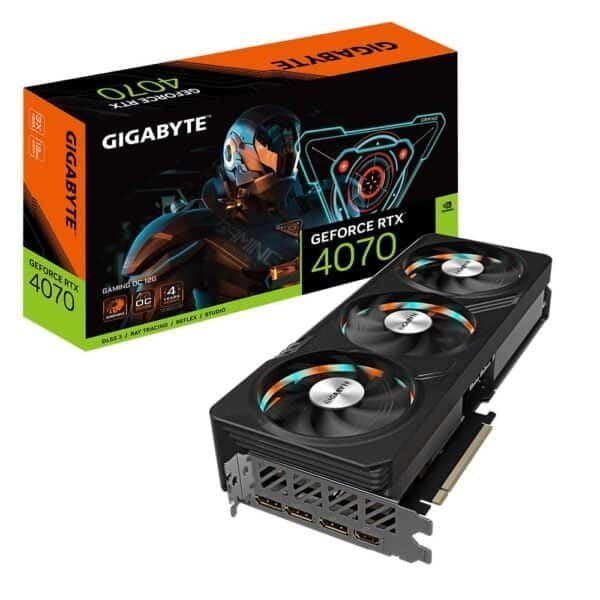

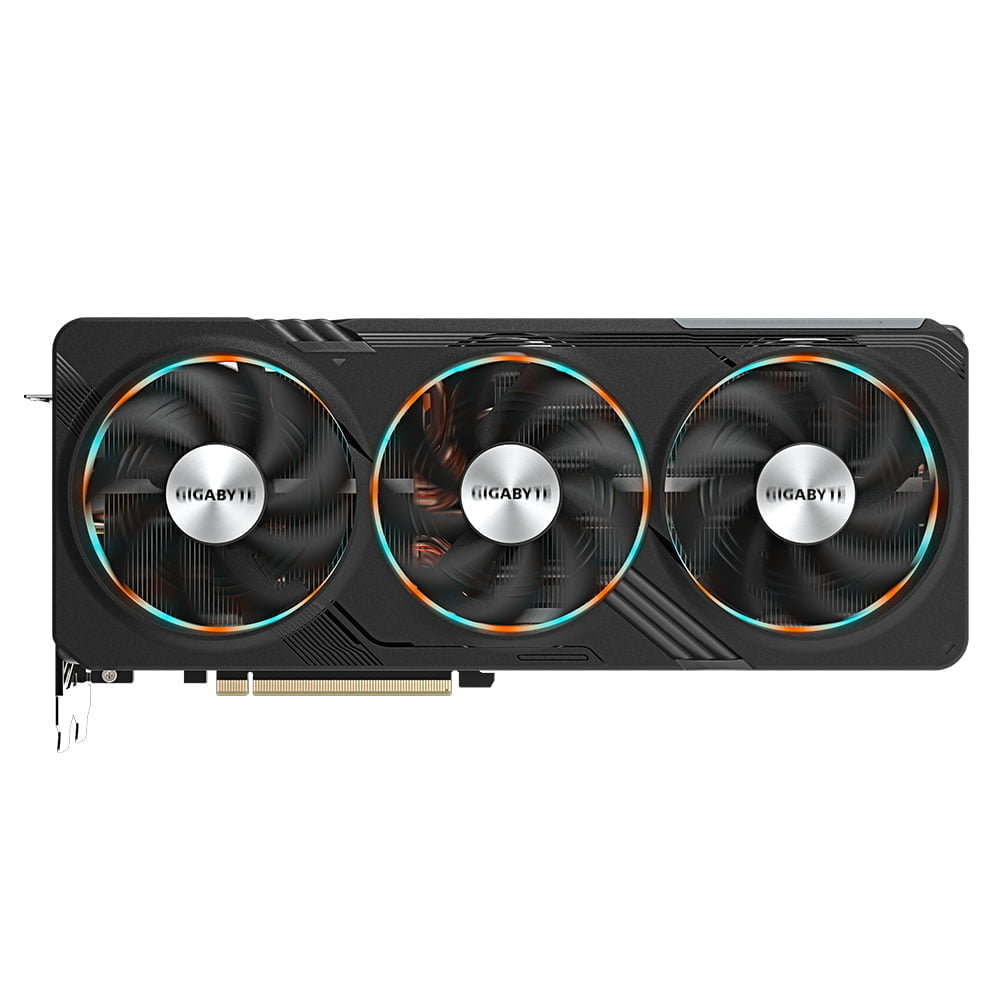

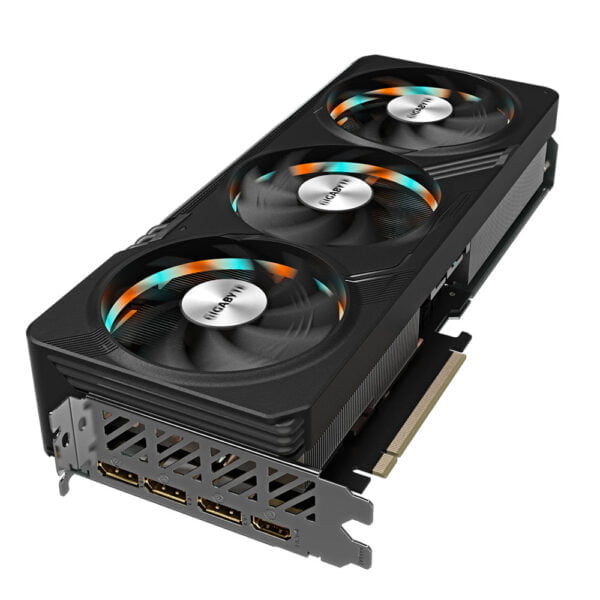

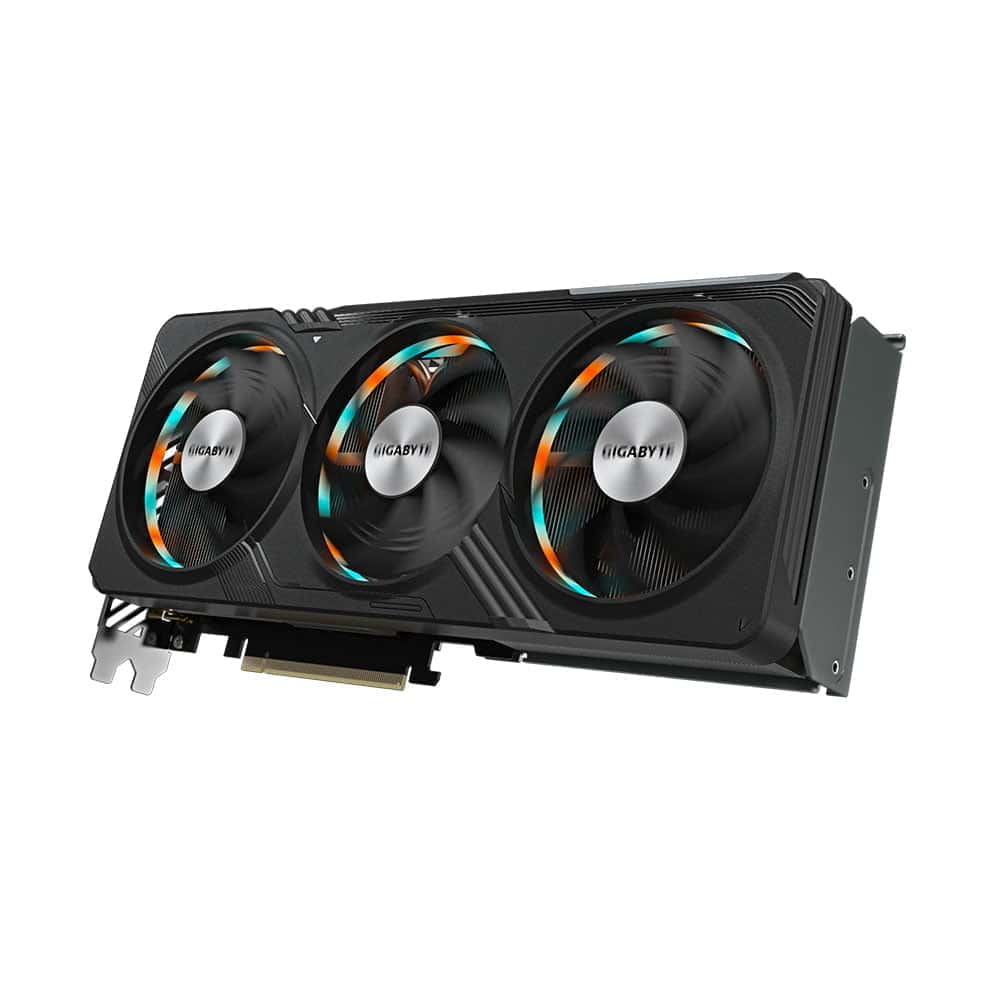

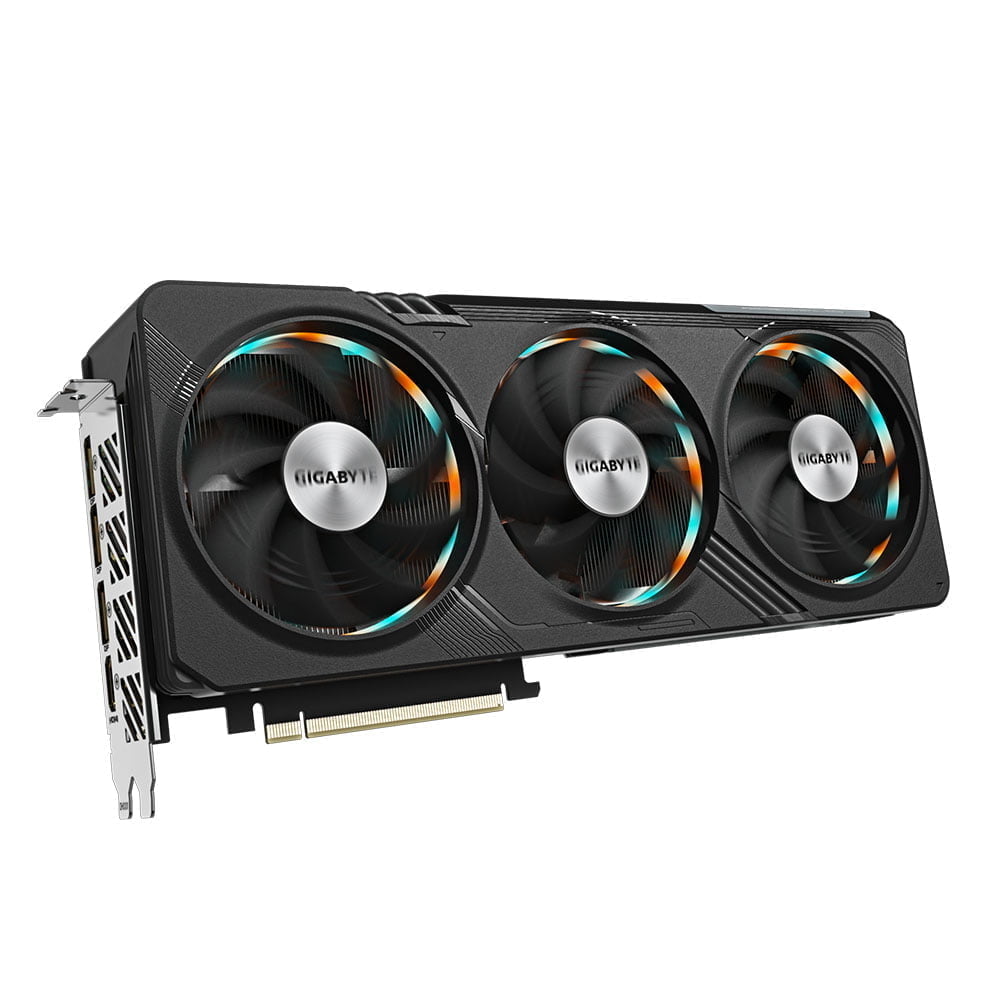

Gigabyte GeForce RTX™ 4070 12GB GAMING OC
SKU: NVBGFXNGRTX4070_90YV0J15-M0NA00
Categories: Graphics Cards, NVIDIA GeForce
Key Features:
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS

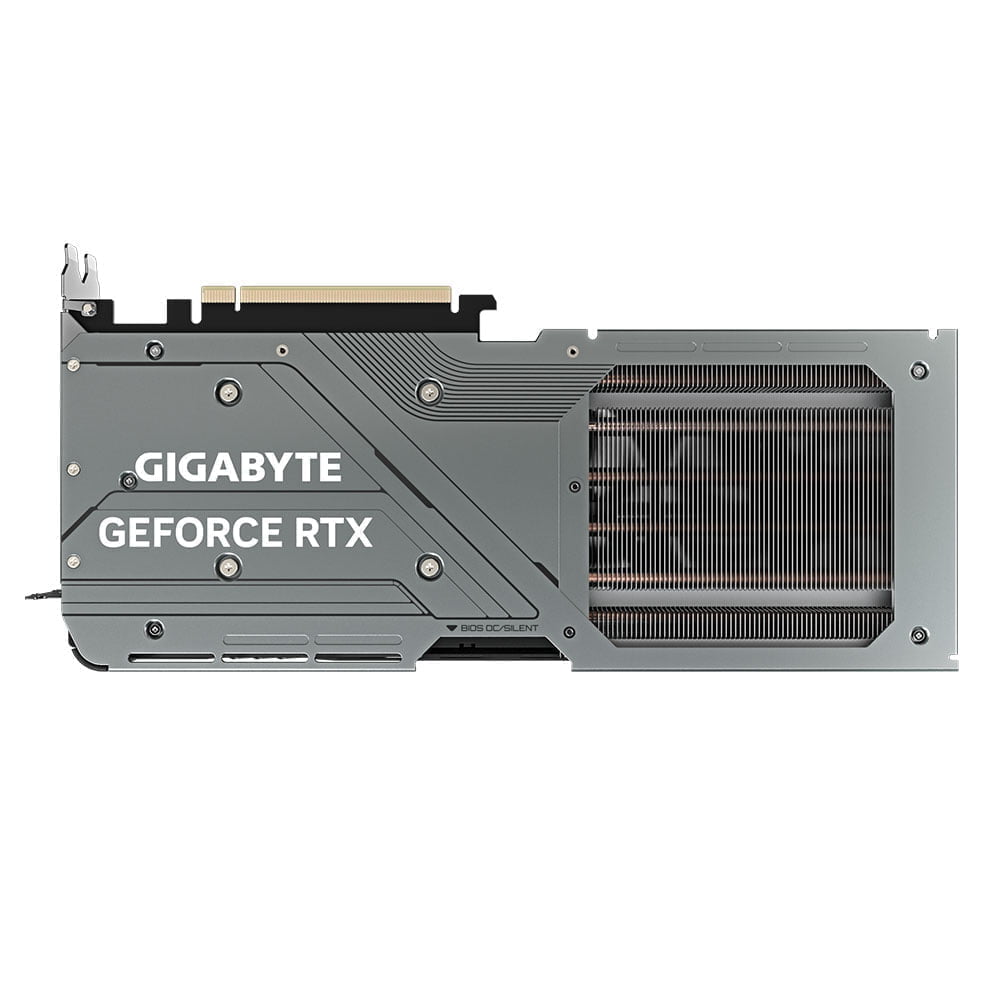

- Protection metal back plate
Details & Specifications
Details & Specifications
| Manufacturer | |
|---|---|
| Manufacturer Part Number |
GV-N4070GAMING OC-12GD |
Additional Items:
| Accessories |
1. Quick guide |
|---|
Cooling:
| # Included Fans |
3 |
|---|---|
| Active Cooling |
Yes |
Dimensions:
| Item Depth (CM) |
30 |
|---|---|
| Item Height (CM) |
5.76 |
| Item Width (CM) |
13 |

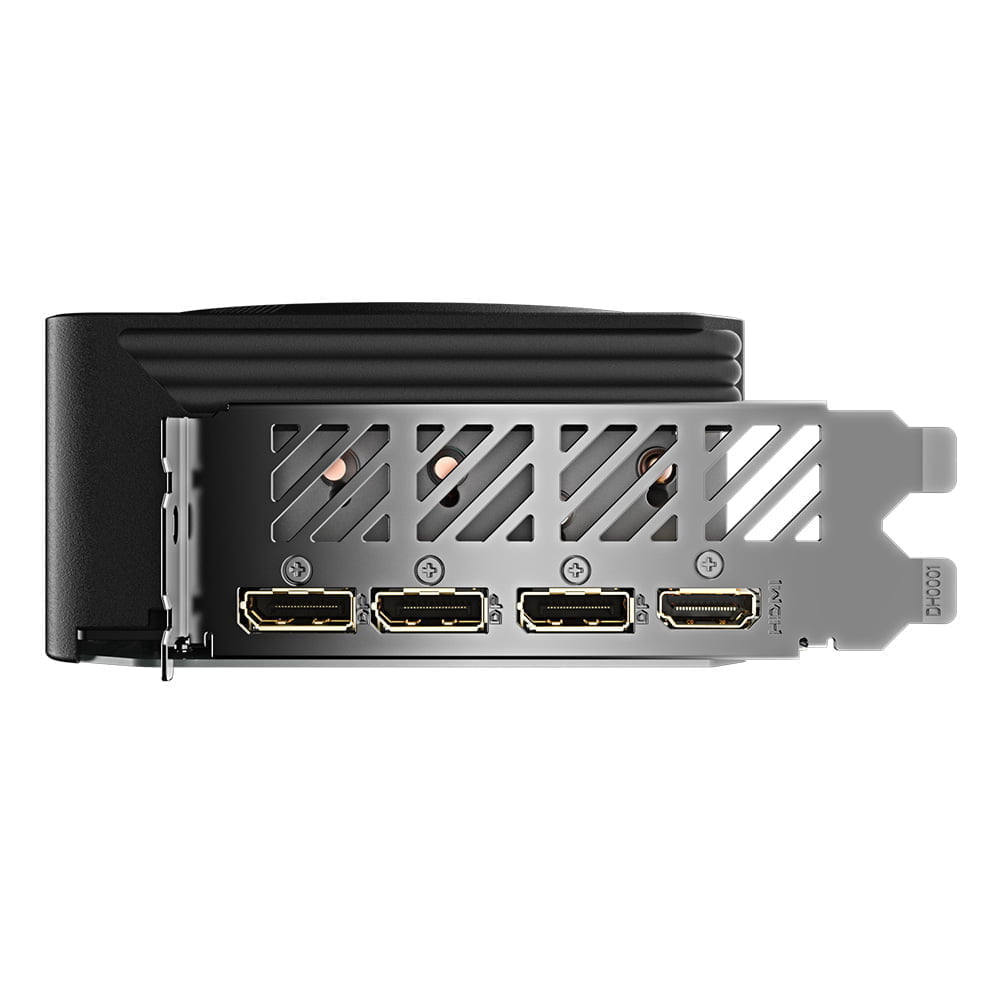

External IO:
| # DisplayPort 1.4a |
3 |
|---|---|
| # Max Simultaneous Displays |
4 |
| HDMI 2.1a |
1 |
| Max Resolution |
7680×4320 |
GPU:
| # CUDA Cores |
5888 |
|---|---|
| # RT Cores |
46 |
| # Tensor Cores |
184 |
| Core Clock |
2565 MHz (Reference Card: 2475 MHz) |
FP16 Performance (TFLOPS 1:1)
| FP32 Performance (TFLOPS) |
30.21 |
|---|
FP64 Performance (GFLOPS 1:64)
| GPU Architecture | |
|---|---|
| Lithography |
4nm |
| Pixel Rate (GPixel/s) |
164.2 |
| Texture Rate (GTexel/s) |
472 |
Memory:
| Memory Bandwidth (GB/s) |
21 |
|---|---|
| Memory Capacity (GB) |
12 |
| Memory Interface (bit) |
192 |
| Memory Type |
GDDR6X |
PCIe:
| PCIe Version |
PCIe 4.0 |
|---|
Power:
| # 16 Pin PCIe |
1 |
|---|---|
| Recommended PSU |
700W |
Software:
| API Support |
Direct X 12 Ultimate, OpenGL |
|---|---|
| Supported OS |
Linux, Windows |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Year 1: Return To Base |
