GIGABYTE GeForce GTX 1660 Ti OC 6G GDDR6
SKU: GFXRETAILNGGTX1660Ti-GIGABYTE-GV-N166TOC

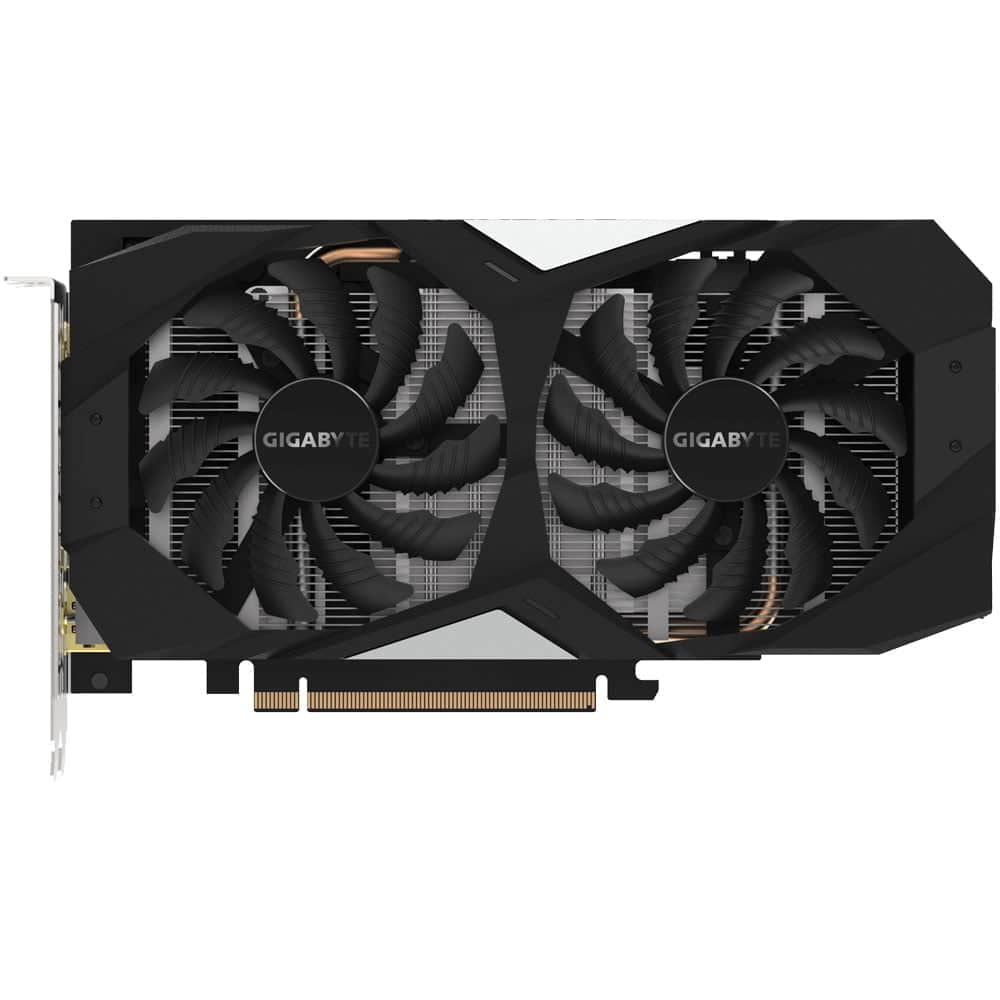

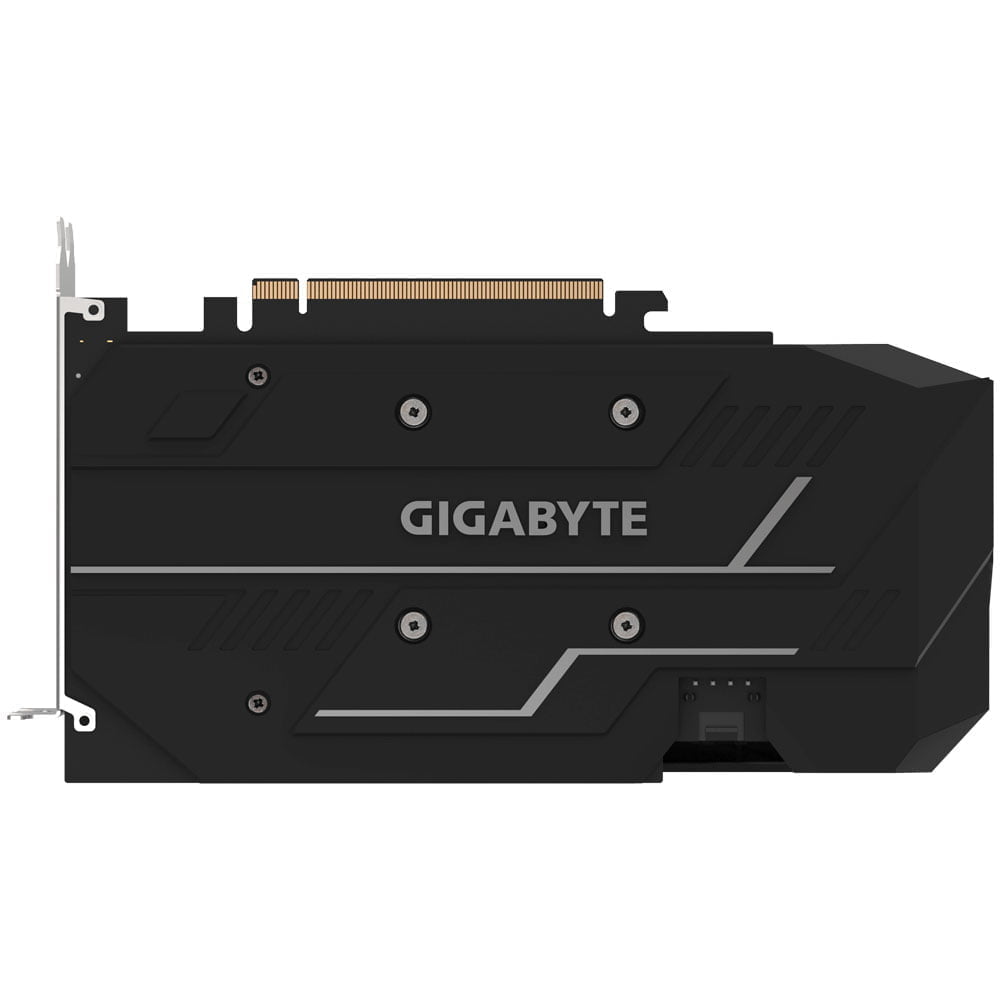

The GeForce® GTX 1660 Ti OC 6G based upon the latest award-winning NVIDIA Truing™ architecture bring high graphical performance to mainstream audiences. This Gigabyte offering includes 6GB of high speed GDDR6 memory and 1536 CUDA cores. This graphics card also features a highly advanced counter rotating dual fan layout to reduce air turbulence, advanced all copper heat pipe cooling design and a stylish protection back plane for improved aesthetics and structural rigidity.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
:
| Website Product Image URL | Click Here |
|---|
Dimensions:
| Item Height (CM) |
4.05 |
|---|---|
| Item Width (CM) |
12.2 |
| Item Depth (CM) |
22.565 |
| Item Weight (Kg) |
0.8 |

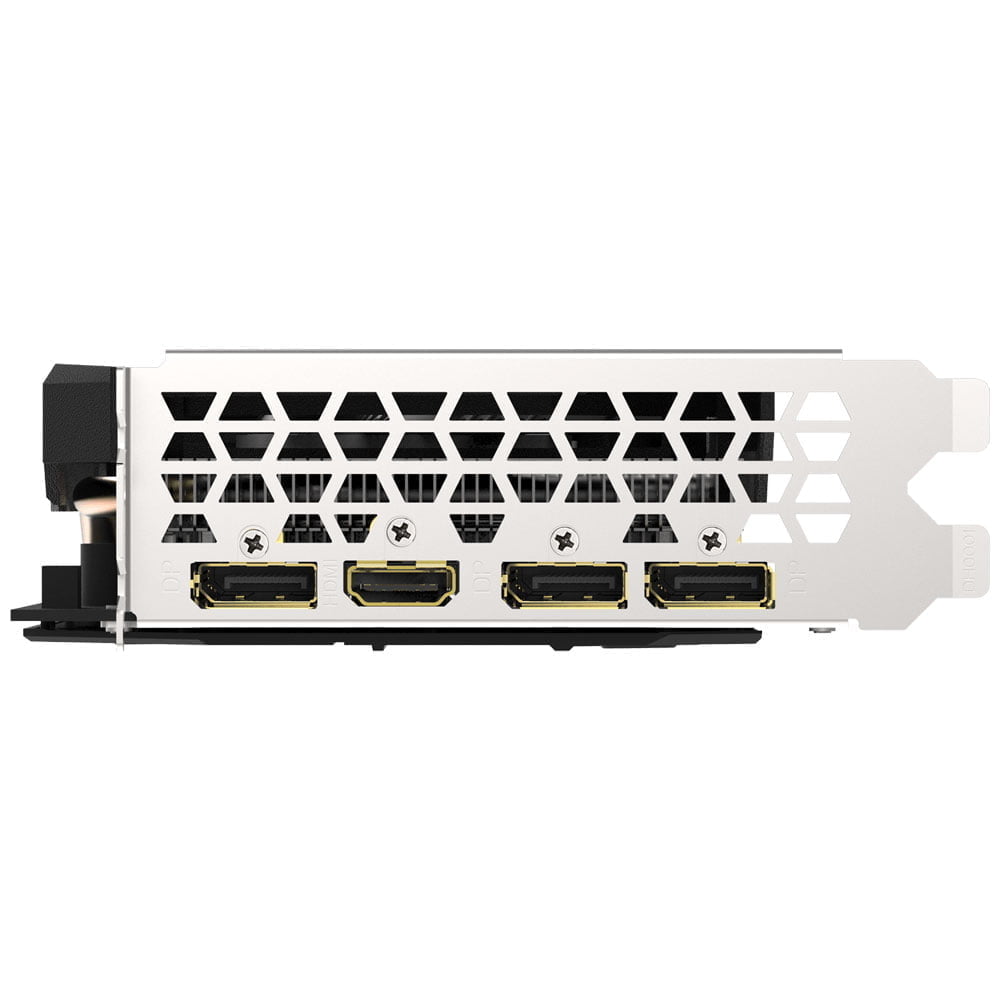

External IO:
| # Max Simultaneous Displays |
4 |
|---|---|
| # DisplayPort |
3 x DisplayPort 1.4 |
| # HDMI |
1x HDMI 2.0 |
GPU:
| GPU Slot Size | |
|---|---|
| GPU Architecture | |
| # CUDA Cores |
1536 |
| Memory Interface (bit) |
192 |
Memory:
| Memory Type |
GDDR6 |
|---|---|
| Memory Capacity (GB) |
6 |
| Memory Bandwidth (GB/s) |
288 |
PCIe:
| PCIe Version |
PCIe 3.0 |
|---|
Power:
| # 6+2 Pin PCIe |
1 |
|---|
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
* Specifications for older discontinued variants can be view by clicking here
