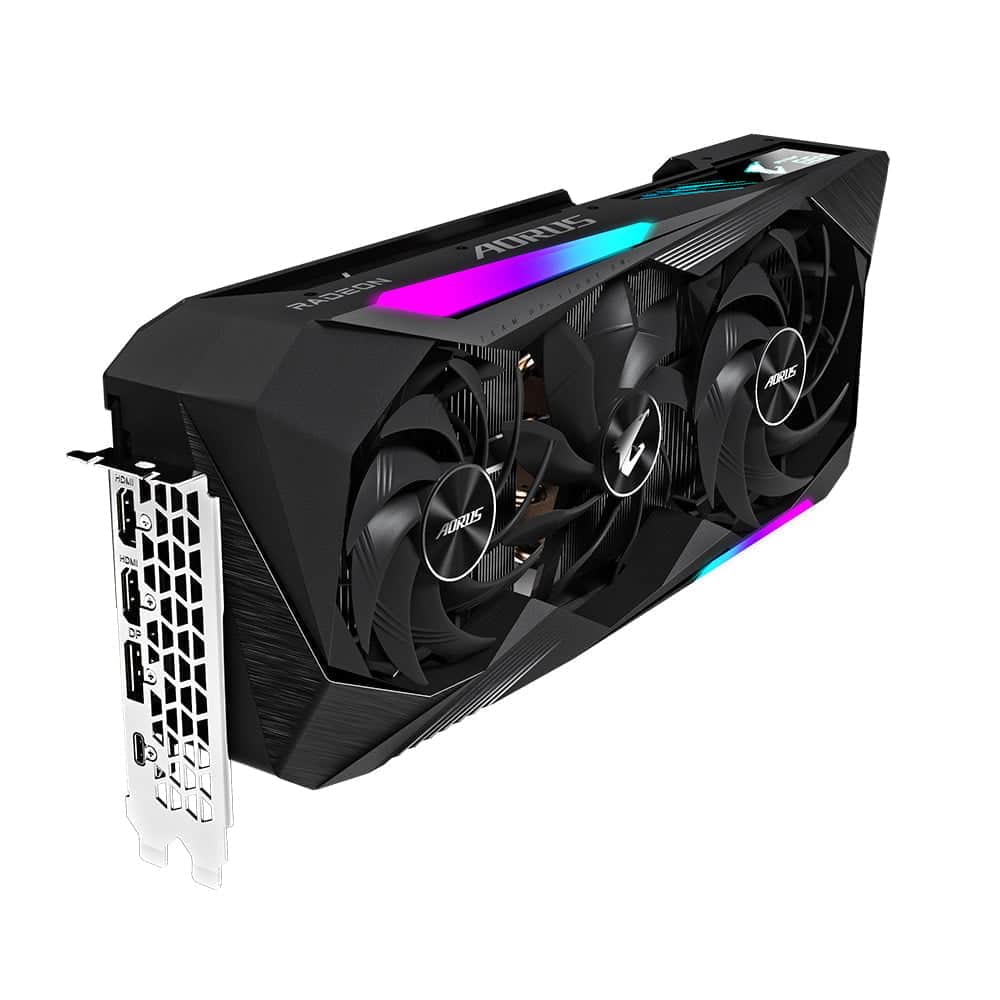

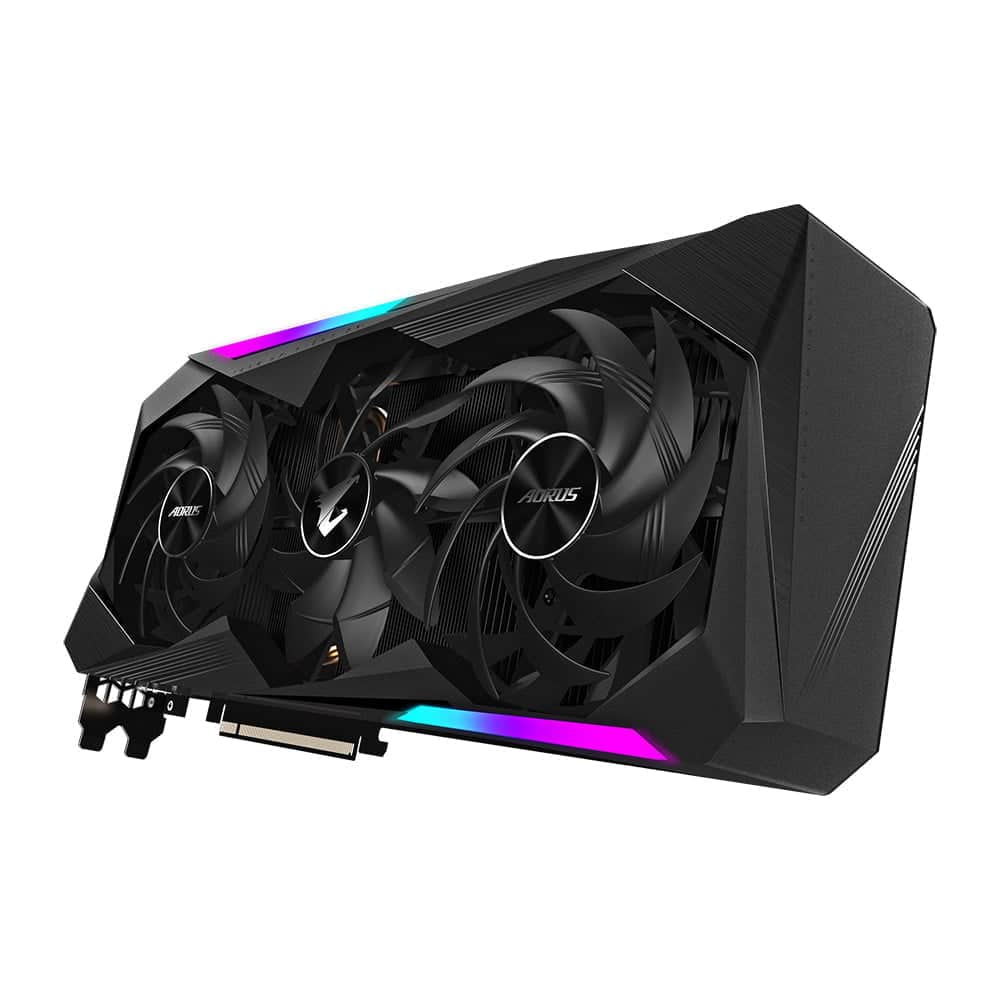

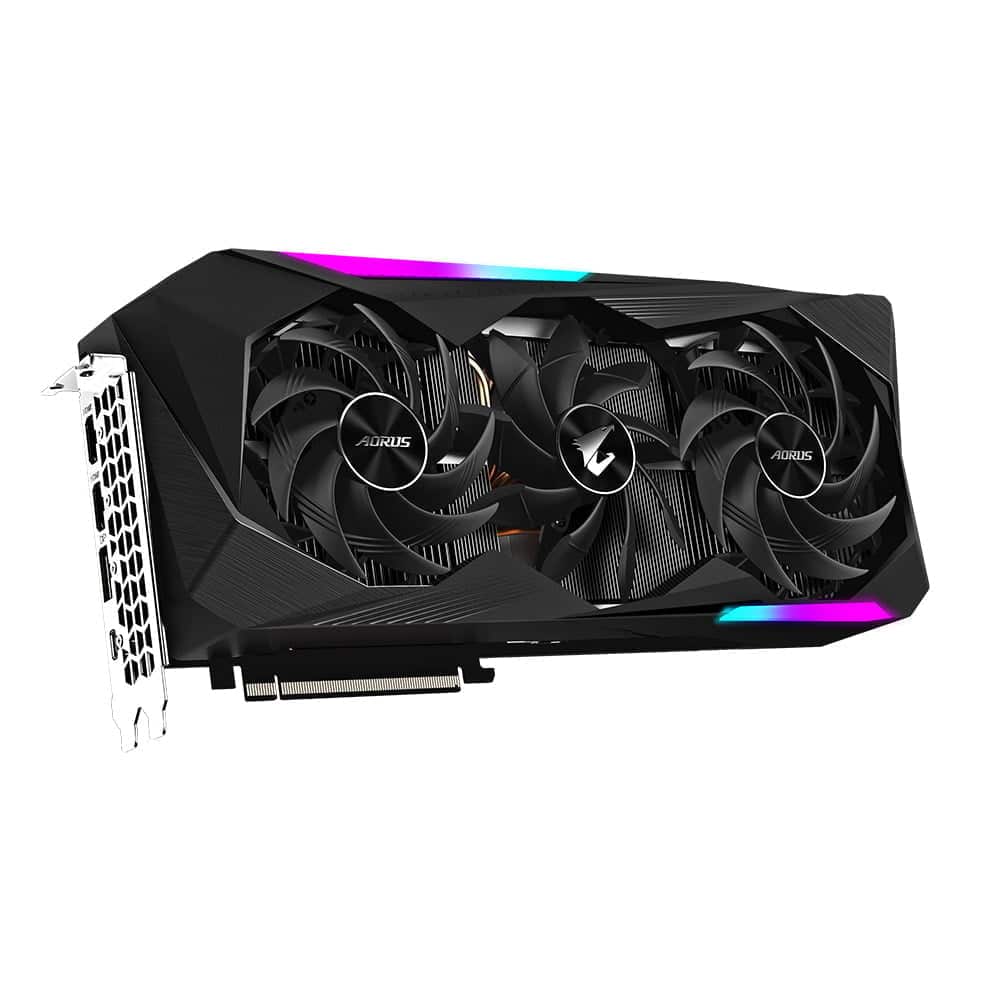

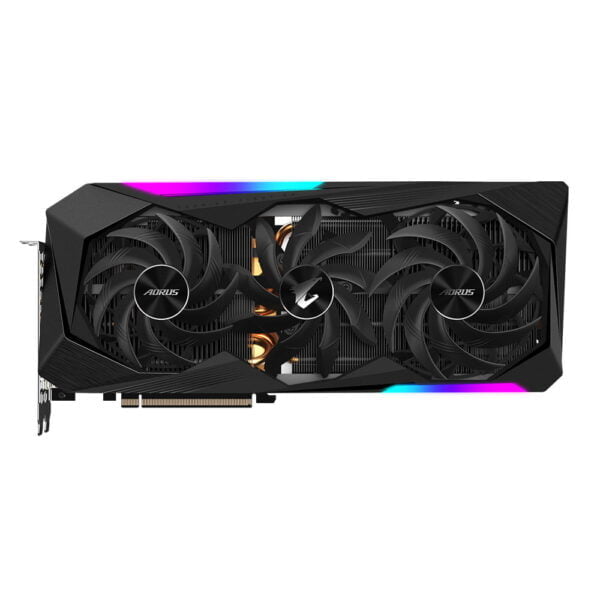

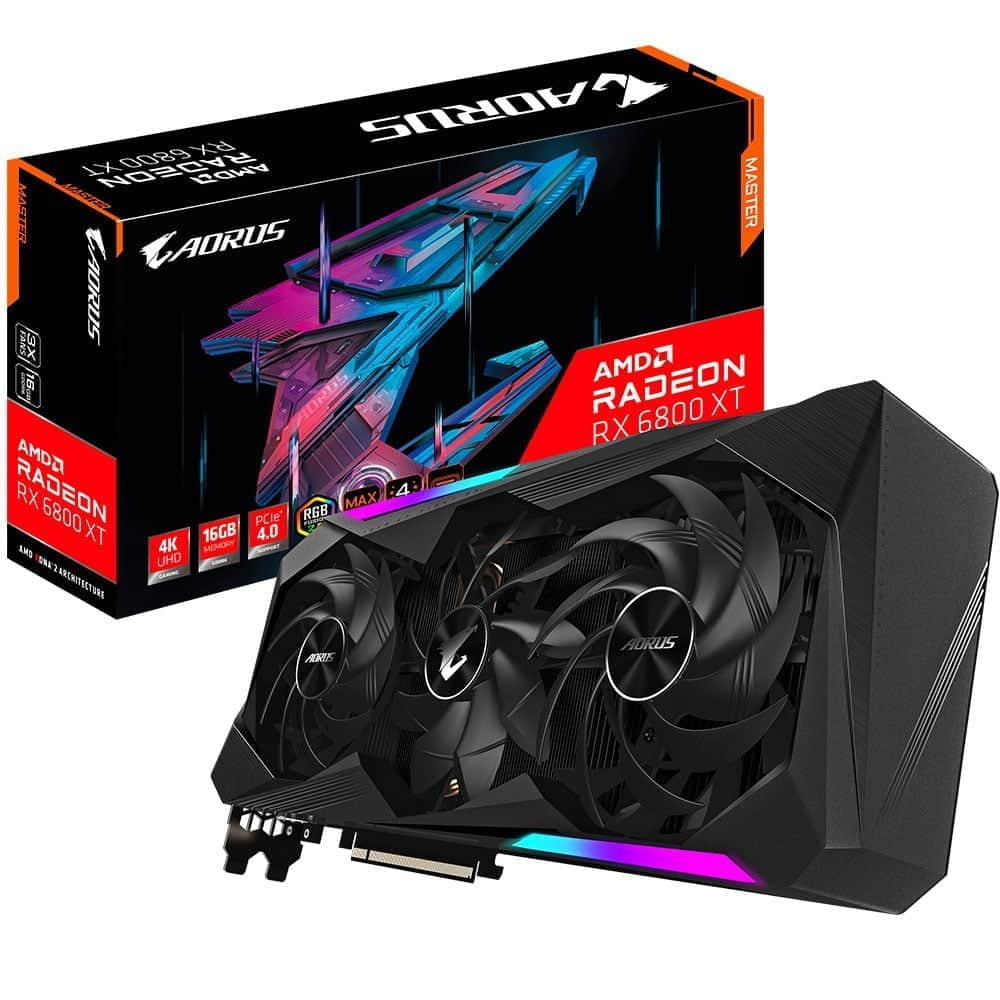

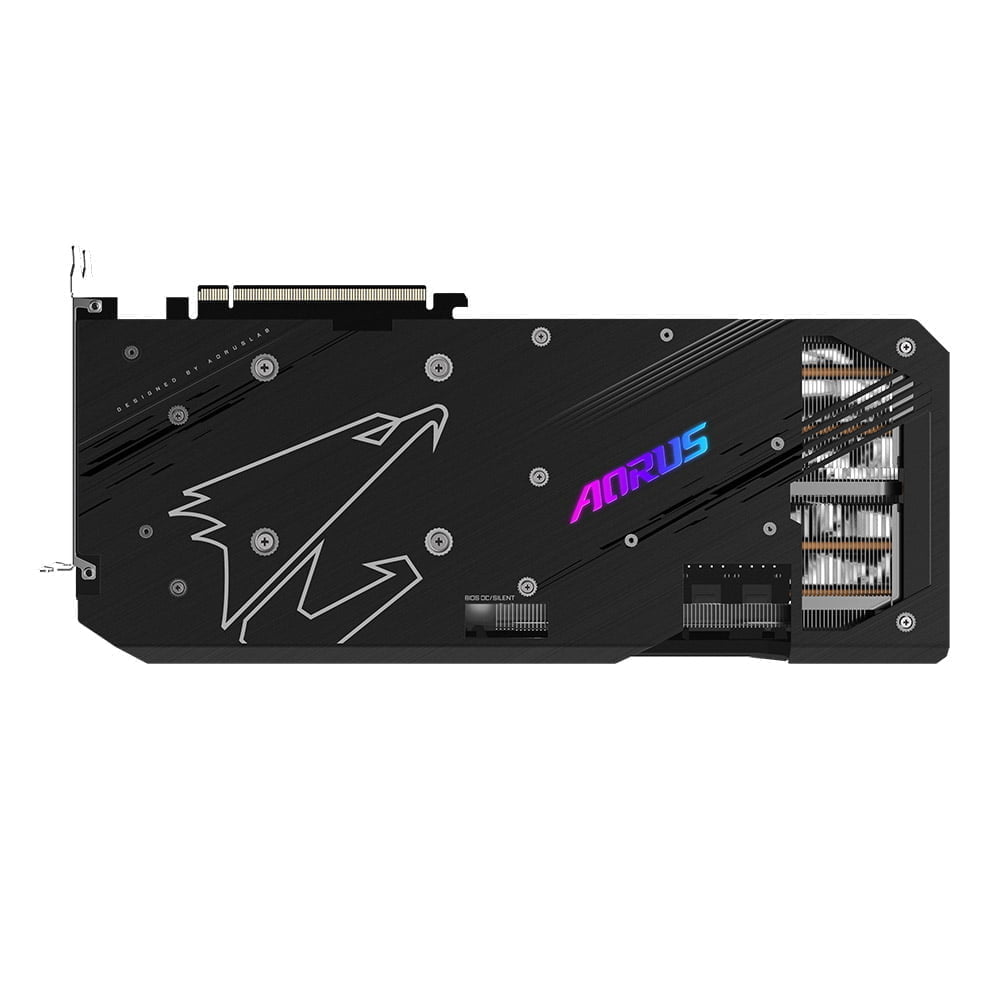

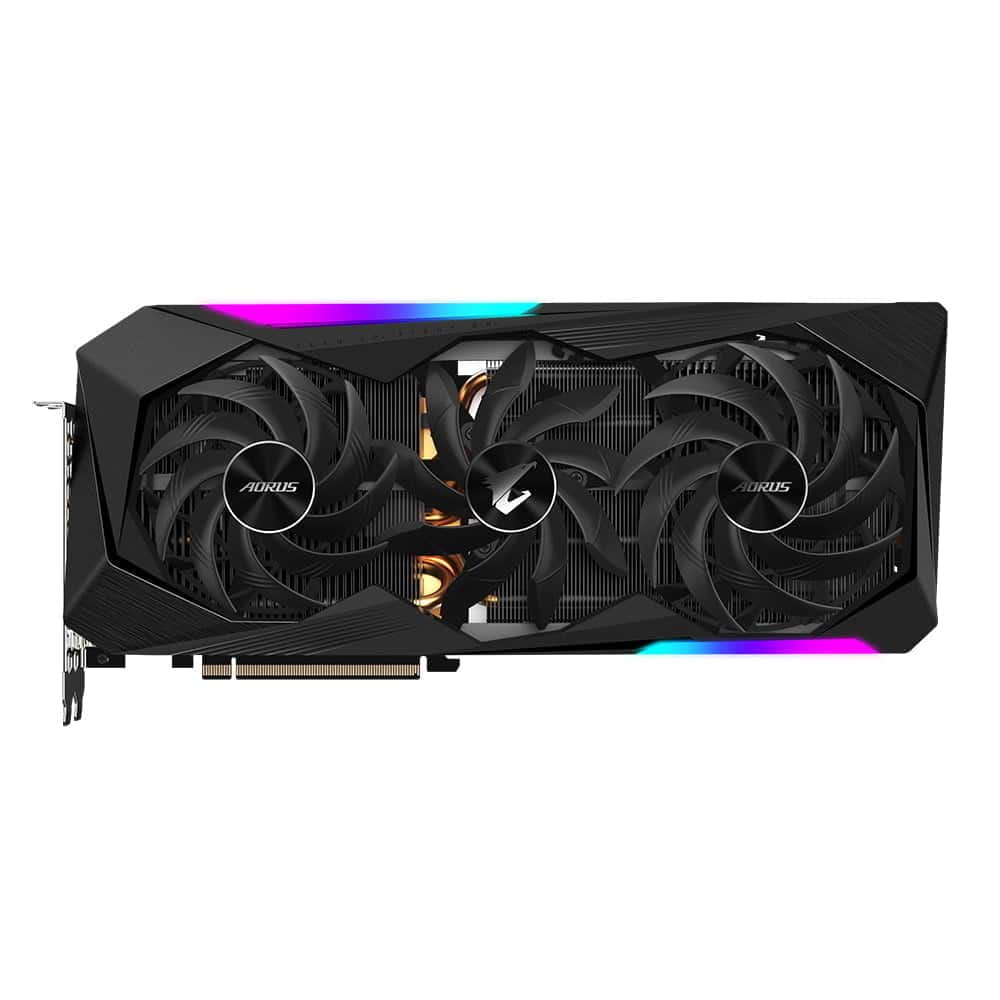

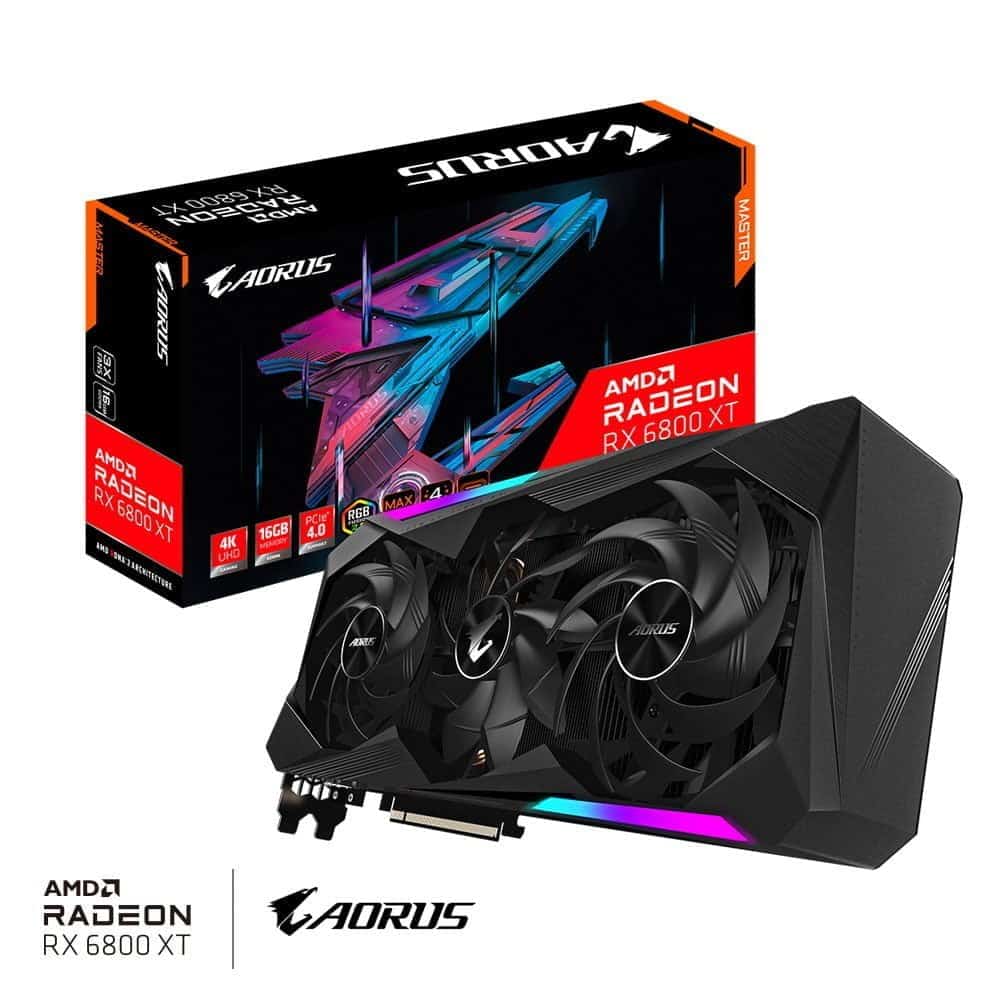

Gigabyte AORUS Radeon RX 6800 XT MASTER TYPE C 16G – 16GB GDDR6 Graphics Card
SKU: GFXARRX6800XT_GIG_GV-R68XTAORUSM-16GC

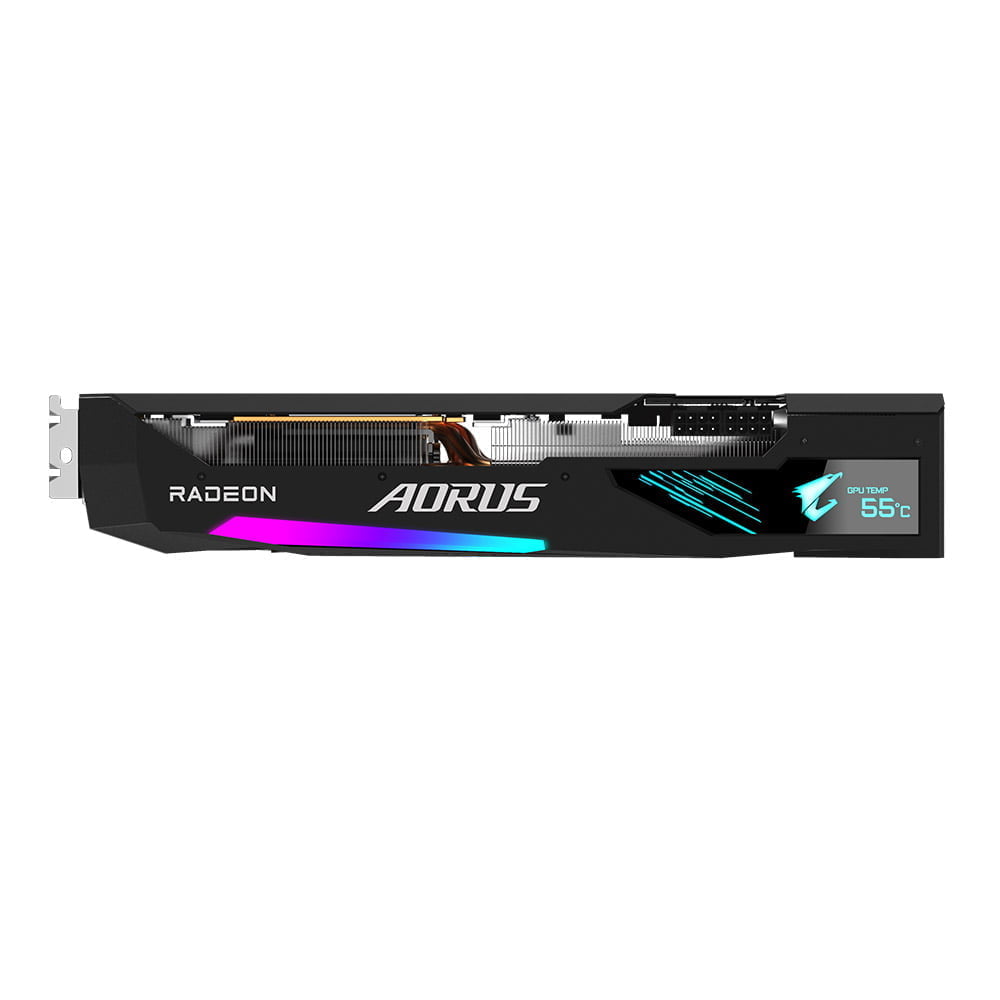

The GIGABYTE AORUS Radeon RX 6800 XT MASTER 16G is built upon the AMD RDNA2 architecture and features 16GB GDDR6 256-bit memory interface, 4608 Stream Processors, Max-Covered cooling with triple fan wind claw design, LCD Edge View, and a boost clock of up to 2310MHz. The built oin USB Type-C port built directly onto this card variant makes it the perfect choice for VR users.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
| Manufacturer | |
|---|---|
| Manufacturer Part Number |
GV-R68XTAORUS M-16GC |
Cooling:
| # Included Fans |
3 |
|---|
Dimensions:
| Item Depth (CM) |
32.4 |
|---|---|
| Item Height (CM) |
6 |
| Item Width (CM) |
14 |

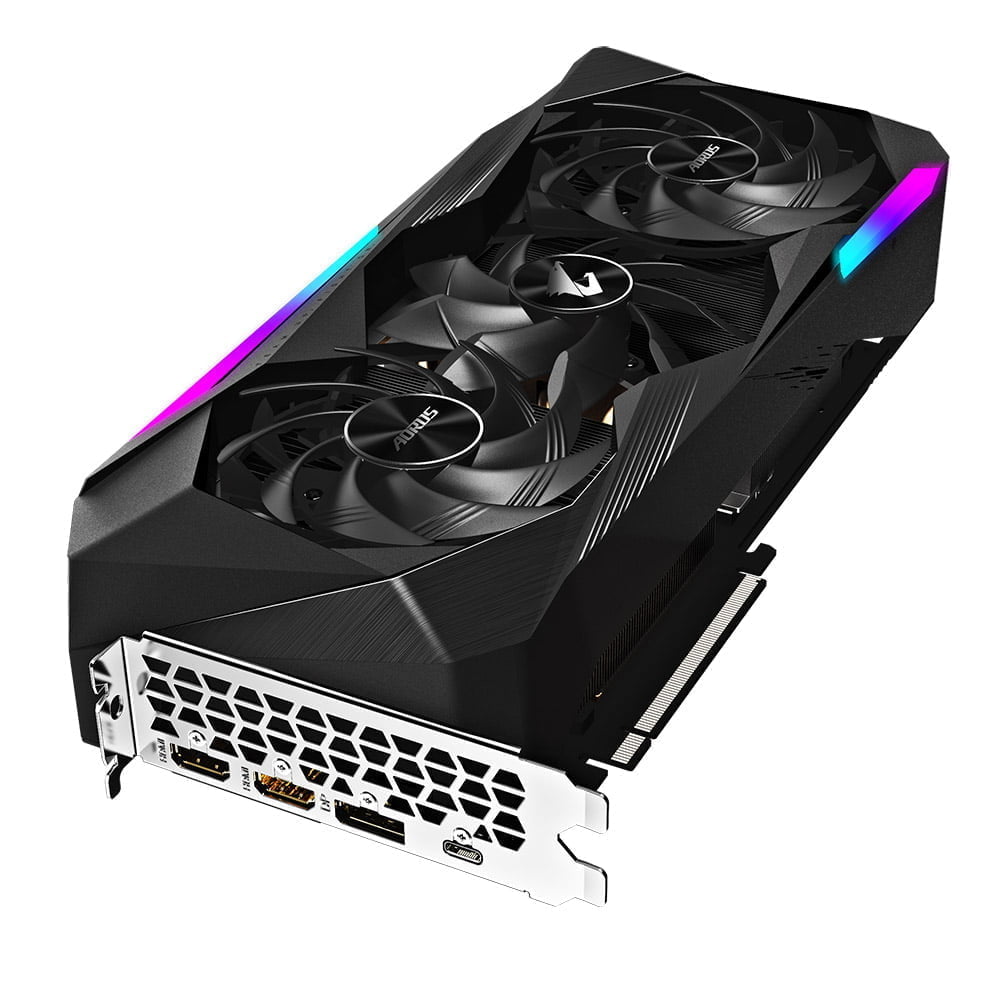

External IO:
| # DisplayPort |
1x 1.4a |
|---|---|
| # HDMI |
2x 2.1 |
| # Max Simultaneous Displays |
4 |
| # USB-C (Display) |
1 |
| Max Resolution |
7680×4320 |
GPU:
| # Stream Processors |
4608 |
|---|---|
| GPU Architecture | |
| GPU Slot Size | |
| Lithography |
7nm |
Memory:
| Memory Bandwidth (GB/s) |
512 |
|---|---|
| Memory Capacity (GB) |
16 |
| Memory Frequency (MHz) |
16000 |
| Memory Type |
GDDR6 |
PCIe:
| PCIe Version |
PCIe 4.0 |
|---|
Power:
| # 8 Pin PCIe |
2 |
|---|---|
| Recommended PSU |
750W |
Software:
| API Support |
DirectX 12 Ultimate, OpenGL 4.6 |
|---|---|
| Supported OS |
Linux, Windows 10 |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Direct To Manufacturer |
| Reg. Warranty Extension (M) |
12 |
| Warranty Notes |
48 Months Total Warranty. |
* Specifications for older discontinued variants can be view by clicking here
