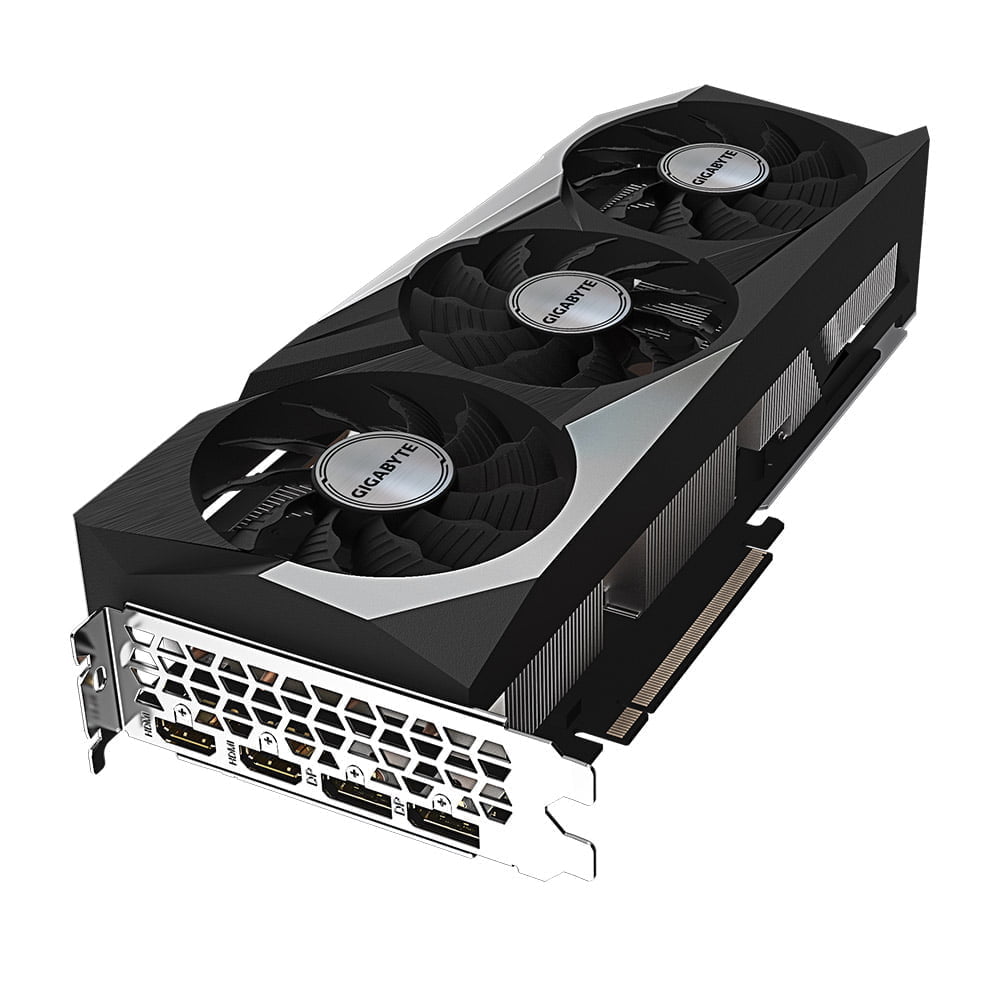

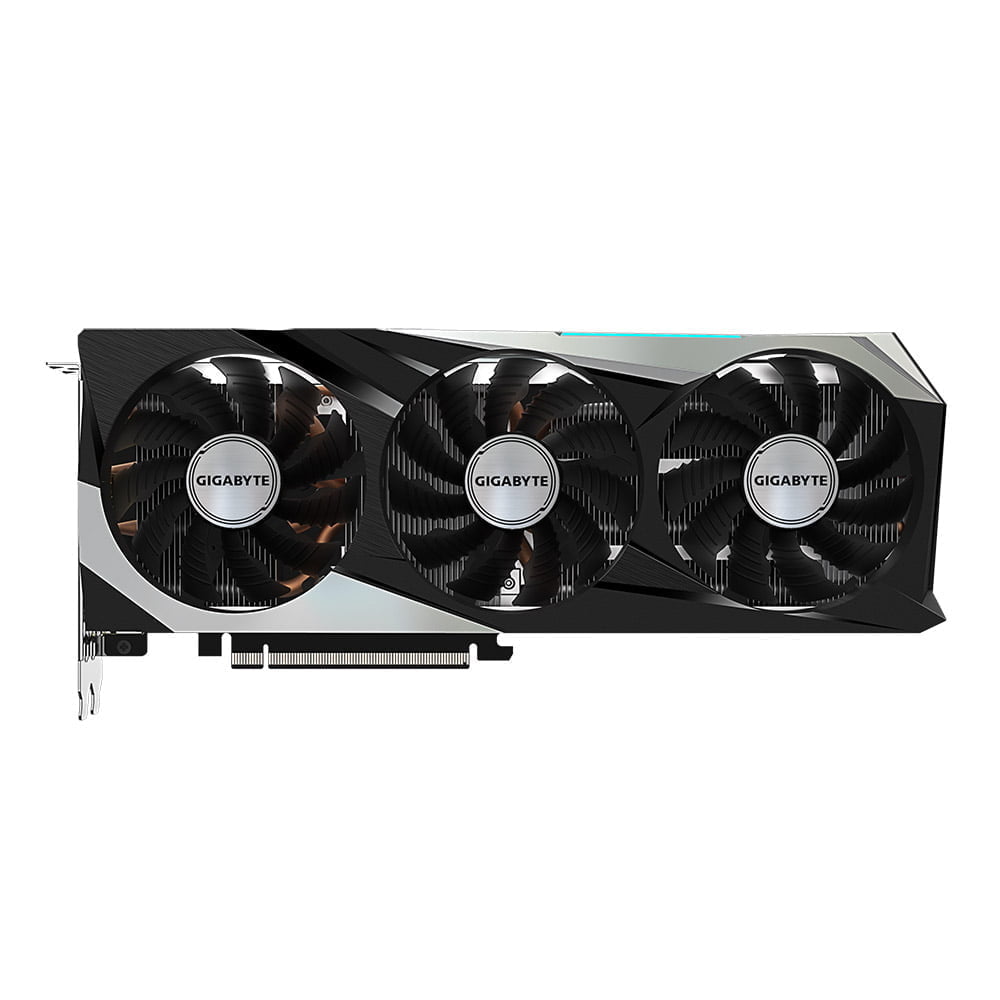

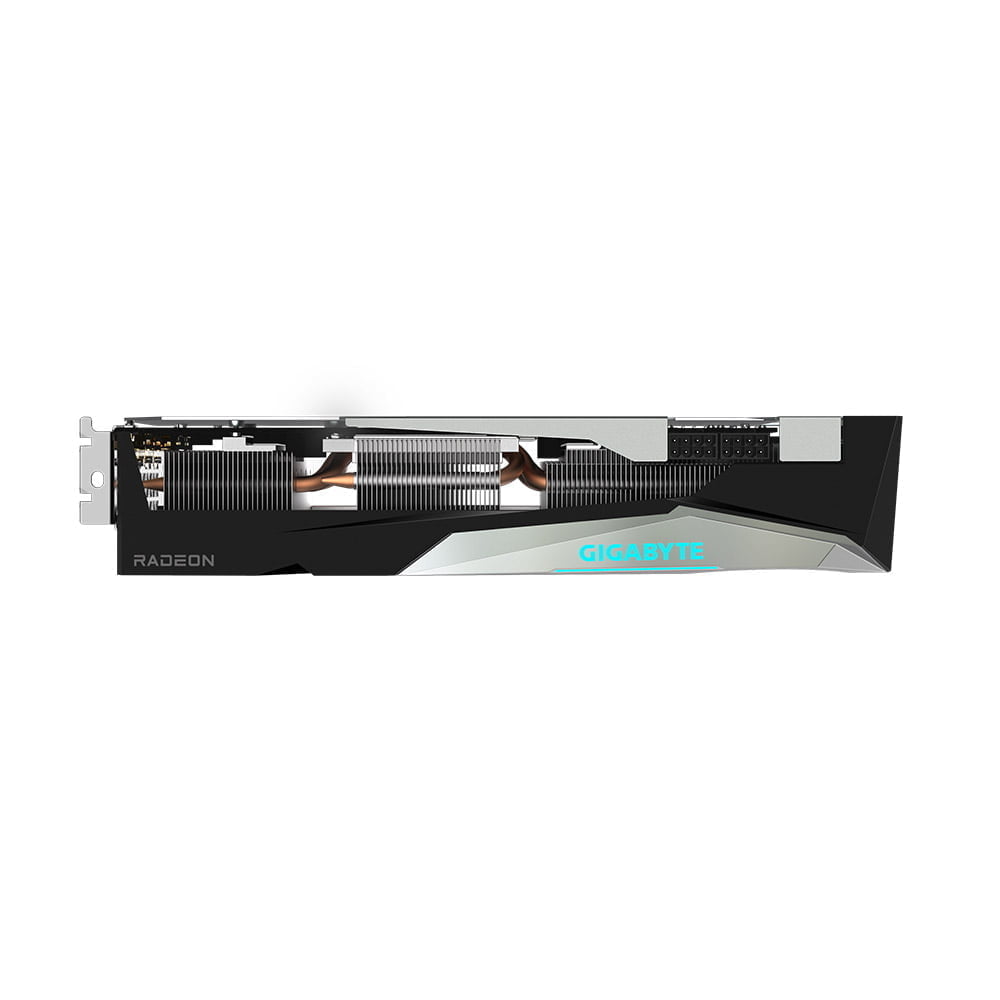

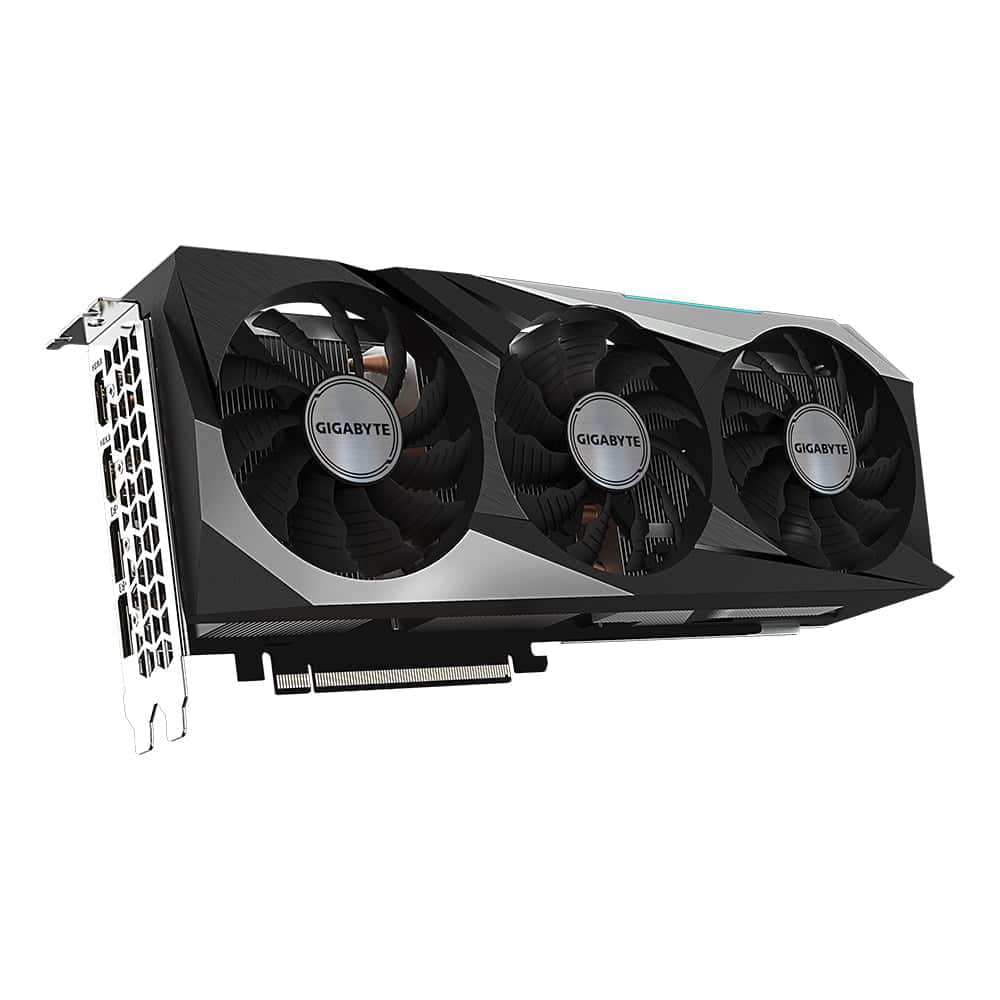

Gigabyte AORUS Radeon RX 6800 GAMING OC 16G – 16GB GDDR6 Graphics Card
SKU: GFXARRX6800_GIG_GV-R68GAMINGOC-16GD

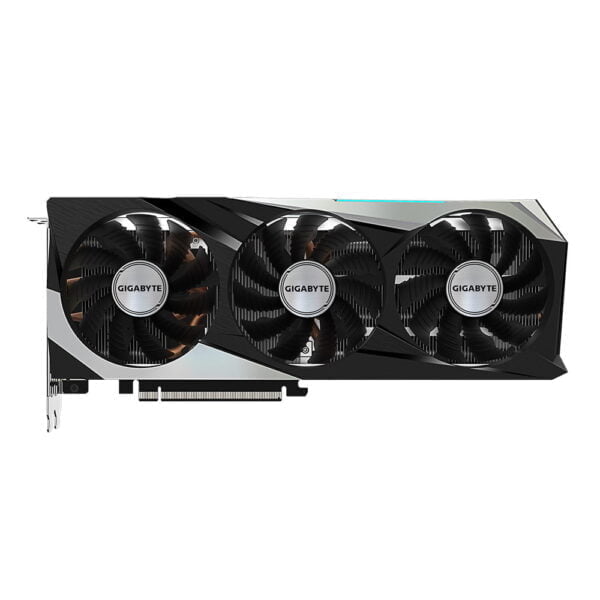

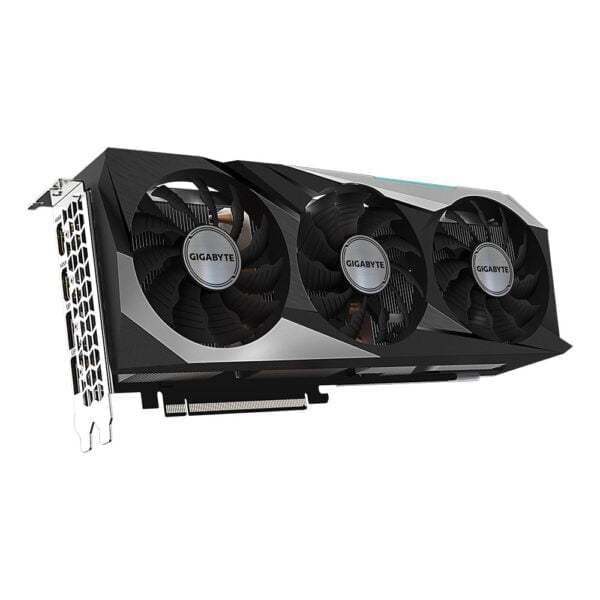

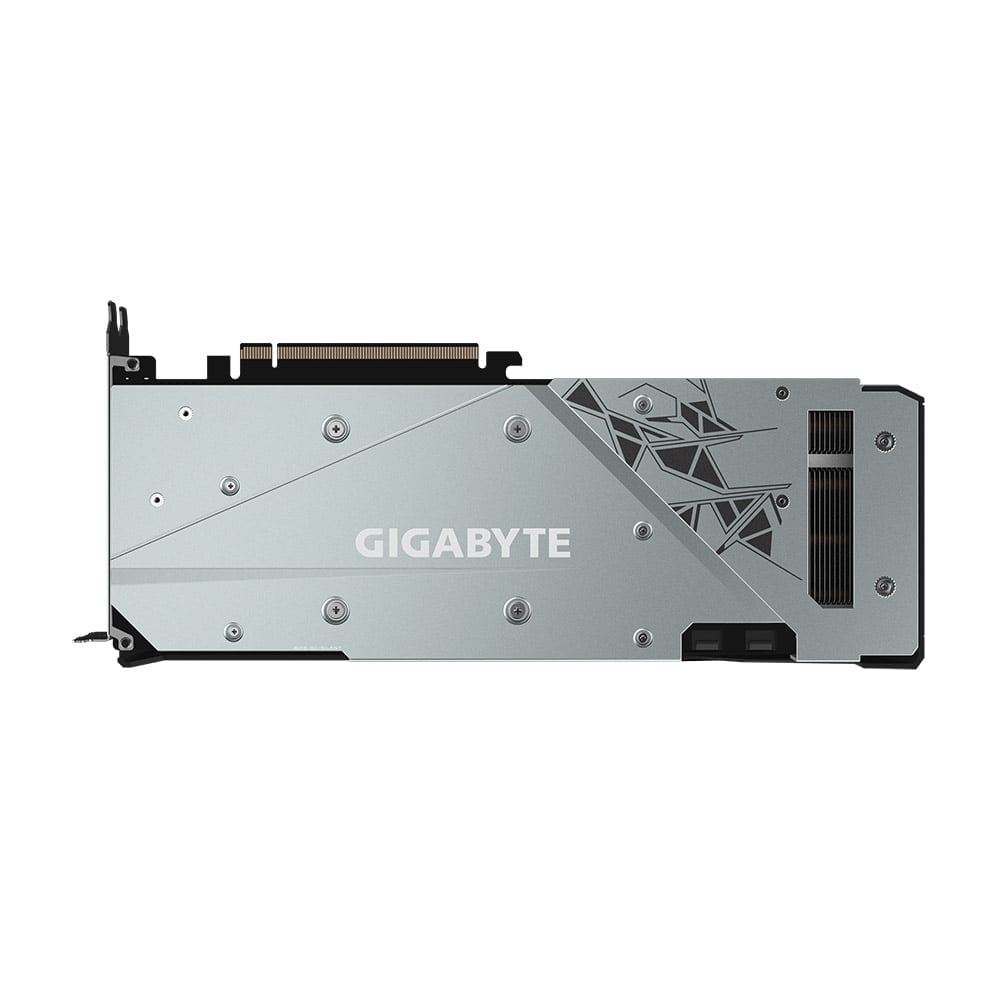

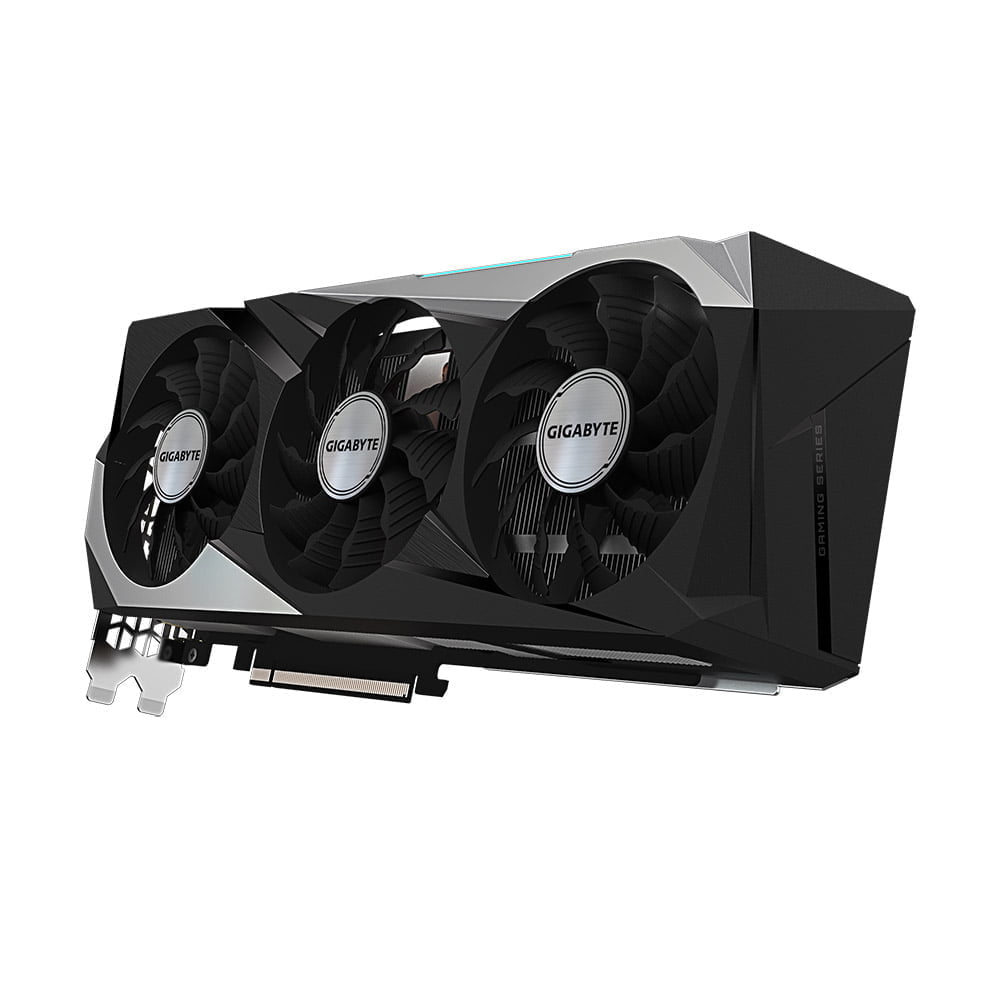

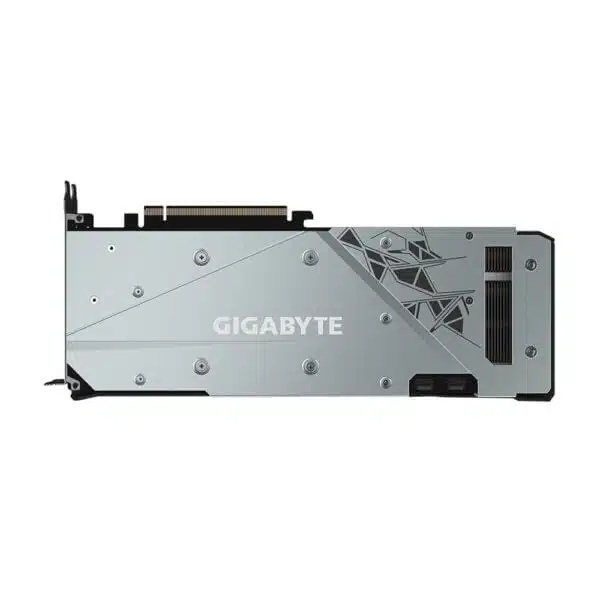

The GIGABYTE Radeon™ RX 6800 GAMING OC 16G is built upon the AMD RDNA2 architecture and features 16GB GDDR6 256-bit memory interface, 3840 Stream Processors, WINDFORCE 3X Cooling System with alternate spinning fans and RGB fusion 2.0. GIGABYTE has taken AMD’s latest GPU’s exceptional performance and paired it with their excellent cooling technologies. The inclusion of a protective metal backplate also makes the GIGABYTE Radeon™ RX 6800 GAMING OC 16G a stunning graphics card.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
| Manufacturer | |
|---|---|
| Manufacturer Part Number |
GV-R68GAMING OC-16GD |

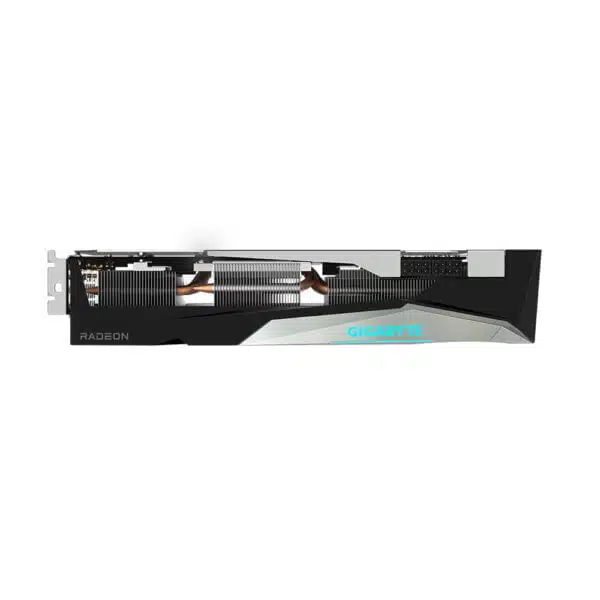

Cooling:
| # Included Fans |
3 |
|---|
Dimensions:
| Item Depth (CM) |
28.6 |
|---|---|
| Item Height (CM) |
5.8 |
| Item Width (CM) |
11.2 |

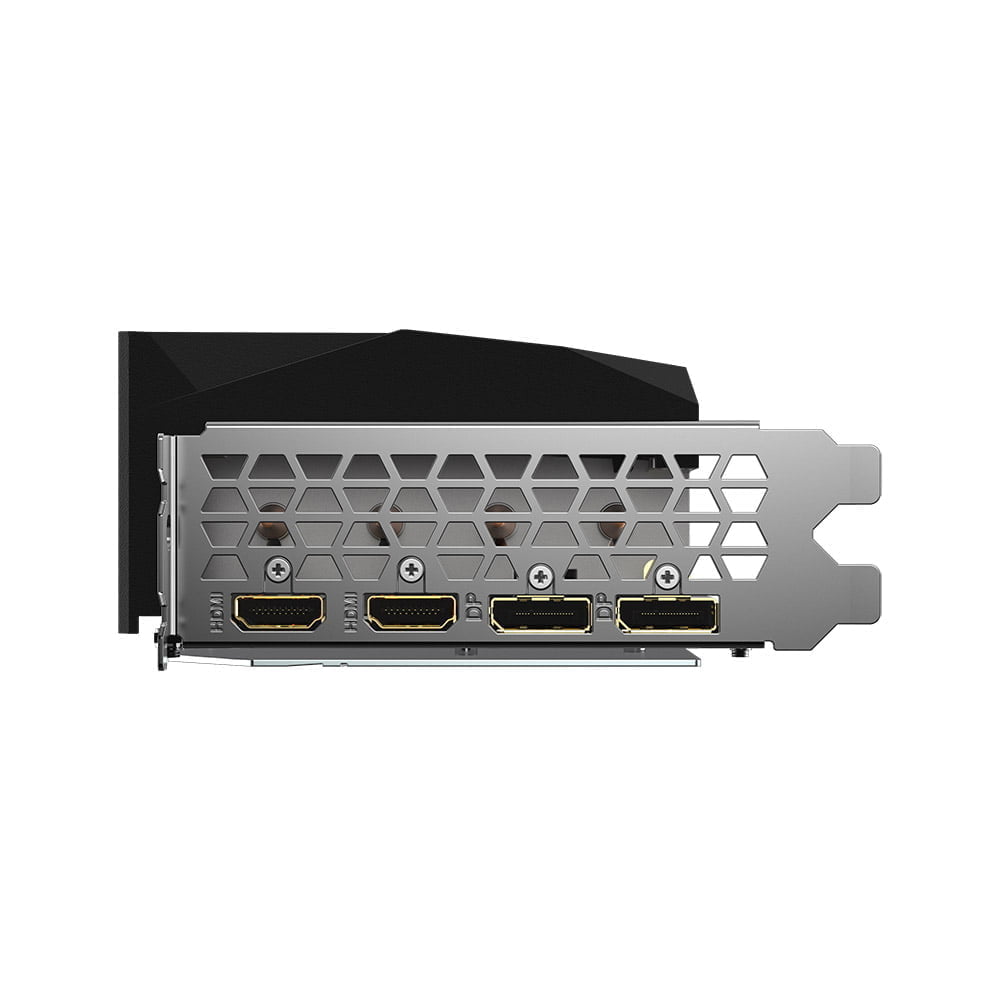

External IO:
| # DisplayPort |
2x 1.4a |
|---|---|
| # HDMI |
2x 2.1 |
| # Max Simultaneous Displays |
4 |
| Max Resolution |
7680×4320 |
GPU:
| # Stream Processors |
3840 |
|---|---|
| GPU Architecture | |
| GPU Slot Size | |
| Lithography |
7nm |
| Memory Interface (bit) |
256 |
Memory:
| Memory Bandwidth (GB/s) |
512 |
|---|---|
| Memory Capacity (GB) |
16 |
| Memory Frequency (MHz) |
16000 |
| Memory Type |
GDDR6 |
PCIe:
| PCIe Version |
PCIe 4.0 |
|---|
Power:
| # 8 Pin PCIe |
2 |
|---|---|
| Recommended PSU |
650W |
Software:
| API Support |
DirectX 12 Ultimate, OpenGL 4.6 |
|---|---|
| Supported OS |
Linux, Windows 10 |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Direct To Manufacturer |
* Specifications for older discontinued variants can be view by clicking here
