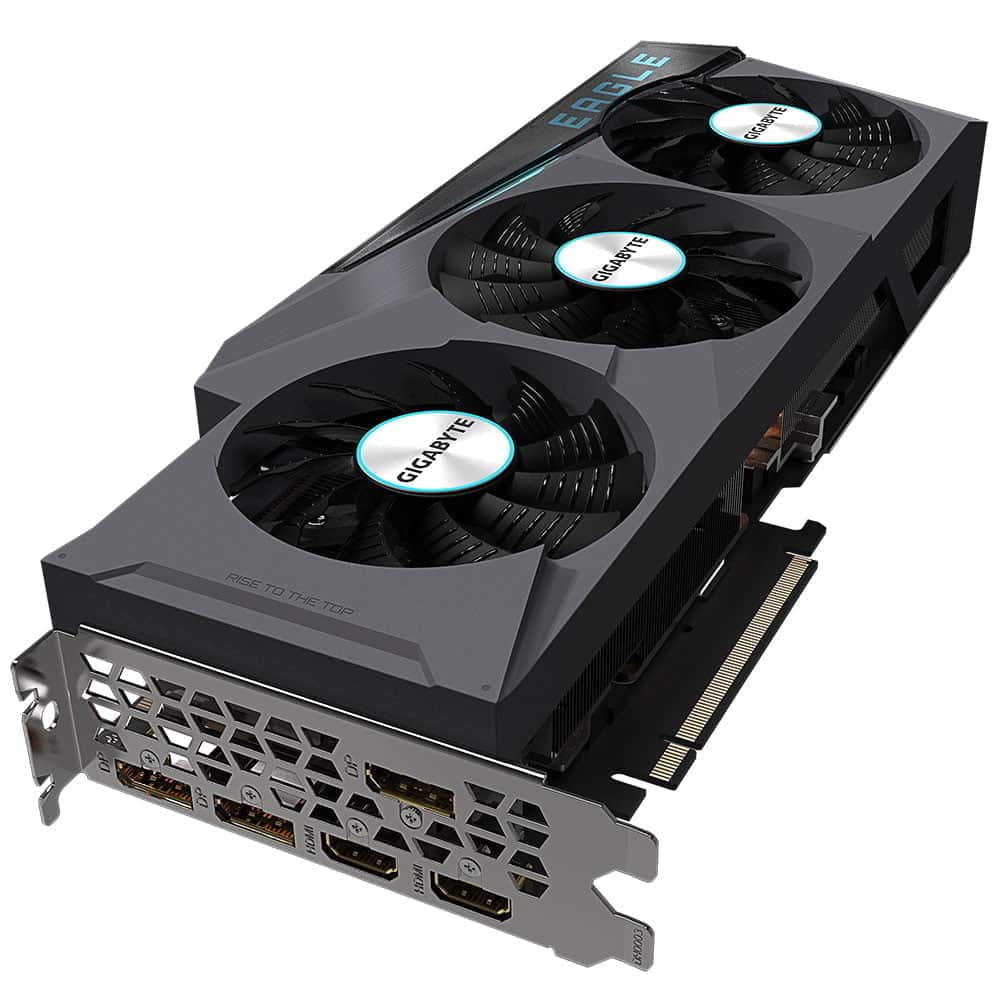

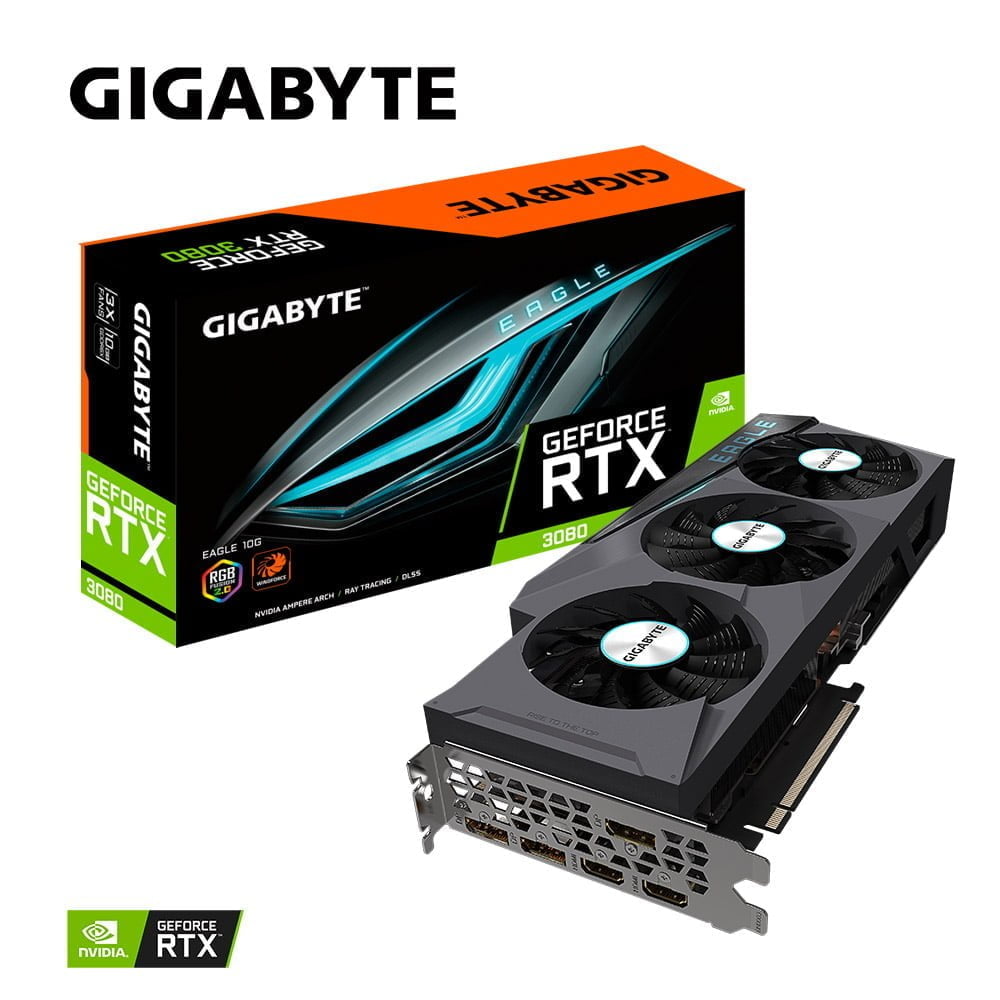

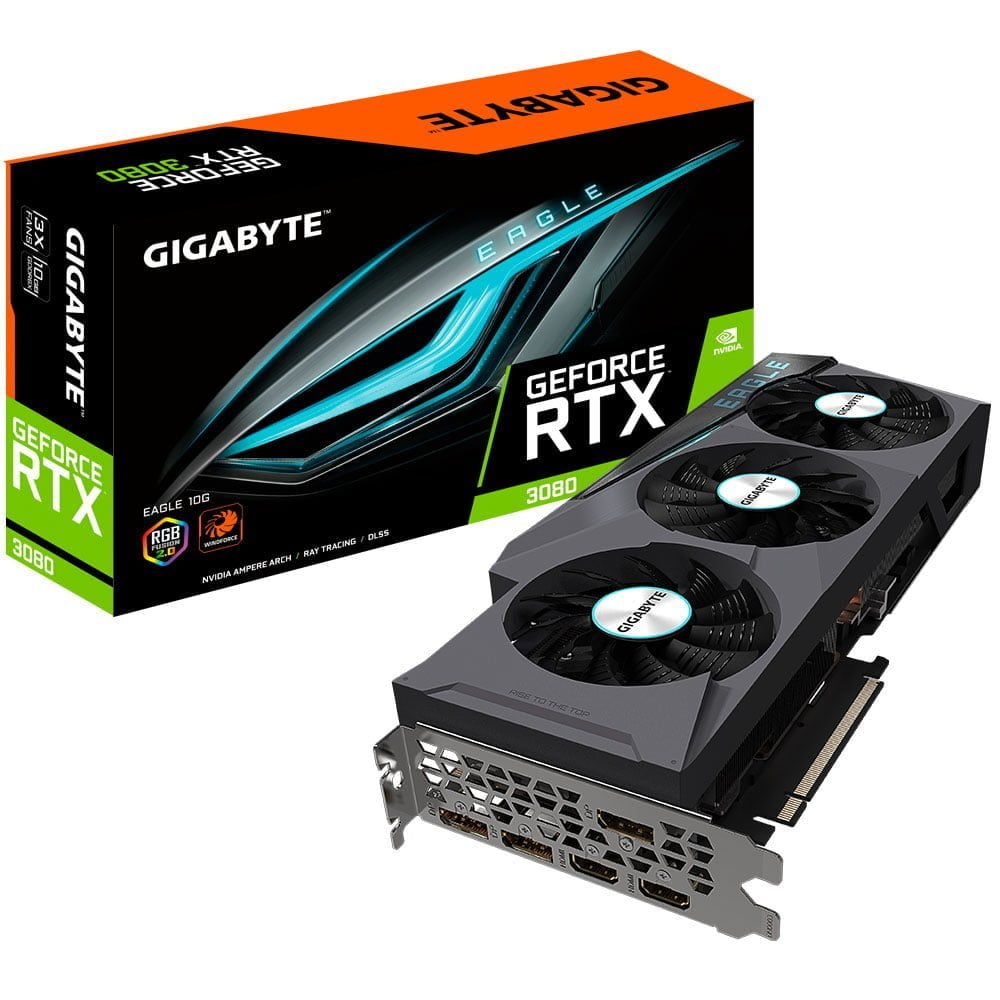

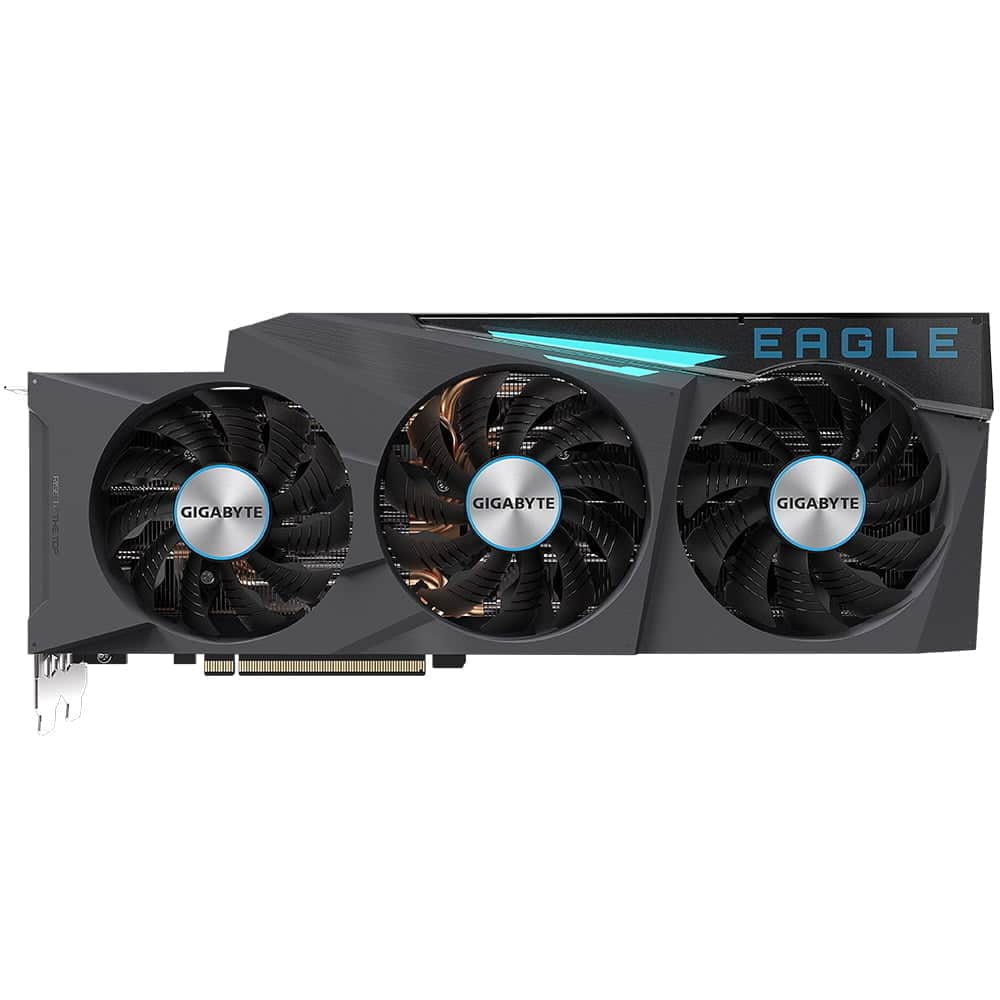

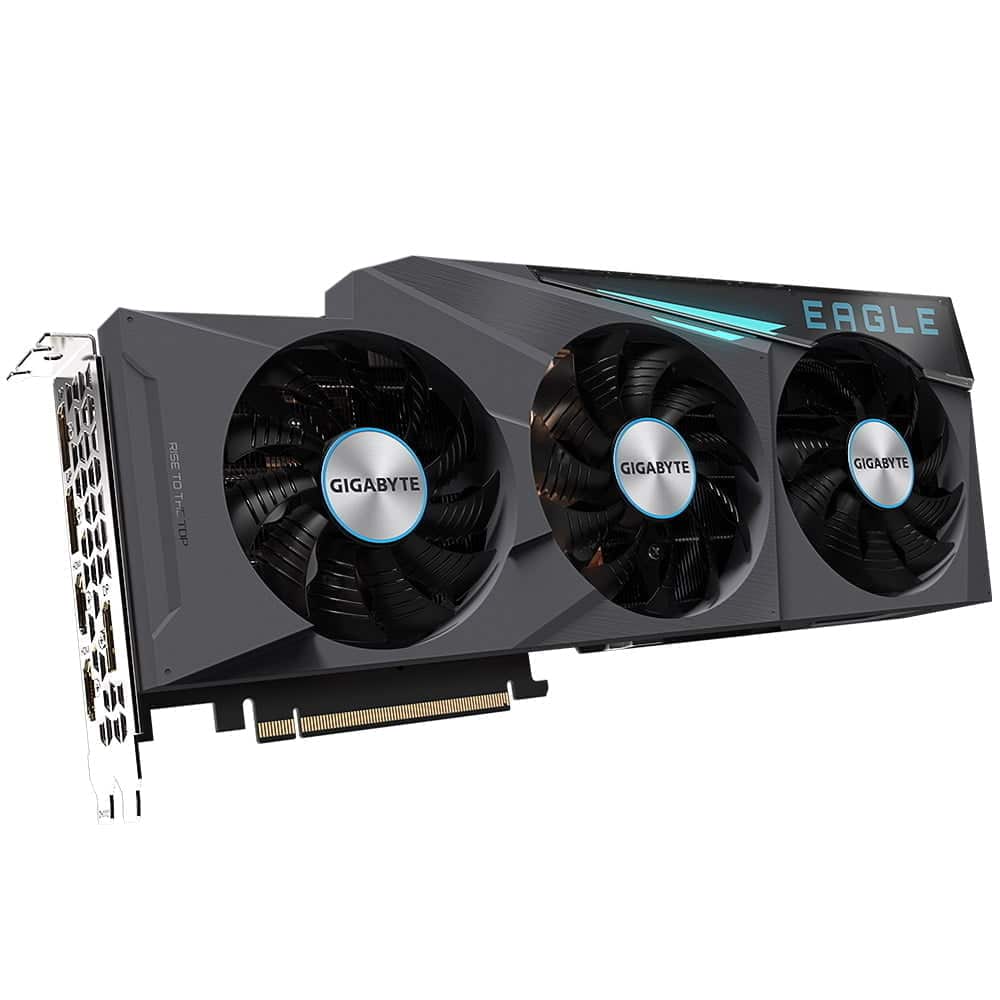

GeForce RTX™ 3080 EAGLE 10G (rev. 1.0)
SKU: GFXRETAILNGRTX3080GIG_GV-N3080EAGLE-10GD
The Gigabyte GeForce RTX™ 3080 Eagle 10G is built on the revolutionary NVIDIA Ampere architecture, providing users with exceptional performance in gaming, games development and professional workflows such as GPU rendering. Even the most demanding tasks are handled with ease with 8704 CUDA Cores, 10GB of GDDR6X Memory, 2nd generation RT Cores, and 3rd generation Tensor Cores.

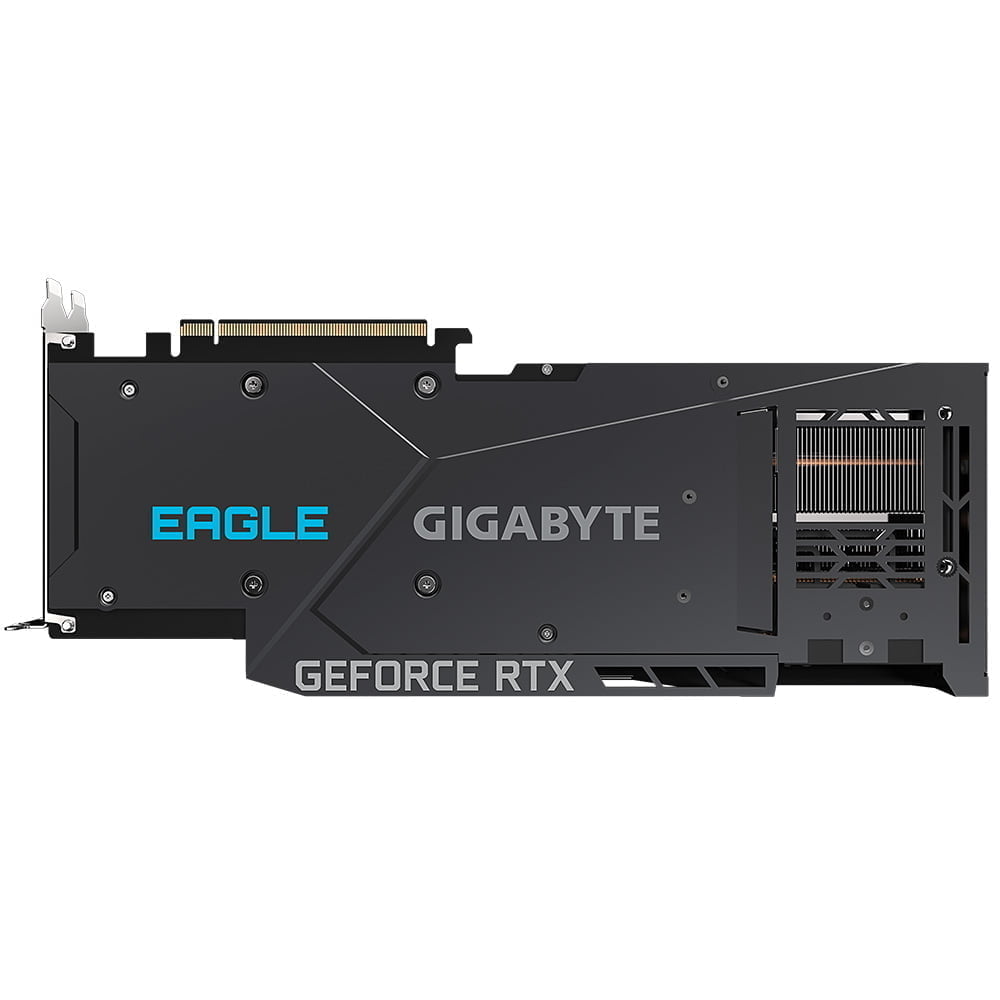

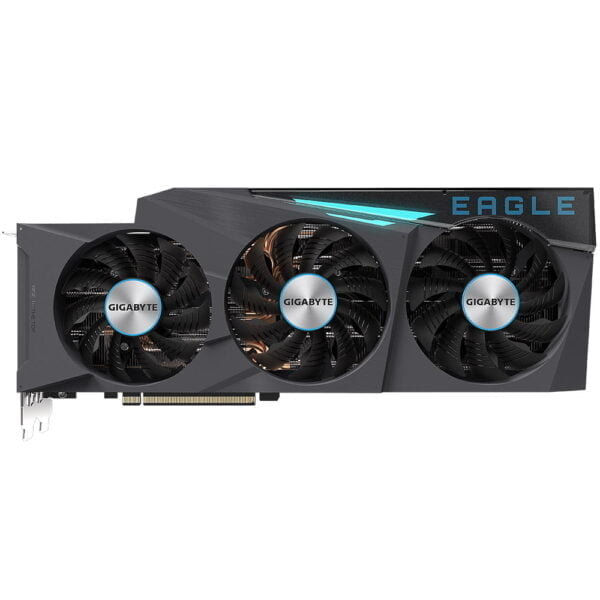

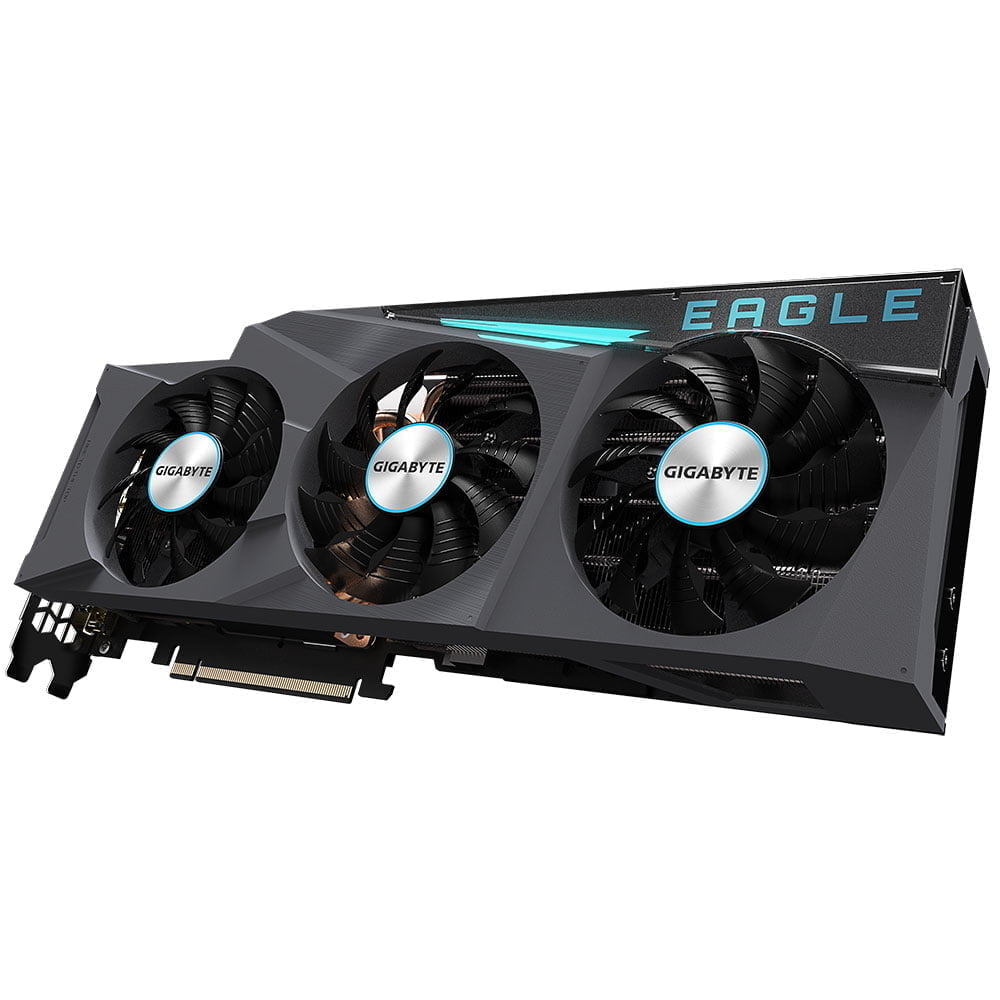

The Gigabyte GeForce RTX™ 3080 Eagle 10G is an outstanding NVIDIA GeForce 30 Series graphics option thanks to its stylish design, RGB Fusion 2.0 LED lighting and highly effective semi-passive Windforce 3x Cooling system. The GPU also features a protection metal backplate to complete the card’s premium look and feel.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
| Manufacturer | |
|---|---|
| Manufacturer Part Number |
GV-N3080EAGLE-10GD |
Cooling:
| # Included Fans |
3 |
|---|
Dimensions:
| Item Depth (CM) |
12.8 |
|---|---|
| Item Height (CM) |
5.6 |
| Item Width (CM) |
32 |

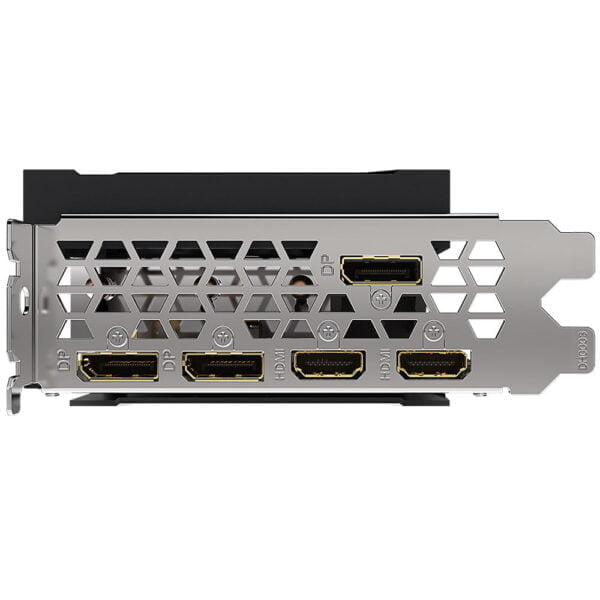

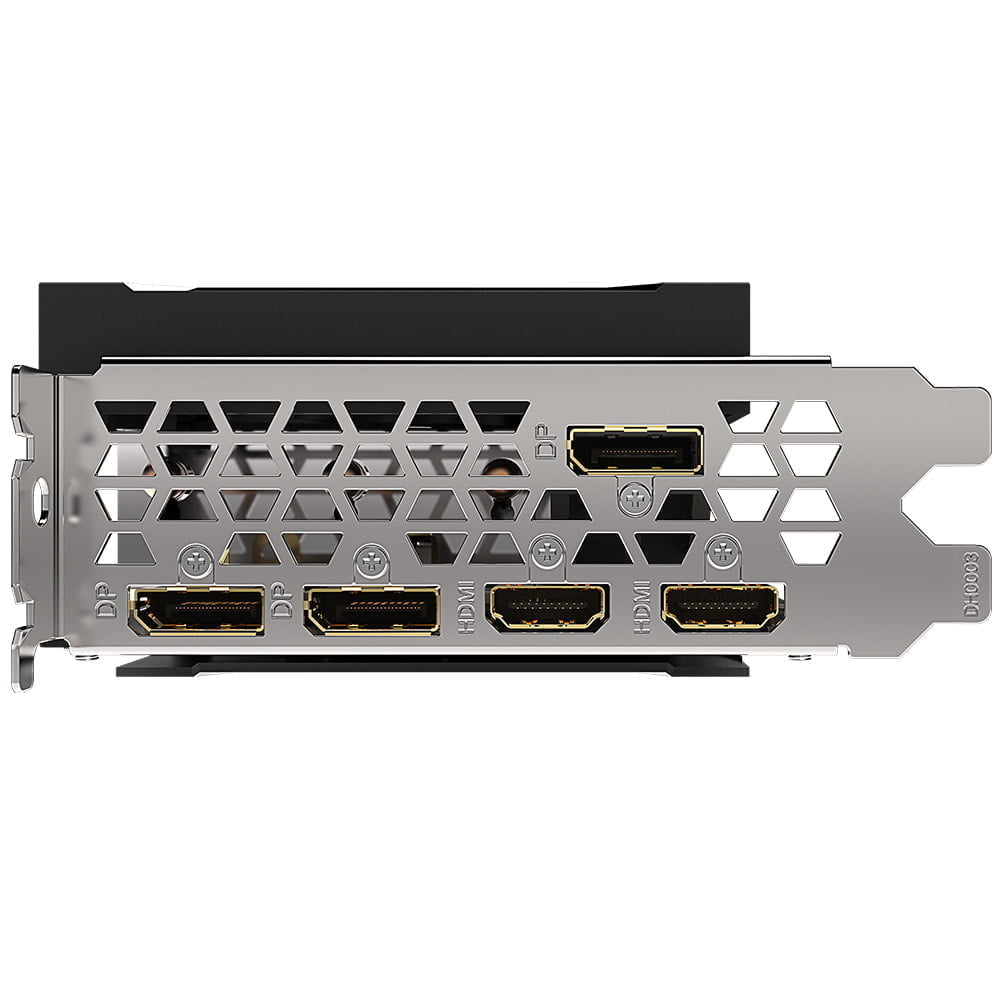

External IO:
| # DisplayPort |
3x 1.4a |
|---|---|
| # HDMI |
2x 2.1 |
| # Max Simultaneous Displays |
4 |
| Max Resolution |
7680×4320 |
GPU:
| # CUDA Cores |
8704 |
|---|---|
| Core Clock (MHz) |
1710 |
| GPU Architecture | |
| GPU Slot Size | |
| Lithography |
8nm |
| Memory Interface (bit) |
320 |
Memory:
| Memory Bandwidth (GB/s) |
760 |
|---|---|
| Memory Capacity (GB) |
10 |
| Memory Frequency (MHz) |
19000 |
| Memory Type |
GDDR6X |
Misc.:
| Accessories |
Quick guide |
|---|
PCIe:
| # PCIe Lanes |
16 |
|---|---|
| PCIe Version |
PCIe 4.0 |

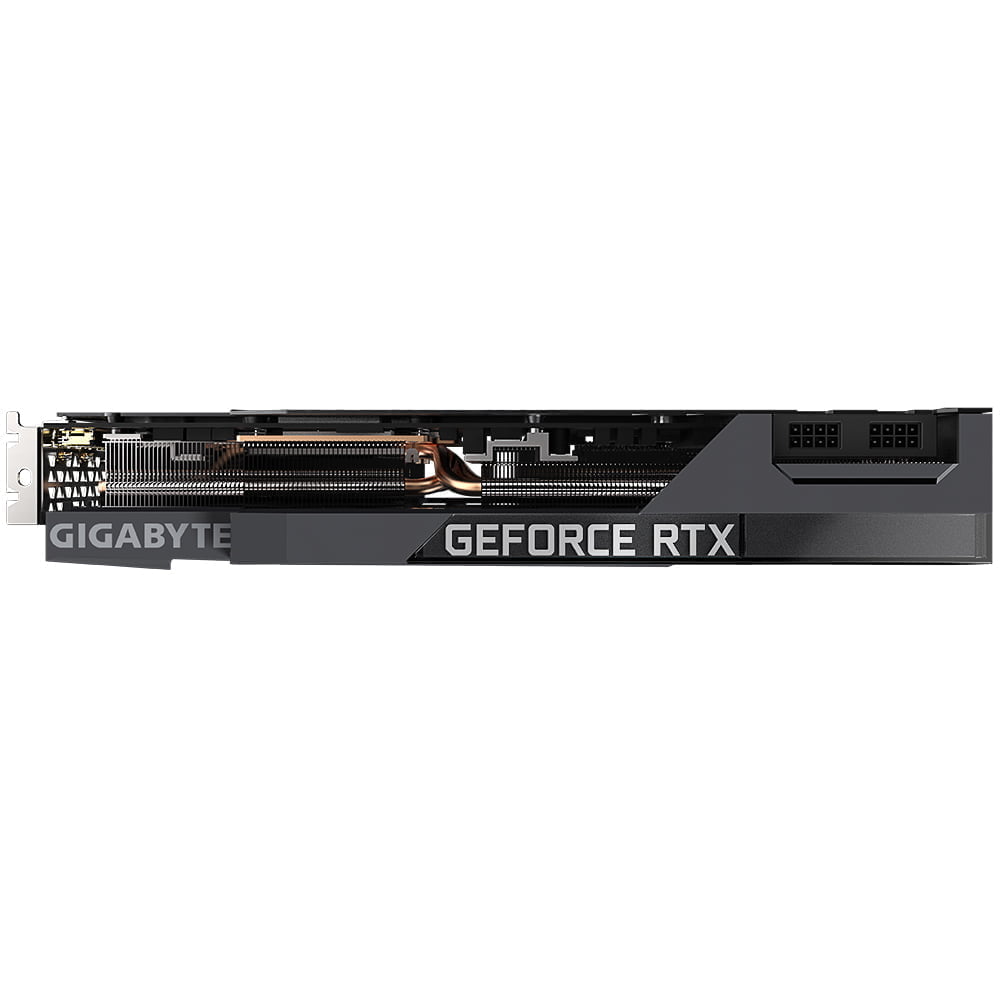

Power:
| # 8 Pin PCIe |
2 |
|---|---|
| Recommended PSU |
750W |
Software:
| API Support |
DirectX 12 Ultimate, OpenGL 4.6 |
|---|---|
| Supported OS |
Linux, Windows 10, Windows 11 |
* Specifications for older discontinued variants can be view by clicking here
