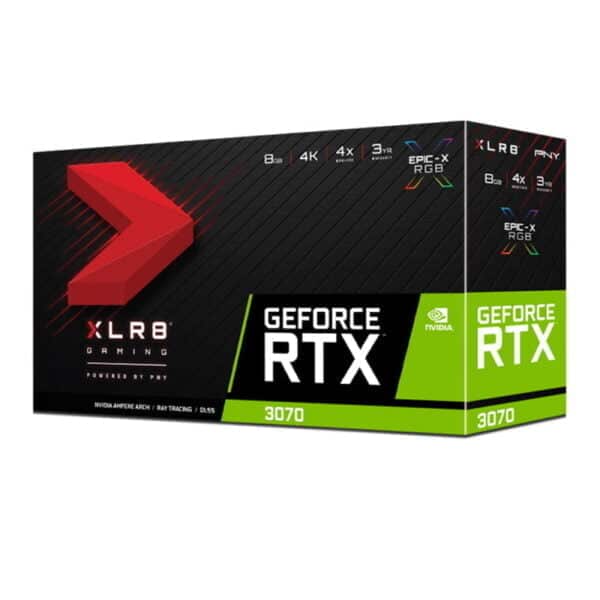

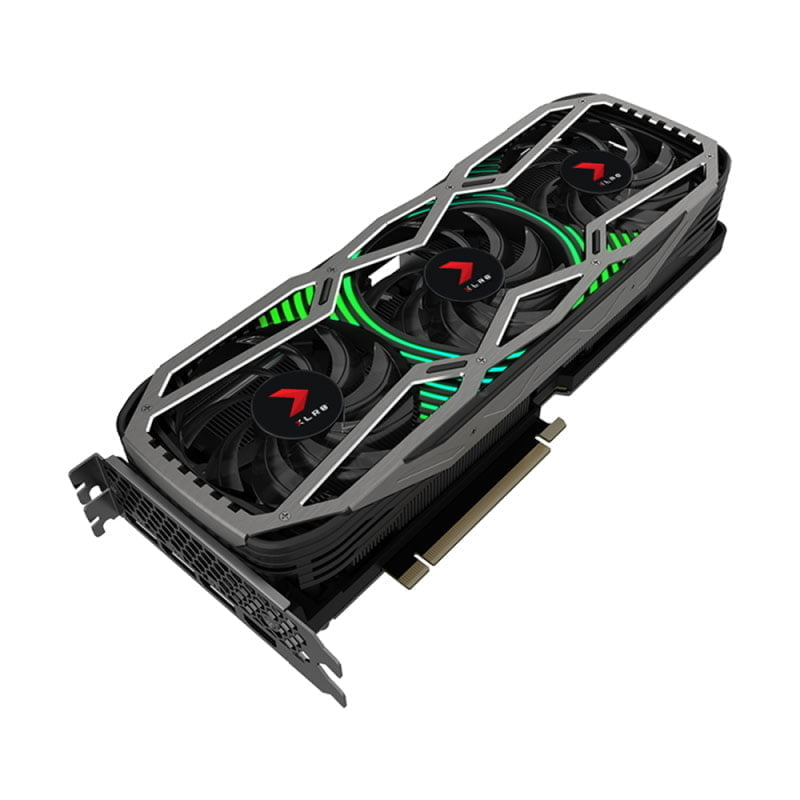

GeForce RTX 3070 EPIC-X RGB Triple Fan XLR8 Gaming Edition
SKU: GFXRETAILNGRTX3070PNYEPICXRGB
The GeForce RTX™ 3070 brings exceptional performance to the masses, featuring the NVIDIA latest 8nm Ampere architecture and 2nd generation NVIDIA RTX technologies. This mid-tier graphics card keeps pace with the very best of the previous generation had to offer while being significantly lower in cost.
The NVIDIA GeForce RTX™ 3070 features 2nd gen RT Cores that dramatically accelerates Ray Tracing rendering tasks and 3rd gen Tensor Cores perfectly suited to enhance Artificial Intelligence workflows. Gamers and creators alike will benefit from the combination of RT cores, Tensor cores and streaming multiprocessors found within NVIDIA Ampere graphics cards.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
:
| Website Product Image URL | Click Here |
|---|

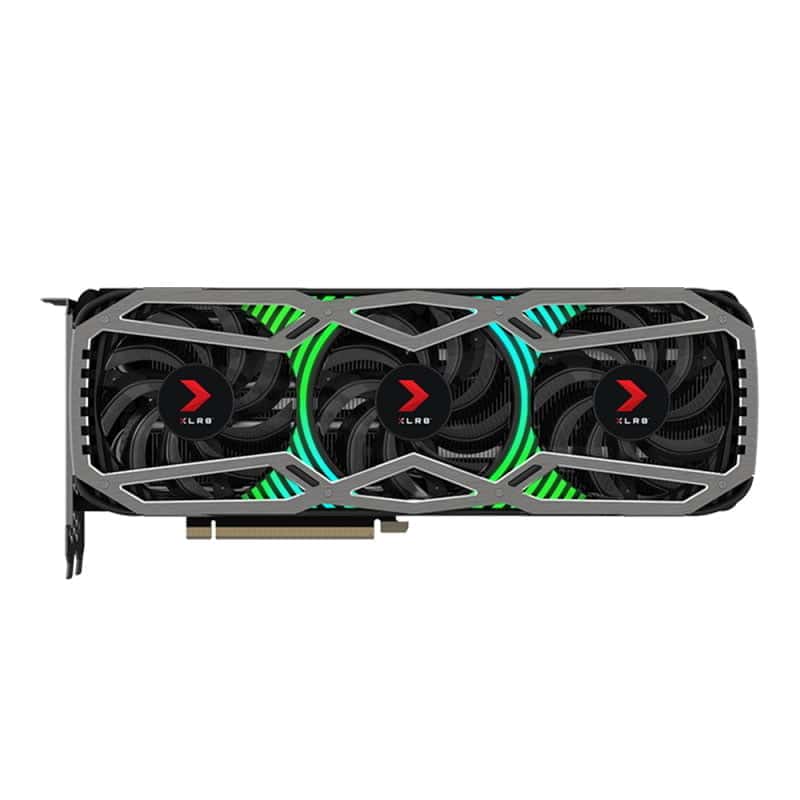

Cooling:
| Cooling Notes |
Top Down |
|---|---|
| # Included Fans |
3 |
| Fan Type |
PWM |
Dimensions:
| Item Height (CM) |
5.58 |
|---|---|
| Item Width (CM) |
29.4 |
| Item Depth (CM) |
11.2 |

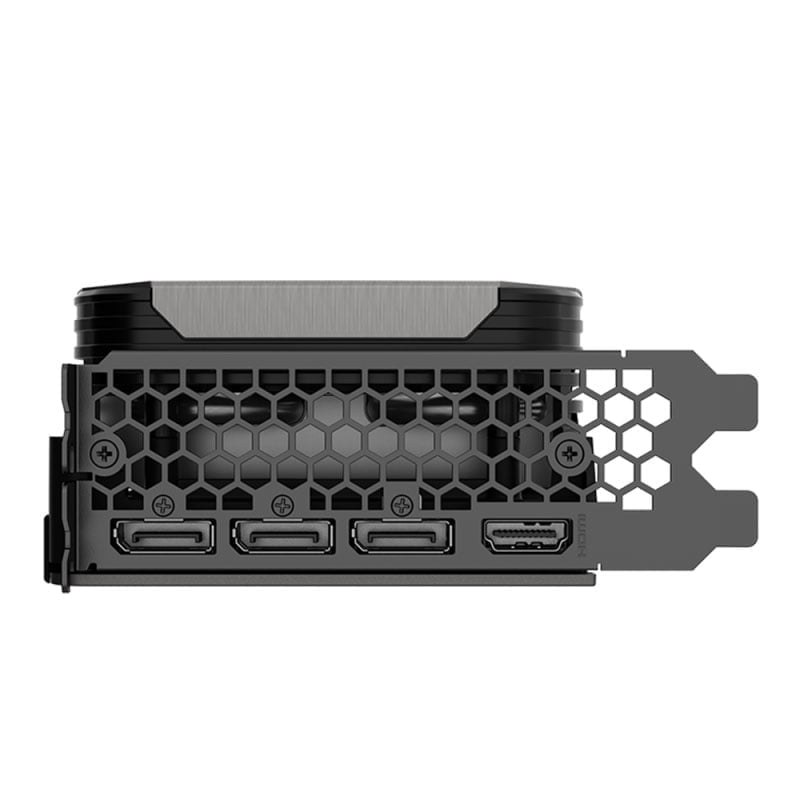

External IO:
| # Max Simultaneous Displays |
4 |
|---|---|
| # DisplayPort |
3x DisplayPort 1.4 |
| # HDMI |
1x HDMI 2.1 |
| Max Resolution |
7680 × 4320 @60Hz (Digital) |
GPU:
| GPU Slot Size | |
|---|---|
| GPU Architecture | |
| # CUDA Cores |
5888 |
| # RT Cores |
46 |
| # Tensor Cores |
184 |
| Memory Interface (bit) |
256 |
| Lithography |
8nm |
Memory:
| Memory Type |
GDDR6 |
|---|---|
| Memory Capacity (GB) |
8 |
| Memory Bandwidth (GB/s) |
448 |
PCIe:
| PCIe Version |
PCIe 4.0 |
|---|---|
| # PCIe Lanes |
16 |
Power:
| Wattage |
220 |
|---|---|
| # 6+2 Pin PCIe |
2 |
Software:
| API Support |
OpenGL 4.6, Vulkan RT |
|---|
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
* Specifications for older discontinued variants can be view by clicking here
