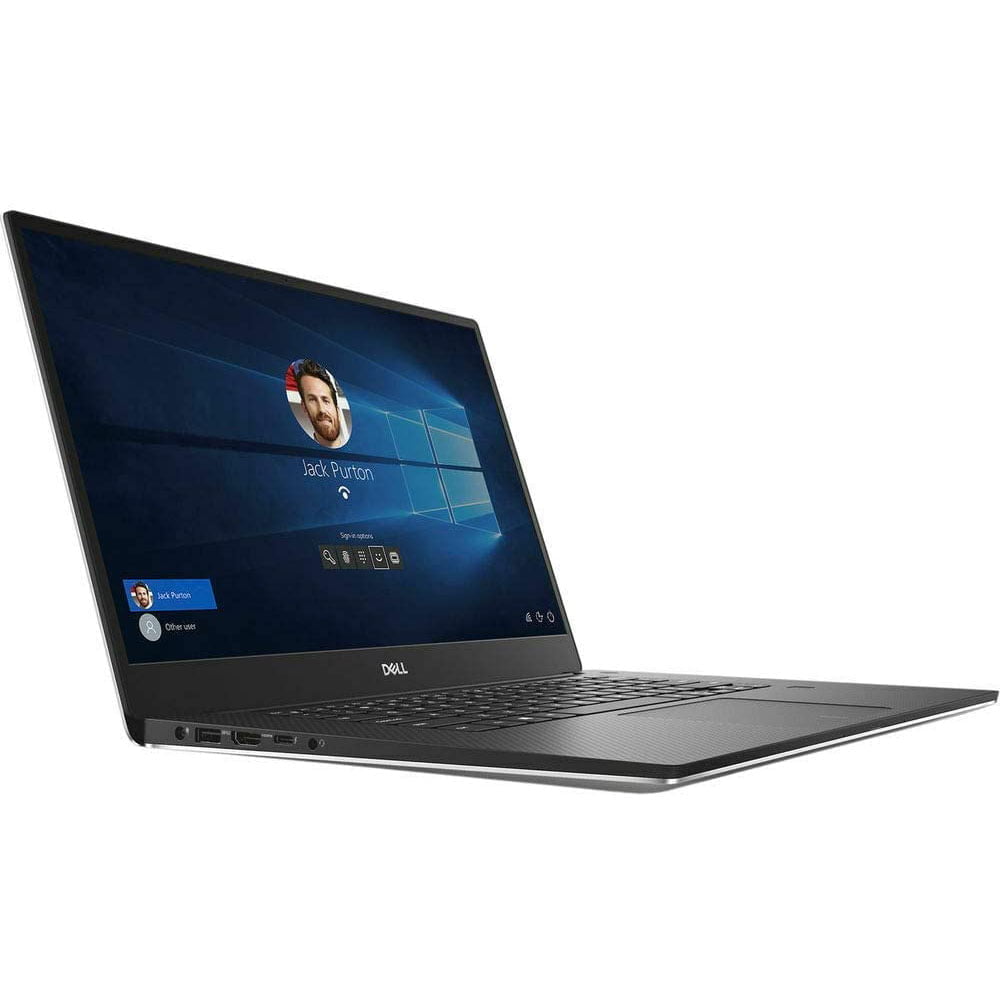

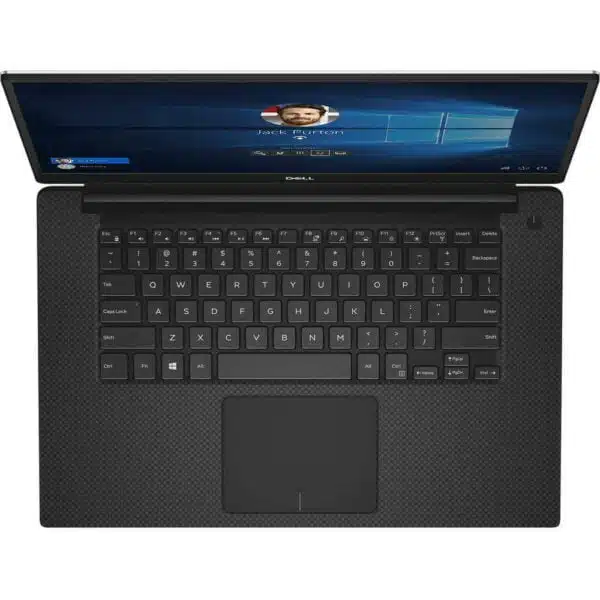

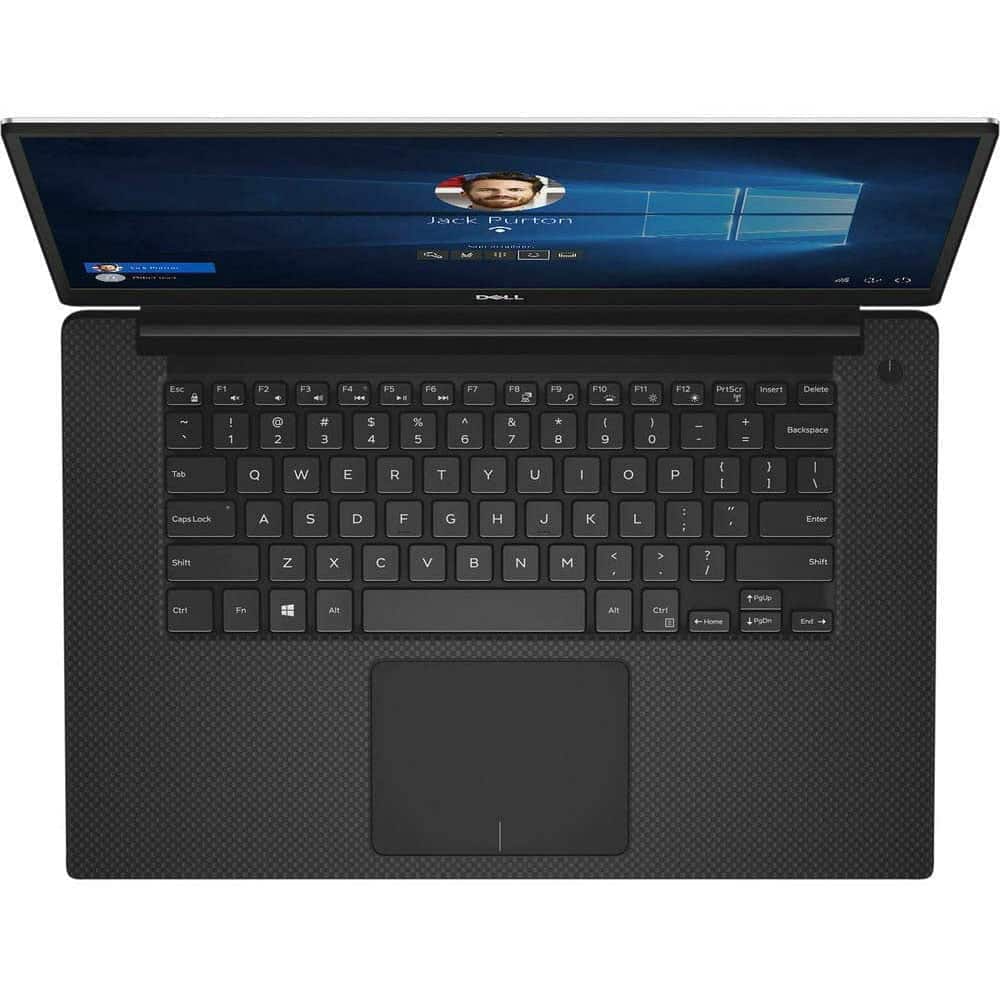

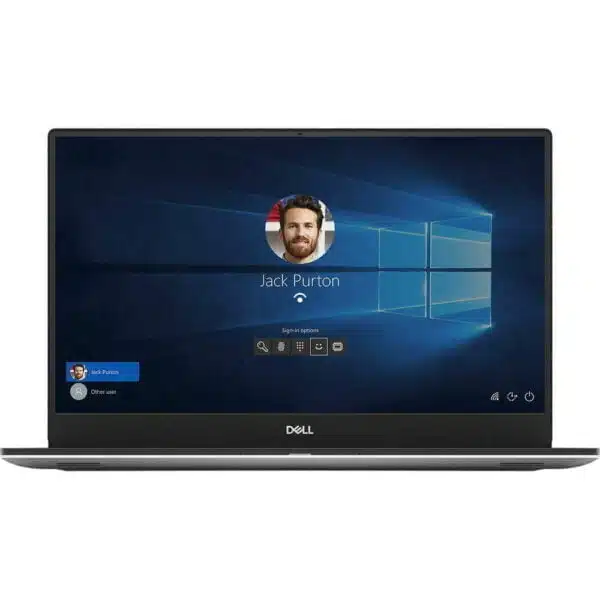

Dell Precision 5540 – 15.6″ Full HD, i7-9750H, 32GB 2666MHz, Quadro T1000, 3 Year On-Site
SKU: BBDELLPRECISION5540-9750H-T1000
The Dell Precision mobile workstations excel under demanding standards. With the latest Intel® processors, NVIDIA® professional graphics, Dell Precision Optimizer and OLED display options, they focus power and speed behind your biggest ideas.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
:
| Series Name |
Precision |
|---|---|
| Boot Selection Key |
F12 |
Audio:
| # 3.5mm Jacks |
1 |
|---|
Chassis:
| Kensington Lock Support |
1 |
|---|
Cooling:
| # Included Fans |
2 |
|---|
Dimensions:
| Item Height (CM) |
1.68 |
|---|---|
| Item Width (CM) |
35.72 |
| Item Depth (CM) |
23.55 |
| Item Weight (Kg) |
1.78 |
External IO:
| # Thunderbolt |
1x Thunderbolt 3 (USB-C) |
|---|---|
| # HDMI |
1x HDMI 2.0 |
| # Side USB 3.2 Gen 1 Type-A |
2 |
GPU:
| # CUDA Cores |
768 |
|---|---|
| Memory Interface (bit) |
128 |
| 10-Bit Colour Support |
1 |
| Integrated GPU Model |
NVIDIA Quadro T1000 – 4GB GDDR5 |
Internal IO:
| # M.2 NVMe PCIe 3.0 x4 |
1 |
|---|
Memory:
| Max. Memory Capacity (GB) |
64 |
|---|---|
| Min. Supported Memory Frequency (MHz) |
2666 |
| Max. Memory Channels |
2 |
| # Memory Slots |
2 |
| Memory Form Factor |
SODIMM |
| Memory Type |
Non-ECC UDIMM |
| DDR Rev. |
DDR4 |
| Integrated Memory Config |
32GB (2x 16GB DDR4 2666MHz) |
Misc.:
| Certifications |
Independent Software Vendor (ISV) certification: Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV certifications cover the most popular independent software applications. |
|---|---|
| Additional Information |
1x SD Card Reader |
Network:
| WiFi |
1 |
|---|---|
| WiFi Details |
Intel Dual Band Wireless AC 9260 802.11ac MU-MIMO 2x |
| Bluetooth |
1 |
| Bluetooth Details |
Bluetooth 5.0 vPro |
PCIe:
| PCIe Version |
PCIe 3.0 |
|---|
Power:
| Wattage |
130 |
|---|---|
| Battery |
3-cell 56Wh Lithium Ion battery with ExpressCharge |
Processor:
| Base Clock Speed (GHz) |
2.6 |
|---|---|
| Turbo Clock Speed (GHz) |
4.5 |
| # Cores |
6 |
| Supports Hyper-Threading |
1 |
| # Threads |
12 |
| Intel Smart Cache (MB) |
12 |
| Processor Generation |
Intel Core 9th Gen. |
| Integrated CPU Model |
Intel Core i7 9750H Processor |
Screen:
| Screen Size (inch) |
15.6 |
|---|---|
| Screen Native Resolution |
1920×1080 |
Software:
| Supported OS |
Ubuntu, Windows 10 |
|---|
Storage:
| Integrated Storage Drives |
512GB Class 40 |
|---|
Storage Bays:
| # Dedicated 2.5Inch Bays |
1 |
|---|
* Specifications for older discontinued variants can be view by clicking here
