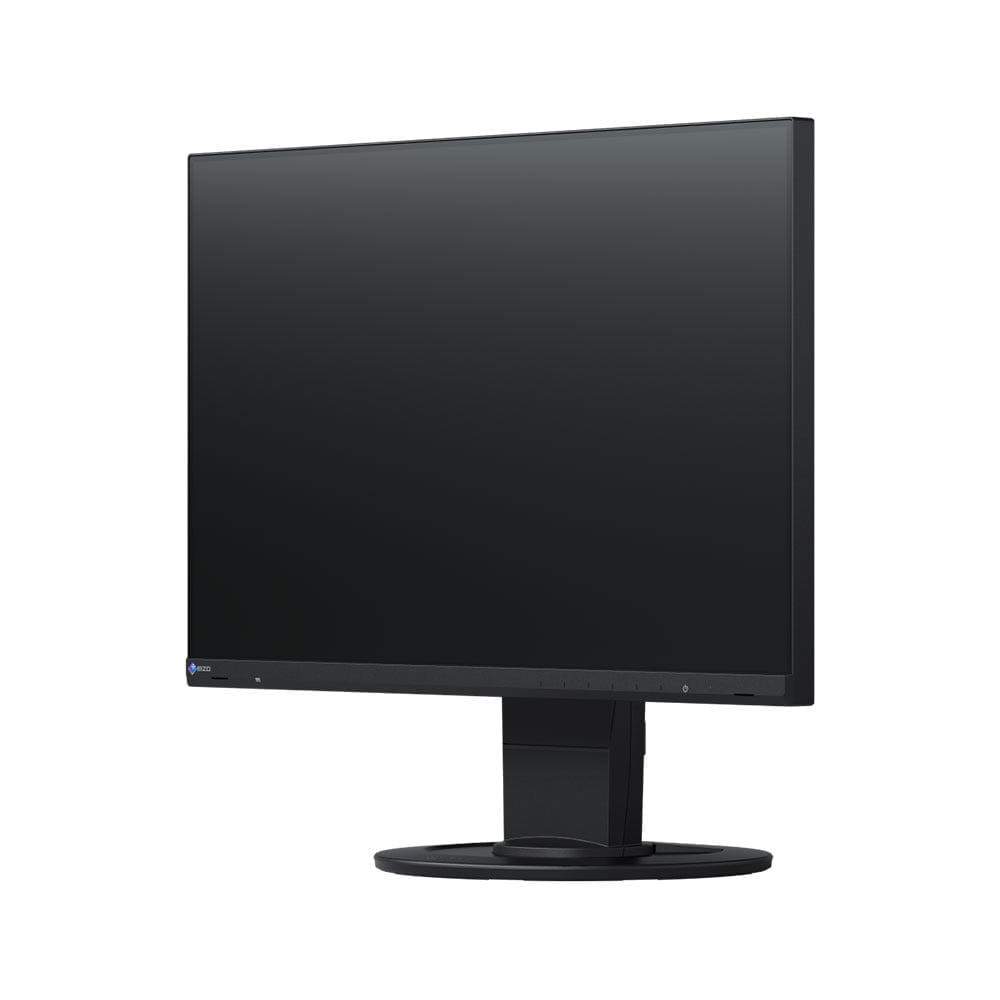

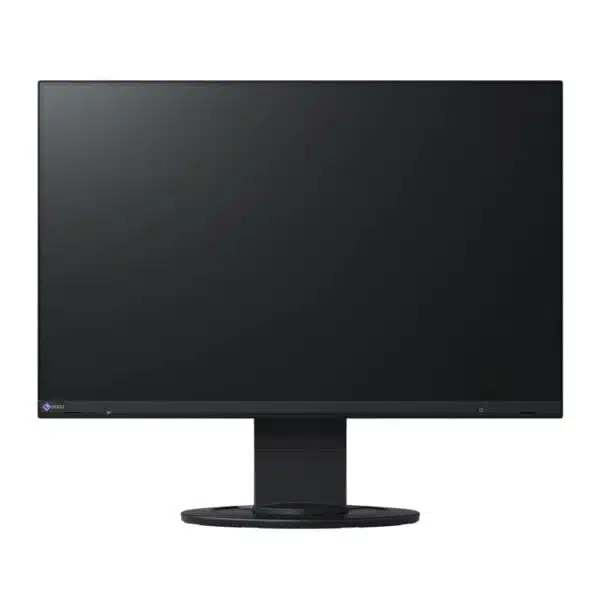

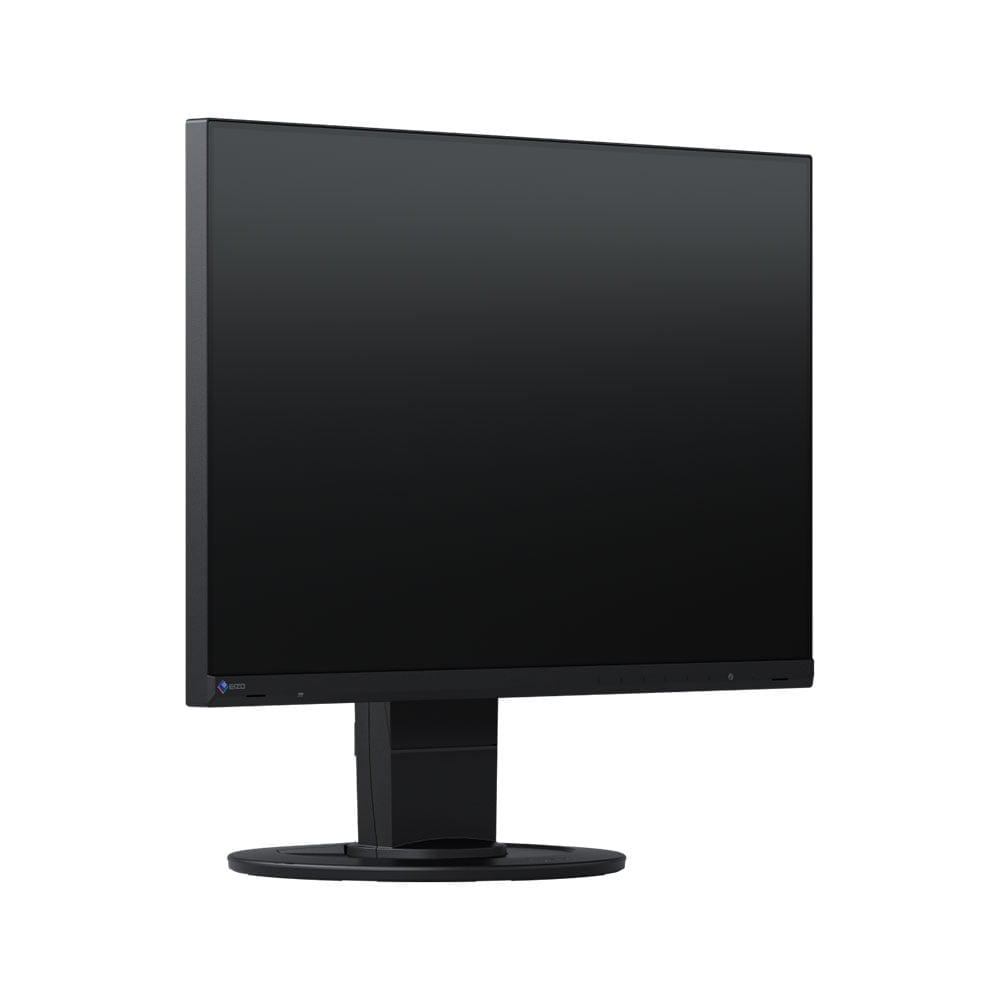

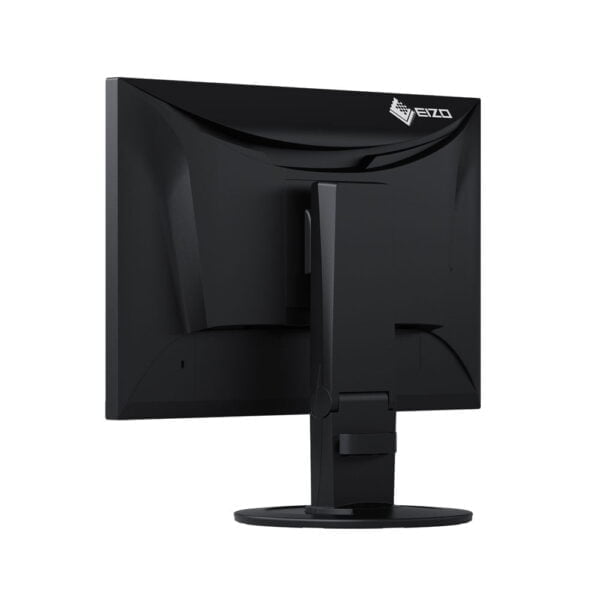

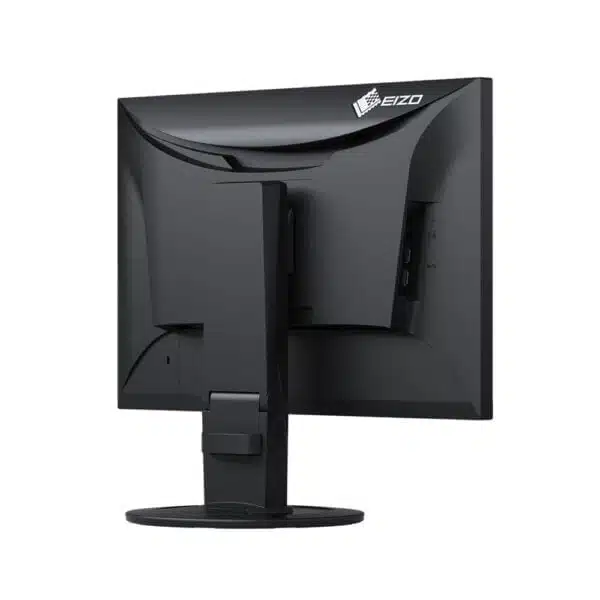

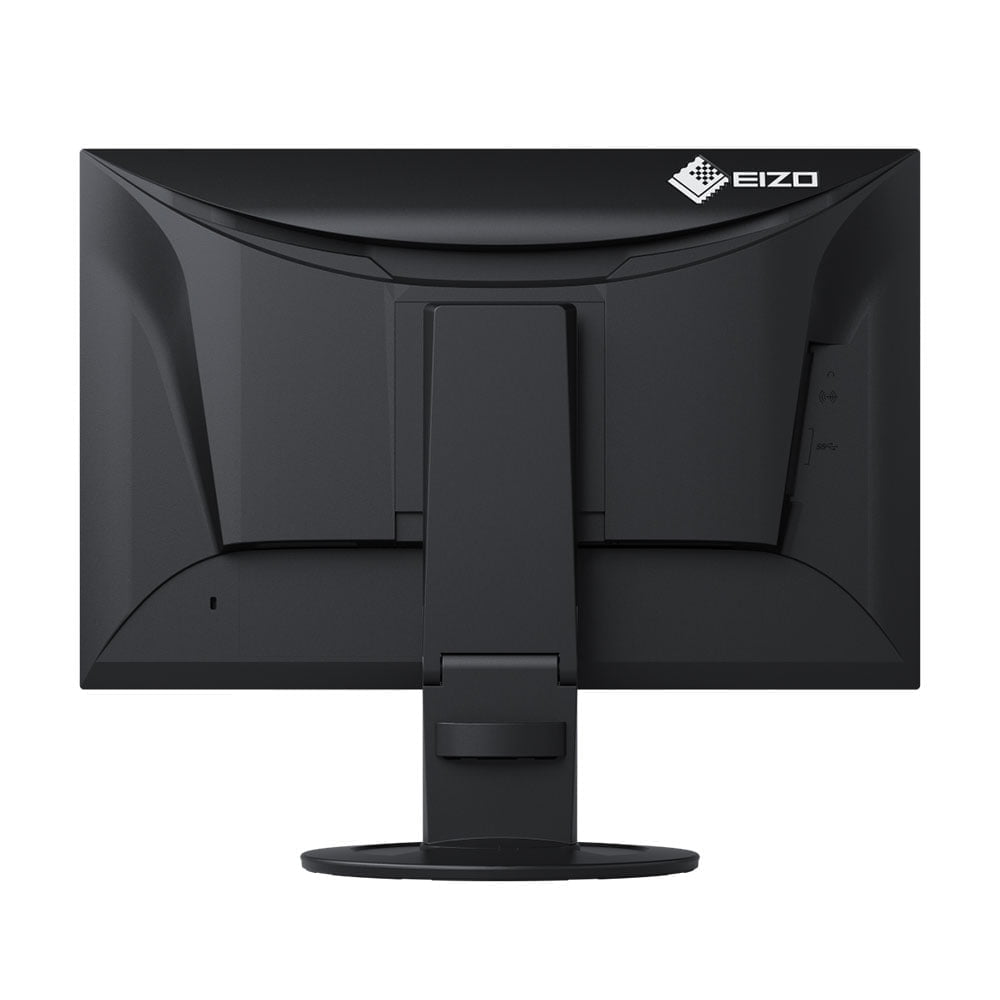

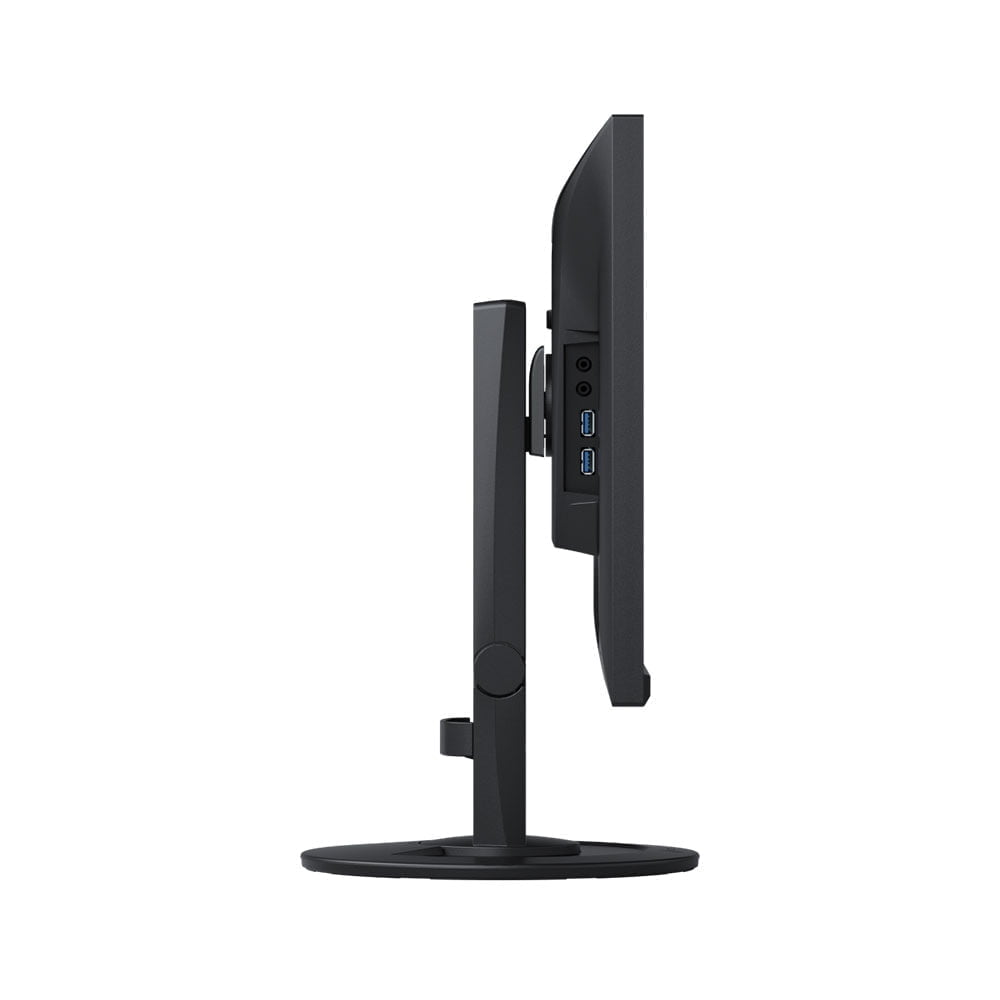

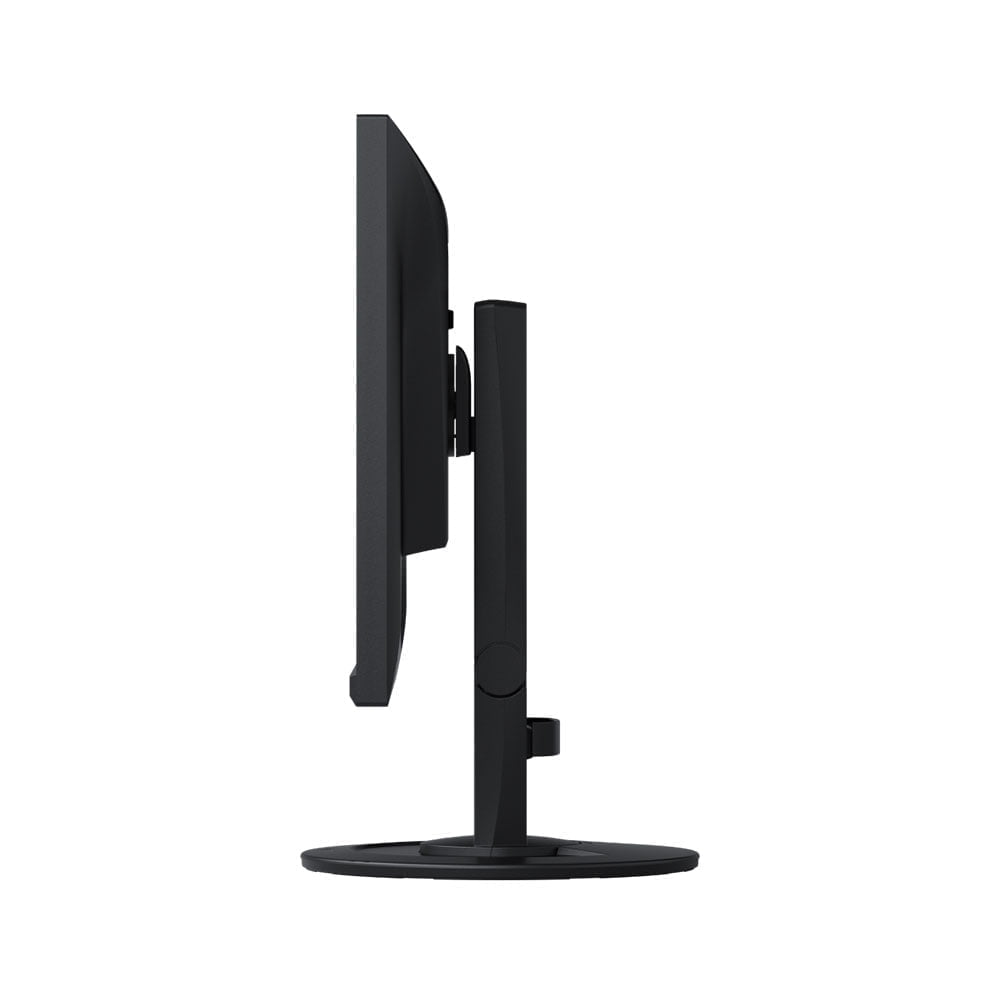

High resolution within a small footprint. The EV2360 22.5Inch IPS Panel is one of Eizo’s smallest frame-less design Monitors. The native 1920×1200 resolution displays 11% more content to the user than a conventional 1920 x 1080 monitor. The EV2360 also implements Eizo’s EcoView technologies cutting power consumption by up to 40%. Due to the monitors ability to intelligently adjust screen brightness depending on ambient lighting conditions and content on the screen, the EV2360 goes a long way to eliminating user eyestrain.
| Speakers |
1.0 W + 1.0 W |
|---|
| Item Weight (Kg) |
5.5 |
|---|
| # DisplayPort |
1x DisplayPort (HDCP 1.3) |
|---|---|
| # HDMI |
1x HDMI (HDCP 1.4) |
| # VGA |
1 |
| Certifications |
TCO Certified Generation 8, EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, China Energy Label Grade2, EAC |
|---|---|
| Included Extras |
DisplayPort Cable (2 m) |
| Digital Scanning Freq (H/V) |
DisplayPort: 31 – 75.5 kHz / 59 – 61 Hz |
|---|---|
| Downstream USB (Mon-Device) |
USB 3.1 Gen 1: Type-A x 2 |
| Upstream USB (Comp-Monitor) |
USB 3.1 Gen 1: Type-B |
| Auto EcoView Support |
yes |
| Monitor Preset Modes |
Color mode (User1, User2, sRGB, Paper, Movie, DICOM) |
| OSD Languages |
English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish |
| Dimensions Without Stand |
WxHxD: |
| Tilt |
35° Up, 5° Down |
| Swivel |
344° |
| Pivot |
90° |
| Hole Spacing (VESA Standard) |
100 x 100 mm |
| Monitor Frame Colour |
Black |
| Operating Temperature |
5 – 35 °C |
| Operating Humidity (R H) |
20 – 80 % |
| Dimensions With Stand |
WxHxD: |
| Wattage |
37 |
|---|---|
| Input Voltage (v) |
AC 100–240V |
| Power Frequency (Hz) |
50/60 Hz |
| Avg Power Consumption (W) |
11 |
| Screen Type |
IPS |
|---|---|
| Screen Backlight |
LED |
| Screen Size (inch) |
22.5 |
| Screen Native Resolution |
1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) |
488.2 x 297.2 mm |
| Pixel Pitch |
0.254 x 0.248 mm |
| Pixel Density |
101ppi |
| Display Colours |
16.77 million |
| Viewing Angles/Zones (H/V) |
178° / 178° |
| Screen Brightness |
250 cd/m2 |
| Contrast Ratio |
41.6674 |
| Screen Response Time |
5 ms (gray-to-gray) |
| Colour Gamut |
sRGB |
| Mfr Warranty Length (M) |
60 |
|---|
