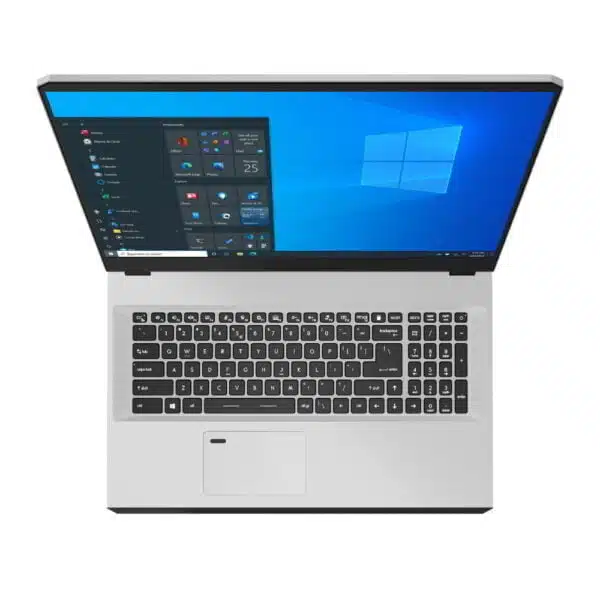

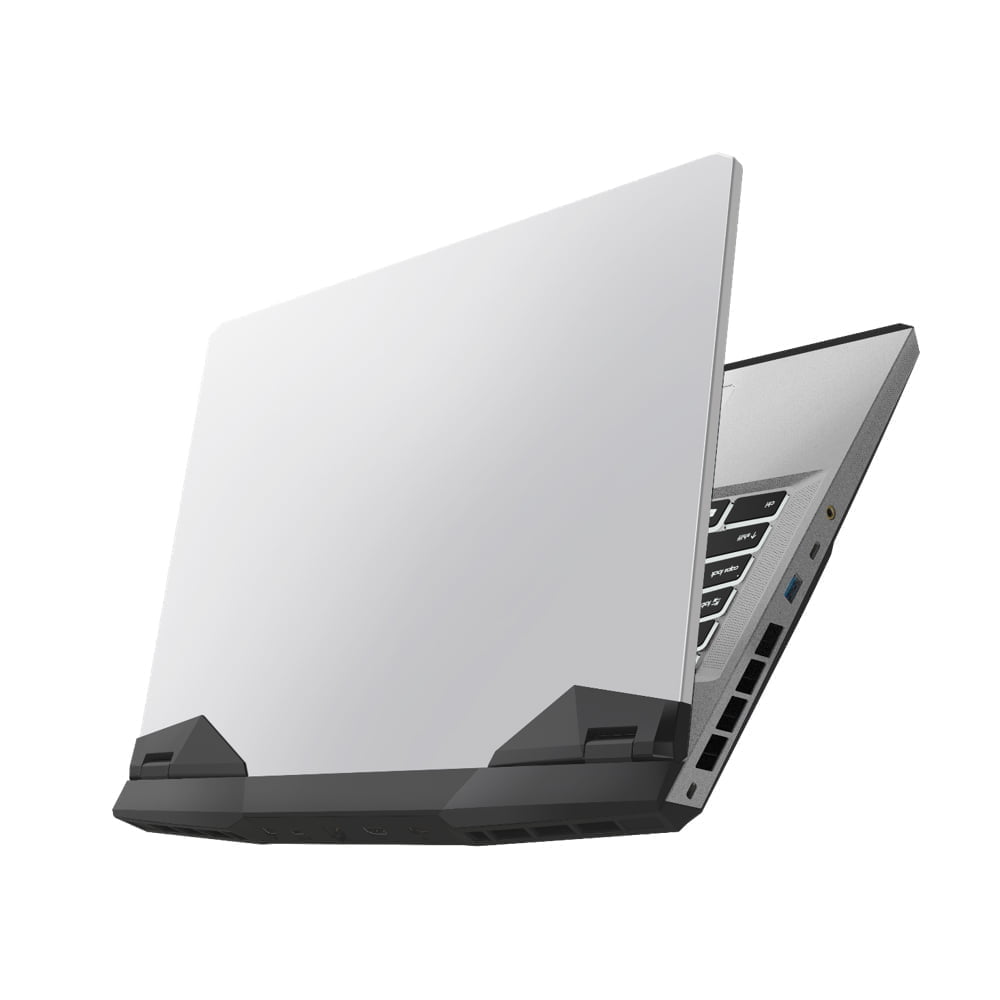

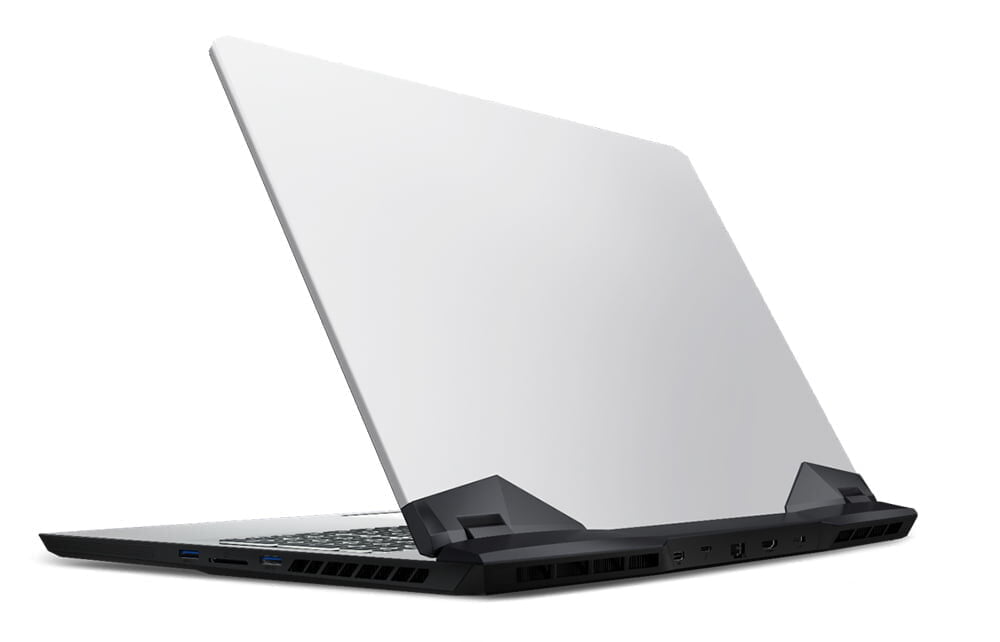

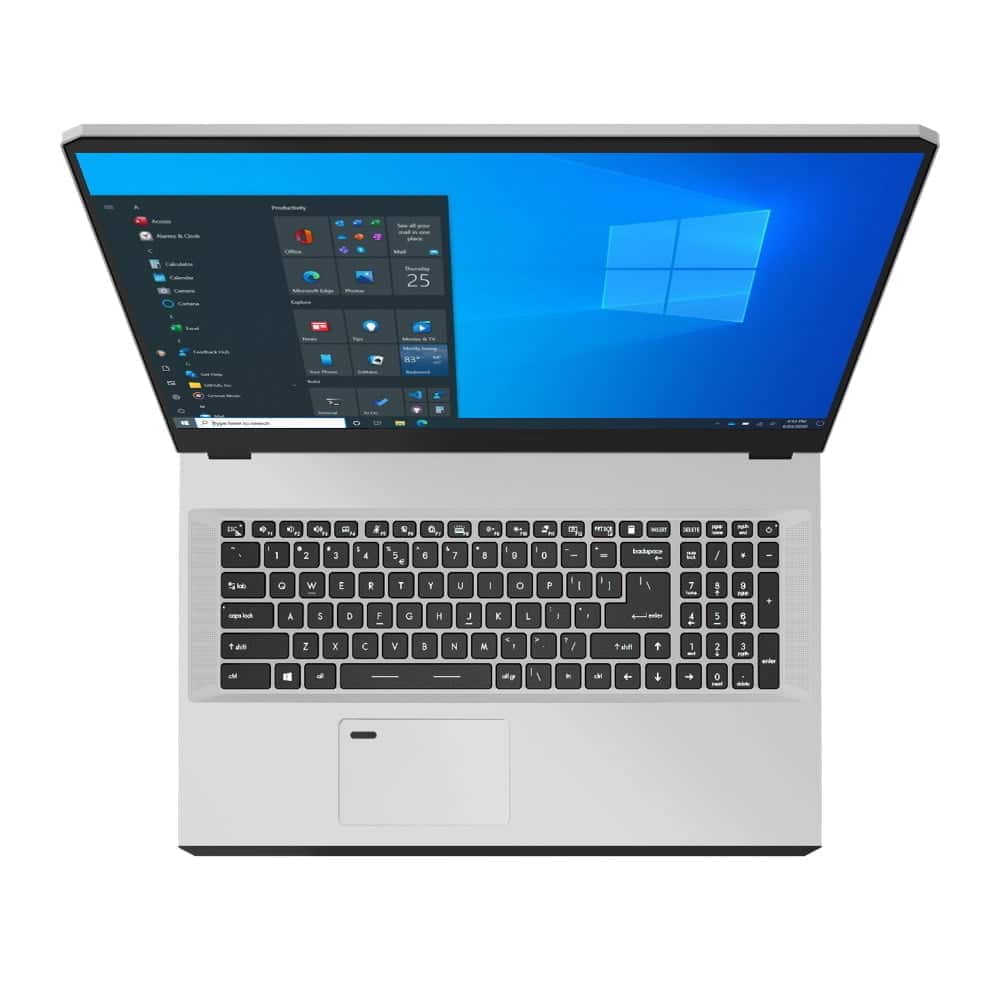

17 WS-M Monazite Pro Mobile Workstation
The 17″ WS-M Monazite Pro features the latest NVIDIA RTX A3000 or A5000 professional graphics cards based on the latest NVIDIA Ampere architecture. It also provides users with an 11th Gen Intel Core i9-11980HK processor, 17.3″ 3840×2160 100% Adobe RGB display, up to 64GB of RAM and NVMe PCIe 4.0 SSD storage technology.
This lightweight professional Mobile Workstation with a large 17″ inch display is among the most powerful professional Mobile Workstations available today while remaining highly portable. The 17″ WS-M Monazite Pro is the go-to choice for architects, engineers, animators and data scientists needing a large display when on the move.
End of Life
SKU: WS-MM17K3-I11980HK-NAx000
Categories: Mobile Workstations
Tags: Configurable Product
End of Life
Details & Specifications
Details & Specifications
Audio:
| # 3.5mm Jacks |
1 |
|---|
Cooling:
| Active Cooling |
Yes |
|---|
Dimensions:
| Item Depth (CM) |
28.4 |
|---|---|
| Item Height (CM) |
2.59 |
| Item Weight (Kg) |
2.9 |
| Item Width (CM) |
39.7 |
External IO:
| # HDMI |
1x (8K @ 60Hz / 4K @ 120Hz) |
|---|---|
| # Max Simultaneous Displays |
4 |
| # Mini-DisplayPort |
1 |
| # SD Express |
1 |
| # Side 2.5Gbps RJ45 Ports |
1 |
| # Side USB 3.2 Gen 1 Type-A |
1 |
| # Side USB 3.2 Gen 2 Type-A |
1 |
| # Side USB 3.2 Gen 2 Type-C |
1 |
| # Type-C (USB / DP / Thunderbolt™ 4) |
1 |
| Card Reader |
1x SD Express |
| Max Resolution |
8K @ 60Hz |
GPU:
| # CUDA Cores |
NVIDIA RTX A3000: 4096 |
|---|---|
| # RT Cores |
NVIDIA RTX A3000: 32 |
| # Tensor Cores |
NVIDIA RTX A3000: 128 |
| ECC Support |
Yes |
| FP16 Performance (TFLOPS) |
NVIDIA RTX A3000: 12.78 |
| FP32 Performance (TFLOPS) |
NVIDIA RTX A3000: 12.78 |
| FP64 Performance (GFLOPS) |
NVIDIA RTX A3000: 199.7 |
| GPU - Memory Type |
GDDR6 |
| GPU Architecture | |
| Integrated GPU Model |
NVIDIA RTX A3000 |
| Lithography |
8nm |
| Memory Bandwidth (GB/s) |
NVIDIA RTX A3000: 264 |
| Memory Capacity (GB) |
NVIDIA RTX A3000: 6 |
| Memory Interface (bit) |
NVIDIA RTX A3000: 192 |
Internal IO:
| # M.2 NVMe PCIe 3.0 x4 |
1 |
|---|---|
| # M.2 NVMe PCIe 4.0 x4 |
1 |
| TPM Support |
Yes |
Memory:
| # Memory Slots |
2 |
|---|---|
| DDR Rev. |
DDR4 |
| Max. Memory Capacity (GB) |
64 |
| Max. Memory Channels |
2 |
| Max. Supported Memory Frequency (MHz) |
3200 |
| Memory - Memory Type |
Non-ECC UDIMM |
| Memory Form Factor |
SO-DIMM |
Network:
| Bluetooth |
Yes |
|---|---|
| Bluetooth Details |
Bluetooth v5.2 |
| WiFi |
Yes |
| WiFi Details |
Killer ax Wi-Fi 6E |
PCIe:
| PCIe Version |
4 |
|---|
Power:
| AC Adapter |
NVIDIA RTX A3000: 240W |
|---|---|
| Battery |
99.9 Battery (Whr) |
Processor:
| # Cores |
8 |
|---|---|
| # Threads |
16 |
| Integrated CPU Model |
Intel Core i9-11980HK |
| Intel Smart Cache (MB) |
24 |
| Max Boost Clock Speed (GHz) |
5 |
| Processor Chipset |
Intel® HM570 |
| Processor Generation |
11th Generation Intel® Core™ |
| Supports Hyper-Threading |
Yes |
Screen:
| Display Colours |
100% Adobe RGB |
|---|---|
| Screen Native Resolution |
3840×2160 |
| Screen Refresh Rate (Hz) |
120 |
| Screen Size (inch) |
17.3 |
| Screen Type |
IPS |
Software:
| Supported OS |
Linux, Windows 10, Windows 11 |
|---|
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
The 17″ WS-M Monazite Pro features the latest NVIDIA RTX A3000 or A5000 professional graphics cards based on the latest NVIDIA Ampere architecture. It also provides users with an 11th Gen Intel Core i9-11980HK processor, 17.3″ 3840×2160 100% Adobe RGB display, up to 64GB of RAM and NVMe PCIe 4.0 SSD storage technology.
This lightweight professional Mobile Workstation with a large 17″ inch display is among the most powerful professional Mobile Workstations available today while remaining highly portable. The 17″ WS-M Monazite Pro is the go-to choice for architects, engineers, animators and data scientists needing a large display when on the move.
