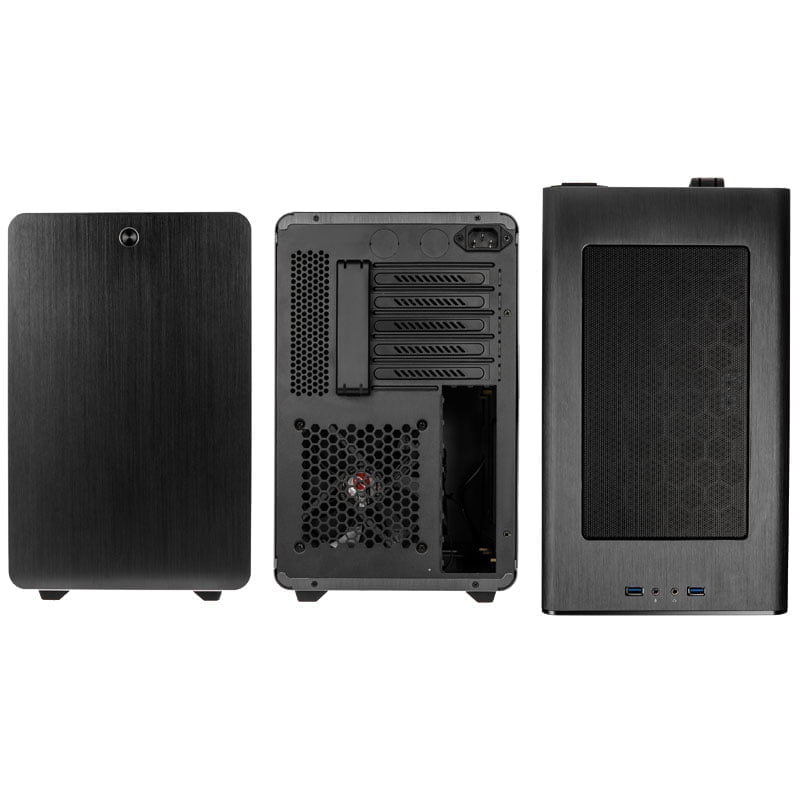

WS-1320A-MINI
SKU: WS-1320A-MINI

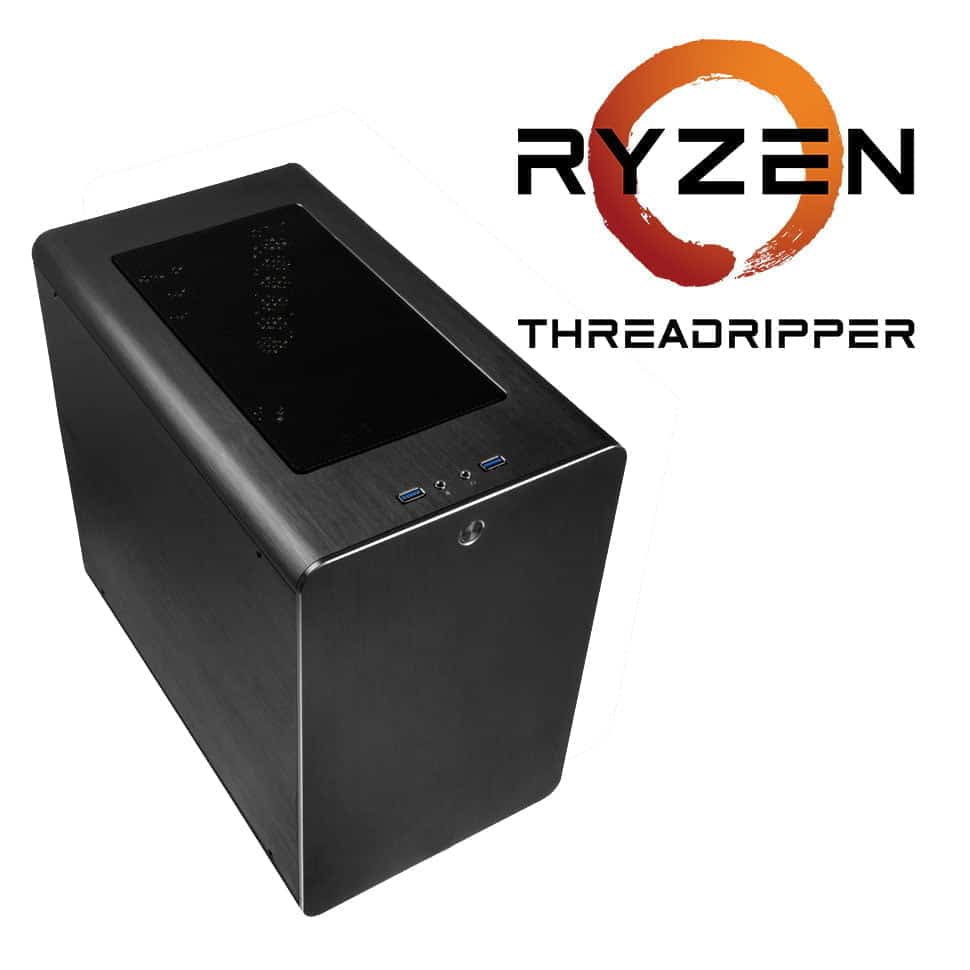

A small yet powerful workstation designed specifically for rendering. The WS-1320A-MINI is an ideal choice for a near-silent, cost-effective headless rendering system or to be configured as a small yet powerful 3D modeling and design workstation. Based around the latest AMD Threadripper up to 32 Cores and 64 threads processor, professional AMD or NVIDIA graphics, up to 64GB DDR4 memory and super-fast NVMe storage. The WS-1320A-MINI is the perfect companion for Media & Entertainment professionals.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
Dimensions:
| Item Depth (CM) |
33.5 |
|---|---|
| Item Height (CM) |
36 |
| Item Weight (Kg) |
41913 |
| Item Width (CM) |
21 |

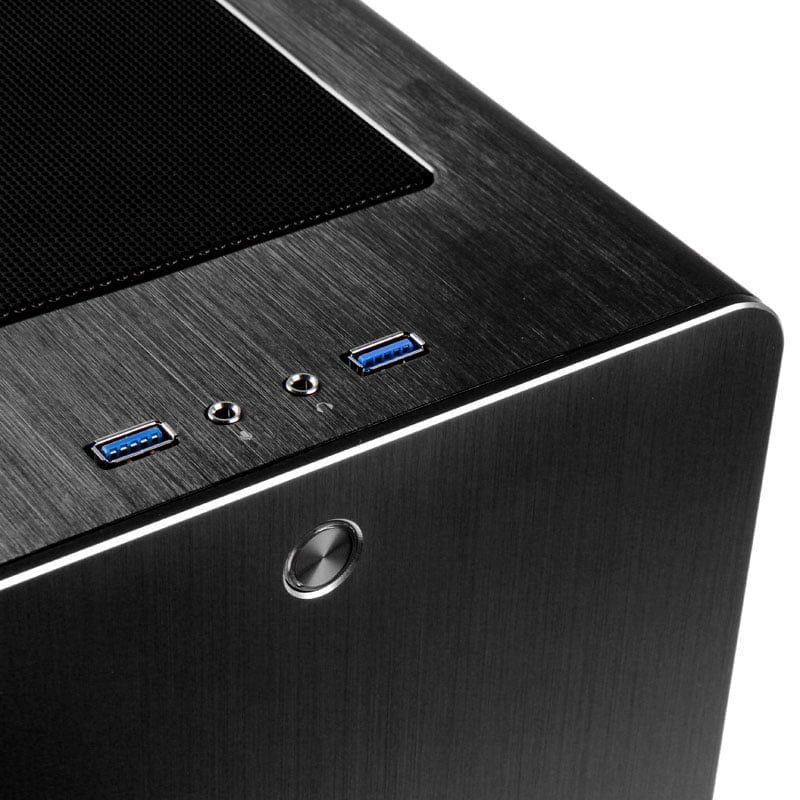

Front IO:
| # Front USB 3.2 Gen 1 Type-A |
2 |
|---|
Internal IO:
| # M.2 NVMe PCIe 3.0 x4 |
3 |
|---|---|
| # SATA3 (6Gbps) Ports |
8 |
| # U.2 Ports |
1 |
Memory:
| DDR Rev. |
DDR4 |
|---|---|
| Max. Memory Capacity (GB) |
64 |
| Max. Memory Channels |
4 |
| Memory Type |
Non-ECC UDIMM |
PCIe:
| PCIe Configuration |
PCIe 3.0 x16: 3 (x16/x16/x16) |
|---|
Processor:
| Processor Chipset |
AMD X399 |
|---|---|
| Processor Generation |
AMD Ryzen Threadripper 2nd Gen. |
| Socket |
TR4 |
Rear IO:
| # Rear 1Gbps RJ45 Ports |
2 |
|---|---|
| # Rear USB 3.2 Gen 1 Type-A |
8 |
| # Rear USB 3.2 Gen 2 Type-A |
1 |
| # Rear USB 3.2 Gen 2 Type-C |
1 |
Software:
| Supported OS |
Linux, Windows 10 |
|---|
Storage Bays:
| # Dedicated 2.5Inch Bays |
1 |
|---|---|
| # Dedicated 3.5Inch Bays |
1 |
| Slim Optical Drive |
Slot |
Warranty:
| Warranty Duration |
36 Months |
|---|---|
| Warranty Type |
Return To Base |
* Specifications for older discontinued variants can be view by clicking here
