AMD Radeon Pro WX 2100 – 2GB
SKU: GFXRETAILARPWX910016GB

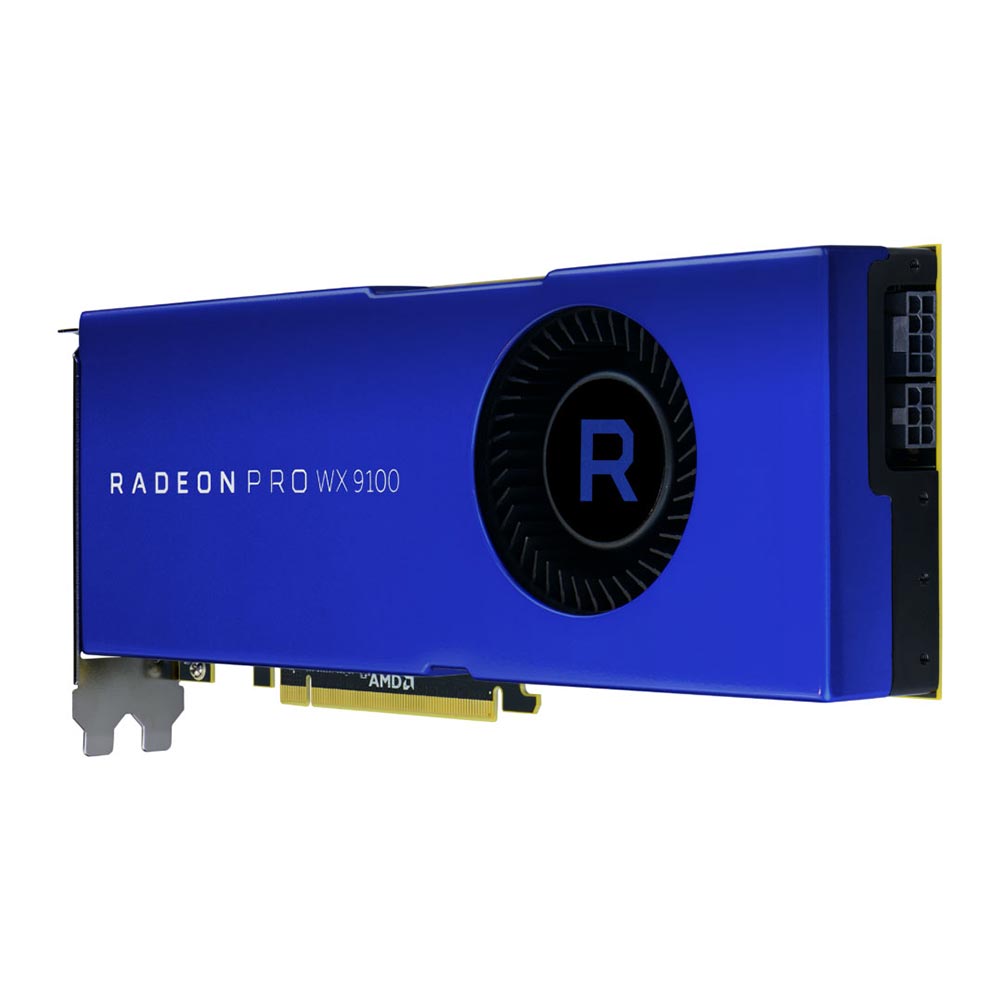

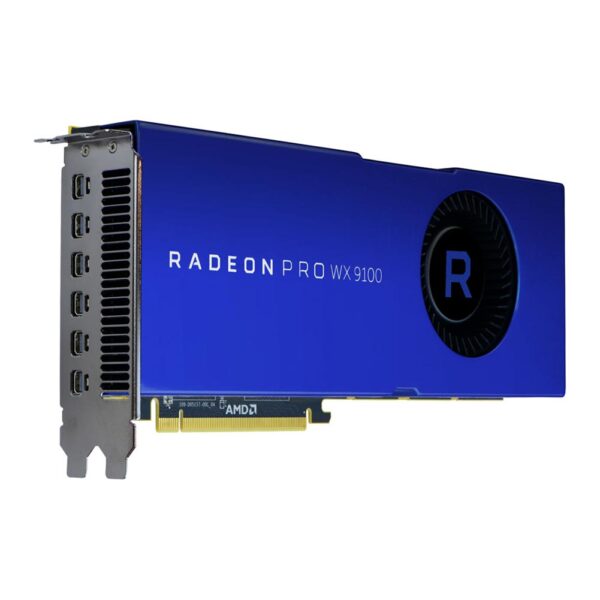

The Radeon™ Pro WX9100 is the flagship workstation graphics card from AMD featuring their latest “Vega” Architecture. This latest generation introduces a wealth of new technologies to professionals such as the High Bandwidth Cache Controller (HBCC) and a drastically new GPU memory hierarchy. This combined with 4096 stream processors enables users to achieve new heights of performance in real-time visualisation with exceptionally realistic rendering techniques.
End of Life
System Configuration
End of Life
Details & Specifications
Details & Specifications
:
| Driver Download Link | Click Here |
|---|---|
| Website Product Image URL | Click Here |
Dimensions:
| Item Depth (CM) |
26.7 |
|---|
External IO:
| # Max Simultaneous Displays |
6 |
|---|---|
| # Mini-DisplayPort |
6 |
| Max Resolution |
7680×4320 @ 60Hz (8K UHD) |
GPU:
| GPU Slot Size | |
|---|---|
| GPU Architecture | |
| FP32 Performance (TFLOPS) |
12 |
| FP64 Performance (TFLOPS) |
1 |
| Memory Interface (bit) |
2048 |
| 10-Bit Colour Support |
1 |
| Lithography |
14nm FinFET |
| # Stream Processors |
4096 |
| # Compute Units |
64 |
Memory:
| Memory Type |
HBM2 |
|---|---|
| Memory Capacity (GB) |
16 |
| Memory Bandwidth (GB/s) |
484 |
PCIe:
| PCIe Version |
PCIe 3.0 |
|---|
Power:
| Wattage |
230 |
|---|---|
| # 6+2 Pin PCIe |
1 |
| # 6 Pin PCIe |
1 |
Software:
| API Support |
DirectX 12.0, OpenCL 2.0, OpenGL 4.5, Vulkan 1.0 |
|---|---|
| Technology Support |
AMD Remote Workstation |
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
* Specifications for older discontinued variants can be view by clicking here
